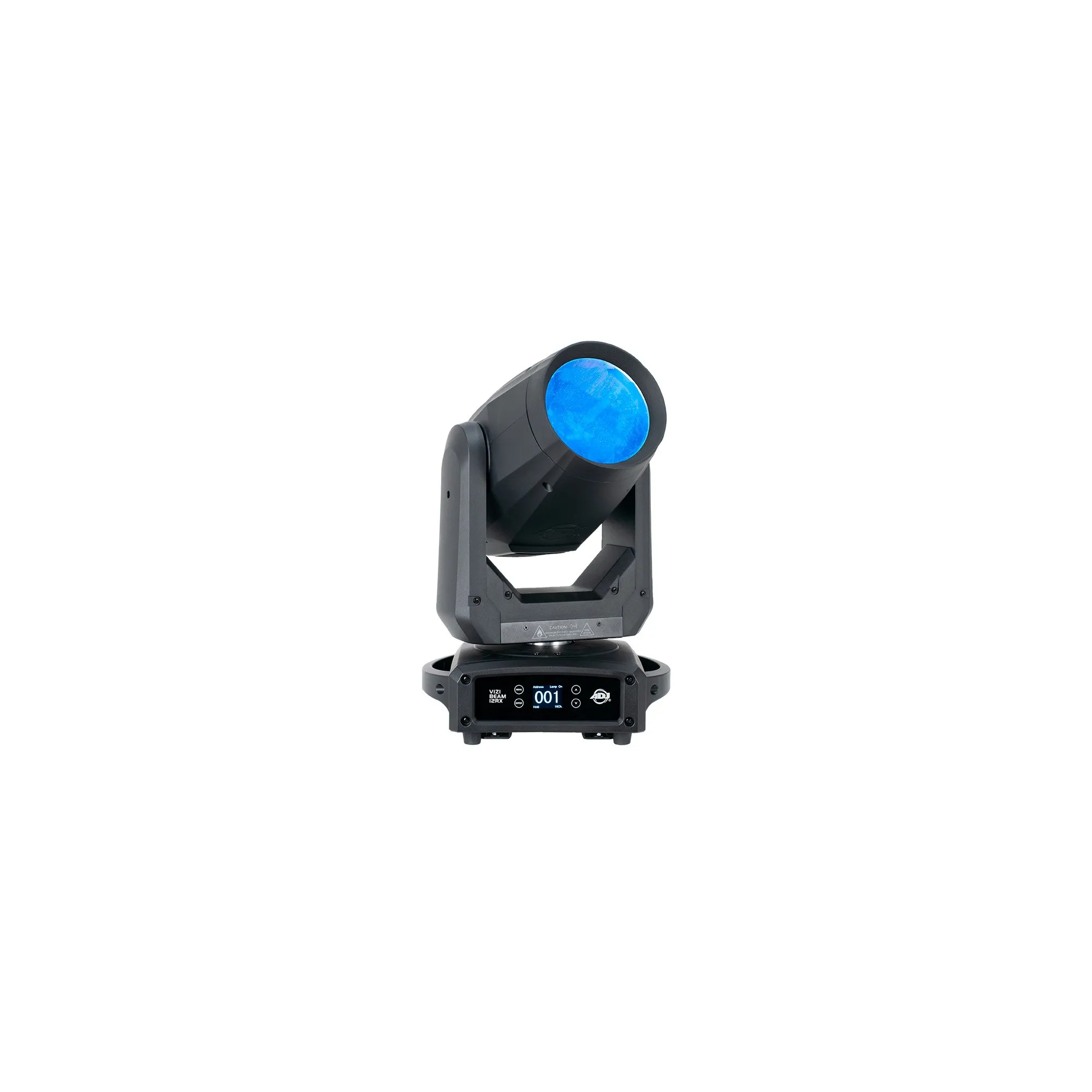

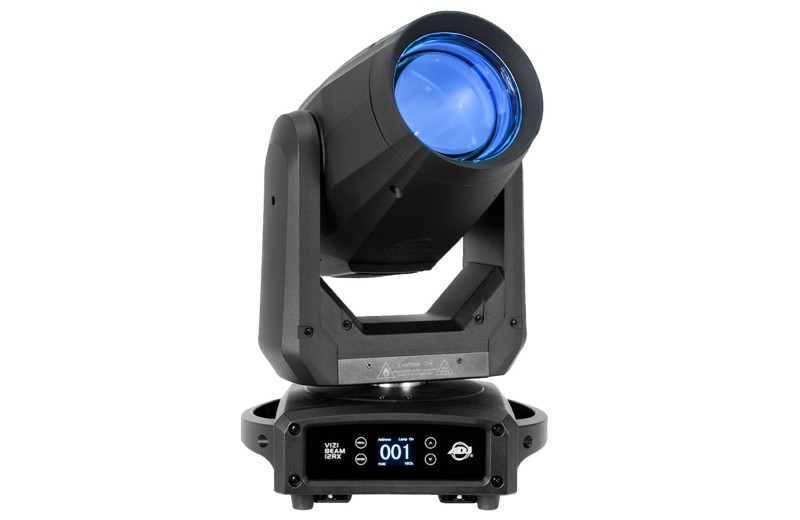

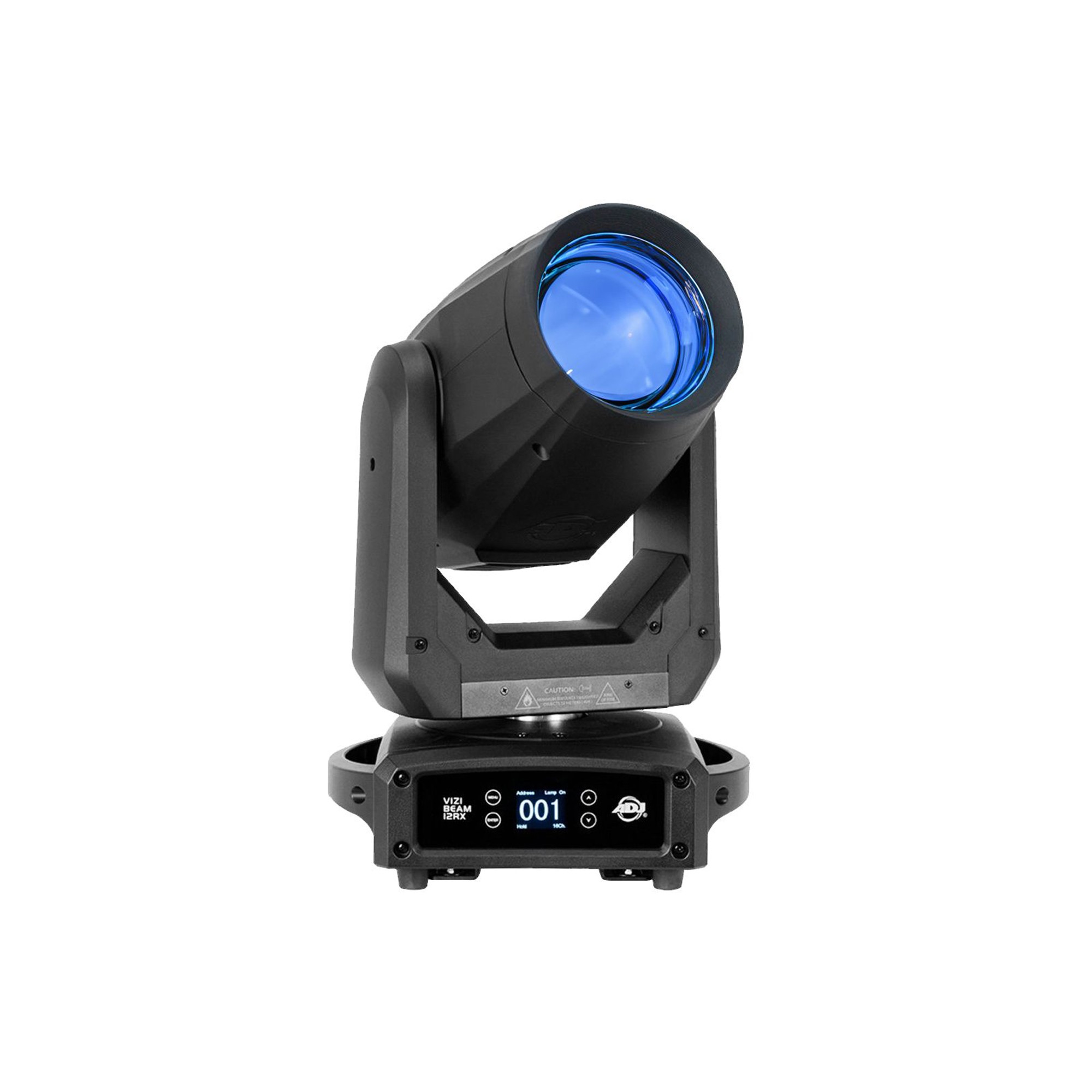

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of light. It comes with 14 colors + open (with color indexing), 16 fixed GOBOs + open, two rotating prisms and a frost filter for wash effects.

The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.

Light Source:

• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7800K

Features:

• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan cooled

Color Wheel:

• 14 dichroic colors + white (Includes CTO, CTB & UV)
• Indexable color wheel for split colors

GOBO Wheel:

• 16 static GOBOs + open (including 4 beam reducers)
• GOBO Shake Effect

Prism Wheel:

• Rotating, 6-facet linear and 24-facet circular prisms

Control:

• 2 DMX Channel Modes: 14 or 16 Channels
• Color LCD display with 4-button function menu
• Control Mode: DMX512 or internal programs, RDM compatible
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540 degrees (16-bit)
• Tilt: 270 degrees (16-bit)

Connections:

• DMX Connections: 3-pin & 5-pin XLR In/Out (Data link max: 32 fixtures)
• Power Connections: Locking Power In/Out to daisy chain power

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 384W (@120V), 371W (@230V)

Dimensions & Weight:

• Dimension: 10” (L) x 13.75” (W) x 22.25” (H) / 253 x 350 x 566mm
• Weight: 39.7 lbs. / 18 kg.

What’s Included:

• Omega Brackets
• 1.8m Locking Power cabl
