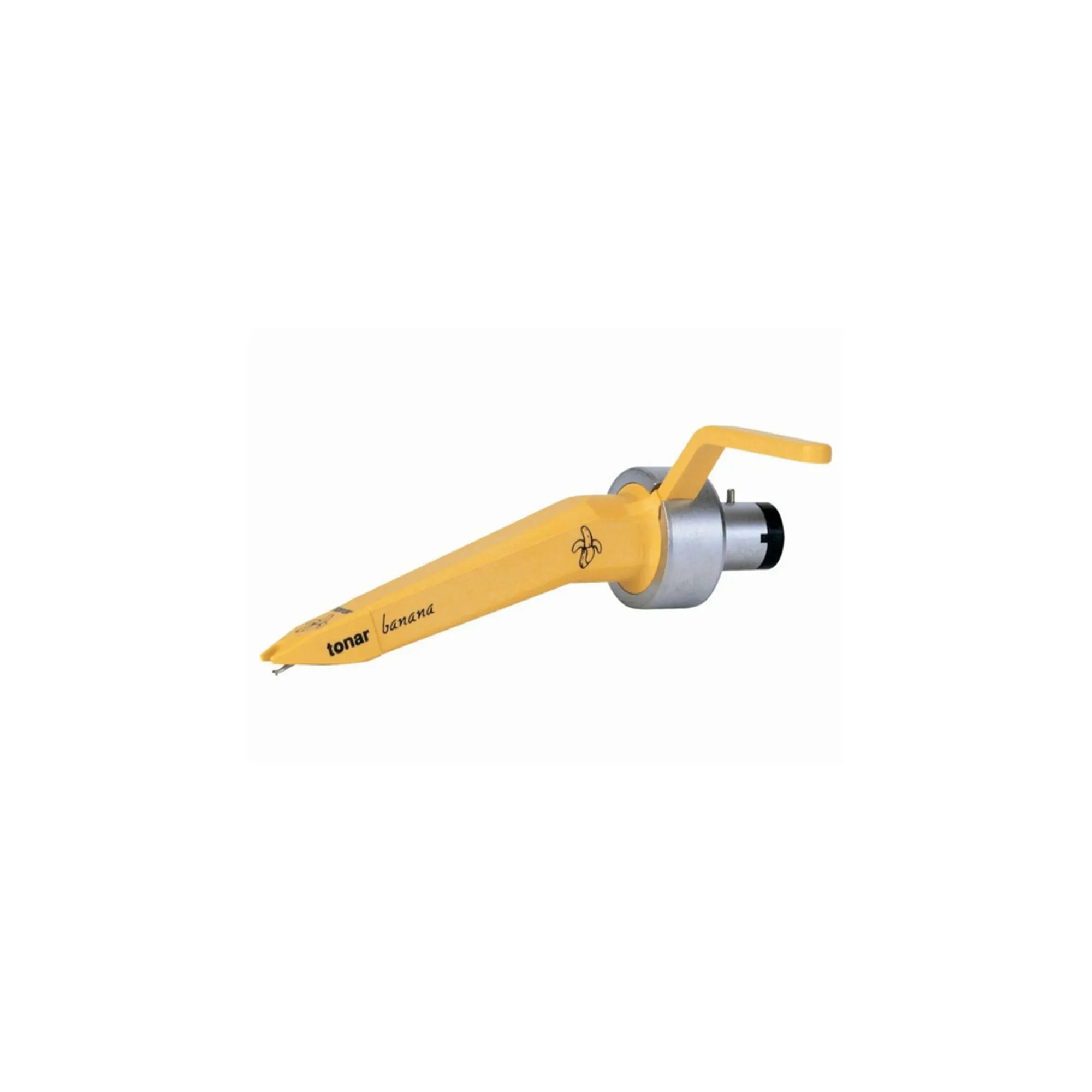

Tonar Banana Disco Cartridge

Κεφαλοβελόνα Concorde Tonar Banana Disco. Κατάλληλη για scratch.

    Cartridge weight: 16,0 g
    Stylus tip shape/radius: 0.7 mil Spherical diamond
    Frequency characteristics: 20-20.000 Hz
    Output Voltage: 5,0 mV (5 cm/sec)
    Channel Separation: 20 dB (1 KHz)
    Channel balance: 2.0 dB or less (1 KHz)
    Dynamic compliance: 8 um/mN
    Stylus pressure: 3,0 – 5,0 g (4,0 g recommended)
    Load resistance: 47 KQ
    Tracking ability at 315 Hz lateral: 70 uM
    Stylus tip: material bonded diamond
    Vertical tracking angle: 200
    FIM distortion: 1,8%
    DC resistance: 600 Q
    Recommended load resistance: 47 kQ
    Κατάλληλη για scratch.
