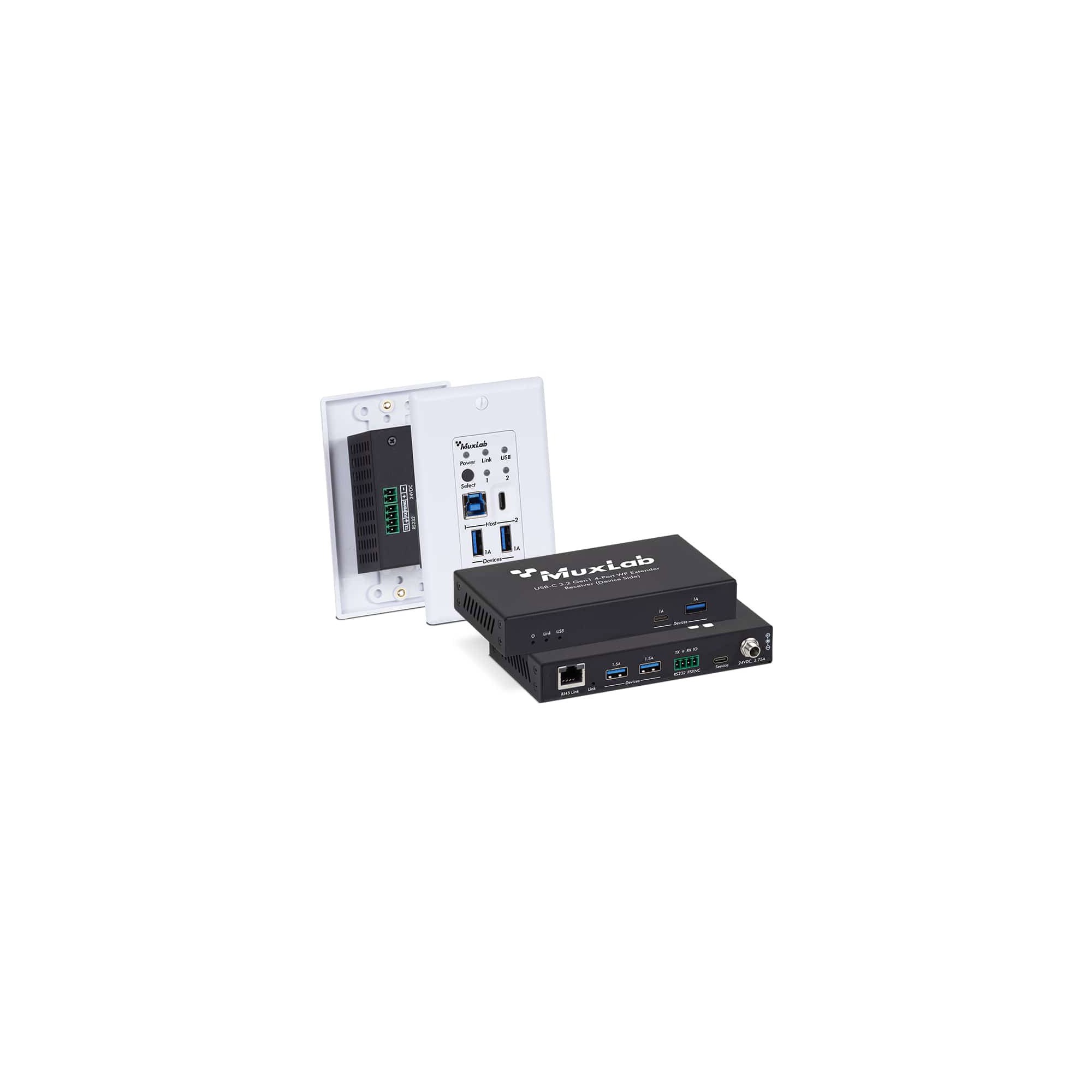

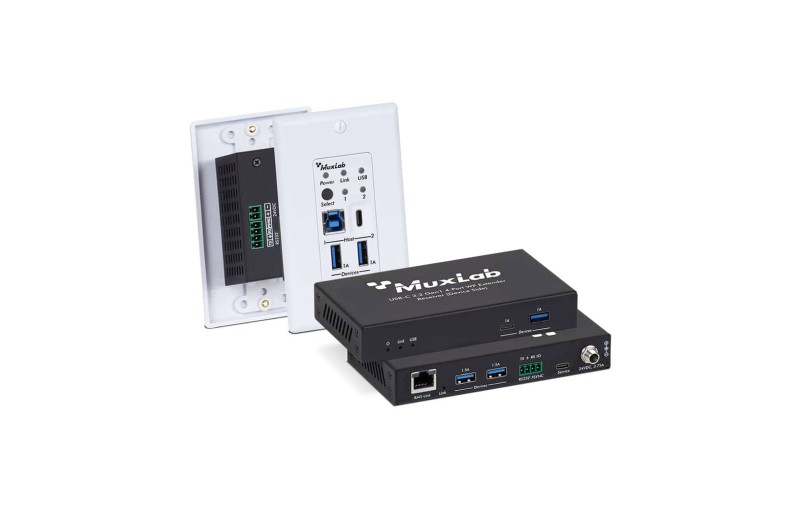

MuxLab USB-C 3.2 Gen1 4-Port WP Extender Kit, 100m is a professional USB extension solution designed for installations that require reliable USB signal transmission over long distances. It extends USB 3.2 Gen1 up to 100 meters over Cat6a UTP cable, supporting data transfer rates up to 5Gbps, making it ideal for demanding corporate, educational, industrial, and professional environments.

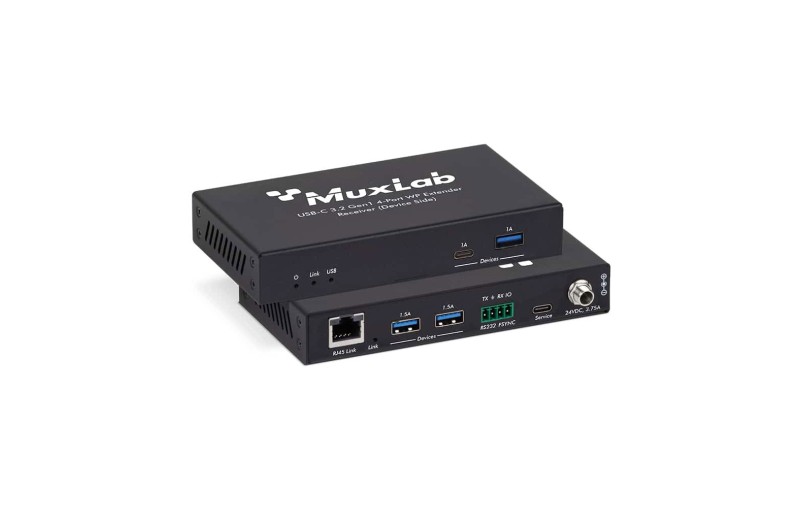

The transmitter features one USB-C 3.2 Gen1 port, three local USB ports (one USB-C and two USB-A), as well as FSYNC GPIO input and RS-232 pass-through. The receiver provides four USB 3.2 Gen1 outputs (two USB-C and two USB-A), along with FSYNC GPIO output and RS-232 pass-through, allowing flexible integration with peripherals and professional equipment.
The unit is plug and play, requiring no additional drivers or software installation, and is compatible with all major operating systems. It also supports bi-directional 24V PoC, while the USB-C and USB-A ports on the receiver provide power up to 5VDC 1.5A and 1A respectively.
Specifications
Extends USB 3.2 Gen1 up to 100m over CAT6a Data transfer rates up to 5Gbps Backward compatible with USB 2.0 and USB 1.1 1x USB-C 3.2 Gen1 and 3 local USB ports on the transmitter 4x USB 3.2 Gen1 outputs on the receiver (2x USB-C / 2x USB-A) Supports RS-232 pass-through Supports FSYNC GPIO pass-through Bi-directional 24V PoC Plug and play operation with no driver installation required Receiver USB ports support power delivery for compatible peripherals
