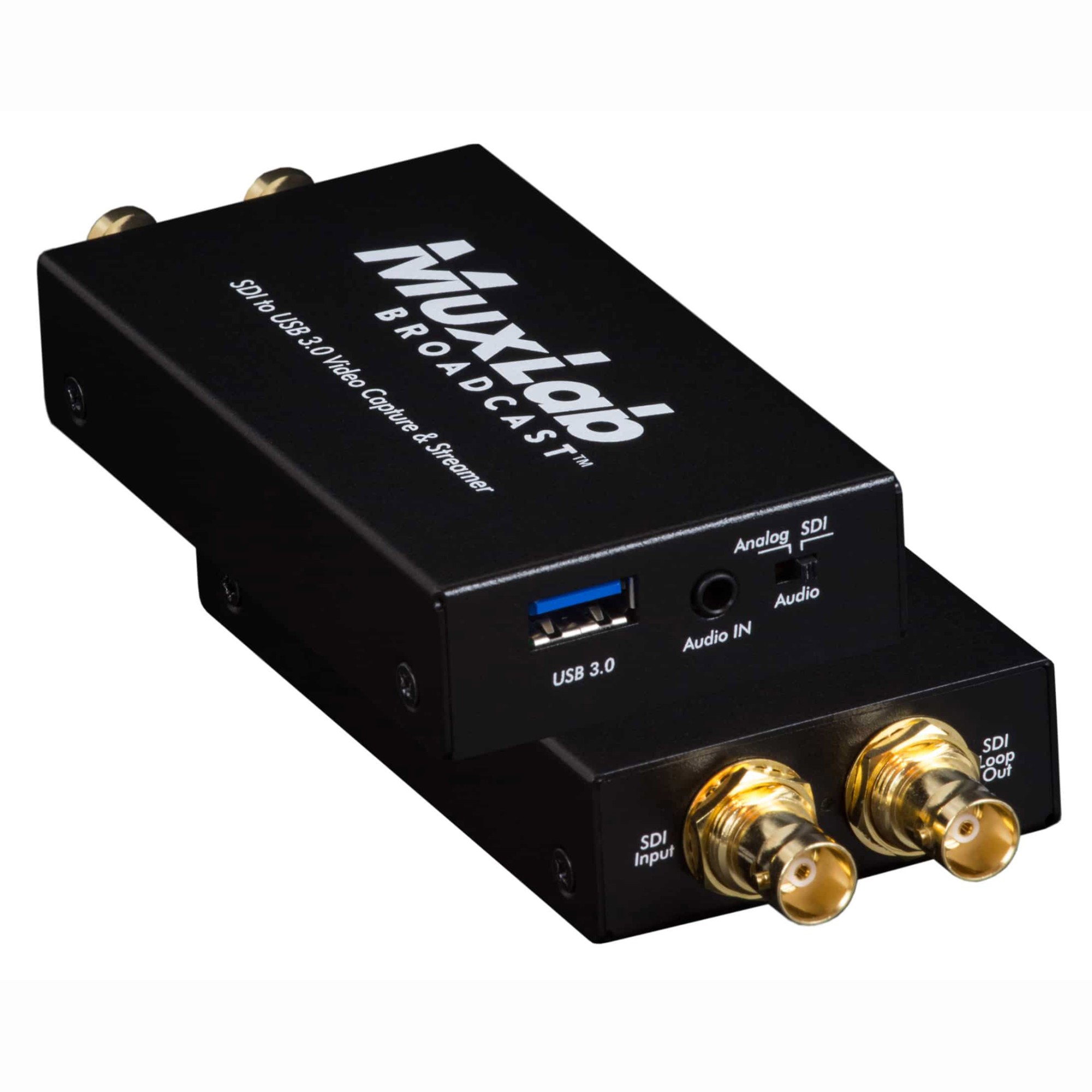

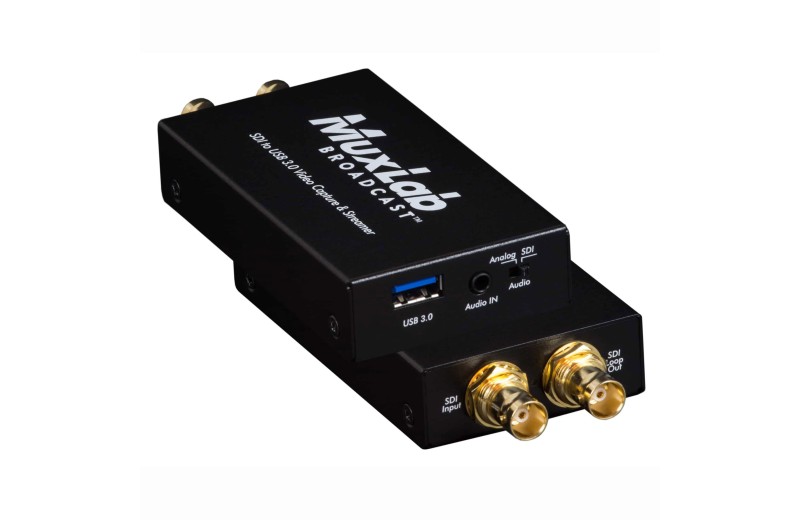

Muxlab SDI to USB3.0 Video Capture & Streamer 500705

MuxLab SDI to USB 3.0 Video Capture & Streamer, a practical solution for professional and broadcast applications that require recording and streaming video from SDI sources to a computer via USB 3.1 Gen 1 (USB 3.0). The unit supports 3G / HD / SD-SDI sources up to 1080p @ 60Hz and transfers the signal to a PC or similar device for recording or live streaming through popular platforms such as YouTube and Facebook Live.

It features an SDI input for the source and an SDI loop out for connection to a display or monitor, allowing simultaneous signal monitoring during capture. It supports video capture up to 1080p/60 and streaming over USB to a computer at the same resolution, while also providing automatic video format detection for easier setup and operation.

One of its key advantages is the 2-channel audio input for a microphone, with selectable audio streaming between embedded SDI audio and the external 2CH audio input. In addition, it supports H.264 compression, is compliant with UVC 1.0, and works with applications such as OBS Studio and AMCap, making it especially useful for live production, streaming setups, video capture workflows, and professional AV environments.

The device is compatible with Windows 7 / 8.1 / 10, as well as Mac and Linux OS, and can be used with a variety of SDI sources including cameras, computers, media players, and other professional video sources.

Specifications

Captures from 3G / HD / SD-SDI sources up to 1080p @ 60Hz
Streams via USB 3.1 Gen 1 (USB 3.0) to PC up to 1080p/60
SDI input and SDI loop out for monitoring
Supports UVC 1.0
Supports H.264 compression
Auto-detect video format
2CH Audio In for microphone input
Selectable audio between embedded SDI audio and external 2CH audio input
Compatible with OBS Studio, AMCap, and similar software
Compatible with Windows 7 / 8.1 / 10, Mac, and Linux
Suitable for cameras, computers, media players, and other SDI sources
