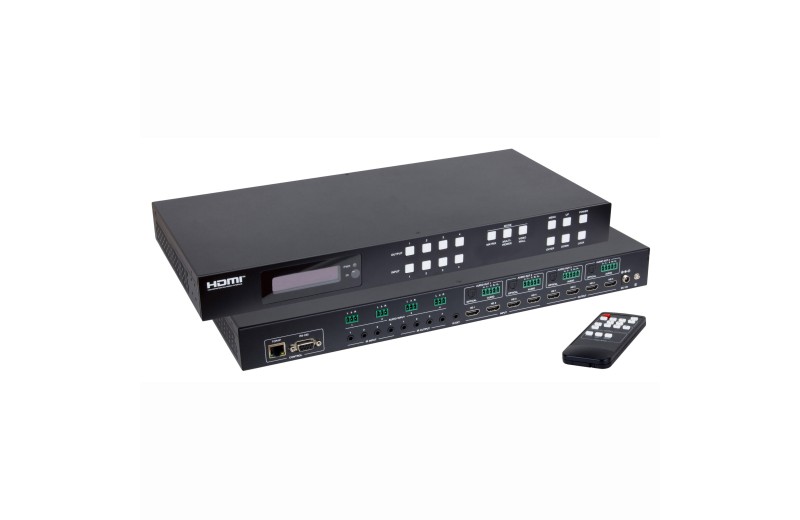

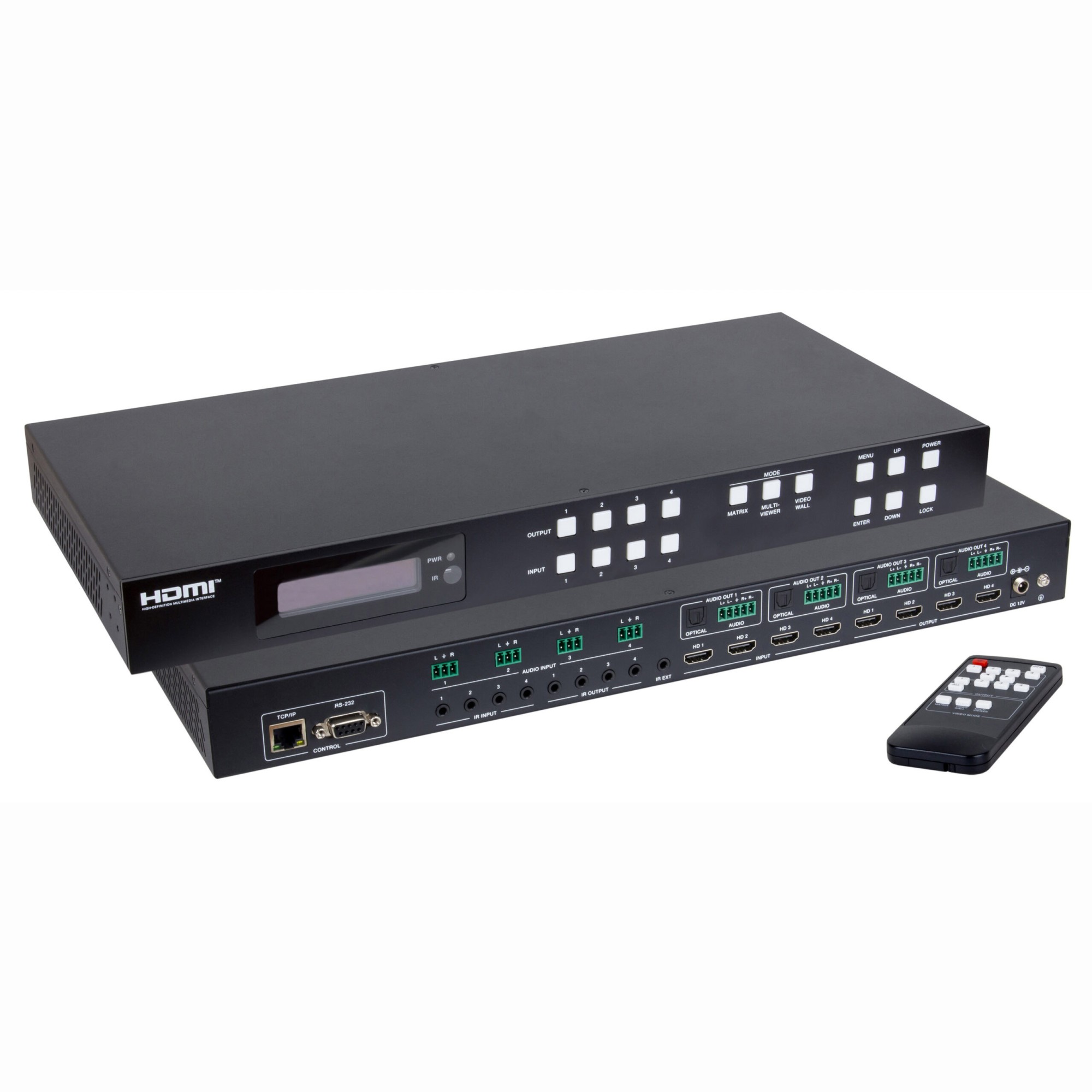

Muxlab HDMI 2.0 4x4 Seamless Matrix with VW & MV 500428

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 2.0 4x4 Seamless Matrix with VW & MV 500428
Muxlab HDMI 2.0 4x4 Seamless Matrix with VW & MV 500428
Code :
125.171
1,646.34 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 137.20 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATA SHEET

MANUAL

Description

The MuxLab HDMI 2.0 4x4 Seamless Matrix, Videowall & Multiview is an advanced HDMI 2.0 4x4 seamless matrix switcher, designed for demanding professional AV installations where flexible management of multiple sources and displays is required.

It supports the connection of up to 4 HDMI sources and their distribution to up to 4 HDMI displays, combining Matrix, Video Wall, and Multiview functions in a single device. Its seamless switching technology ensures smooth image transitions without frame loss.

The unit supports HDMI 2.0, resolutions up to 4K/60Hz 4:4:4, and HDCP 2.2, while the built-in scaler allows the image to be adapted to multiple output resolutions. It also supports HDMI audio pass-through up to 7.1CH HD audio, including LPCM, Dolby TrueHD, and DTS-HD Master Audio, as well as analog audio insertion/extraction for both input and output.

In Multiview mode, it offers 12 different display layouts, while in Video Wall mode it supports 9 layout/splicing modes, providing excellent flexibility for content display, control, and presentation applications. The device can be managed via front panel, IR remote, RS232, and web interface, while also supporting IR matrix, EDID management, and CEC control for more comprehensive system integration.

It is an ideal solution for corporate meeting rooms, digital signage, educational classrooms, medical information systems, and generally for any professional or residential AV environment where reliable signal routing and flexible content display are required.

Specifications

HDMI 2.0 4x4 Matrix with support for up to 4K/60 4:4:4
Seamless switching with no frame loss
Matrix, Video Wall, and Multiview functions
12 display modes in Multiview and 9 splicing modes in Video Wall
HDCP 2.2 support
7.1CH HD audio pass-through
Analog audio insertion & extraction
Control via Front Panel, IR, RS232, and Web GUI
Support for EDID management, CEC, and IR matrix
