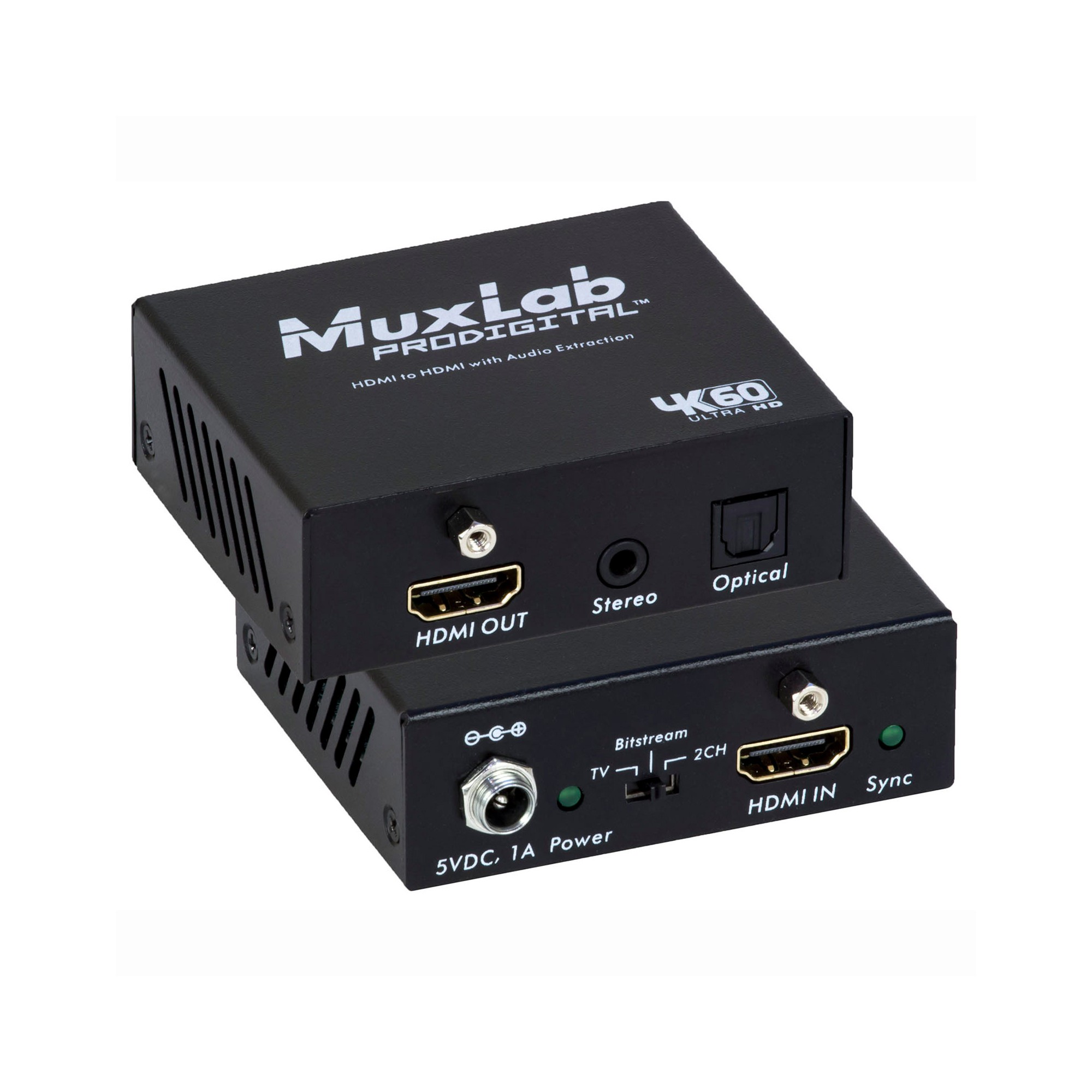

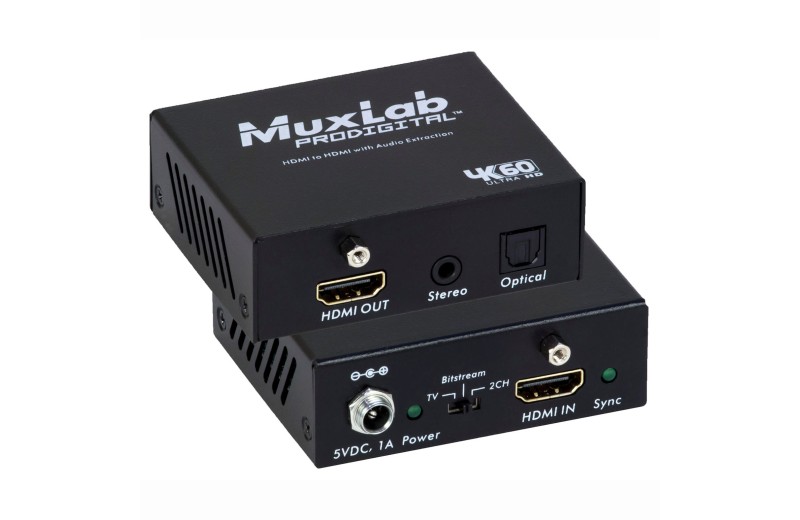

MuxLab HDMI to HDMI with Audio Extraction, 4K/60 is a practical and reliable solution for AV installations where both HDMI signal distribution and audio extraction are required. The device allows one HDMI source to be connected to one HDMI display, supporting resolutions up to 4K (3840 x 2160) at 60Hz, 8-bit color, and HD audio.
At the same time, it provides audio extraction through S/PDIF TosLink and a 3.5mm analog output, allowing audio to be separated from the HDMI signal for connection to external audio systems or amplifiers. It supports extraction of LPCM, Dolby Digital, DTS, Dolby Digital Plus, and Dolby Atmos through the digital output, as well as 2CH analog audio through the analog port.
The unit is HDCP 2.2 compliant and features LED diagnostics, making installation, status monitoring, and troubleshooting easier. In addition, HDMI audio support includes formats such as LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, and DTS:X, making it suitable for a wide range of modern AV applications.
It is an ideal choice for commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, and collaborative PC environments where reliable video transmission and independent audio management are needed.
Specifications
Distributes one HDMI 2.0 source to one HDMI display
Supports up to 4K/60Hz with 8-bit color depth
HDMI audio support for LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, and DTS:X
Audio extraction via S/PDIF TosLink
2CH analog audio extraction via 3.5mm jack
HDCP 2.2 compliant
Built-in LED diagnostics for monitoring and troubleshooting
