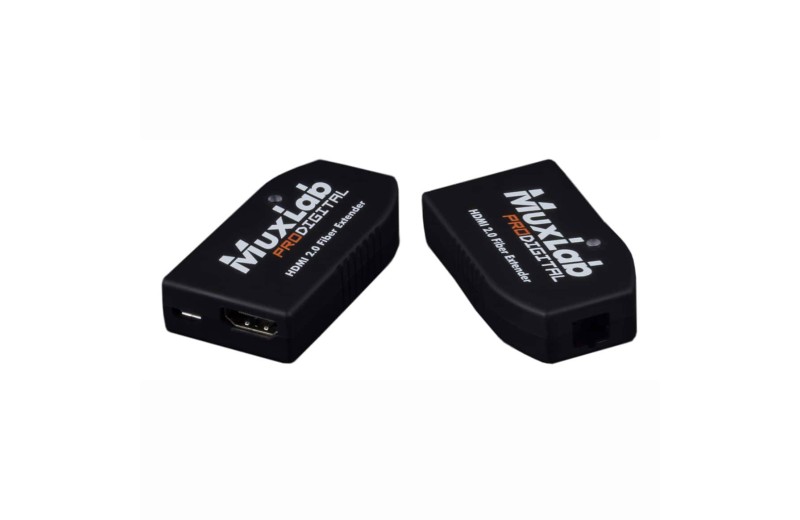

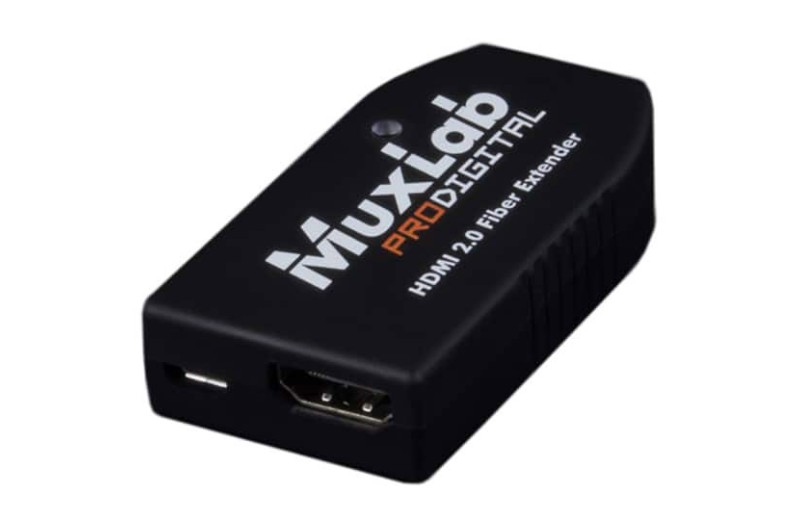

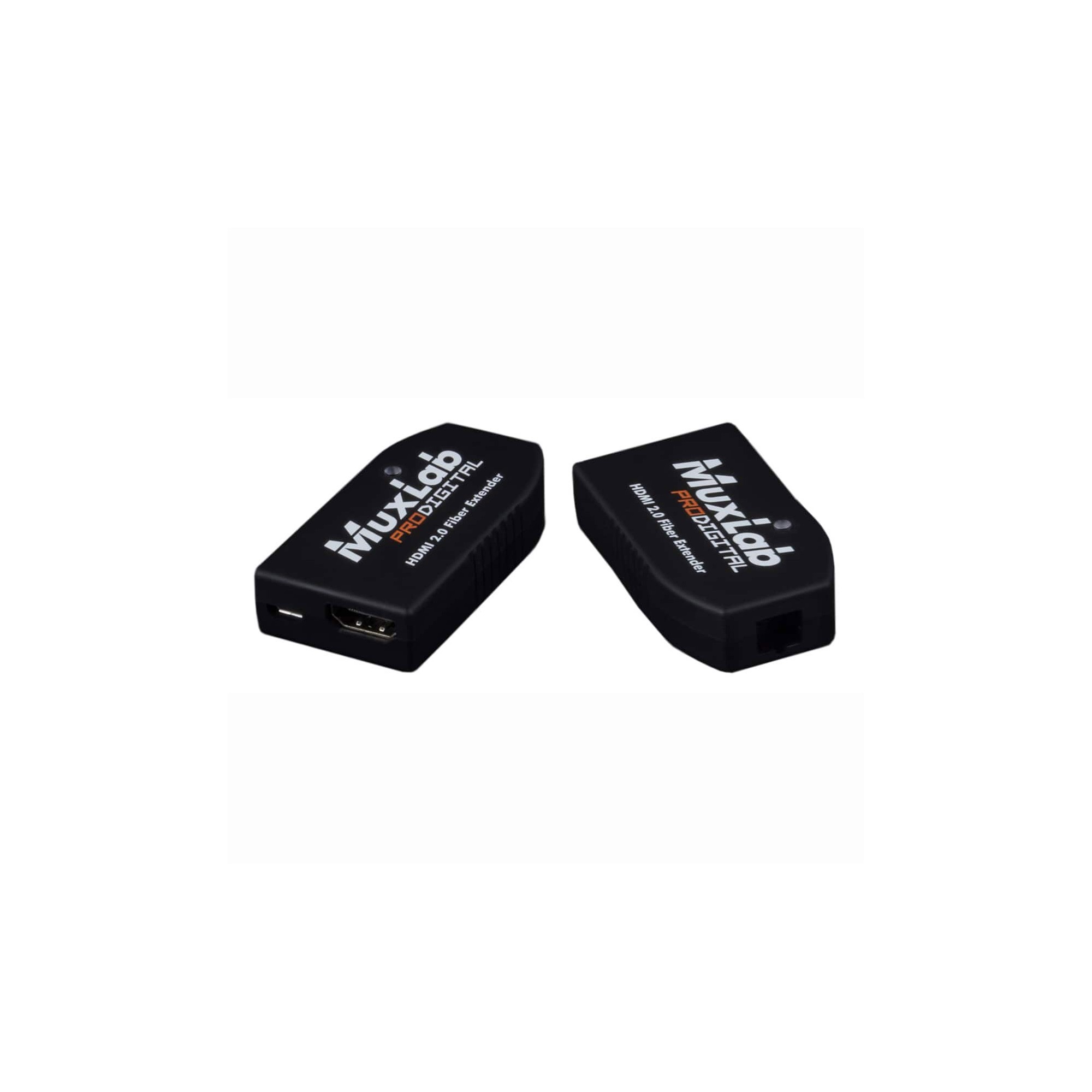

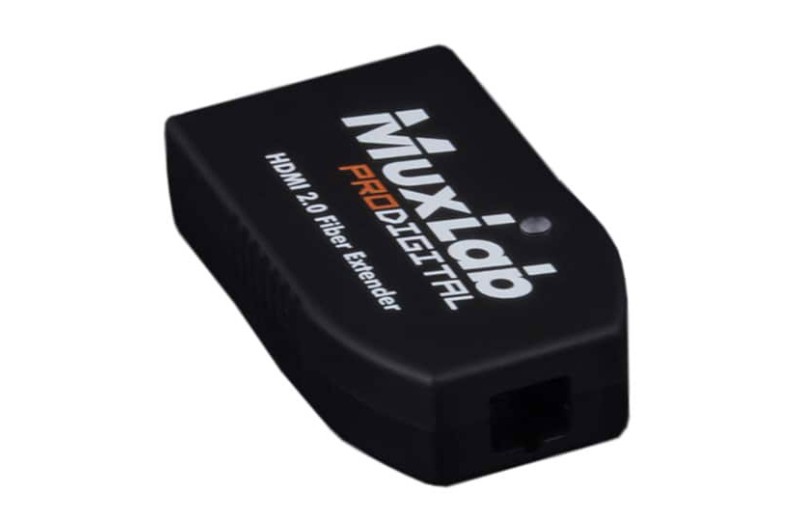

Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2
Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2
Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2
Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2
Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2
Muxlab HDMI 2.0 Fiber Extender Kit 500464-V2
Code :
125.218
1,893.91 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 157.83 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATA SHEET

MANUAL

Description

Muxlab HDMI 2.0 Fiber Extender Kit, a professional HDMI extension solution designed to transmit signals up to 4K (4096?2160) at 60Hz over distances of up to 3300ft (1000m) via OM4 multi-mode fiber. Signal transmission is achieved without scaling or data compression, preserving the original image quality.

It supports a total 18Gbps data throughput (6Gbps per lane) and complies with the HDMI 2.0 standard, enabling high-quality transport of content up to 4K/60Hz. The unit transmits over a single SC connector for the fiber link and supports advanced HDR formats including HDR10+, Dolby Vision, and HLG, making it suitable for high-performance AV environments requiring enhanced contrast and color reproduction. It also supports CEC, ARC, EDID, and HDCP 1.4 & 2.2, ensuring broad compatibility with modern source and display devices.

The Transmitter module may be powered directly by the video source if sufficient current is available. Otherwise, a USB power source is provided. The kit also includes two 1m HDMI 2.0 Premium Certified cables for source and sink connections, while the compact enclosure makes the system suitable for tight installation spaces

Specifications

HDMI 2.0 Fiber Extender Kit
Supports up to 4K (4096?2160) @ 60Hz
Extends up to 3300ft (1000m) over OM4 multi-mode fiber
Transmission with no scaling or data compression
Total bandwidth of 18Gbps
Supports HDR10+, Dolby Vision, and HLG
Supports CEC, ARC, and EDID
Compatible with HDCP 1.4 & 2.2
Uses a single SC connector
Includes 2 x 1m HDMI 2.0 Premium Certified cables
Compact enclosure for tight spaces
Transmitter can be powered by the video source when supported, or via USB power source
