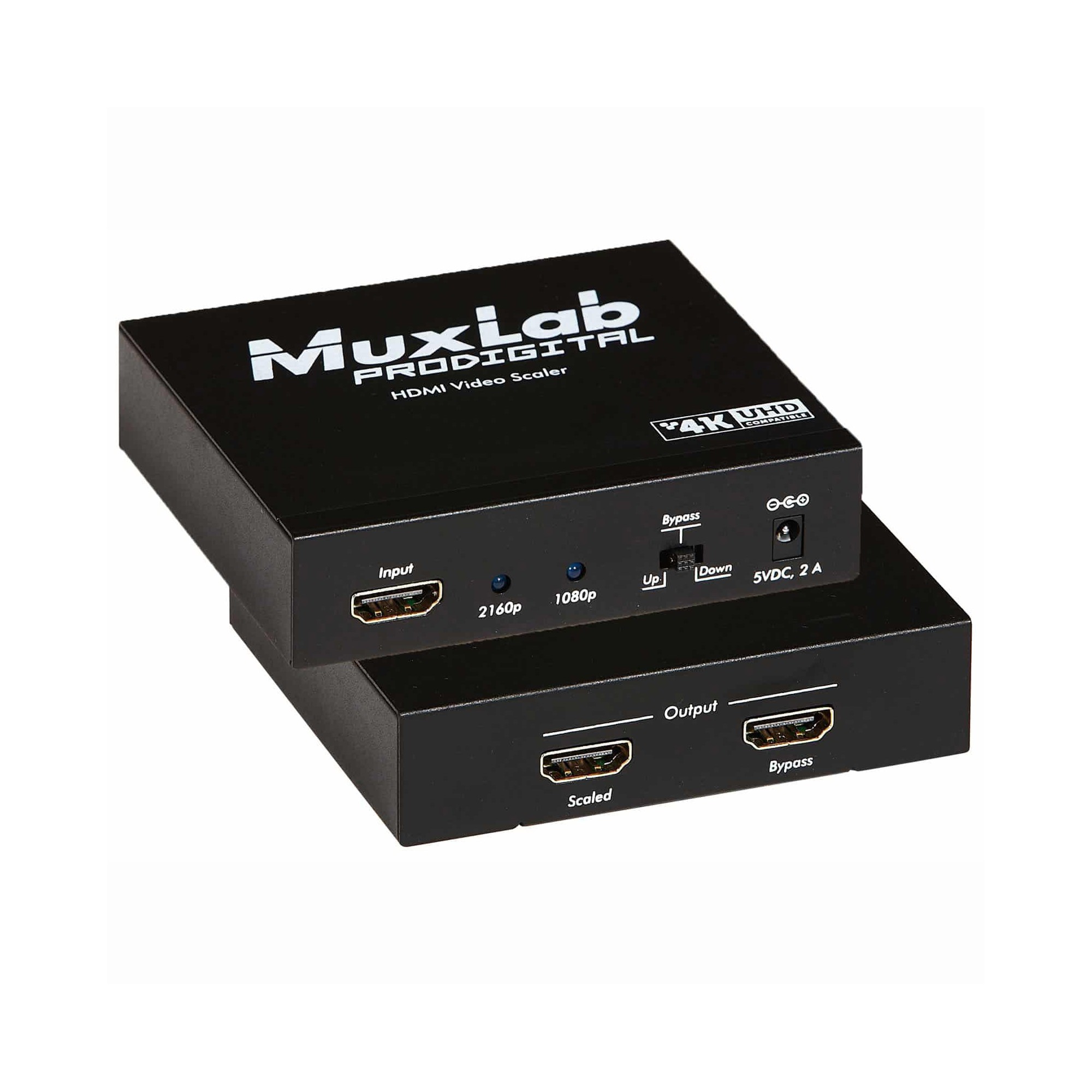

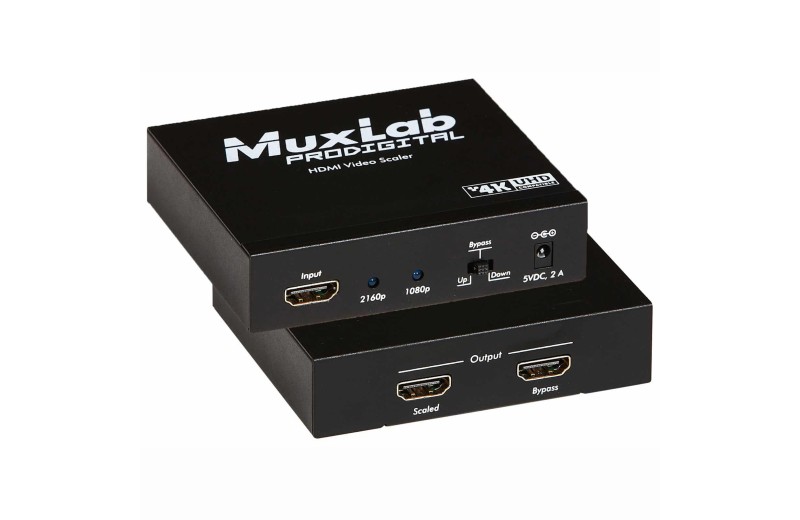

MuxLab HDMI Video Scaler, UHD-4K is a reliable and practical video scaling solution designed for the distribution of one HDMI source to one HDMI display, with support for resolutions up to 4K (3840 x 2160), 8-bit color, and HD audio. The unit can upscale a 1080p/24Hz signal to 4K/24Hz or downscale a 4K/24Hz signal to 1080p/24Hz, ensuring compatibility between different sources and displays.
The scaler is HDCP 1.3 compliant and compatible with HDMI 1.4 and 3D formats. It also features simultaneous dual output, including one Scaled output and one Bypass output, offering greater flexibility in signal distribution and management. In addition, built-in LED diagnostics help simplify installation, monitoring, and troubleshooting.
It is an ideal solution for meeting rooms, digital signage applications, educational environments, control rooms, and any professional AV setup where reliable HDMI scaling and proper resolution management are essential.
Specification
Supports resolutions up to 4K and 3D signals
HDCP 1.3 and HDMI 1.4 compliant
Simultaneous dual output: Scaled and Bypass
Upscales 1080p/24Hz to 4K/24Hz
Downscales 4K/24Hz to 1080p/24Hz
Supports 8-bit color and HD audio
Built-in LED diagnostics for monitoring and troubleshooting
