Muxlab HDMI 2.0 Extender Kit, 50m 500408

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 2.0 Extender Kit, 50m 500408
Muxlab HDMI 2.0 Extender Kit, 50m 500408
Muxlab HDMI 2.0 Extender Kit, 50m 500408
Muxlab HDMI 2.0 Extender Kit, 50m 500408
Muxlab HDMI 2.0 Extender Kit, 50m 500408
Muxlab HDMI 2.0 Extender Kit, 50m 500408
Code :
125.163
232.72 €
On request

Add to wishlist
Compare
Close
Έως 12 δόσεις των 19.39 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 77.57 € με 0% επιτόκιο με την Klarna
4 δόσεις των 59.18 € με 0% επιτόκιο με την tbi bank
DATA SHEET

MANUAL

Description

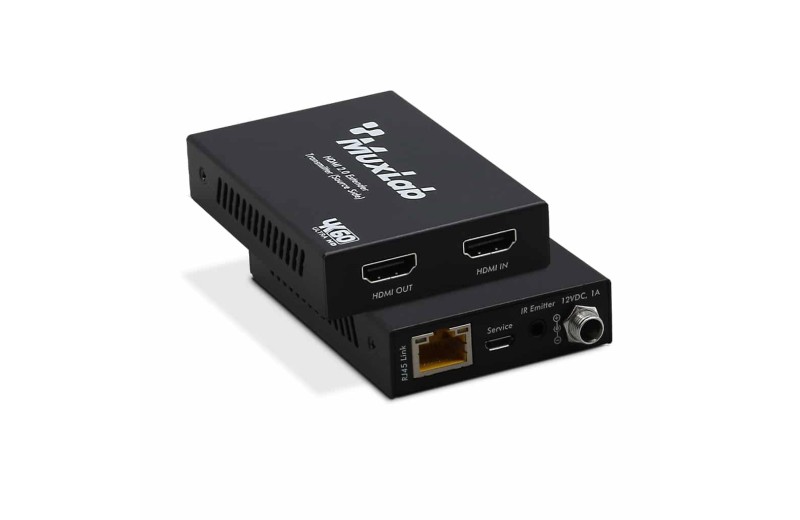

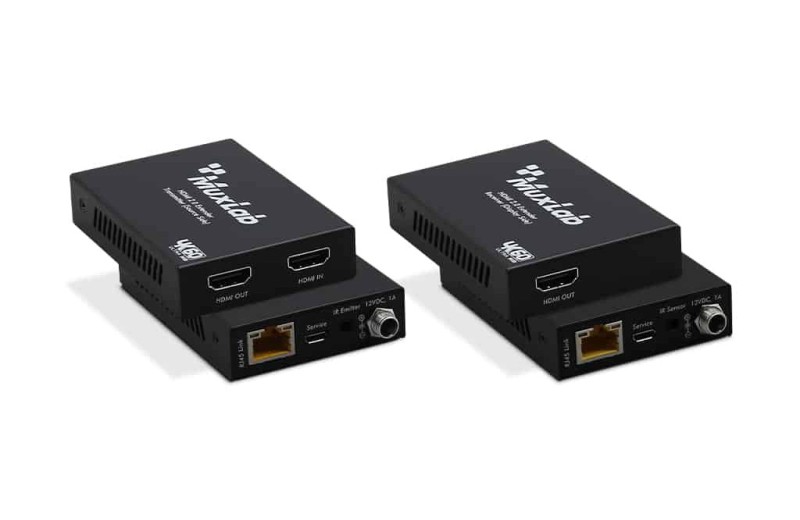

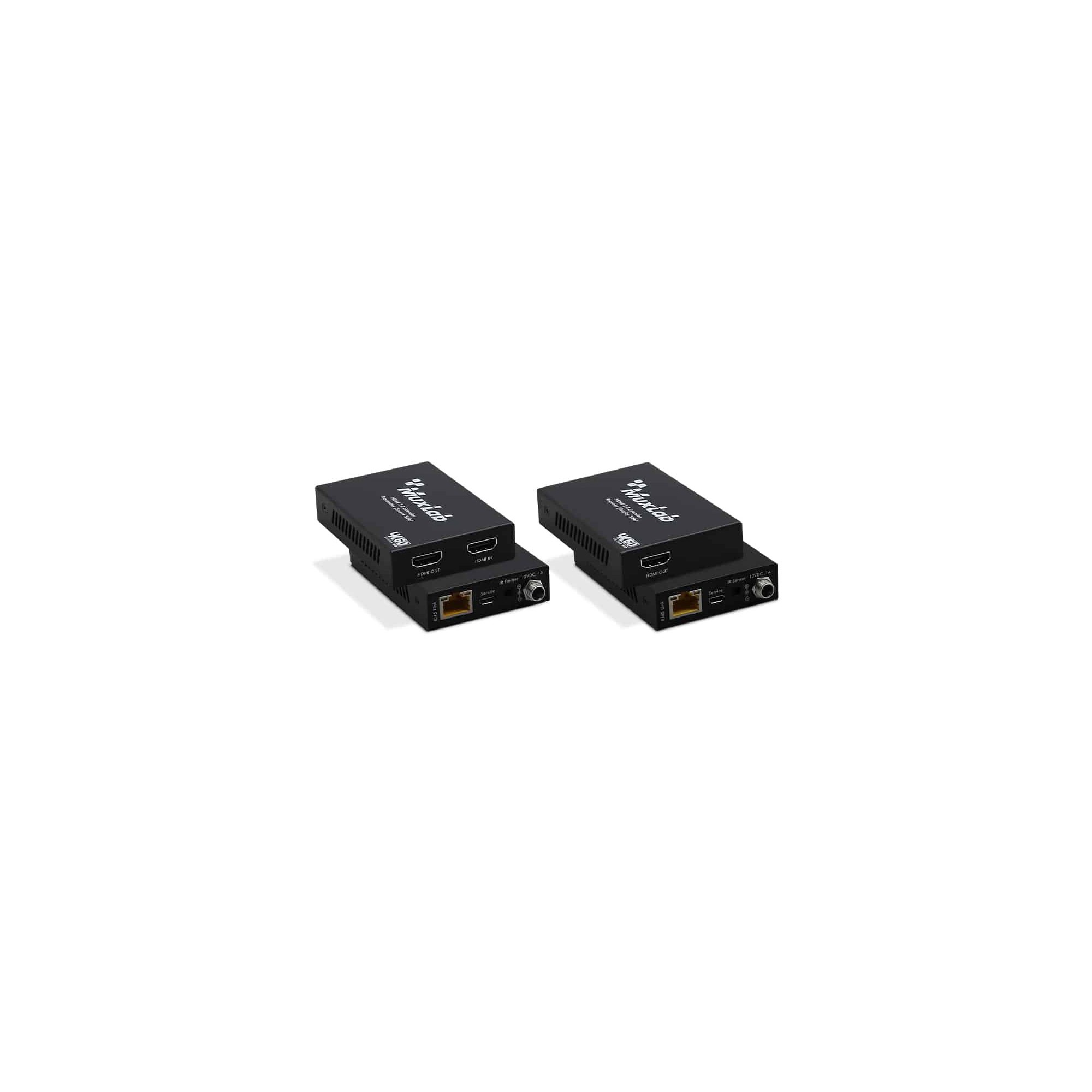

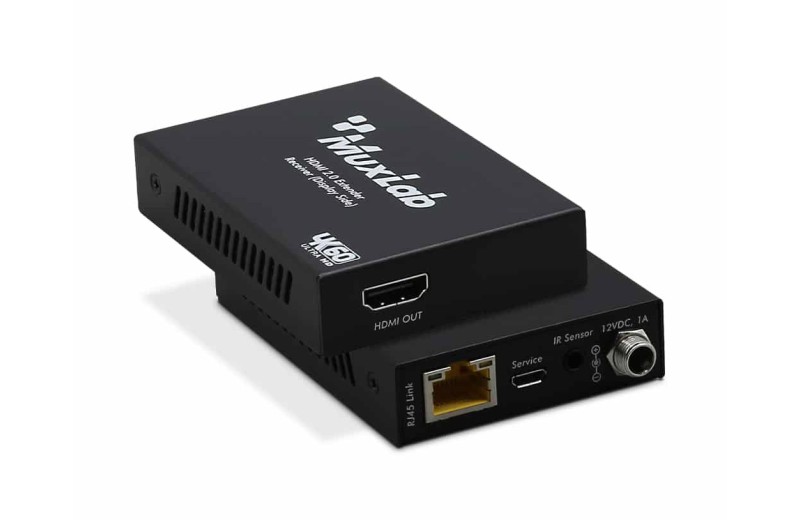

MuxLab 500408 HDMI 2.0 Extender Kit is a signal extension kit designed to transmit HDMI video/audio and one-way IR up to 50 meters over a single Cat5e/6 cable. It supports resolutions up to 4K/60Hz 4:4:4, 18Gbps bandwidth, HDCP 2.2, HDR, and also features an HDMI loop-out on the transmitter side for local display monitoring. It is ideal for commercial AV installations, digital signage, educational environments, boardrooms, collaboration spaces, and residential AV applications where reliable long-distance 4K signal transmission is required.

Technical Specifications

HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Supports 18Gbps bandwidth
Supports input and output video resolution up to 4K/60Hz 4:4:4, extends distance up to 164ft /50m Supports one HDMI loop output
Supports one-way IR pass-through
Supports HDR function
Supports PoC (Power over Cable) function, it means that either transmitter or receiver is powered supply by 12VDC/1A power adapter, the other doesnt need power supply
Supports automatic copy EDID function
Compact design for easy and flexible installation
Weight:0.500kg
Dimensions (HxW): 45 x 30mm
