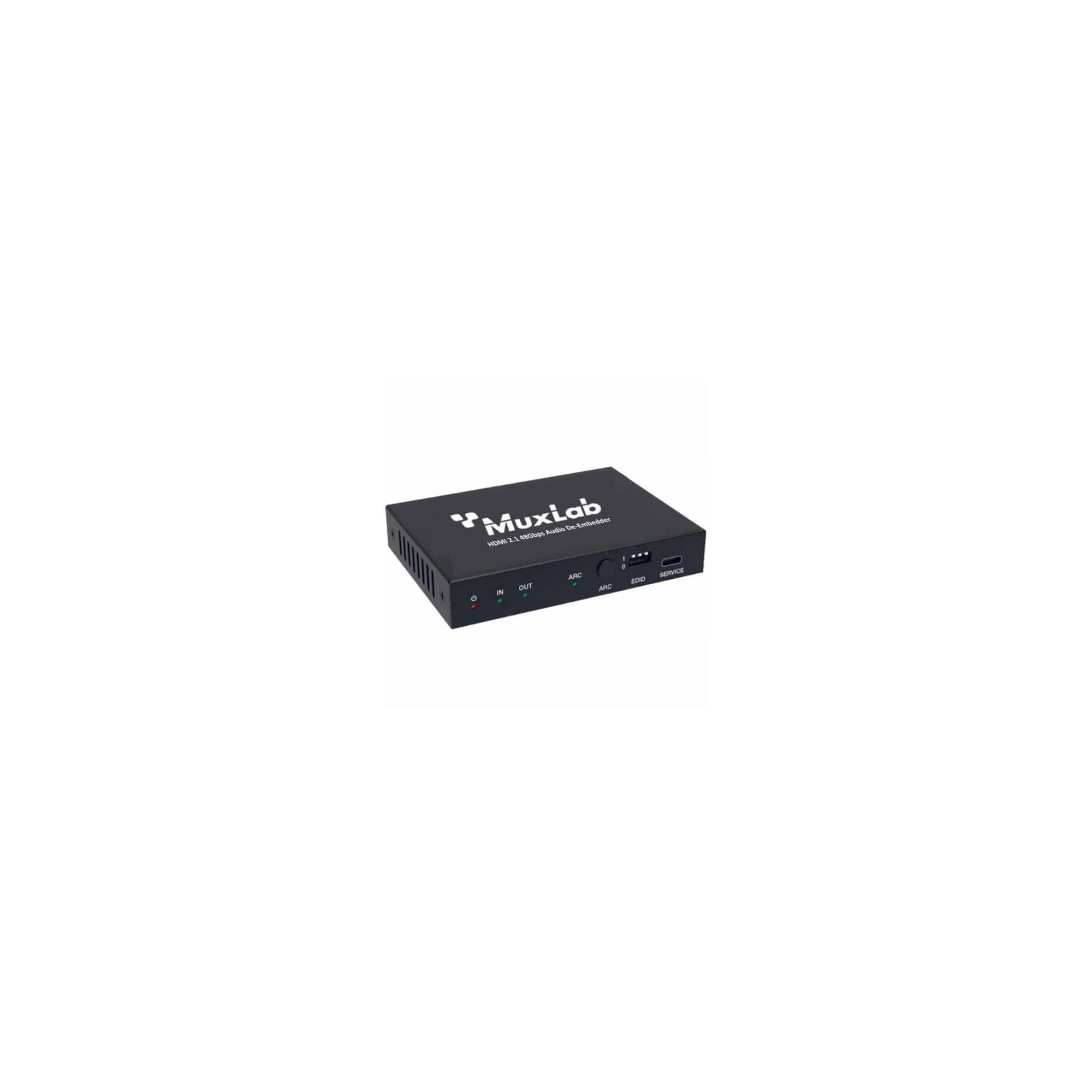

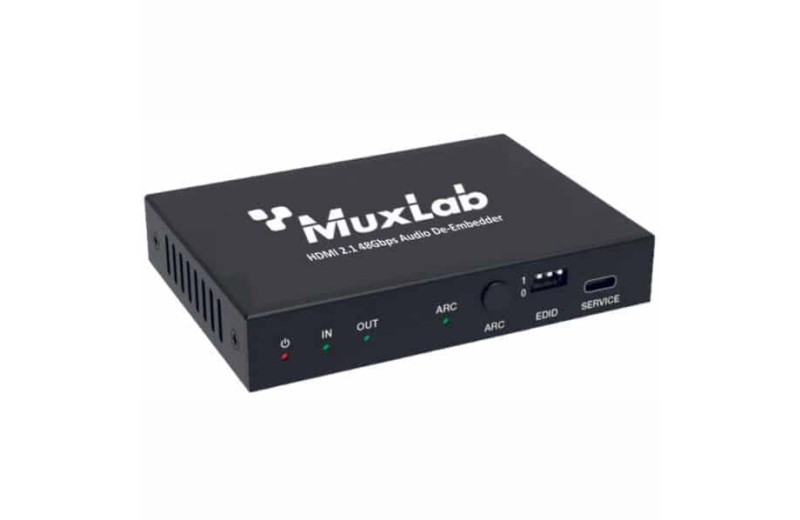

Muxlab HDMI 2.1 48Gbps Audio De-embedder 500514

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 2.1 48Gbps Audio De-embedder 500514
Muxlab HDMI 2.1 48Gbps Audio De-embedder 500514
Code :
125.184
207.96 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 17.33 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 69.32 € με 0% επιτόκιο με την Klarna
4 δόσεις των 51.99 € με 0% επιτόκιο με την TBI bank
DATA SHEET

MANUAL

Description

MuxLab HDMI 2.1 48Gbps Audio De-embedder is a modern HDMI audio extraction solution designed for installations where audio needs to be separated from an HDMI source or an ARC-compatible TV, while maintaining the video signal to a local display. It supports audio extraction to both analog stereo output and digital S/PDIF output, making it a flexible option for both residential and professional AV environments.

The unit is HDMI 2.1 and HDCP 2.3 compliant, supporting 48Gbps FRL and 18Gbps TMDS video bandwidth. It can handle video resolutions up to 8K/60Hz 4:2:0 12-bit and 4K/120Hz 4:4:4 12-bit, making it well suited for today’s high-performance AV setups.

It also supports modern HDMI 2.1 protocols such as VRR, ALLM, QMS, QFT, and SBTM, along with HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through. For audio, it supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through, while allowing audio de-embedding from HDMI input audio or TV ARC audio to S/PDIF and L/R audio output.

The device also features HDMI loop-out for connection to a local display, along with advanced EDID management, cable equalization, and CEC control from output devices to input sources, helping simplify integration in real-world installations.

Specifications

HDMI 2.1 and HDCP 2.3 compliant
Supports 48Gbps FRL and 18Gbps TMDS bandwidth
Supports up to 8K/60Hz 4:2:0 12-bit and 4K/120Hz 4:4:4 12-bit
Supports VRR, ALLM, QMS, QFT, SBTM
Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
Supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through
Audio de-embedding from HDMI source or TV ARC to S/PDIF and L/R audio output
HDMI loop-out to a local display
CEC control, advanced EDID management, and cable equalization
