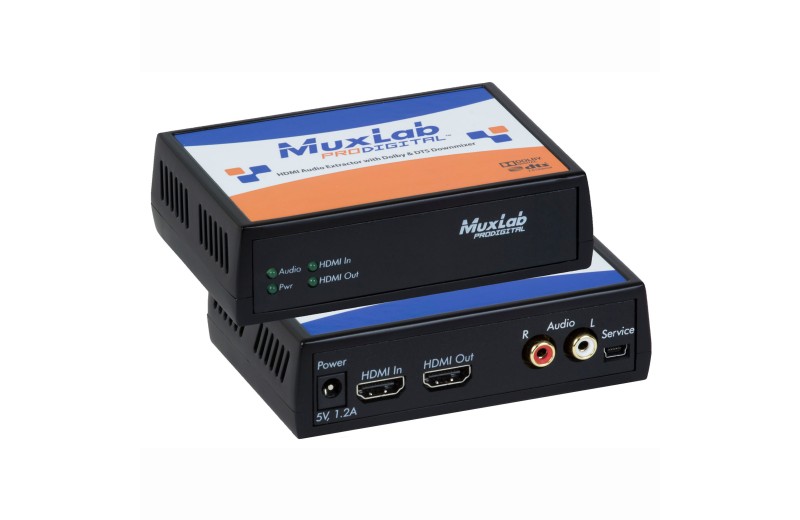

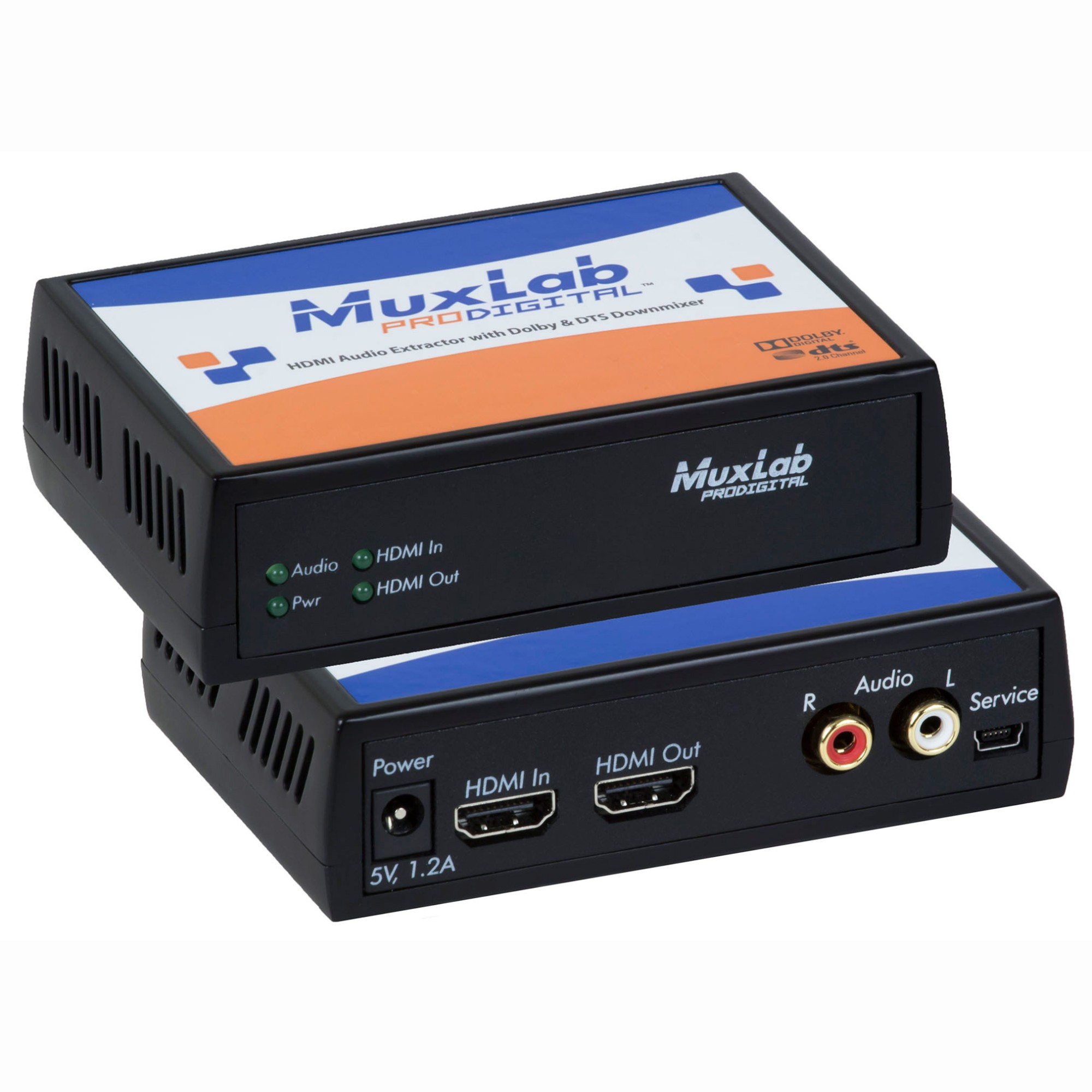

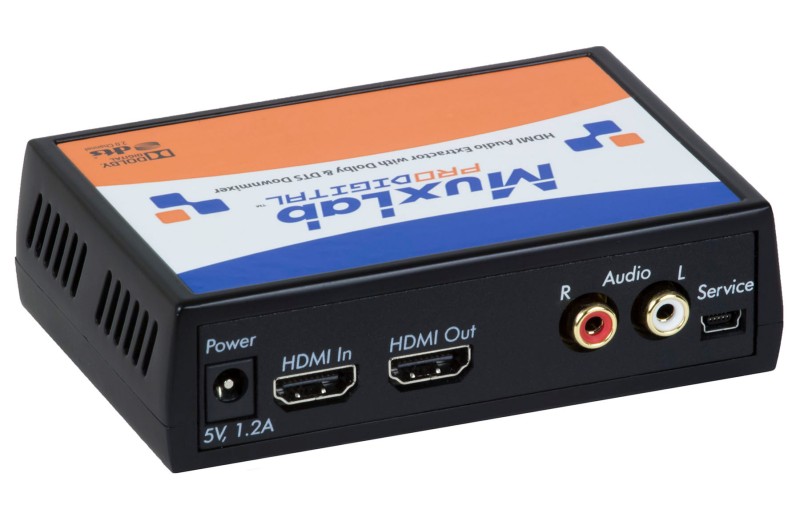

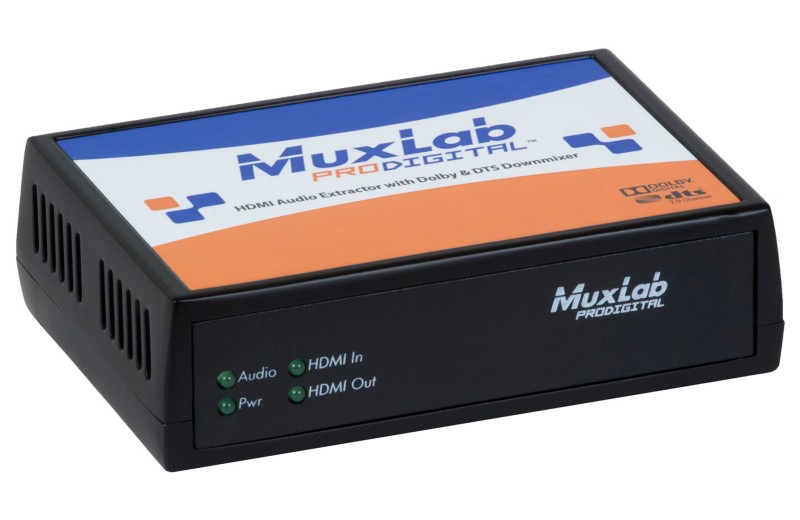

MuxLab HDMI Audio Extractor with Dolby & DTS Downmixer is a specialized solution for AV installations where digital audio needs to be extracted from an HDMI source and simultaneously converted into analog stereo audio. The unit extracts digital audio from a video source up to HDMI 2.0 and also provides HDMI loop out to a local display, keeping the video signal active while separating the audio independently.
It supports resolutions up to 4K/60Hz (4:4:4) and is compliant with HDCP 1.4 and HDCP 2.2, making it suitable for both modern commercial and residential AV environments. At the same time, it supports down-mixing from formats such as Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master Audio, and LPCM up to 7.1 channels into 2-channel analog audio through RCA L/R outputs.
Specification
HDMI In with HDMI Loop Out Supports HDMI 2.0 up to 4K/60 (4:4:4) HDCP 1.4 and HDCP 2.2 compliant Supports down-mixing of digital audio up to Dolby TrueHD and DTS-HD Master Audio to 2CH analog audio Extracted 2CH audio available via RCA L/R jacks
