Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60 500412-v2
Code :
4700785
2,238.03 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 186.50 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATA SHEET

MANUAL

Description

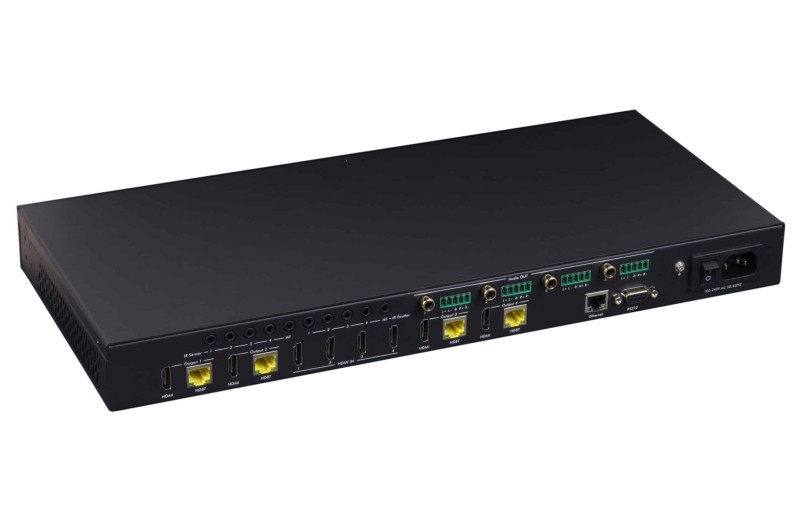

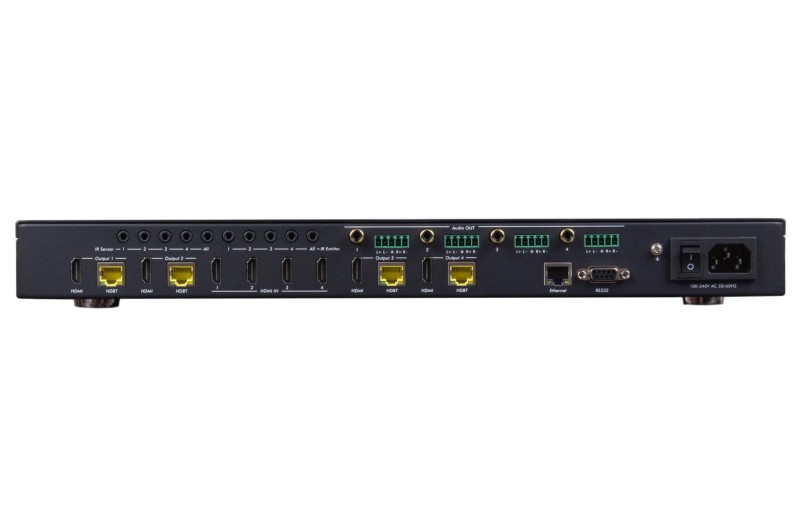

Muxlab HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60, a professional matrix distribution solution that allows up to four HDMI sources to be routed to up to four HDMI displays. It supports HDMI 2.0b, resolutions up to 4K@60Hz 4:4:4, and HDCP 2.2, making it ideal for high-performance AV installations.

It combines matrix switching with HDBaseT technology, offering both local HDMI connectivity and long-distance signal extension through 4 HDBT outputs. The HDBT outputs support transmission up to 150 meters at 1080p and up to 120 meters at 4K over Cat5e/6/7 cable, making the unit well suited for installations where displays are located far from the source equipment.

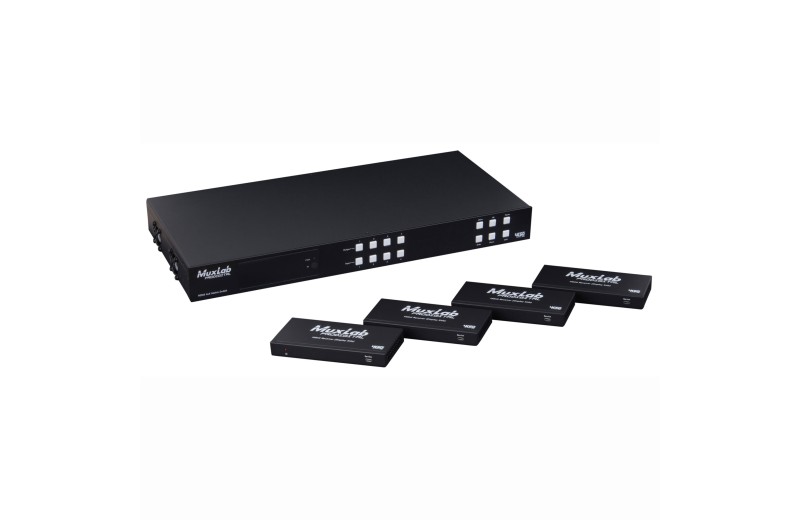

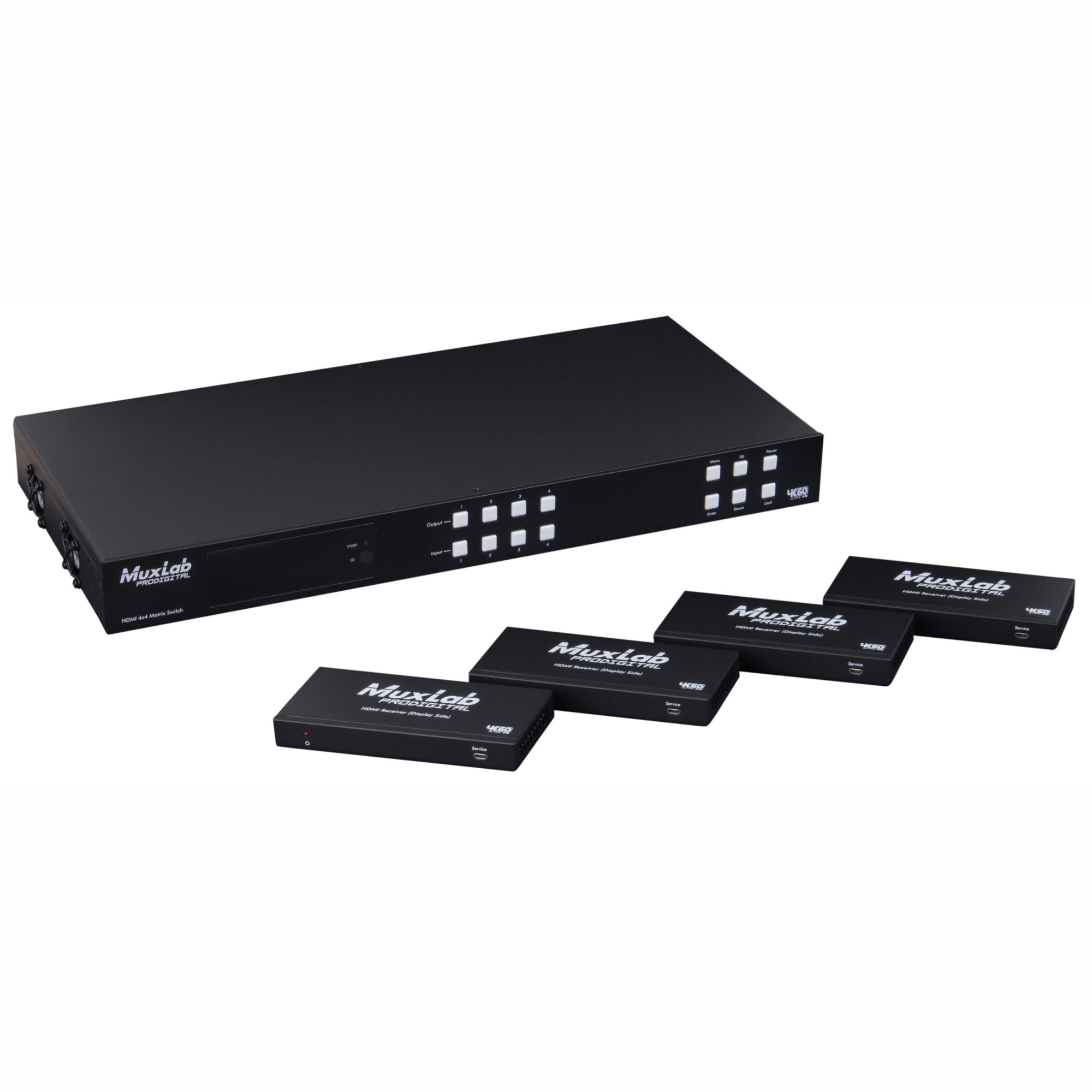

Includes 4 HDBT receivers powered directly by the matrix switch via 24VDC PoC (Power over Cable), reducing the need for separate power adapters at the display location and simplifying deployment. It also supports HDMI audio pass-through up to 7.1-channel HD audio, including formats such as LPCM, Dolby TrueHD, and DTS-HD Master Audio, ensuring that audio quality is preserved alongside the video signal.

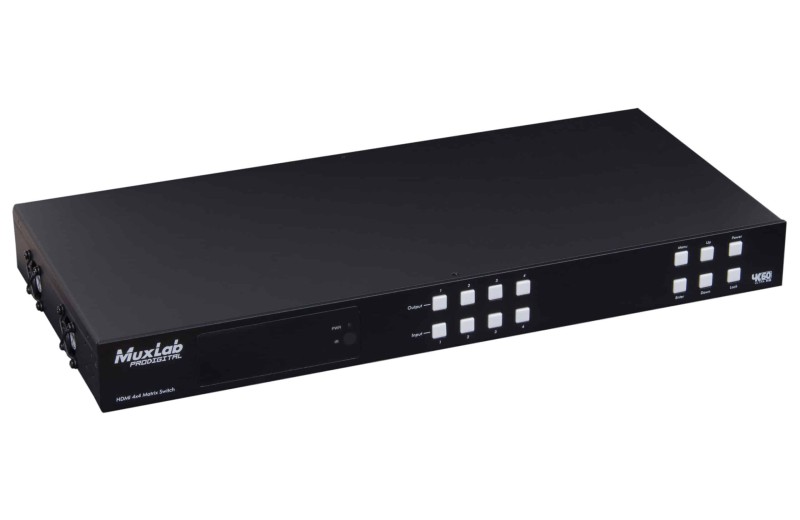

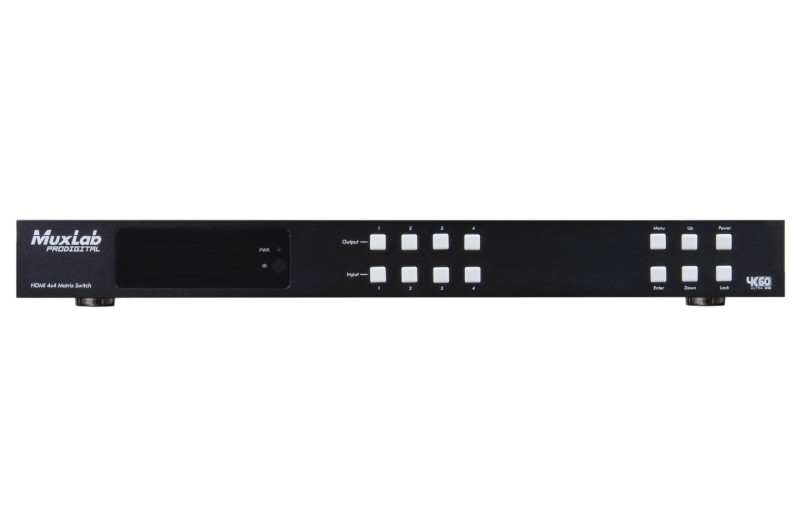

Additional capabilities include 4K to 1080p downscaling on each output, which is especially useful in mixed-display environments where not all screens support 4K. The unit also supports an IR matrix, EDID management, CEC control, and a built-in GUI web interface. Management can be handled through front panel pushbuttons, IR, RS232, and webserver interface, giving installers and integrators flexible control options.

Specifications

HDMI 4x4 Matrix Switch Kit for up to 4 HDMI sources and 4 displays
Supports HDMI 2.0b, 4K @ 60Hz (4:4:4), and HDCP 2.2
4 HDBT outputs for long-distance extension
Extends up to 150m at 1080p and 120m at 4K over Cat5e/6/7
Includes 4 HDBT PoC Receivers
Receivers powered via 24VDC PoC
4 HDMI outputs for local connectivity
HDMI audio pass-through up to 7.1CH HD audio
Supports LPCM, Dolby TrueHD, and DTS-HD Master Audio
4K to 1080p downscaler on each output
Supports IR matrix
EDID management and CEC control
Managed via front panel, IR, RS232, and web GUI
