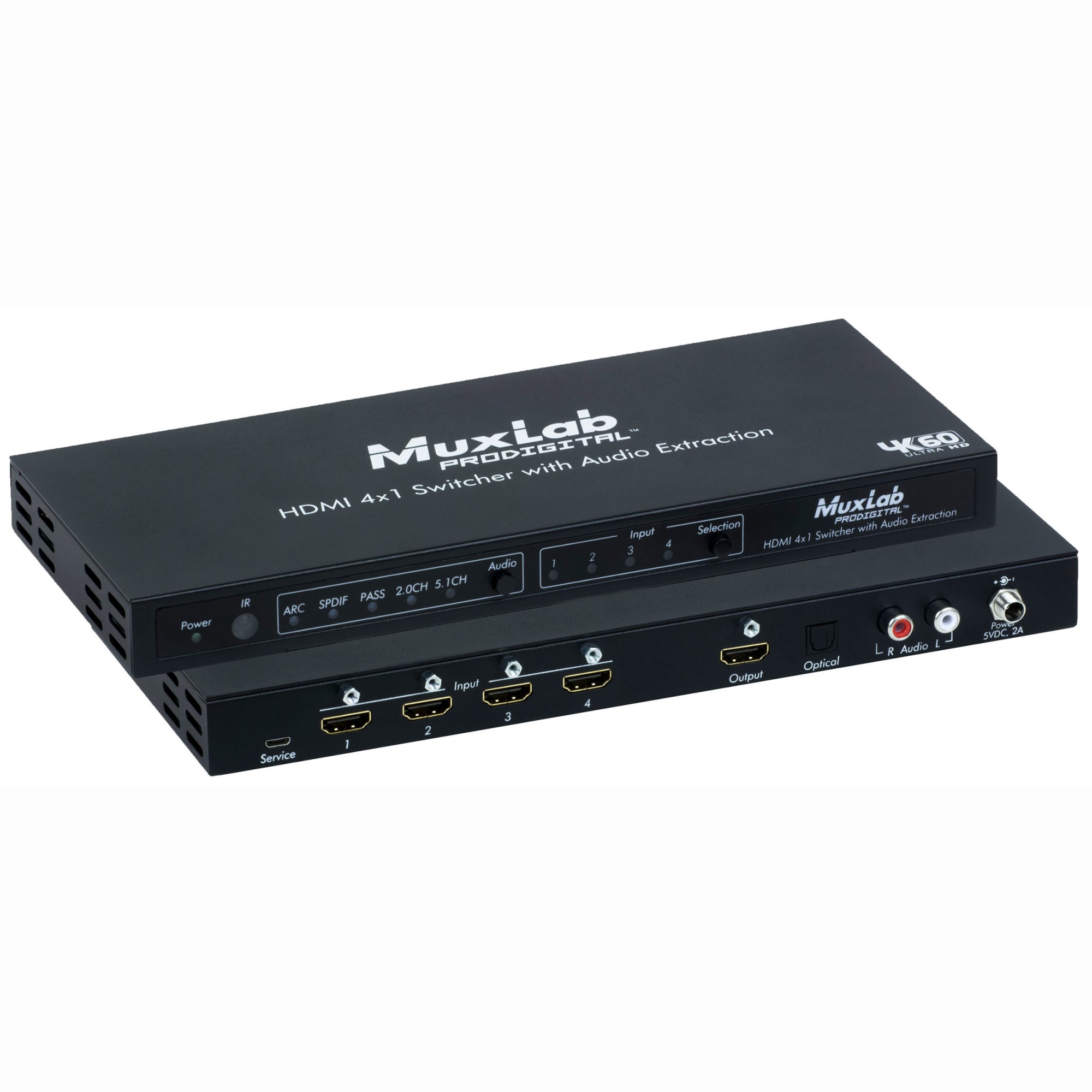

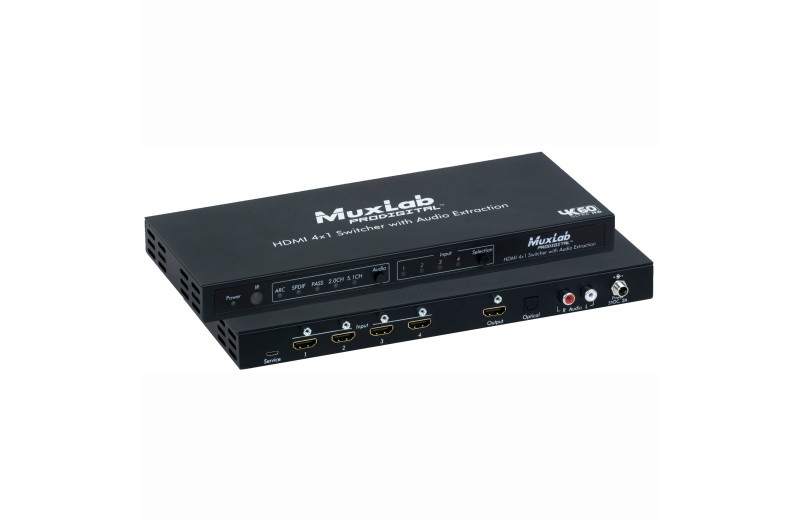

Muxlab HDMI 4x1 Switcher with Audio Extraction, 4K/60 500437

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 4x1 Switcher with Audio Extraction, 4K/60 500437
Muxlab HDMI 4x1 Switcher with Audio Extraction, 4K/60 500437
Code :
125.174
279.75 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 23.31 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 93.25 € με 0% επιτόκιο με την Klarna
4 δόσεις των 69.94 € με 0% επιτόκιο με την TBI bank
DATASHEET

Description

MuxLab HDMI 4x1 Switcher with Audio Extraction, 4K/60 is a practical and efficient HDMI switcher designed for applications where multiple HDMI sources need to be selected and audio must be extracted at the same time. The device switches between four HDMI sources and sends the signal to one HDMI display, supporting resolutions up to 4K @ 60Hz (4:4:4).

Ιt offers audio extraction through S/PDIF Toslink for digital audio and analog 2CH RCA output, allowing audio to be routed independently to external sound systems or amplifiers. It supports extraction of LPCM 2.0 or 5.1, Dolby 5.1, and DTS 5.1 via Toslink, while the analog output supports LPCM 2.0.

The unit supports HDMI 2.0 4K/60, 12-bit Deep Color, and 3D, while also providing HDMI pass-through for all digital audio modes. It can be controlled locally via push-buttons or through IR remote management, and it also supports Audio Return Channel (ARC) for added flexibility in modern AV installations.

It is an ideal solution for meeting rooms, home AV systems, digital signage applications, educational environments, and any installation where reliable switching between multiple HDMI sources and simultaneous audio extraction are required.

Specifications

Switches between 4 HDMI sources to 1 HDMI display
Supports HDMI 2.0 up to 4K/60
Supports 12-bit Deep Color and 3D
Extracts LPCM 2.0/5.1, Dolby 5.1, and DTS 5.1 via S/PDIF Toslink
Extracts LPCM 2.0 via analog 2CH RCA
HDMI pass-through for all digital audio modes
Control via local push-buttons and IR remote
Supports Audio Return Channel (ARC)
