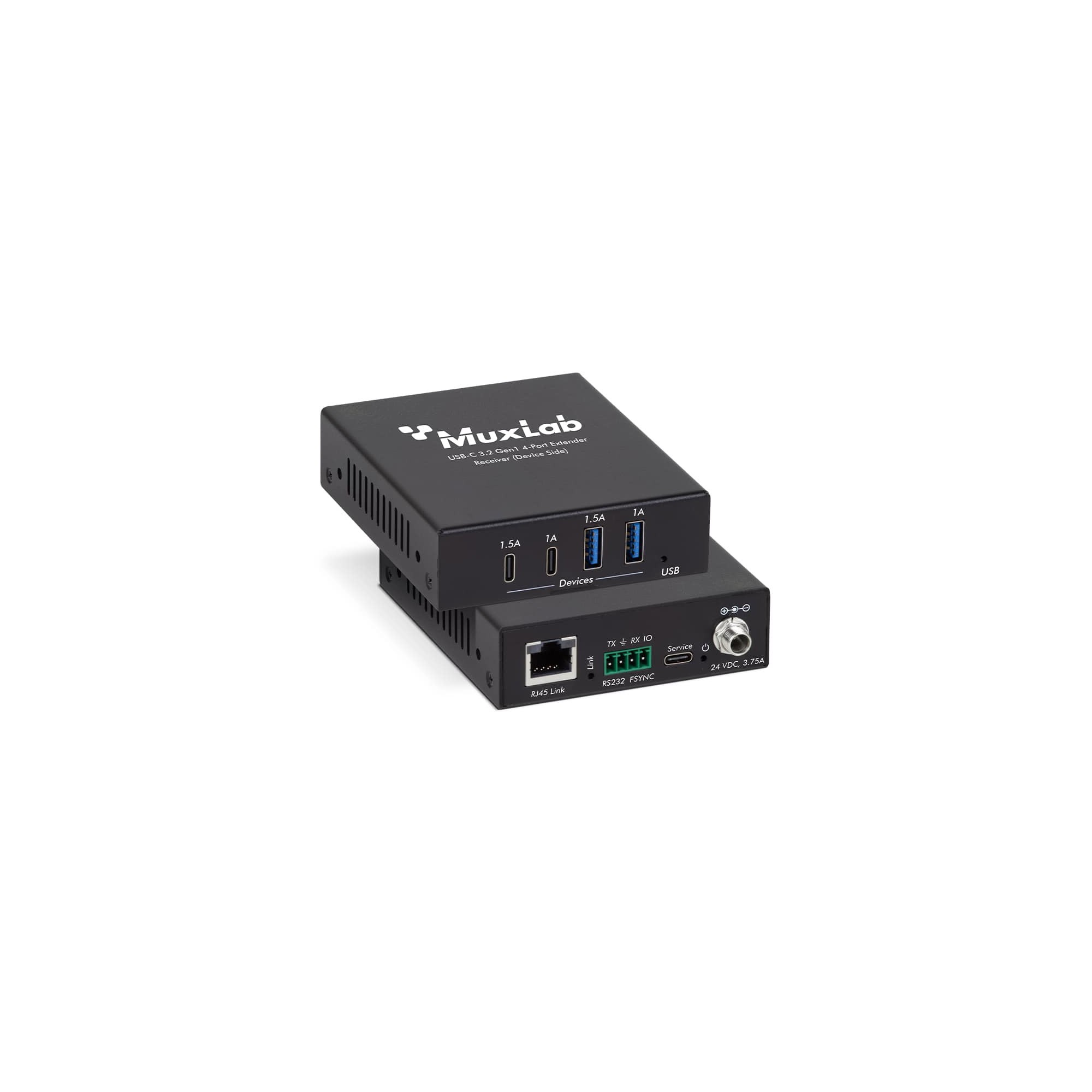

MuxLab USB-C 3.2 Gen1 4-Port Extender Kit, 100m is a professional USB extension solution designed for installations that require reliable USB signal transmission over long distances. It extends USB 3.2 Gen1 up to 100 meters over Cat6a UTP cable, supporting data transfer rates up to 5Gbps, making it ideal for demanding corporate, educational, industrial, and professional environments.

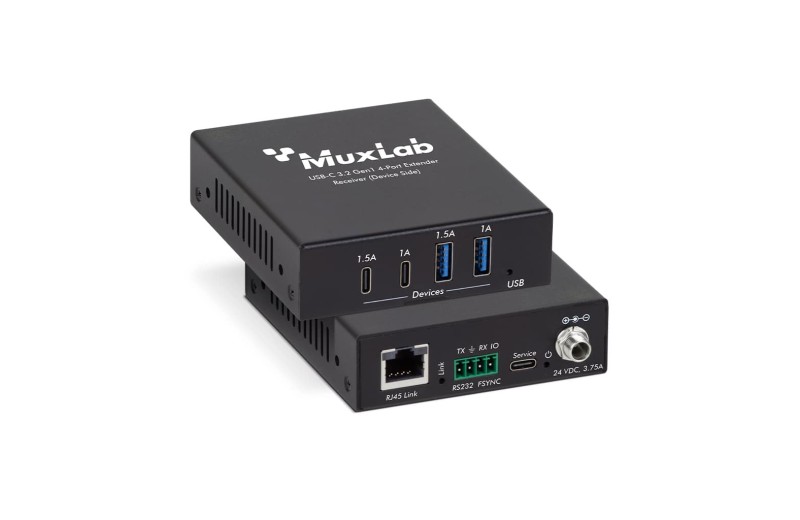

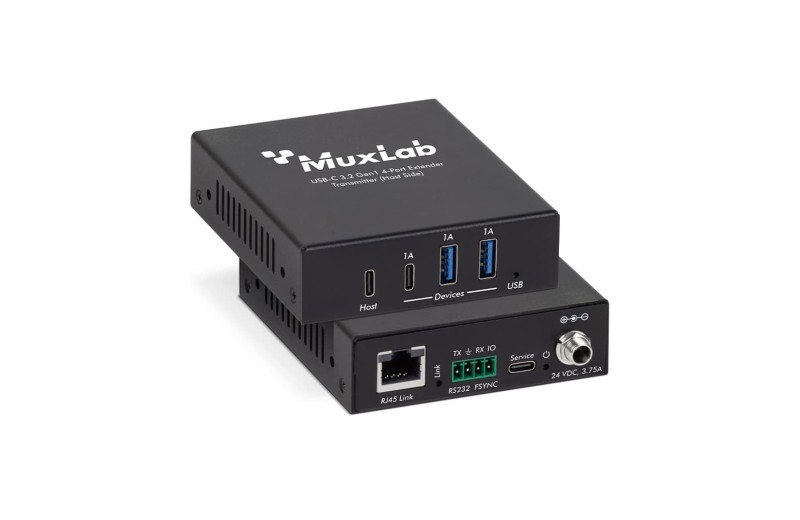

The transmitter features one USB-C 3.2 Gen1 port, three local USB ports (one USB-C and two USB-A), as well as FSYNC GPIO input and RS-232 pass-through. The receiver provides four USB 3.2 Gen1 outputs (two USB-C and two USB-A), along with FSYNC GPIO output and RS-232 pass-through, allowing flexible integration with peripherals and professional equipment.
The unit is plug and play, requiring no additional drivers or software installation, and is compatible with all major operating systems. It also supports bi-directional 24V PoC, while the USB-C and USB-A ports on the receiver provide power up to 5VDC 1.5A and 1A respectively.
Specifications
Extends USB 3.2 Gen1 up to 100m over CAT6a Data transfer rates up to 5Gbps Backward compatible with USB 2.0 and USB 1.1 1x USB-C 3.2 Gen1 and 3 local USB ports on the transmitter 4x USB 3.2 Gen1 outputs on the receiver (2x USB-C / 2x USB-A) Supports RS-232 pass-through Supports FSYNC GPIO pass-through Bi-directional 24V PoC Plug and play operation with no driver installation required Receiver USB ports support power delivery for compatible peripherals
MuxLab HDMI Video Scaler, UHD-4K is a reliable and practical video scaling solution designed for the distribution of one HDMI source to one HDMI display, with support for resolutions up to 4K (3840 x 2160), 8-bit color, and HD audio. The unit can upscale a 1080p/24Hz signal to 4K/24Hz or downscale a 4K/24Hz signal to 1080p/24Hz, ensuring compatibility between different sources and displays.
MuxLab 500408 HDMI 2.0 Extender Kit is a signal extension kit designed to transmit HDMI video/audio and one-way IR up to 50 meters over a single Cat5e/6 cable. It supports resolutions up to 4K/60Hz 4:4:4, 18Gbps bandwidth, HDCP 2.2, HDR, and also features an HDMI loop-out on the transmitter side for local display monitoring.
MuxLab HDMI 2.1 48Gbps Audio De-embedder is a modern HDMI audio extraction solution designed for installations where audio needs to be separated from an HDMI source or an ARC-compatible TV, while maintaining the video signal to a local display. It supports audio extraction to both analog stereo output and digital S/PDIF output, making it a flexible option for both residential and professional AV environments.
MuxLab HDMI 2.1 48Gbps 1x4 Splitter is a modern HDMI signal distribution solution designed for applications where the same content needs to be duplicated from one HDMI source to four displays, with support for ultra-high bandwidth and resolutions up to 8K.
MuxLab 500426 HDMI 1x4 Splitter, 4K60 is an HDMI splitter designed to distribute one HDMI 2.0 source to up to four HDMI displays simultaneously. It supports resolutions up to 4K @ 60Hz (4:4:4), HDR, Deep Color, and HD audio, ensuring reliable and high-quality signal distribution for both professional and residential AV applications.
MuxLab HDMI to HDMI with Audio Extraction, 4K/60 is a practical and reliable solution for AV installations where both HDMI signal distribution and audio extraction are required. The device allows one HDMI source to be connected to one HDMI display, supporting resolutions up to 4K (3840 x 2160) at 60Hz, 8-bit color, and HD audio.
The MuxLab HDMI/RS232 Extender Kit, HDBT, 4K/60 is a professional extender kit designed to transmit HDMI, RS232, and IR control signals over long distances using a single Cat5e/6 cable.
MuxLab USB-C 3.2 Gen1 4-Port Extender Kit, 100m is a professional USB extension solution designed for installations that require reliable USB signal transmission over long distances. It extends USB 3.2 Gen1 up to 100 meters over Cat6a UTP cable, supporting data transfer rates up to 5Gbps, making it ideal for demanding corporate, educational, industrial, and professional environments.
