Muxlab HDMI 2.1 48Gbps 1x2 Splitter 500510

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 2.1 48Gbps 1x2 Splitter 500510
Muxlab HDMI 2.1 48Gbps 1x2 Splitter 500510
Code :
125.180
160.92 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 13.41 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 53.64 € με 0% επιτόκιο με την Klarna
4 δόσεις των 40.23 € με 0% επιτόκιο με την TBI bank
DATA SHEET

MANUAL

Description

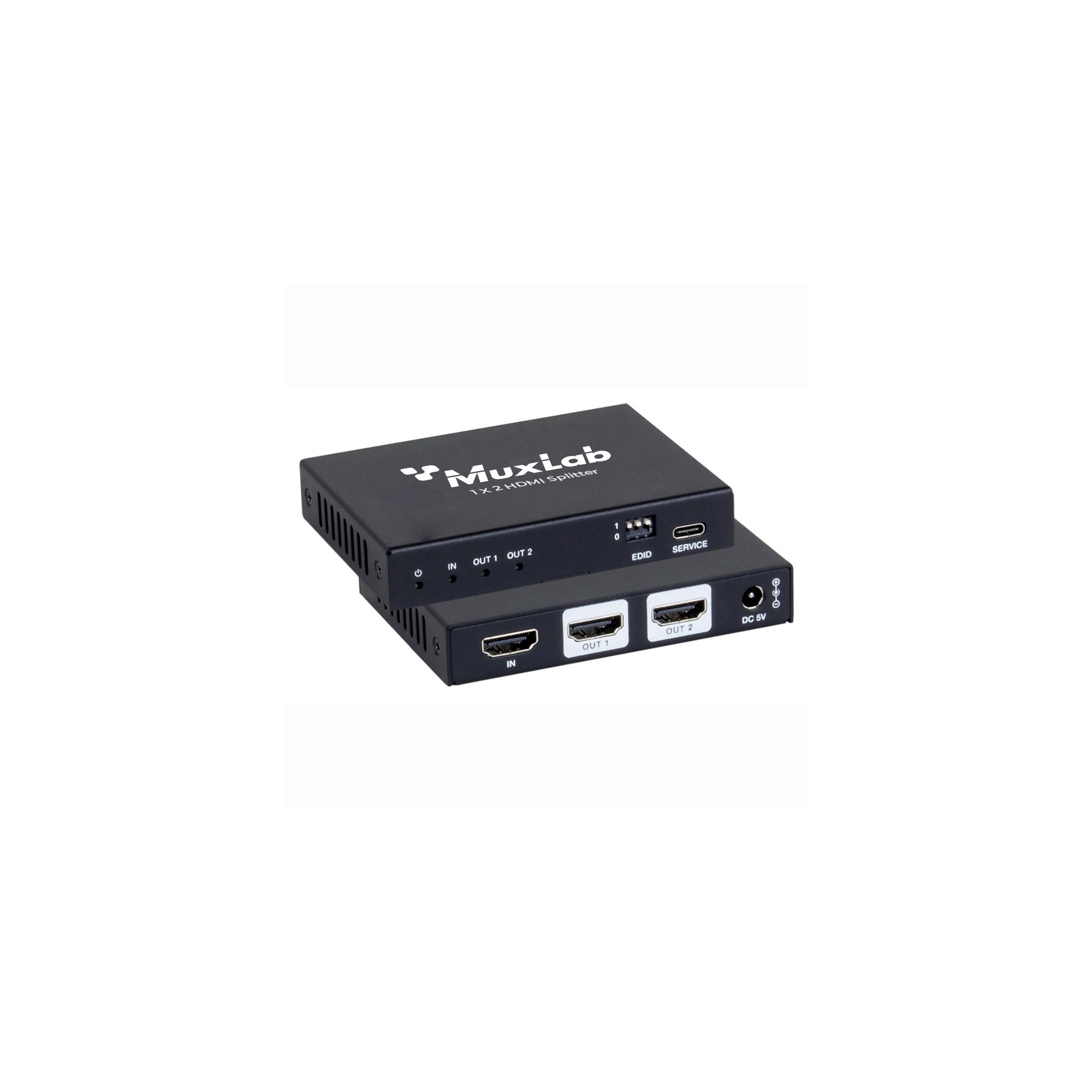

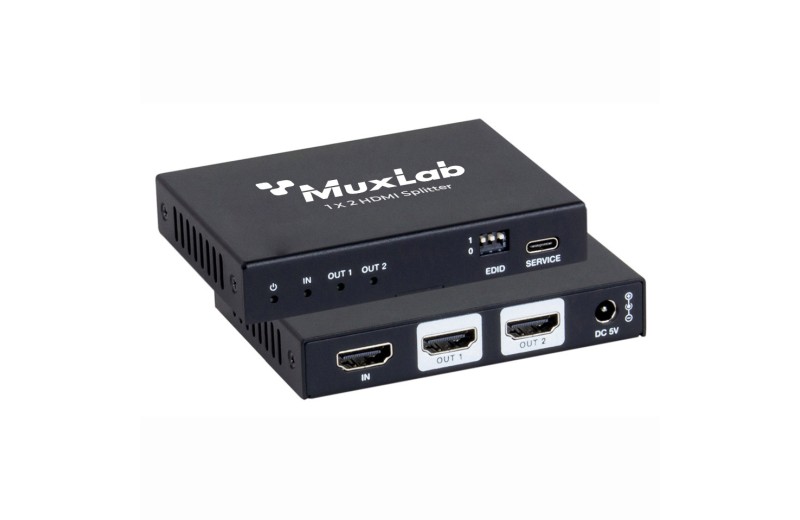

MuxLab HDMI 2.1 48Gbps 1x2 Splitter is a modern HDMI signal distribution solution designed for applications where the same content needs to be duplicated from one HDMI source to two displays, with support for ultra-high bandwidth and resolutions up to 8K.

The unit is HDMI 2.1 and HDCP 2.3 compliant, supporting both 48Gbps FRL and 18Gbps TMDS video bandwidth. It can handle video resolutions up to 8K/60Hz 4:2:0 12-bit and 4K/120Hz 4:4:4 12-bit, making it an excellent choice for gaming, home entertainment, and high-performance AV applications

It also supports modern HDMI 2.1 protocols such as VRR, ALLM, QMS, QFT, and SBTM, along with HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through. For audio, it supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through.

One of its most useful capabilities is auto downscaling from 8K to 4K or from 8K/4K to 1080p on all outputs, as well as HDR to SDR auto converting, which is especially useful when connecting displays with different video capabilities. It also features advanced EDID management and a compact design for flexible installation.

Specifications

Duplicates the same HDMI signal from 1 input to 2 outputs
HDMI 2.1 and HDCP 2.3 compliant
Supports 48Gbps FRL and 18Gbps TMDS bandwidth
Supports up to 8K/60Hz 4:2:0 12-bit and 4K/120Hz 4:4:4 12-bit
Supports VRR, ALLM, QMS, QFT, SBTM
Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through
8K to 4K or 8K/4K to 1080p auto downscaling on all outputs
HDR to SDR auto converting on all outputs
Advanced EDID management
