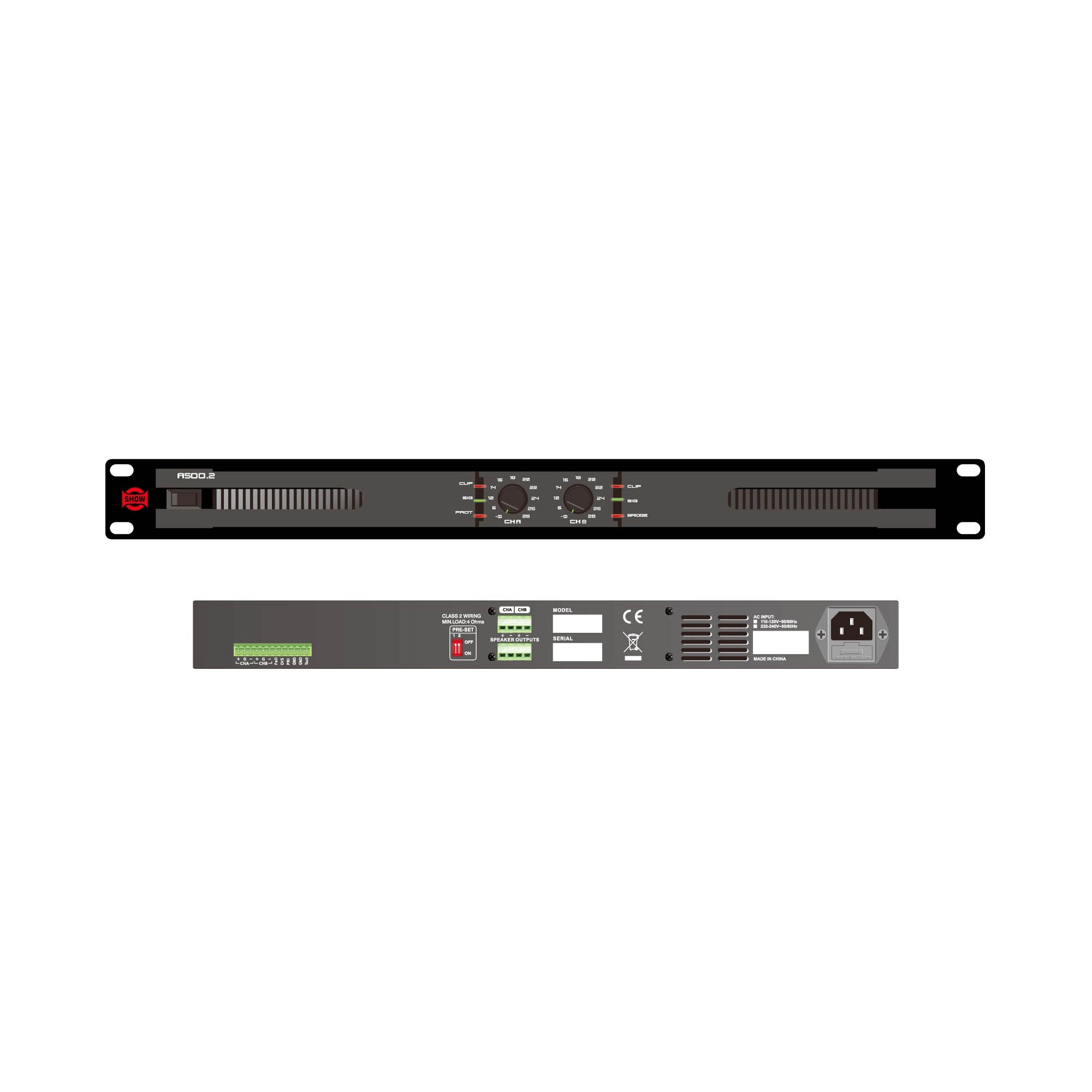

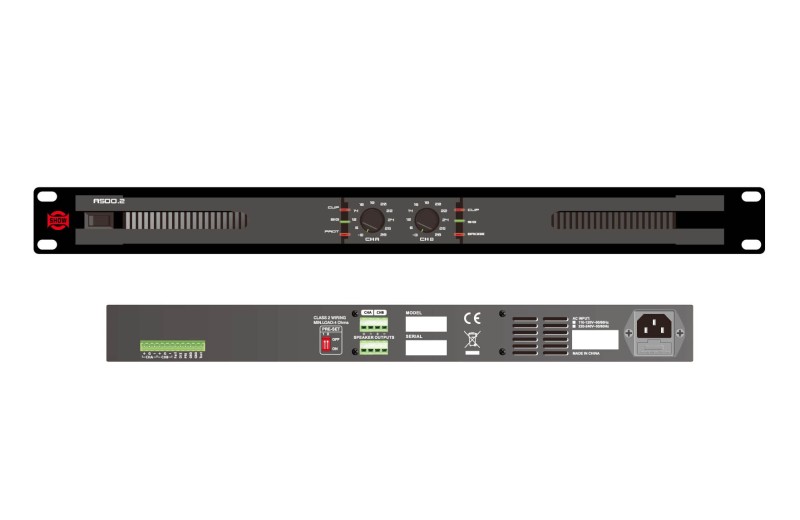

SHOW AH500.2, 2-Channel Power Amplifier

SHOW AH500.2, a professional 2-channel Class D amplifier delivering 2 x 400W at both 100V and 70V, with up to 480W output at 100V or 500W at 70V when operating a single channel, and a frequency response of 100Hz–15kHz.

Each channel features an independent level control and LED indicators for signal, clip and protection, while input and output connections are provided via Euroblock terminals. The switching power supply and Class D design allow the high-power output to be integrated into a compact 1U chassis, suitable for installation in a standard 19” rack.

To protect both the amplifier and the connected system, the AH500.2 includes protection circuits against short circuit, open circuit, overheating, ultrasonic signals and RF interference.

Technical Specifications

Type: 2-channel Class D amplifier, 70V / 100V
Output power at 100V, one channel: 480W
Output power at 100V, two channels: 2 x 400W
Output power at 70V, one channel: 500W
Output power at 70V, two channels: 2 x 400W
Input sensitivity: 0.9–1.1V (0 ±1dBV)
Input impedance: 20kΩ balanced / 10kΩ unbalanced
Frequency response: 100Hz–15kHz
Voltage gain at 100V: 40dB
THD+N: <0.1%
Signal-to-noise ratio: >95dB
Damping factor: >200
Output circuitry: Switching power, Class D
Power supply: AC 220–240V, 50/60Hz
Protection: Short circuit, open circuit, thermal, ultrasonic, RF

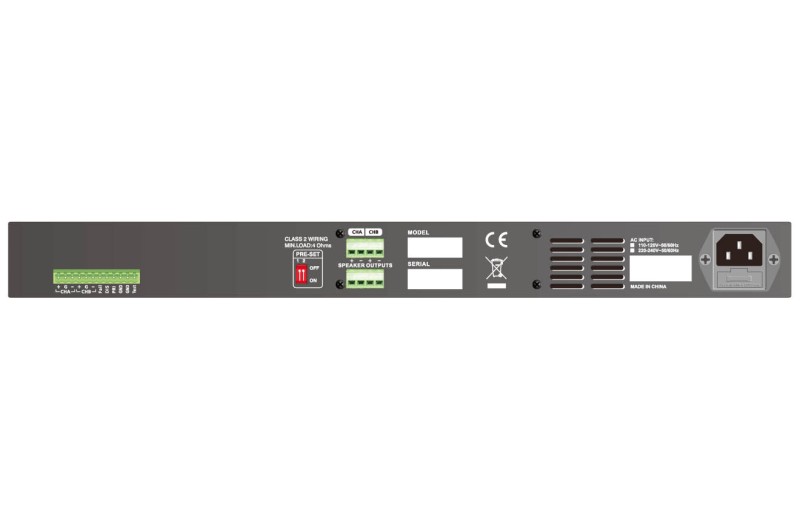

Input/output connections: Euroblock

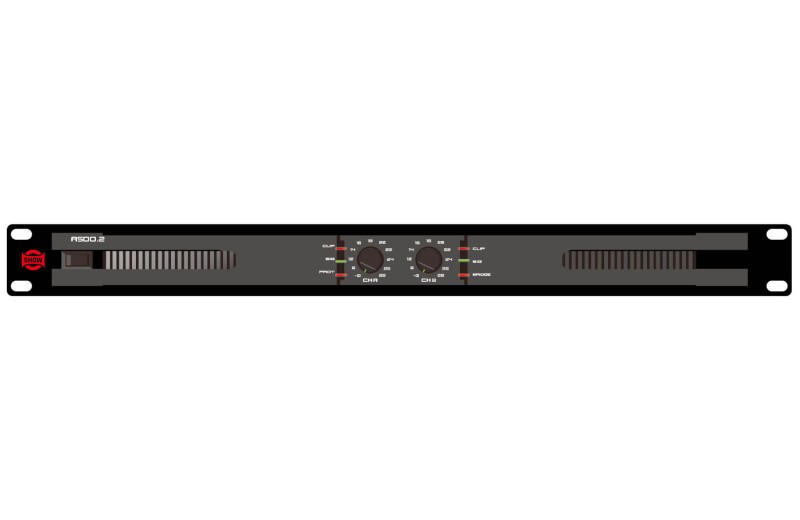

Front panel controls: Power switch, independent input level control per channel
Rear panel control: 70V / 100V selection
Indicators: Signal, Clip, Power, Protection
Rack format: 19”, 1U
Dimensions: 483 x 44 x 360mm
Weight: 5.1kg
