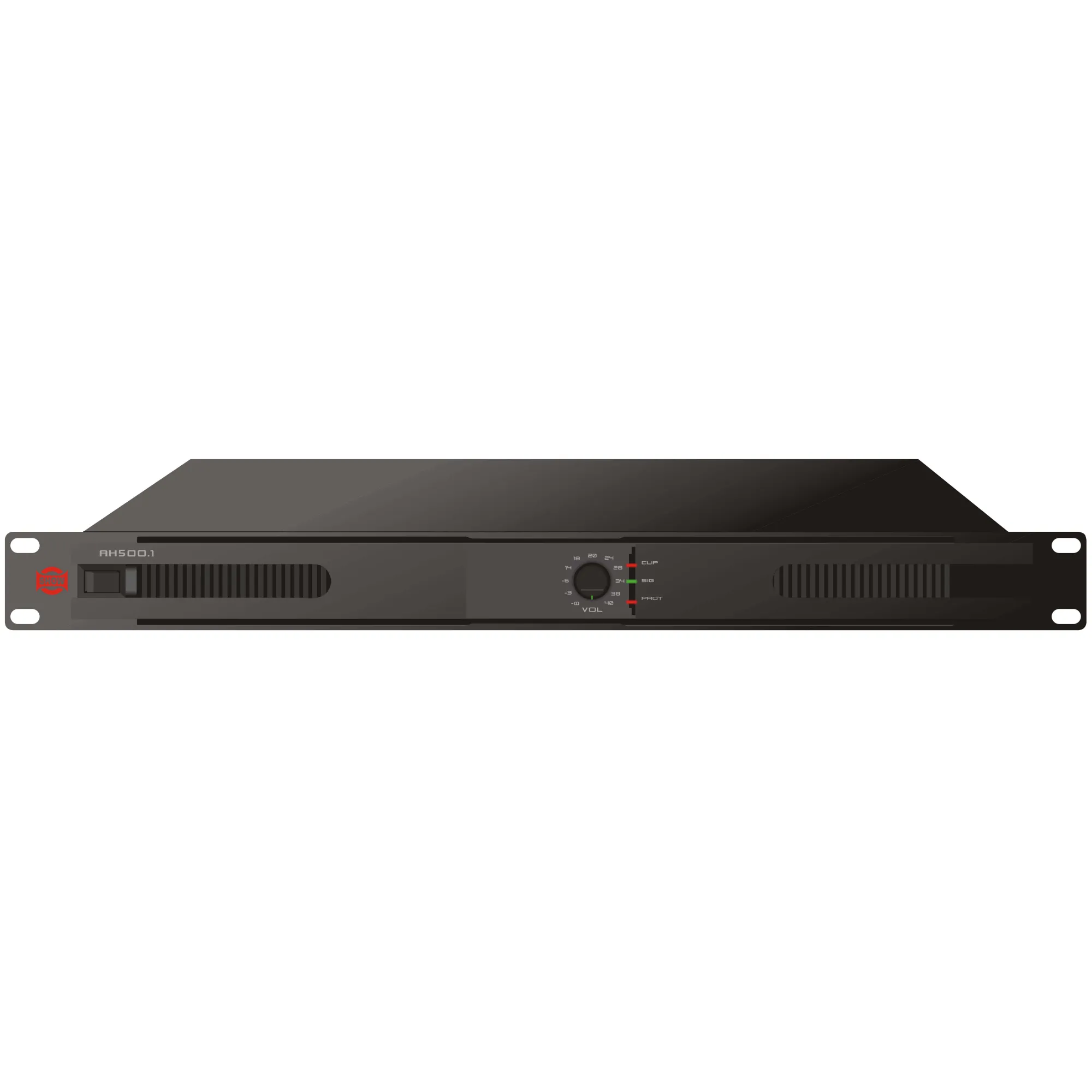

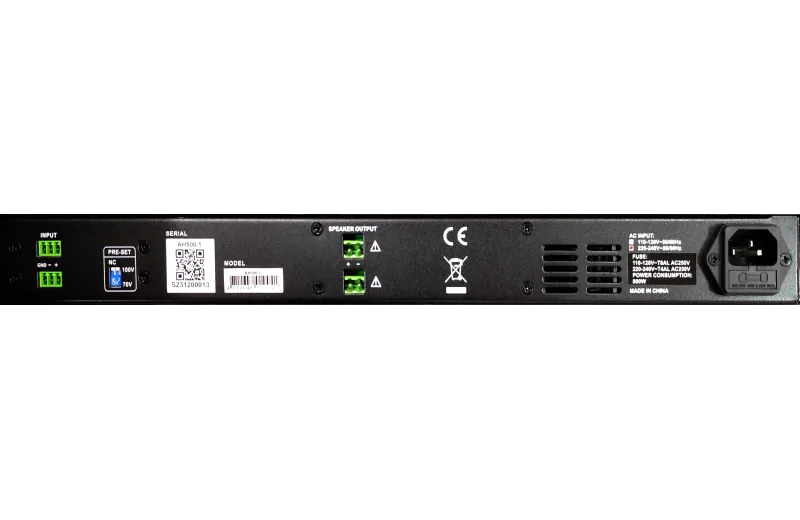

SHOW AH500.1 Power Amplifier

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
SHOW AH500.1 Power Amplifier
SHOW AH500.1 Power Amplifier
SHOW AH500.1 Power Amplifier
SHOW AH500.1 Power Amplifier
Code :
4700109
500.00 €
Available for immediate dispatch
Available in store

Add to wishlist
Compare
Installment calculator
Confirm your selection at checkout
Number of interest-free installments
Amount/Month
41.67 €
Manual

Description

Show AH500.1 Professional Class D installation, 1-channel amplifier with up to a total of 1 x 500W at 100V (RMS) and 140Hz - 14kHz (+0/-3dB) frequency response.  It is suitable for both 70/100V line installations (selectable through dip-switches). Its has volume control and LED indicators (signal, clip and protection). The input and output connections are made through euroblocks. Its 1U rack 19 size is very appropriate for many types of installations

Specifications

  • Power: 1 x 500W
  • Frequence response: 140Hz - 14kHz
  • S/N rate: >95dB
  • Input sensitivity: 0.9-1.1V (0+/-1 dBv)
  • Input Impedance: 20kΩ balanced ή 10kΩ balanced
  • Inputs: Euroblock
  • Outputs: Euroblock
  • Power supply: AC220-240V,50/60Hz or AC110-120V ,50/60Hz
  • Rack: 1U
  • Dimensions (WxDxH): 483 x 360 x 44mm
  • Weight: 5kg

Specifications

Stable at 2 Ohms
No
Category
Power Amplifier 100V
DSP
No
Signal to Noise Ratio
> 95 dB
Amplifier Type
Professional
Channels
1
Inputs
Euro block
Amp Class
Class D
THD
< 0.1%
Sensitivity Inputs
0.9 - 1.1V (+0/-1dBv)
Outputs
Euro block
Protective Cirquits
circuit, thermal, RF protection
Main Voltage
AC: 110-120V or 220~240V 50/60Hz
Indicators
Ενεργοποίηση/απενεργοποίηση: 1 μπλε led - Προστασία: 4 κόκκινα led - Σήμα: 4 πράσινα led - clip 4 κόκκινα led
Width (mm)
483
Height (mm)
44
Depth (mm)
360
Weight (kg)
5
Rack Unit
1U
Colour
Black
EAN13
4712646010041
MPN
AH500.1
