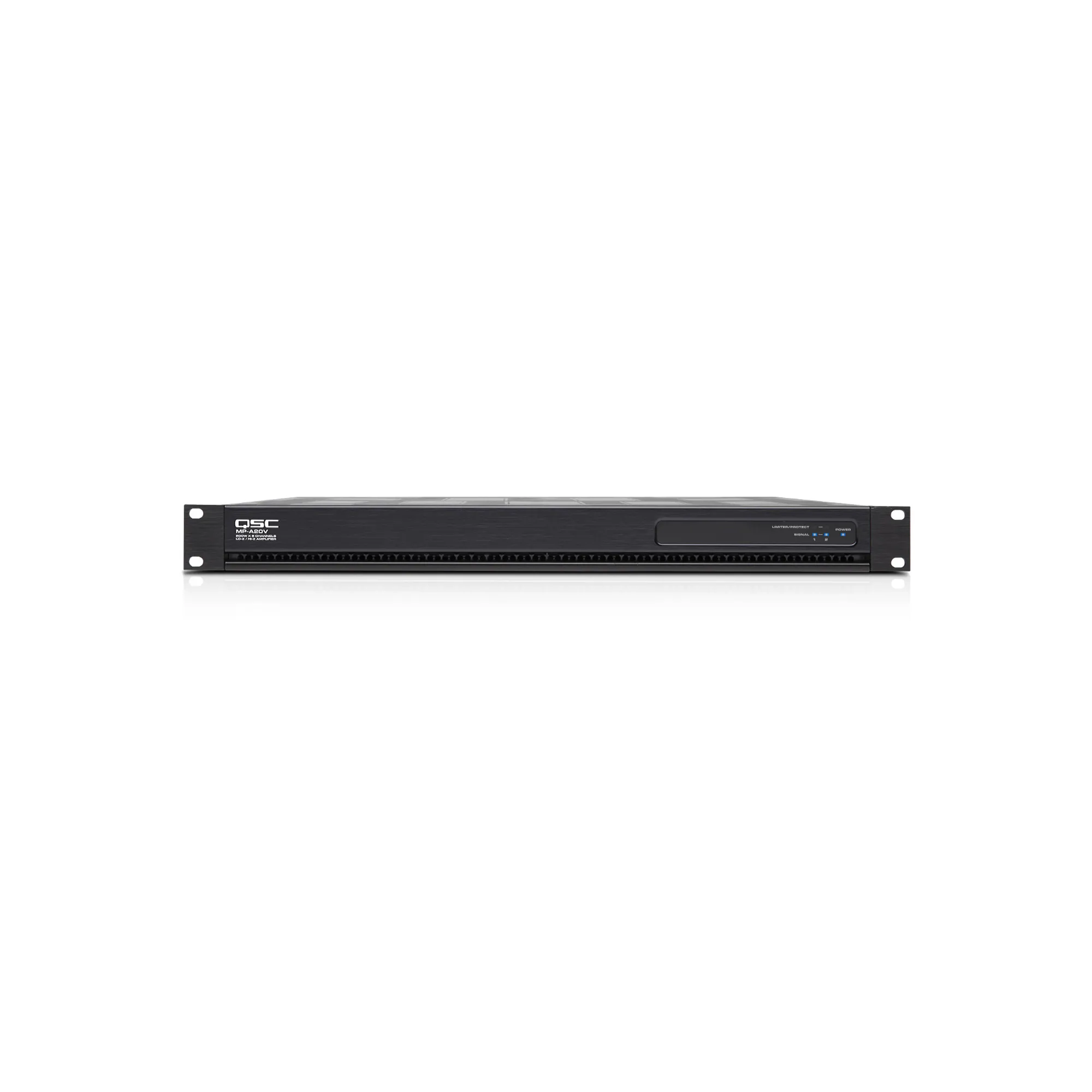

QSC MP-A20V professional two channel amplifier with up to a total of 2 x 200W at 4Ω/8Ω and up to 200 watts into 70V or 100V loads. The MP-A20V incorporates FlexAmp Technology that allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio. It has Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership and also Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input. The MP-A Series offers an incredible amount of flexibility for business music and paging applications. Rack Mount 1U. Dimensions (WxDxH) 483 x 377 x 44mm - 3,5kg
Specifications
Stable at 2 Ohms
No
Category
Power Amplifier 100V
Power 4Ohms / channel
200 W
Power 8Ohms / channel
200 W
DSP
No
Frequency Response
20 Hz – 20 kHz
Channels
2
Inputs
2 x Euroblock 3-Pin
Outputs
Euroblock 4-Pin
Protective Cirquits
DC fault, Short circuit, Overload, Open circuit, Temperature, RF protection
