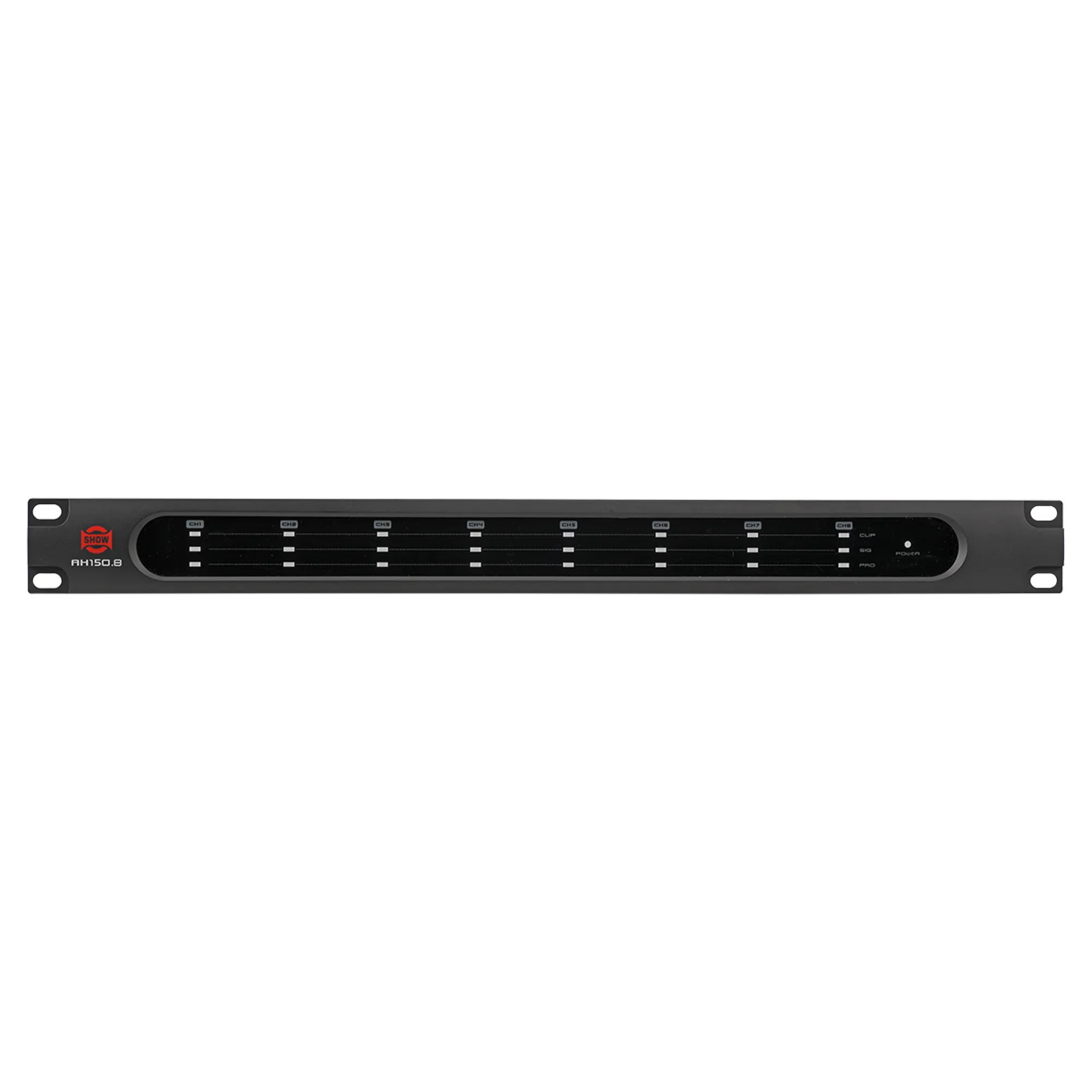

SHOW AH150.8 Power Amplifier

Name: SHOW AH150.8 Power Amplifier
Brand: SHOW
SKU: 871104
Price: 1209 EUR
Availability: InStock

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ

2 YEAR WARRANTY

Code :

871104

1,209.00 €

Available for immediate dispatch

Available in store

Add to wishlist

Compare

Installment calculator

Confirm your selection at checkout

Number of interest-free installments

Amount/Month

100.75 €

MANUAL

DATASHEET

Description

Show AH150.8 Professional Class D, 8-channel amplifier with up to a total of 8 x 135W at 100V (RMS) and 100Hz - 15kHz (+0/-3dB) frequency response. This amplifier operates on both 70V RMS and 100V RMS, offering versatility in voltage options and making it suitable for various audio installations. The amplifier supports both balanced (20kohm) and unbalanced (10kohm) inputs, allowing seamless integration with a wide range of audio sources. The AH150.8 features efficient Switching Power Class D technology, ensuring minimal heat generation and higher energy efficiency.

Specifications

Power: CHA-D /CH1-8 70V(RMS) 150W x 4, (ONE Channel Drive) 100V(RMS) 150W x 4, CHA-D/CH1-8 70V (RMS) 135W x 8, (All Channels Drive) 100V(RMS) 135W x 8
Frequence response: 100Hz~15KHz(0+/-3dB)
S/N rate: >95dB
Input sensitivity: 0.9-1.1V (0+/-1 dBv)
Input Impedance: 20kΩ balanced ή 10kΩ balanced
Inputs: Euroblock
Outputs: Euroblock
Power supply: 110 - 120V / 220-240V 50~60Hz
Rack: 1U
Dimensions (WxDxH): 483 x 360 x 44mm
Weight: 7kg

Specifications

Category: Power Amplifier 100V
Frequency Response: 100 Hz - 15 kHz
Amplifier Type: Professional
Channels: 8
Inputs: Euroblock
Outputs: Euroblock
Protective Cirquits: Short circuit, open circuit, thermal, ultrasonic and RF
Main Voltage: 220V-240V 50/60Hz
Width (mm): 483
Height (mm): 44
Depth (mm): 360
Weight (kg): 7
Rack Unit: 1U
Warranty: 2 years
Colour: Black
EAN13: 4712646005658
MPN: AH150.8
