Show AH150.4 - Mixer Amplifier
Show AH150.4 - Mixer Amplifier
Free shipping
Show AH150.4 - Mixer Amplifier
Show AH150.4 - Mixer Amplifier

Show AH150.4 - Mixer Amplifier

871099

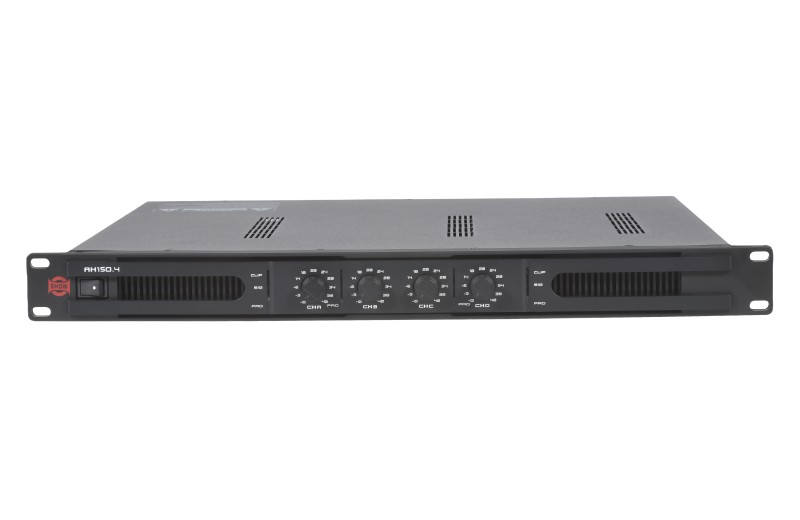

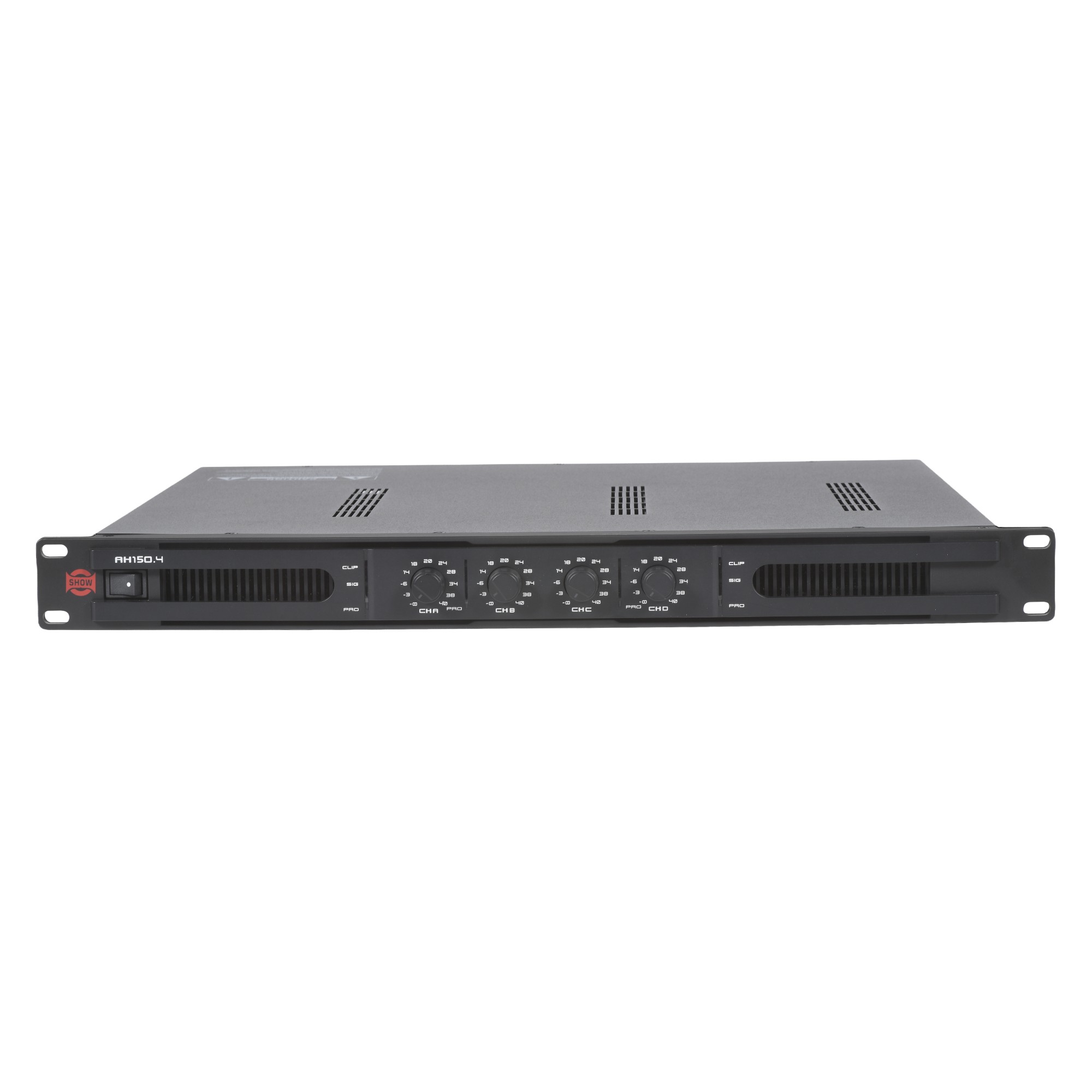

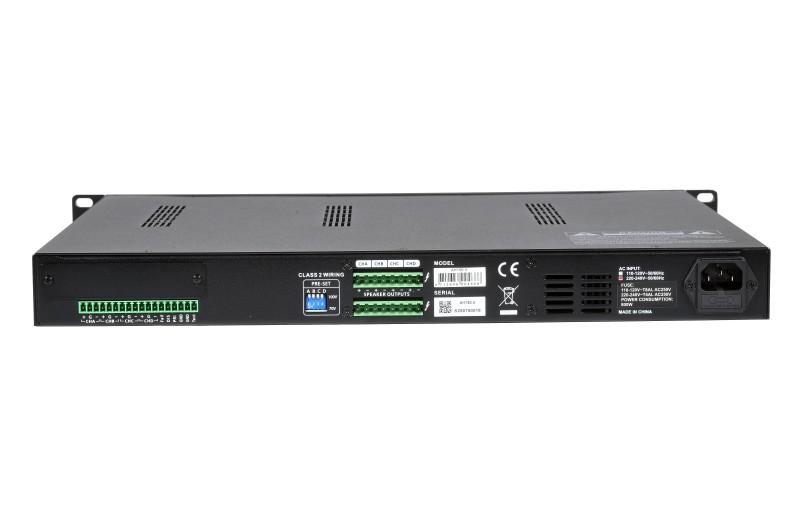

Show AH150.4 Professional Class D, 4-channel amplifier with up to a total of 4 x 135W at 100V (RMS) and 100Hz - 15kHz (+0/-3dB) frequency response. This amplifier operates on both 70V RMS and 100V RMS, offering versatility in voltage options and making it suitable for various audio installations.
€799.00
Tax included
In Stock - Delivery in 1-2 days

Payment options
With credit card
€66.58 x 12 interest free installments

Credit module tbi bank 1.0.13

Show AH150.4 Professional Class D, 4-channel amplifier with up to a total of 4 x 135W at 100V (RMS) and 100Hz - 15kHz (+0/-3dB) frequency response. This amplifier operates on both 70V RMS and 100V RMS, offering versatility in voltage options and making it suitable for various audio installations. The amplifier supports both balanced (20kohm) and unbalanced (10kohm) inputs, allowing seamless integration with a wide range of audio sources and also slot in card for Dante (FSD-44D). The AH150.4 features efficient Switching Power Class D technology, ensuring minimal heat generation and higher energy efficiency.

Specifications

  • Power: CHA-D /CH1-8 70V(RMS) 150W x 2, (ONE Channel Drive) 100V(RMS) 150W x 2, CHA-D/CH1-8 70V (RMS) 135W x 4, (All Channels Drive) 100V(RMS) 135W x 4
  • Frequence response: 100Hz~15KHz(0+/-3dB)
  • S/N rate: >95dB
  • Input sensitivity: 0.9-1.1V (0+/-1 dBv)
  • Input Impedance: 20kΩ balanced ή 10kΩ balanced
  • Inputs: Euroblock
  • Outputs: Euroblock
  • Power supply: 110 - 120V / 220-240V 50~60Hz
  • Rack: 1U
  • Dimensions (WxDxH): 483 x 360 x 44mm
  • Weight: 5.4kg
Category
Power Amplifier 100V
Channels
4
Amp Class
Class D
Signal to Noise Ratio
> 95 dB
Frequency Response
100Hz - 15kHz (+0/-1dB)
Inputs
Euroblock
Main Voltage
AC: 110-120V or 220~240V 50/60Hz
Rack Unit
1U
Outputs
Euro block
Colour
Black
Width (mm)
483
Height (mm)
44
Depth (mm)
281
Weight (kg)
5.4
Warranty
2
New
EAN13
4712646004668
MPN
AH150.4
