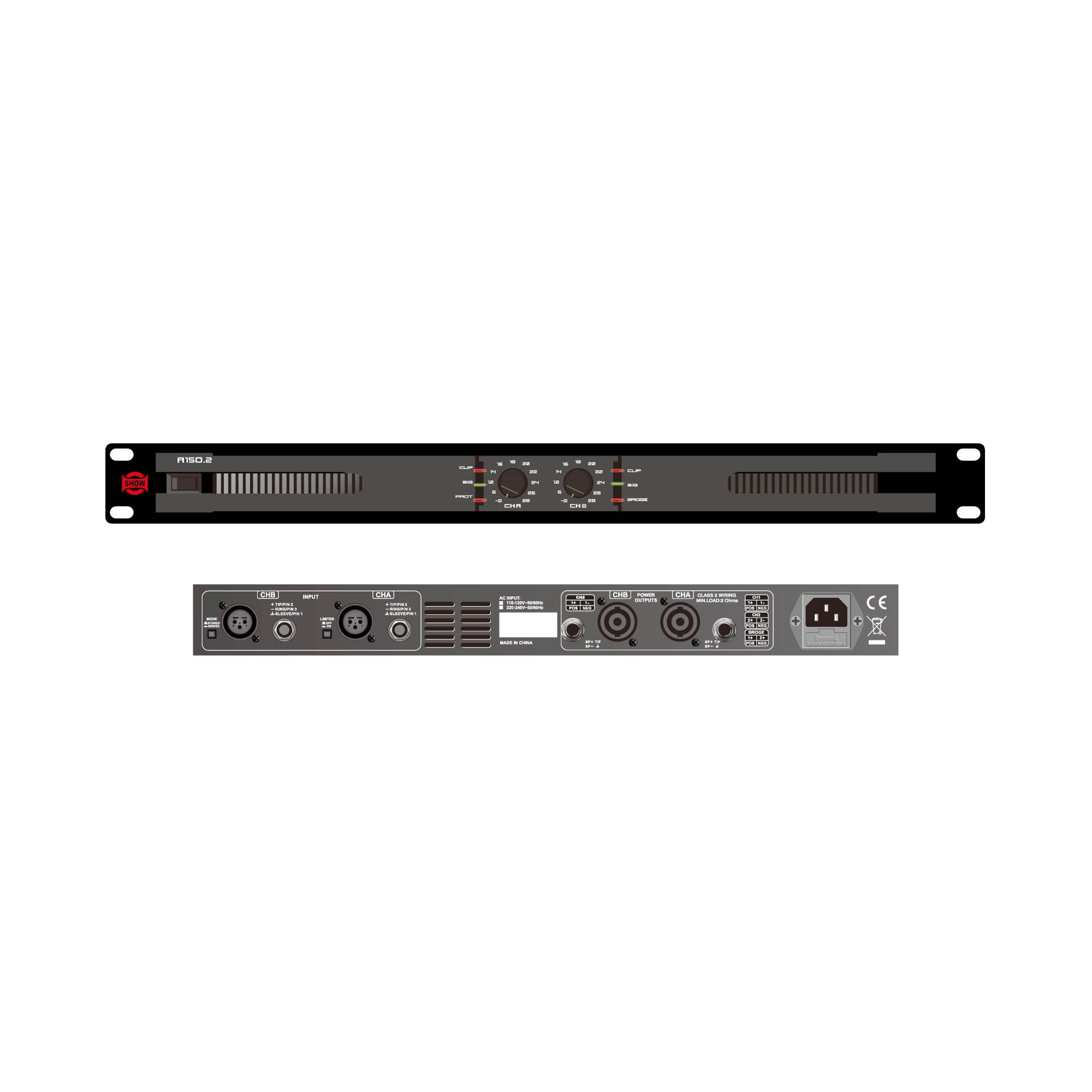

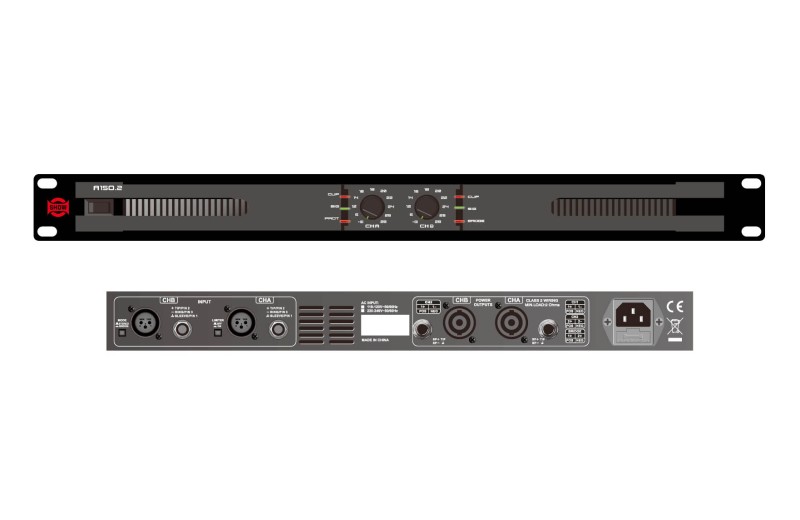

SHOW AH150.2 2-Channel Power Amplifier

SHOW AH150.2, a professional 2-channel Class D amplifier delivering 2 x 135W at 100V and 70V, with up to 150W output when operating a single channel and a frequency response of 100Hz–15kHz.

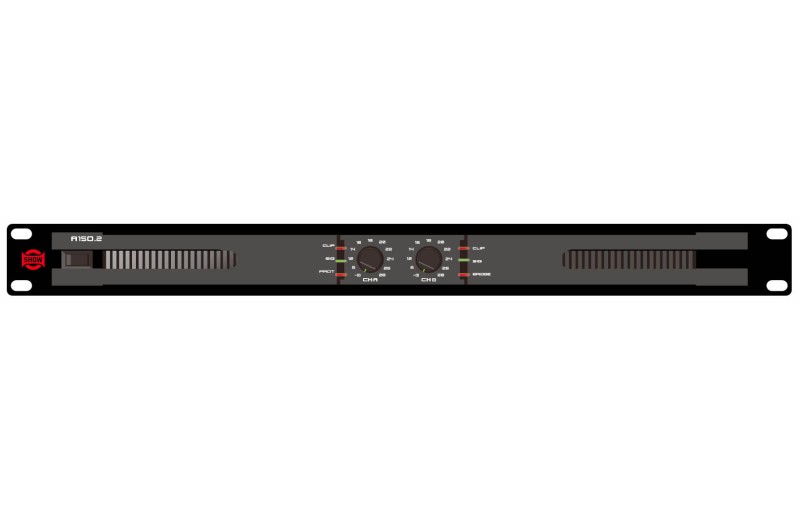

Each channel features an independent level control on the front panel, along with LED indicators for signal, clip and protection, while a separate power indicator provides clear operating status. Inputs and outputs are provided via Euroblock connectors, making the amplifier easy to integrate into permanent professional audio installations.

The amplification system is based on a switching power supply and Class D circuitry, offering a compact 1U design for installation in a standard 19” rack. The AH150.2 also features protection against short circuit, open circuit, overheating, ultrasonic signals and RF interference.

Technical Specifications

Type: 2-channel Class D amplifier, 70V / 100V
Output power at 100V, one channel: 150W
Output power at 100V, two channels: 2 x 135W
Output power at 70V, one channel: 150W
Output power at 70V, two channels: 2 x 135W
Input sensitivity: 0.9–1.1V (0 ±1dBV)
Input impedance: 20kΩ balanced / 10kΩ unbalanced
Frequency response: 100Hz–15kHz
Voltage gain at 100V: 40dB
THD+N: <0.1%
Signal-to-noise ratio: >95dB
Damping factor: >200
Output circuitry: Switching power, Class D
Power supply: AC 220–240V, 50/60Hz
Protection: Short circuit, open circuit, thermal, ultrasonic, RF

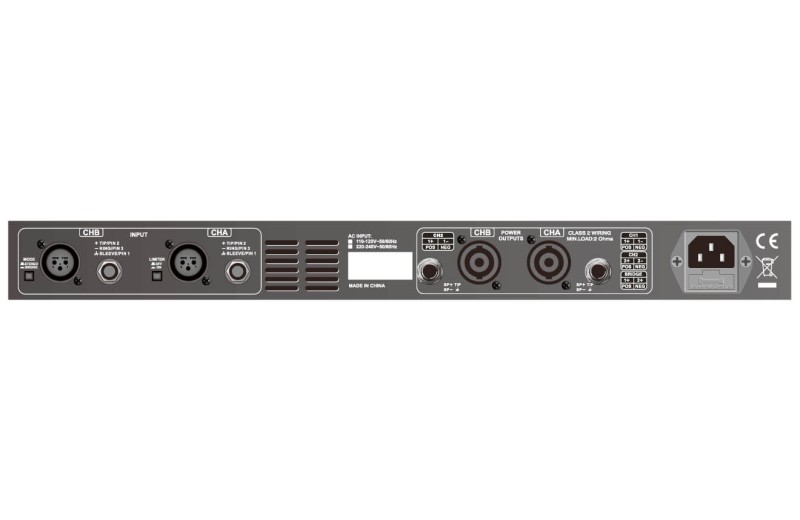

Input/output connections: Euroblock
Front panel controls: Power switch, independent input level control per channel
Rear panel control: 70V / 100V selection
Indicators: Signal, Clip, Power, Protection
Rack format: 19”, 1U
Dimensions: 483 x 44 x 360mm
Weight: 4.7kg
