Muxlab HDMI over IP PoE Seamless Transmitter, 1080P 500864-TX

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI over IP PoE Seamless Transmitter, 1080P 500864-TX
Muxlab HDMI over IP PoE Seamless Transmitter, 1080P 500864-TX
Code :
125.237
561.98 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 46.83 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 187.33 € με 0% επιτόκιο με την Klarna
4 δόσεις των 140.50 € με 0% επιτόκιο με την TBI bank
DATA SHEET

Description

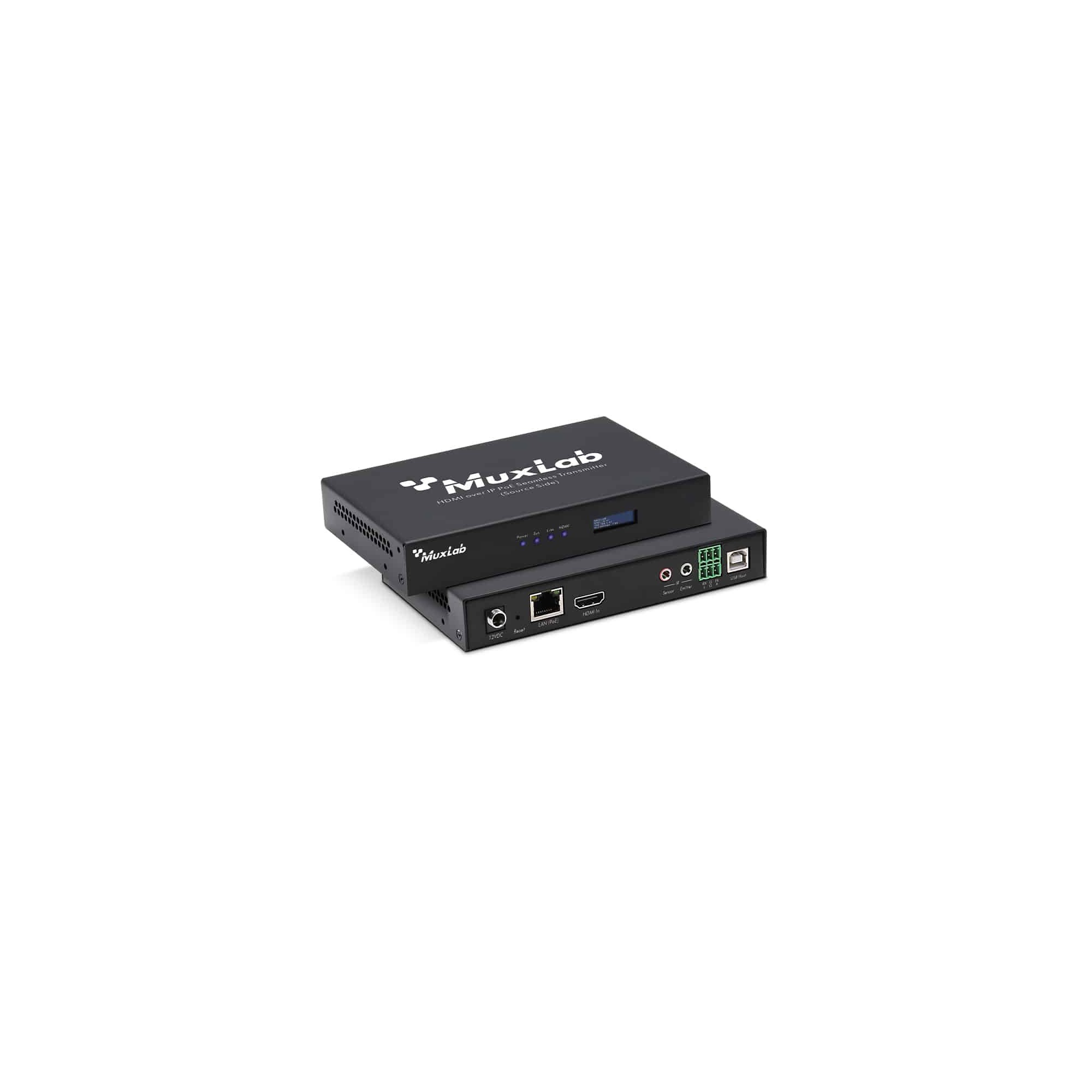

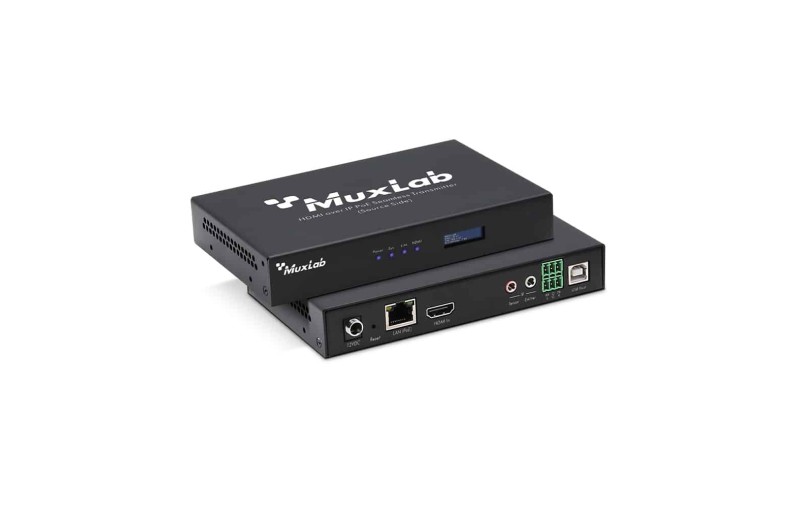

Muxlab HDMI over IP PoE Seamless Transmitter, 1080P, transmitter designed to extend HDMI source equipment up to 100m (330ft) over Cat5e/6 cable, supporting resolutions up to 1080p at 60Hz. It is compatible with 500864-RX receivers and supports point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, as well as Video Wall and Multiview functionality.

Supports H.264/H.265 and allows audio/video streaming not only across a local network, but also over WiFi and even the Internet for distributed installations. The transmitter accepts a 1080p/60 signal and streams it to a compatible H.264/H.265 receiver with approximately 80ms latency and seamless switching capability.

It also supports RS232, USB, and infrared for remote control of end devices, and it can be powered via PoE (PD) from a compatible PoE Ethernet switch.

Specifications

Τύπος συσκευής: HDMI over IP PoE Seamless Transmitter, 1080P
Μέγιστη ανάλυση βίντεο: έως 1080P/60
Πρότυπο HDMI: HDMI 1.4
Συμβατότητα HDCP: HDCP 1.4
Μέγιστη απόσταση: έως 100 m μέσω Cat5e/6
Συμπίεση: H.264 / H.265
Latency: 80 ~ 120 ms
Network bandwidth: έως 12 Mbps
Υποστηριζόμενα πρωτόκολλα: Multicast, RTSP, RTMP
Υποστηριζόμενες λειτουργίες: seamless switching, Video Wall, Multiview έως 4 παράθυρα ανά οθόνη
Είσοδος βίντεο: 1 x HDMI Type-A
Είσοδος ήχου: 1 x Phoenix connector line in ή HDMI audio
Θύρες ελέγχου: 1 x RS232 Phoenix connector, 1 x 3.5mm IR Sensor, 1 x 3.5mm IR Emitter
Δίκτυο: 1 x RJ45 (PoE)
Θύρα USB: 1 x USB-B για PC host
Οθόνη ενδείξεων: OLED screen για model, ID, IP και status
Ενδείξεις front panel: Power, Sys, Link, HD
Τροφοδοσία: PoE (PD) ή 12VDC / 1A με προαιρετικό τροφοδοτικό
Κατανάλωση ισχύος: <10W
Έλεγχος / διαχείριση: Muximus Network Controller, 3rd party control via TCP/UDP, Windows PC software, Android/iOS app
Θερμοκρασία λειτουργίας: 0°C έως 40°C
Θερμοκρασία αποθήκευσης: -20°C έως 85°C
Υγρασία λειτουργίας: έως 90% χωρίς συμπύκνωση
Διαστάσεις: 155 x 95 x 25mm
Βάρος: 0.54kg
