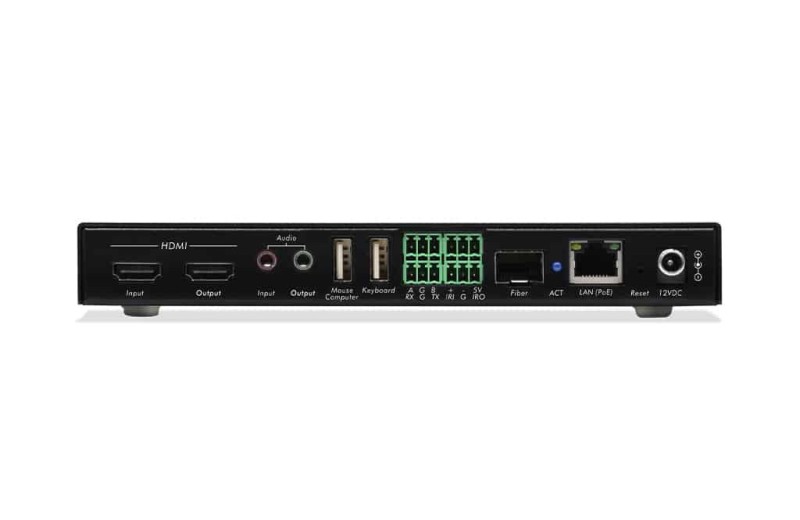

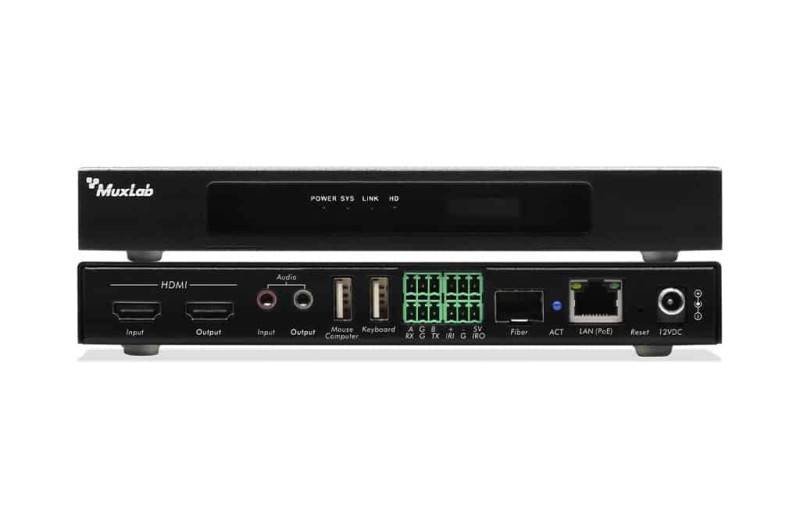

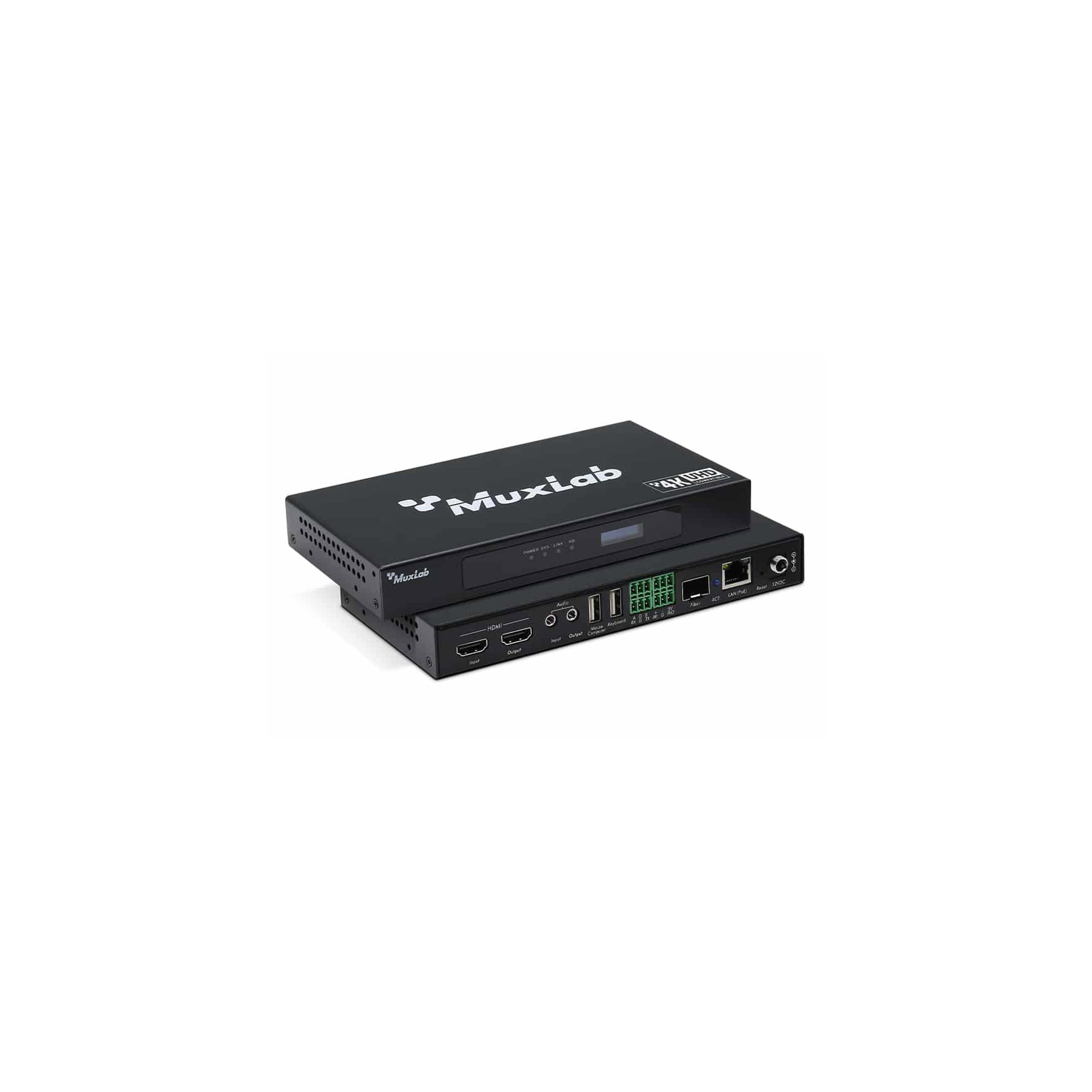

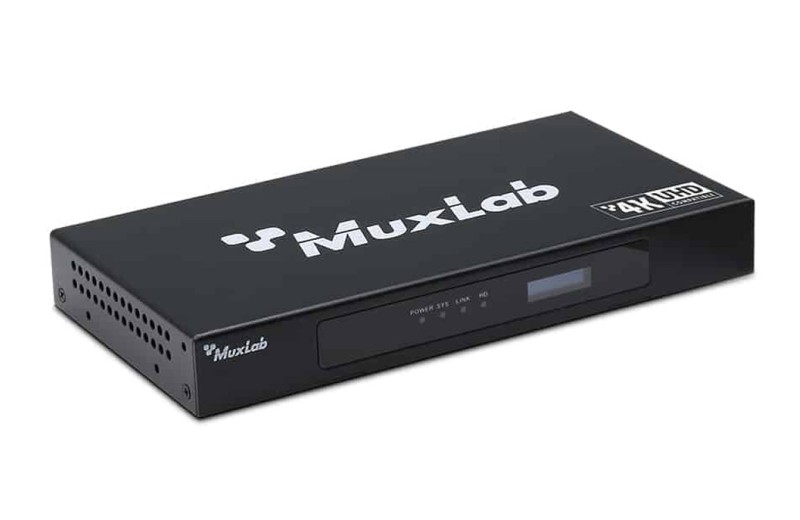

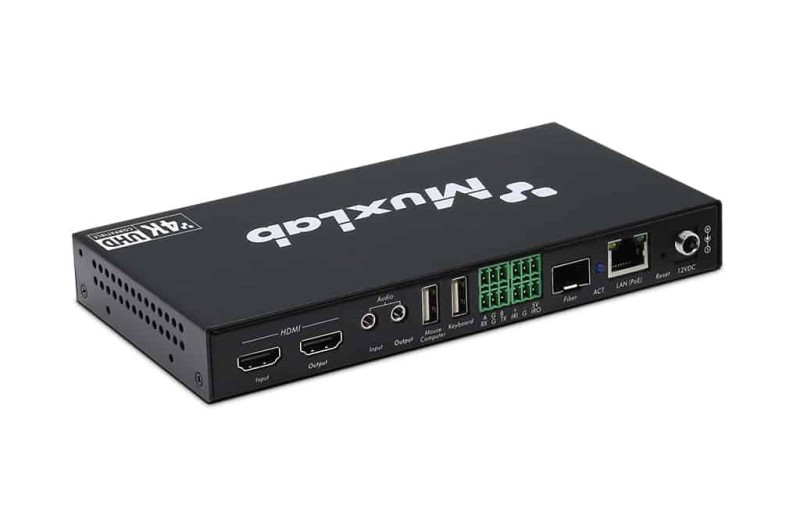

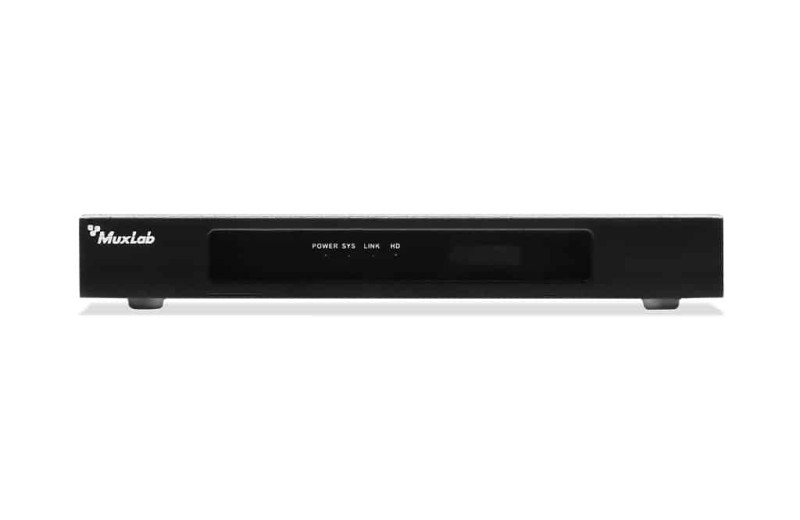

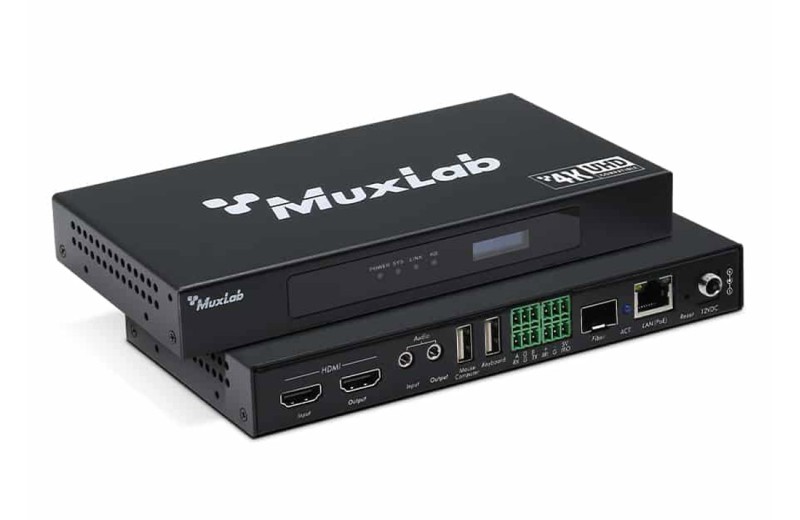

MuxLab HDMI over IP PoE Workstation Transceiver, 4K30 is built for environments that require flexible and scalable management of computer sources over an IP network. It supports local audio/video extension up to 330 ft (100m) over Cat5e/6 or up to 2 km over fiber, while delivering high image quality with approximately 80ms latency.
The unit supports full keyboard and mouse control in distributed KVM applications, allowing users to access and switch control of connected computers and servers from any workstation. Each workstation screen can display and control up to 9 computers/servers simultaneously, making it highly suitable for command, monitoring, and collaboration environments.
Additional features include seamless switching, real-time source preview in the OSD, the ability to push content from one workstation to another or to a video wall, support for workstation video wall configurations, and the creation of groups of computers or servers for easier management. The system is managed through Muxlabs AV Management Tool and OSD.
It is well suited for KVM/AV systems, classroom training systems, digital signage, boardroom systems, collaborative PC environments, and medical information systems.
Specification
HDMI and USB/KVM over IP extension over Ethernet LAN
Supports up to 4K @ 30Hz
Extends up to 330 ft (100m) over Cat5e/6 or 2 km over fiber
PoE support
H.264 / H.265 video codec
High image quality with approx. 80ms latency
Keyboard and mouse control support
Access up to 9 computers/servers simultaneously on each workstation screen
Seamless switching and real-time OSD preview
Supports Workstation Video Wall
Managed via AV Management Tool & OSD
