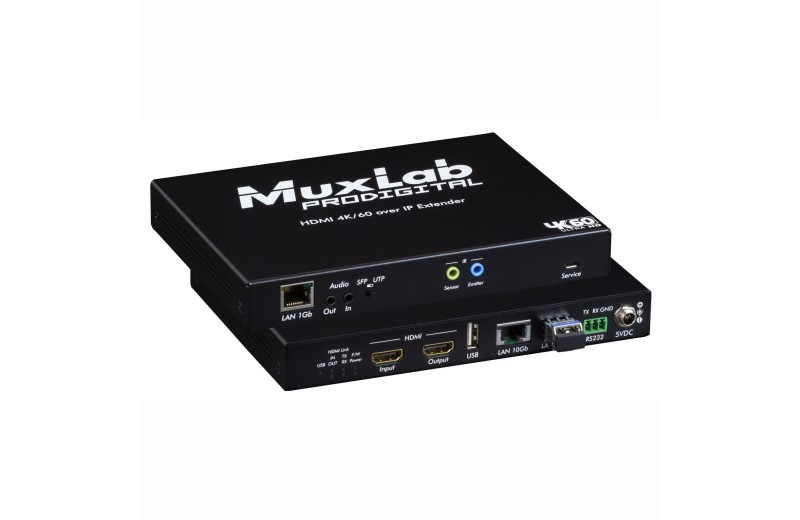

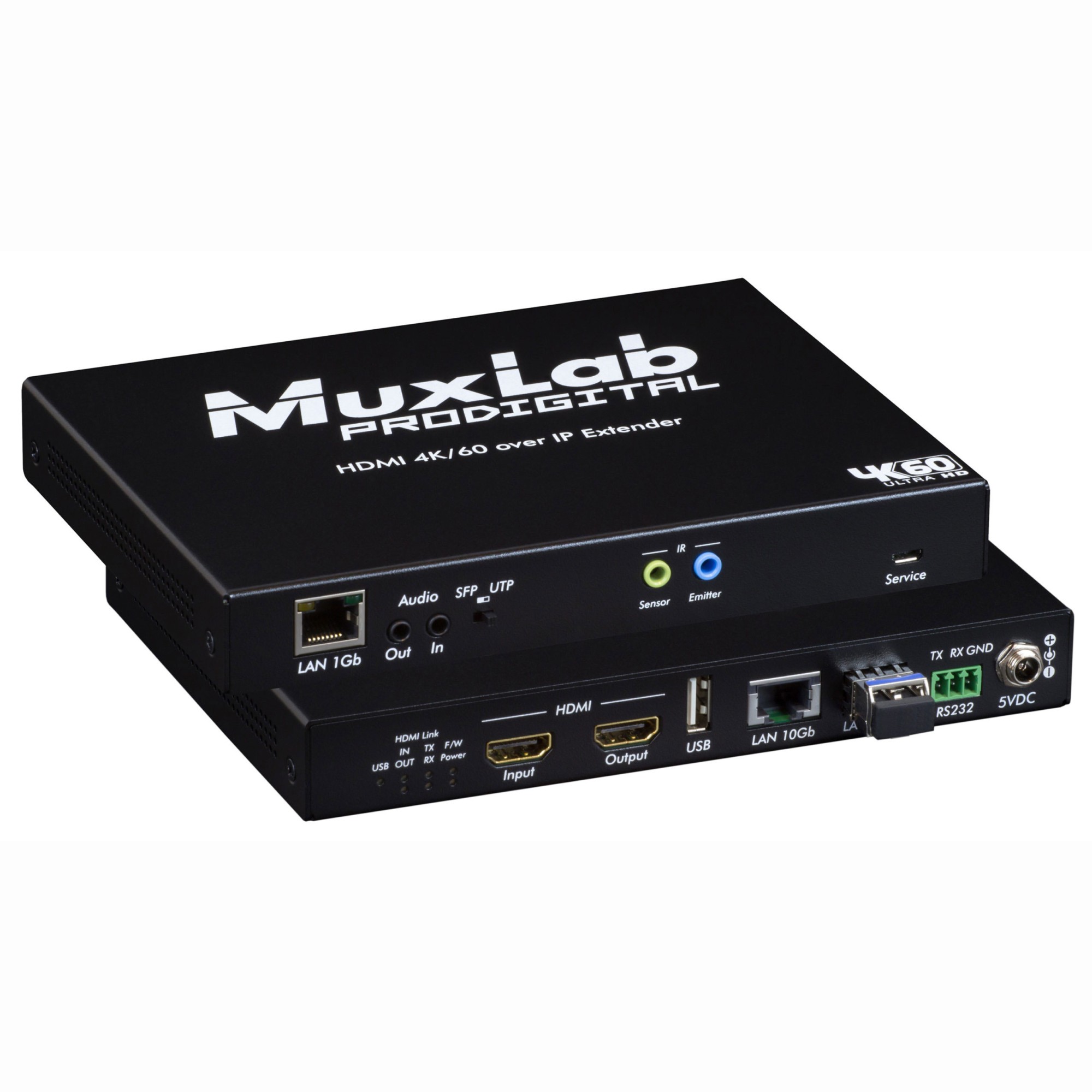

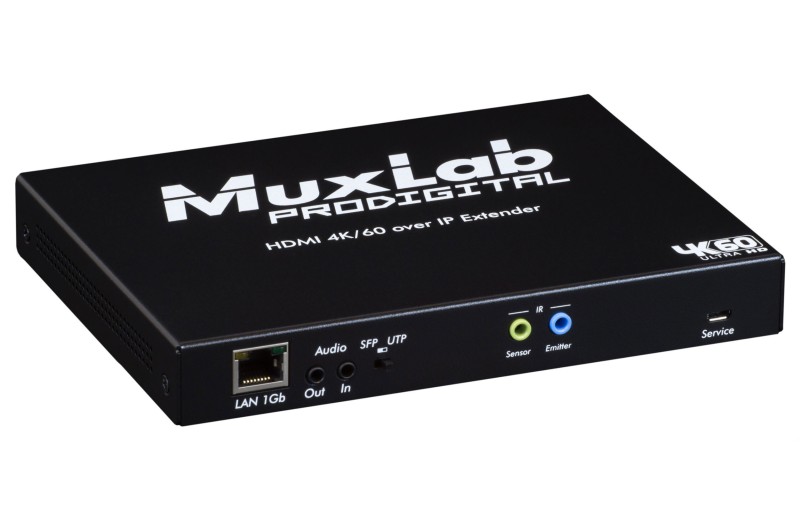

Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER
Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER
Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER
Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER
Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER
Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb,Fiber 500766-FIBER
Code :
125.227
1,955.80 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 162.98 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATA SHEET

Description

Muxlab HDMI 4K/60 KVM over IP Transceiver 10Gb, Fiber, HDMI 4K/60 KVM over IP Transceiver 10Gb over fiber, designed for professional AV over IP and KVM environments that require high performance, scalability, and low latency. It supports HDMI equipment up to 4K at 60Hz and can be used to create Video Wall, Virtual Matrix Switch, and Virtual Splitter configurations of user-defined size, supporting hundreds of screens depending on available network bandwidth.

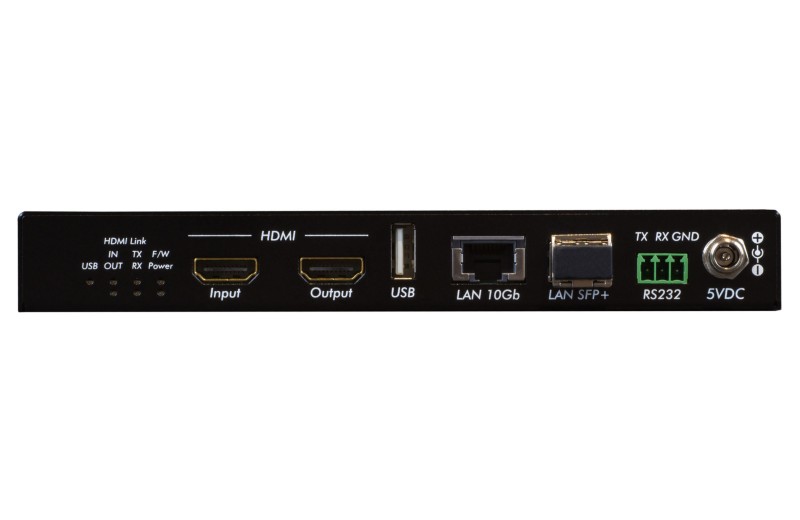

The unit connects via OM3 multimode fiber with dual LC connectors up to 985 ft (300 m) from a 10Gig Ethernet Switch, making it ideal for long-distance high-bandwidth deployments. It also includes a 1G Ethernet port to connect other network devices, USB ports for KVM applications, plus RS232, bidirectional IR, and analog audio embed/de-embed support for flexible remote control and peripheral integration.

Specifications

Supported resolution: up to 4K/60
Video compression: Uncompressed up to 4K/60 (4:2:0) with zero latency, and light visually lossless compression at 4:4:4 with less than 1 frame latency
Supported functions: Video Wall, Virtual Switch, Virtual Splitter
Supported configurations: Point-to-point, point-to-multipoint, multipoint-to-multipoint
Maximum transmission distance: 985 ft (300 m) over OM3 Multimode Fiber with dual LC connectors
Network connection: 10Gig Ethernet Switch
Ethernet port: 1G Ethernet Switch port to connect network devices
KVM support: USB 1.1 keyboard/mouse device support
RS232 support: Yes
IR support: Bidirectional IR
Audio support: Analog Audio embedded & de-embedded
Management: Pro Digital Network Controller (500812), MuxControl Smartphone & Tablet App, third-party apps
Weight: 1.180 kg
Dimensions (HxW): 7.87 ? 3.74cm
