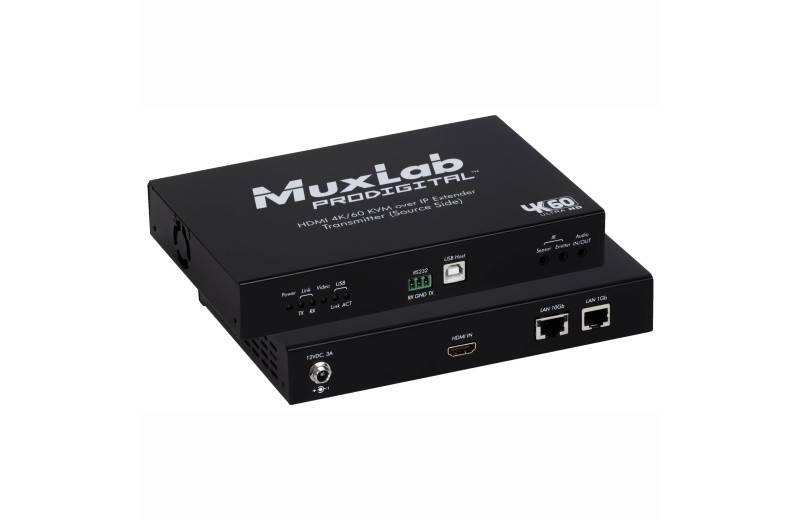

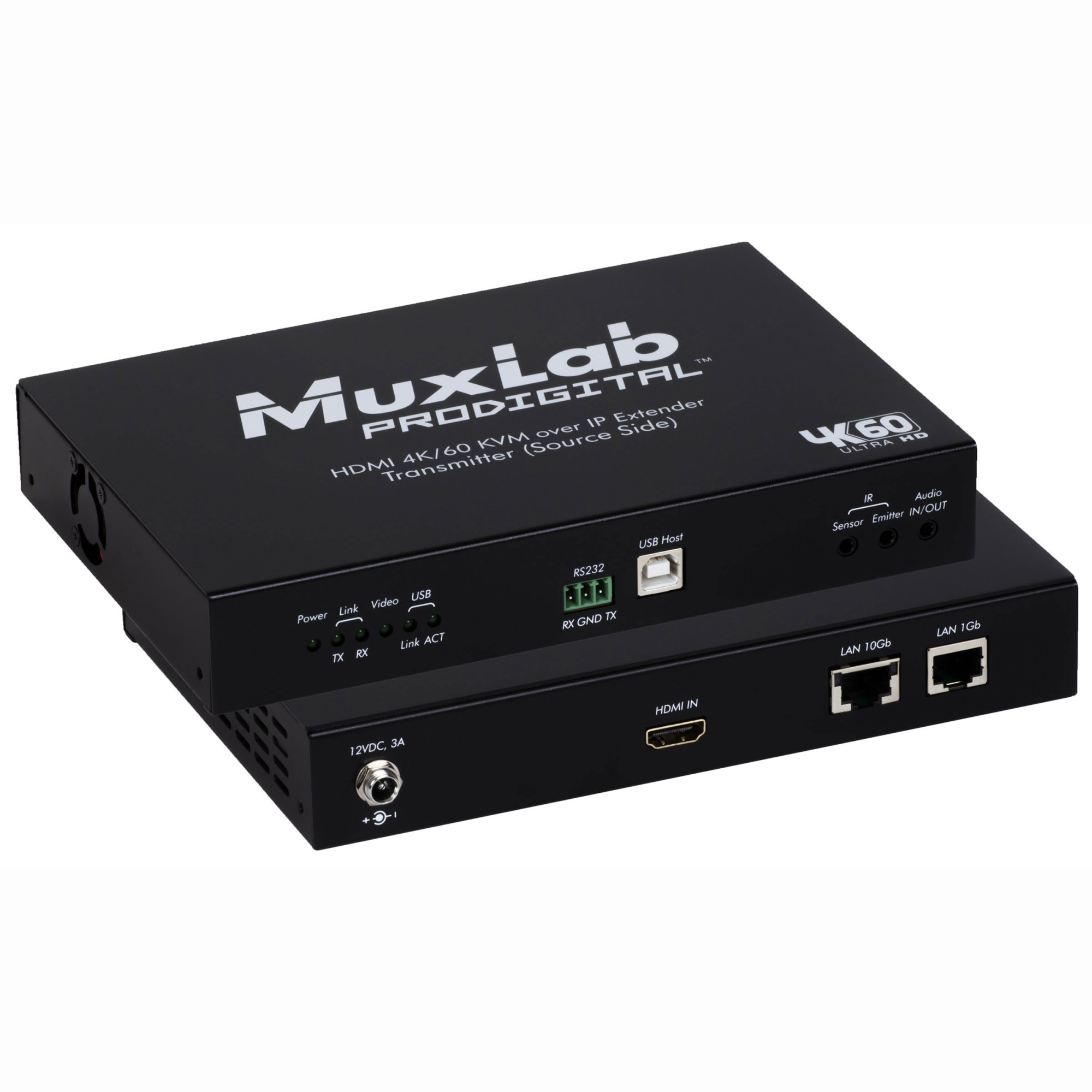

Muxlab 4K/60 KVM Over IP Transmitter, UTP 500760-TX-KVM

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab 4K/60 KVM Over IP Transmitter, UTP 500760-TX-KVM
Muxlab 4K/60 KVM Over IP Transmitter, UTP 500760-TX-KVM
Code :
125.223
1,955.80 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 162.98 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATASHEET

Description

Muxlab 4K/60 KVM Over IP Transmitter, UTP, HDMI 4K/60 KVM Over IP Transmitter based on SDVoE technology, designed for professional environments that require remote extension and control of HDMI-based servers and workstations over an IP network. It supports resolutions up to 4K at 60Hz and enables HDMI-based sources to be connected to remote operators in demanding KVM applications.

The system also supports Smart Whiteboard applications through HDMI and USB connectivity. Each transmitter can be connected over Cat5e/6 cable up to 330 ft (100 m) from a 10Gig Ethernet Switch, allowing scalable KVM deployments with one receiver per operator and one transmitter per server or workstation, depending on available network bandwidth.

It also supports uncompressed video up to 4K/60 4:2:0 and light visually lossless compression at 4:4:4 with zero latency. It also supports RS232, bi-directional IR, and audio insert (TX), making it suitable for advanced AV over IP and KVM installations. Centralized setup and control are available through the MuxLab Pro Digital Network Controller, the MuxControl smartphone and tablet app, and third-party.

Specifications

Technology: SDVoE
Supported video resolutions: up to 4K/60 (4:4:4)
Video compression: Uncompressed up to 4K/60 (4:2:0), and light compression visually lossless at 4:4:4 with zero latency
KVM support: Yes
Smart Whiteboard support: Yes
Maximum transmission distance: 330 ft (100 m) over Cat5e/6
Network connection: 10Gig Ethernet Switch required
Ethernet port: 1G Ethernet Switch port to connect network devices
Audio support: Audio insert (TX)
RS232 support: Yes
IR support: 2-way IR transmission
Included accessories: 12VDC / 3A power supply, wall mount bracket kit, IR sensor, IR emitter
Weight: 1.420 kg
Dimensions (HxWxL): 25.00 ? 19.60 ? 9.50cm
