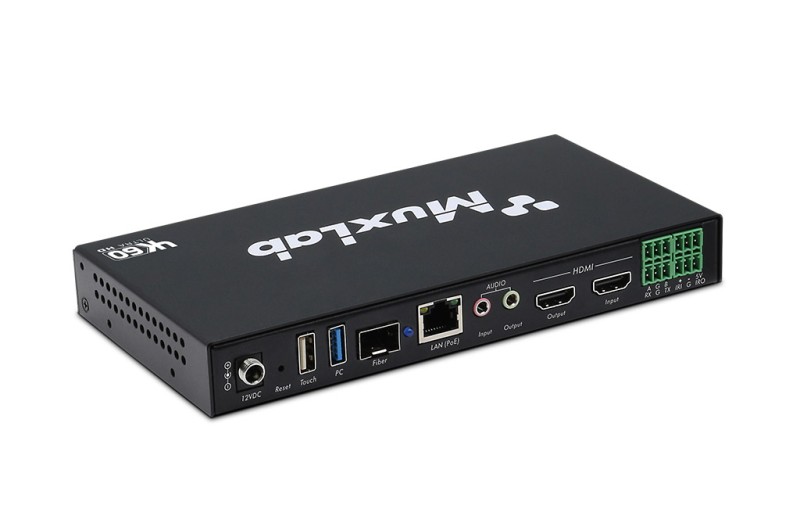

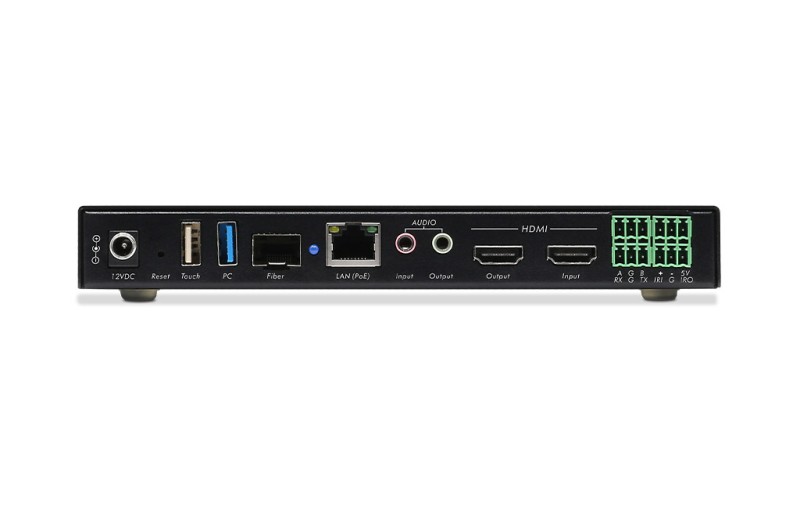

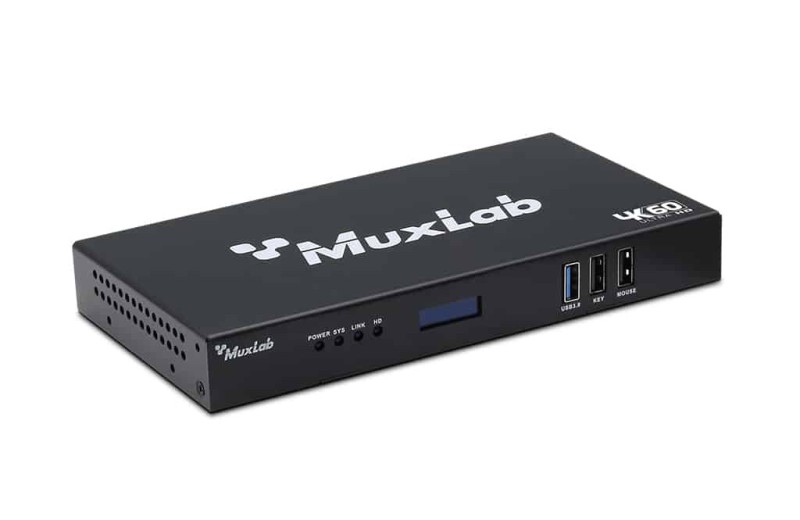

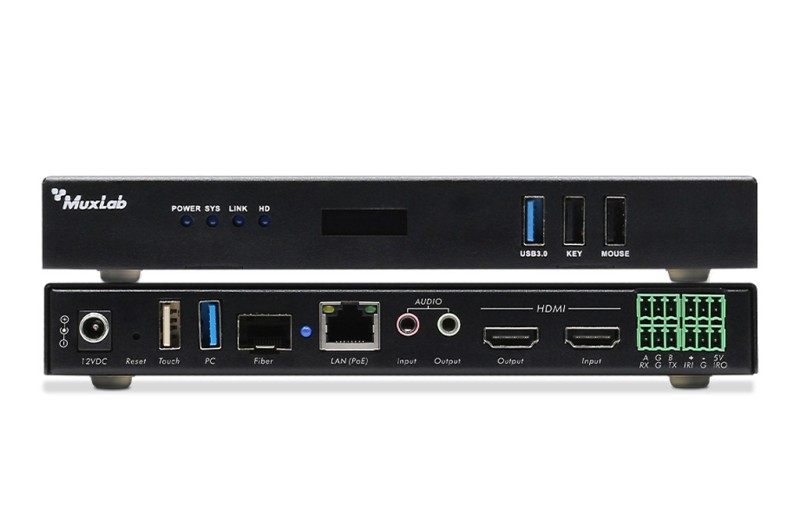

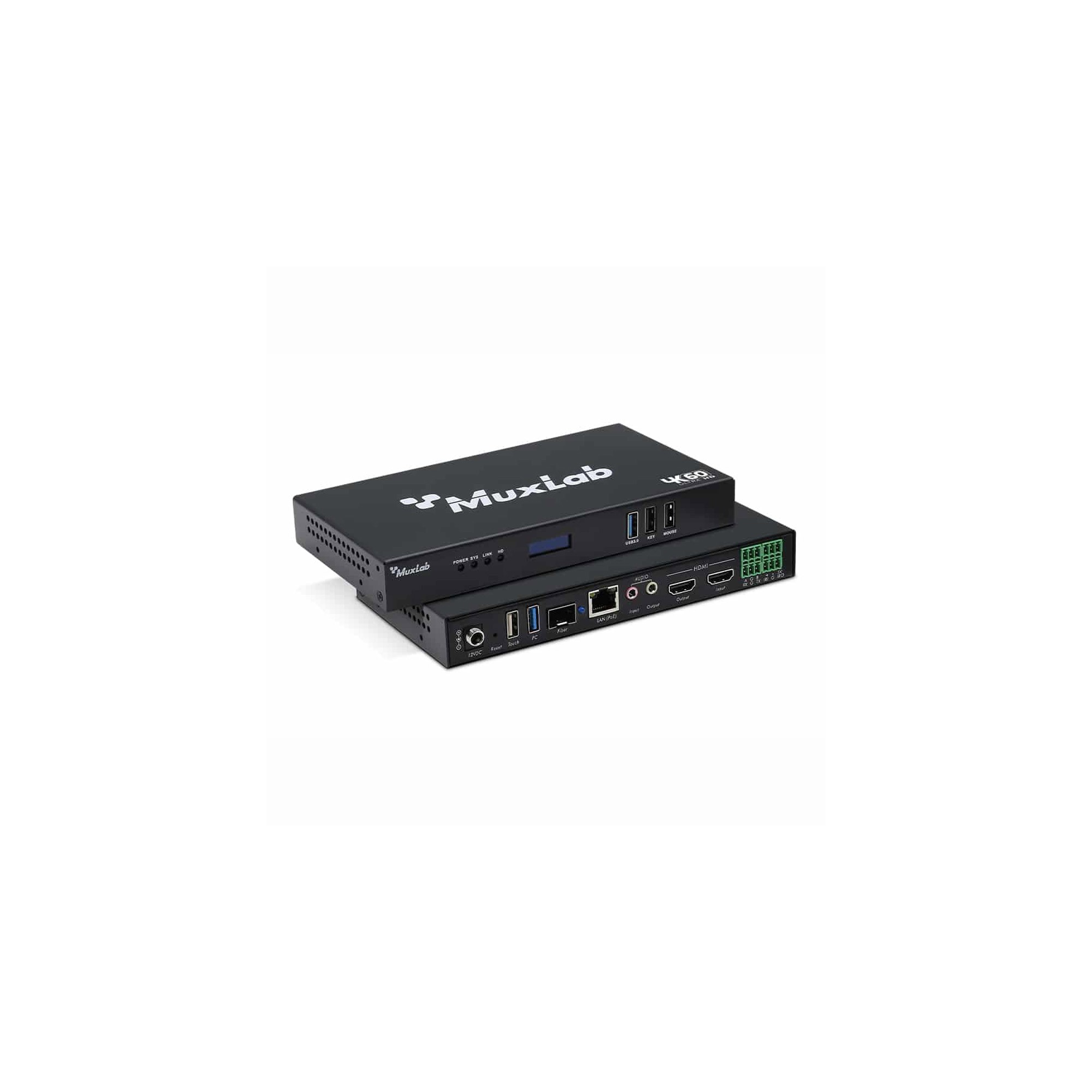

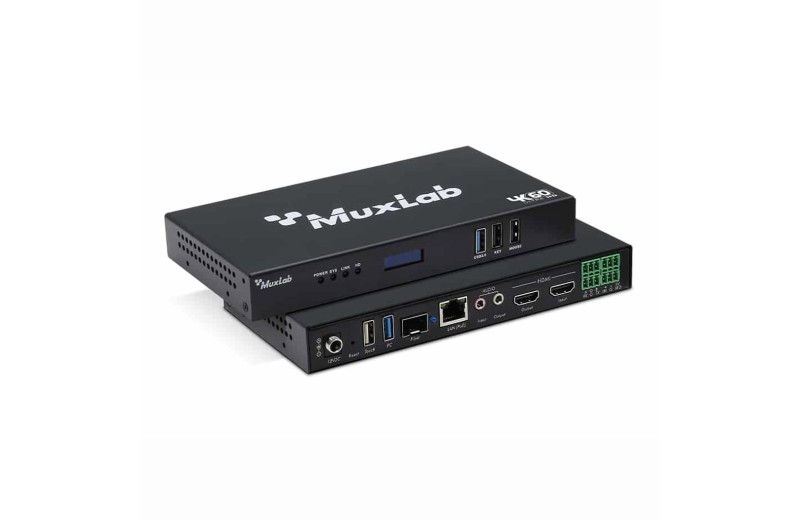

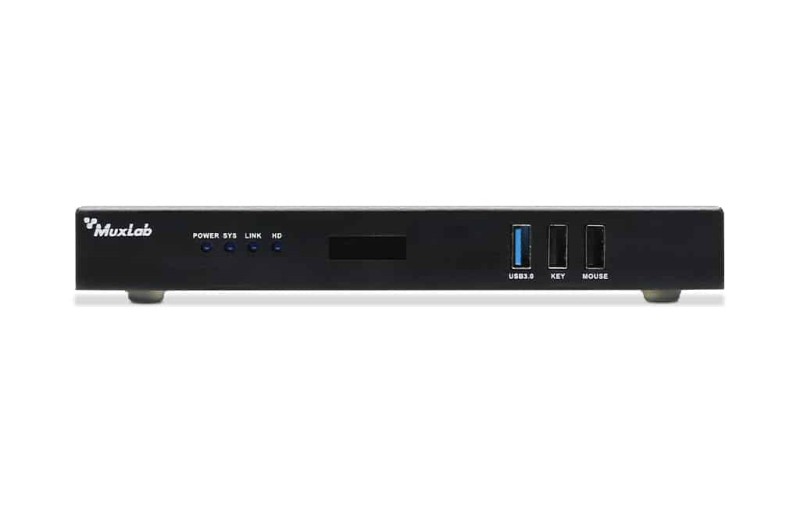

Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Muxlab HDMI Over IP PoE Workstation Transceiver, 4K60 500863
Code :
125.212
1,705.75 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 142.15 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATA SHEET

MANUAL

Description

Muxlab HDMI over IP PoE Workstation Transceiver, 4K60, an advanced KVM over IP solution designed to extend HDMI and USB over an Ethernet network, enabling remote access, control, and sharing of connected computers or servers from any workstation on the network. It supports resolutions up to 4K@60Hz, PoE, and both point-to-point and point-to-multipoint configurations.

It supports local audio/video extension up to 330 ft (100m) over Cat5e/6 or up to 2 km over fiber, while delivering high image quality with approximately 80ms latency.

The unit supports full keyboard and mouse control in distributed KVM applications, allowing users to access, share, and switch control of connected computers and servers from any workstation. Each workstation screen can display and control up to 9 computers/servers simultaneously, making it highly suitable for command, monitoring, and collaboration environments.

Additional features include seamless switching, real-time source preview in the OSD, the ability to push content from one workstation to another or to a video wall, support for workstation video wall configurations, mouse roaming between monitors, and the creation of groups of computers or servers for easier management. It also supports username/password authentication for enhanced control and security. The system is managed through Muxlab’s AV Management Tool and OSD.

It is well suited for KVM/AV systems, classroom training systems, digital signage, boardroom systems, collaborative PC environments, and medical information systems.

Specifications

HDMI and USB/KVM over IP extension over Ethernet LAN
Supports up to 4K @ 60Hz
Extends up to 330 ft (100m) over Cat5e/6 or 2 km over fiber
PoE support
H.264 / H.265 video codec
High image quality with approx. 80ms latency
Keyboard and mouse control support
Access up to 9 computers/servers simultaneously on each workstation screen
Seamless switching and real-time OSD preview
Supports Workstation Video Wall
Mouse roaming between monitors
Username/password authentication
Managed via AV Management Tool & OSD
