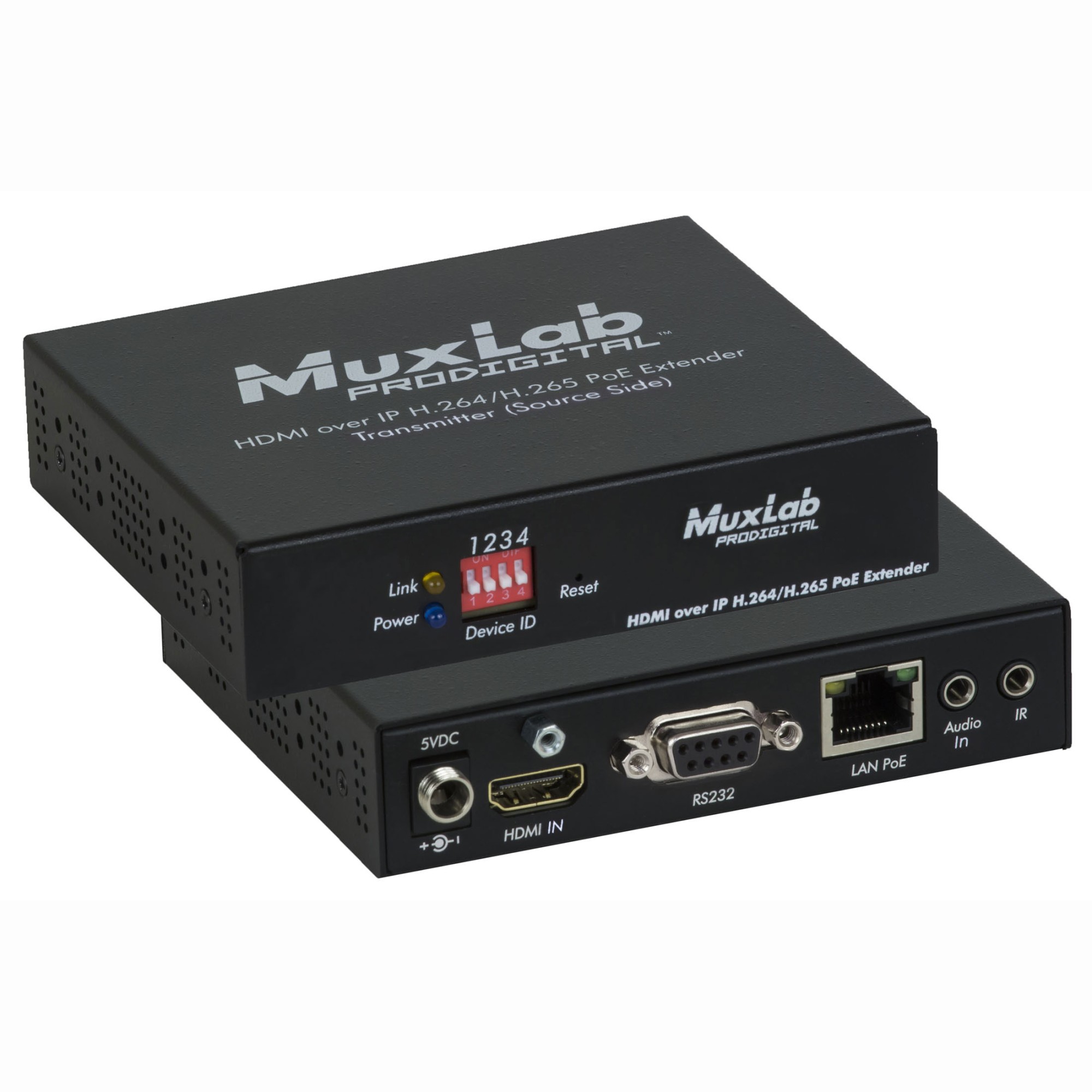

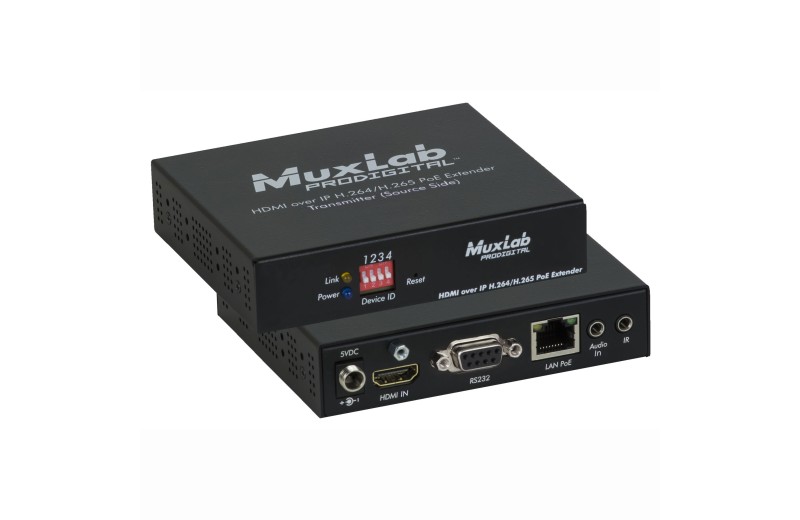

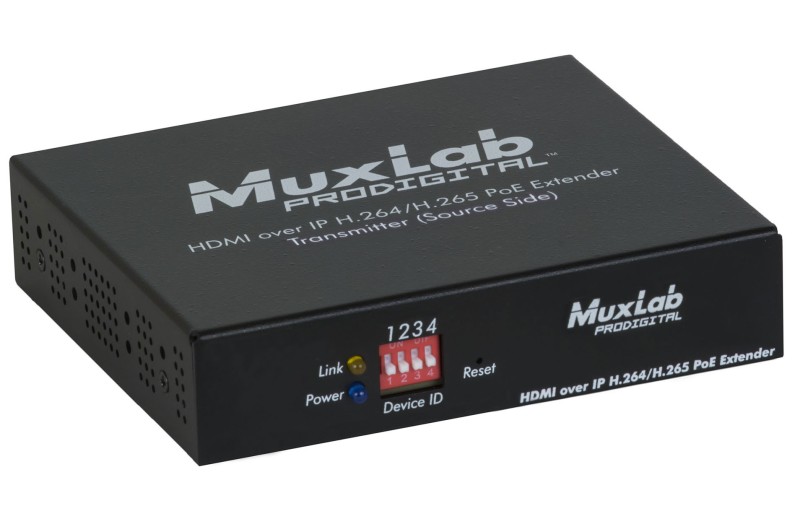

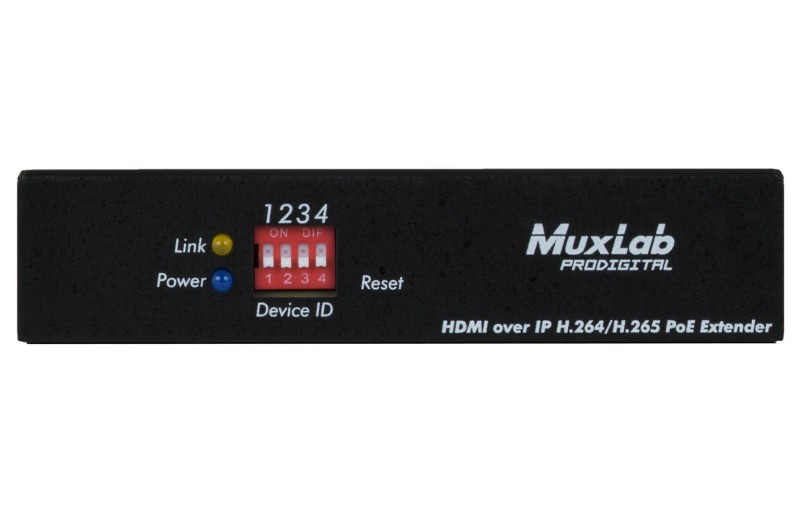

Muxlab HDMI over IP H.264/H.265 PoE Transmitter, 4K/30 500763-TX

Muxlab HDMI over IP H.264/H.265 PoE Transmitter, 4K/30, HDMI over IP H.264/H.265 PoE Transmitter designed for professional AV over IP environments that require flexible and cost-effective signal distribution over an IP network. It extends HDMI source equipment up to 330 ft (100 m) over Cat5e/6 cable and is compatible with the Muxlab 500762-RX Receiver, supporting point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, as well as Video Wall and Multiview capabilities.

Thanks to its H.264/H.265 codec, the unit is well suited for streaming AV content over LAN, Wi-Fi, and the Internet, while maintaining low bandwidth requirements and latency of less than 200 ms in low latency mode with H.265. It accepts video signals up to 4K at 30Hz and streams them to compatible H.264/H.265 receivers or other compatible receiving devices.

The 500763-TX also supports 2-channel audio embedding, RS232, Directional IR, and PoE power, making it a strong fit for digital signage, boardroom systems, classroom projector systems, and medical information applications. It can be managed through the Pro Digital Network Controller (500811), the MuxControl smartphone and tablet app, and compatible third-party apps.

Specifications

Supported input resolution: up to 4K @ 30Hz
Video codec: H.264 / H.265
Maximum transmission distance: 330 ft (100 m) over Cat5e/6
Supported configurations: Point-to-point, Point-to-multipoint, Multipoint-to-multipoint
Video Wall support: Yes
Multiview support: Yes
Latency: <200 ms in low latency mode with H.265
Streaming protocol support: Multicast, RTSP, RTMP, HLS, FLV, TS
Audio support: 2-channel audio embedding
RS232 support: Yes, bidirectional communication
IR support: Directional IR
Power: PoE (PD), via PoE Ethernet Switch (PSE)
Management: Pro Digital Network Controller (500811), MuxControl Smartphone & Tablet App, third-party apps
Weight: 0.413 kg
Dimensions (HxWxL): 20.50 ? 15.00 ? 5.50cm
