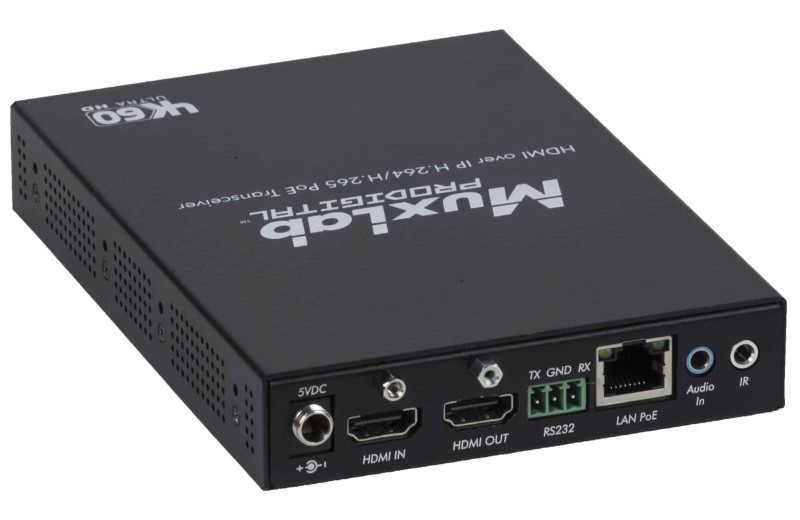

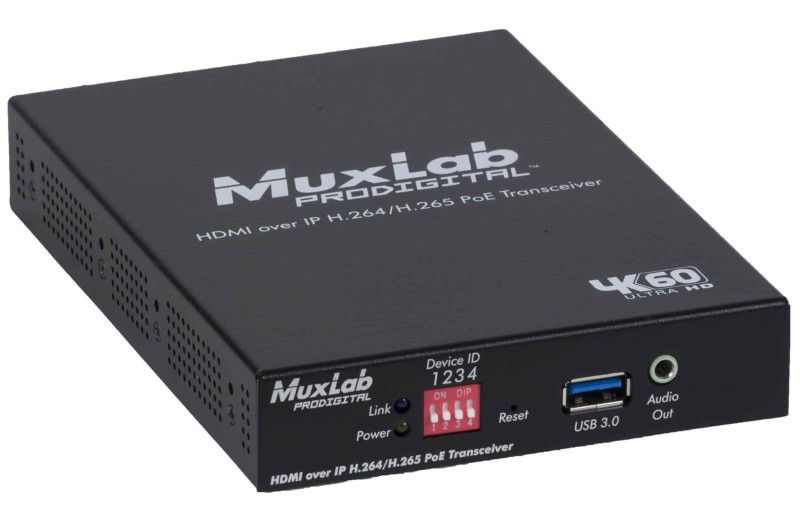

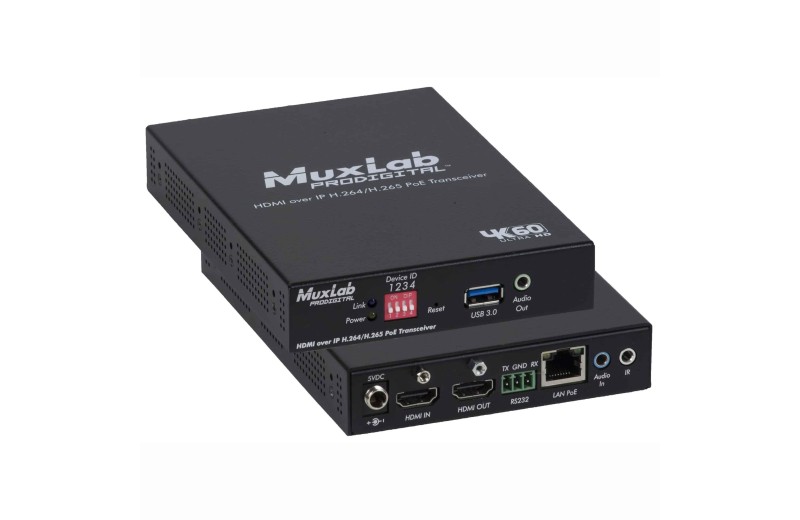

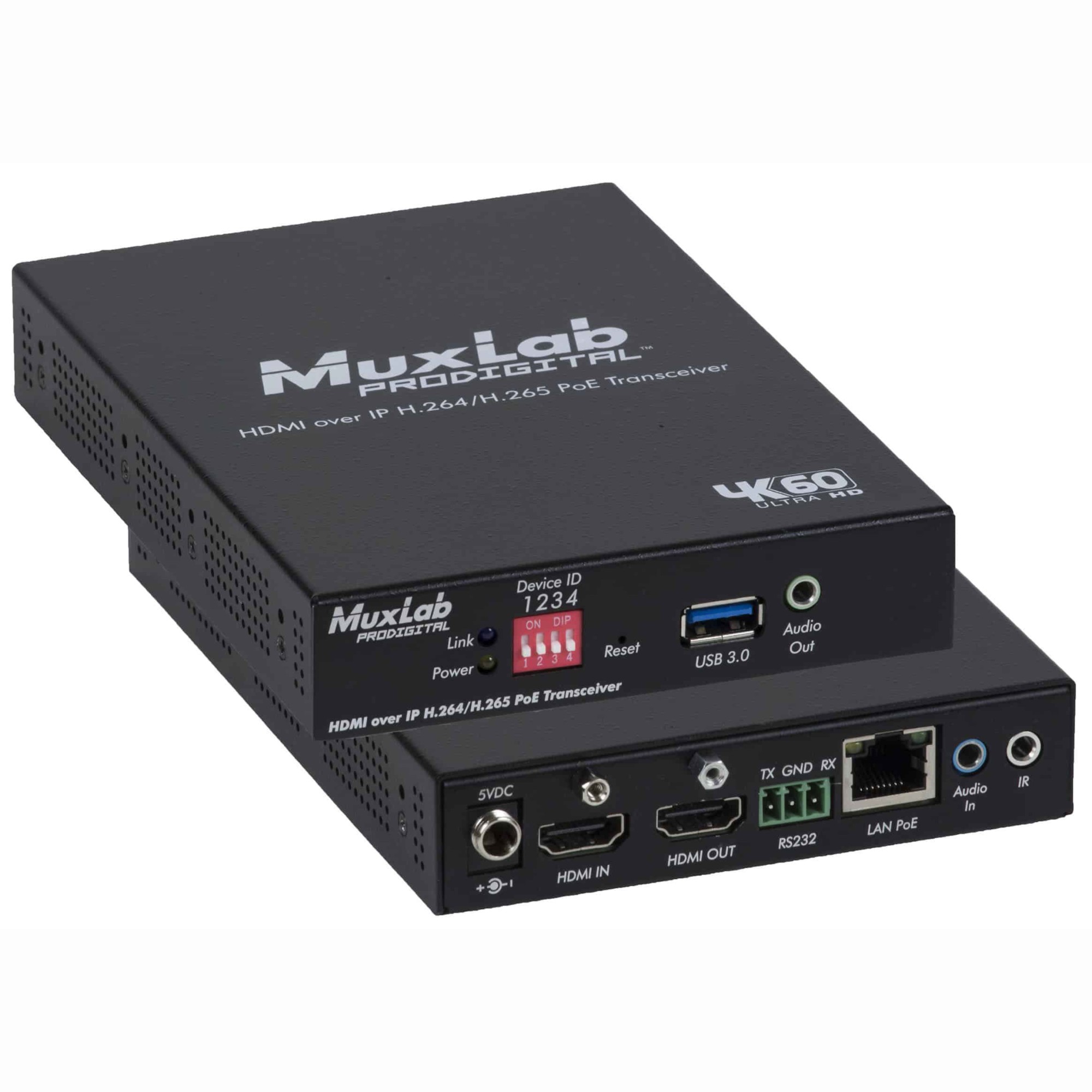

Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2
Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2
Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2
Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2
Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2
Muxlab HDMI over IP H.264/H.265 PoE 4K/60 500764-TX-V2
Code :
125.226
5,624.95 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 468.75 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
DATA SHEET

INSTALLATION INSTRUCTIONS

Description

Muxlab HDMI over IP H.264/H.265 PoE Transmitter, 4K/60, HDMI over IP H.264/H.265 PoE Transmitter designed for professional AV over IP installations that require high-resolution signal distribution over an IP network with low bandwidth requirements. It extends HDMI source equipment up to 330 ft (100 m) over Cat5e/6 cable and is compatible with the Muxlab 500762-RX-V2 Receiver, supporting point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, along with Video Wall and Multiview capabilities.

With support for H.264/H.265, the unit is ideal for AV streaming over a local network, while also offering Motion JPG (MJPG) codec support for low-latency applications. The transmitter accepts video up to 4K at 60Hz and streams the content to compatible H.264/H.265 receivers or other compatible receiving devices.

The 500764-TX-V2 supports PoE power via a compatible Ethernet switch and can be managed through the Pro Digital Network Controller (500812) and Muximus Network Controller (500813).

Specifications

Supported input resolution: up to 4K @ 60Hz
Maximum transmission distance: 330 ft (100 m) over Cat5e/6
Supported configurations: Point-to-point, Point-to-multipoint, Multipoint-to-multipoint
Video Wall support: Yes
Multiview support: Yes
Video codec: H.264 / H.265, with MJPG support for low-latency applications
Latency: 200 ms in low latency mode with H.265
Streaming protocol support: Multicast, RTSP, RTMP, HLS, FLV, TS
Power: PoE (PD), via PoE Ethernet Switch (PSE)
Management: Pro Digital Network Controller (500812) and Muximus Network Controller (500813)
