Sennheiser EW-D-ME3-SET-R4-9 (552-608)

Professional wireless microphone system Sennheiser EW-D with digital Evolution Wireless Digital technology, ideal for events, presentations and professional applications.

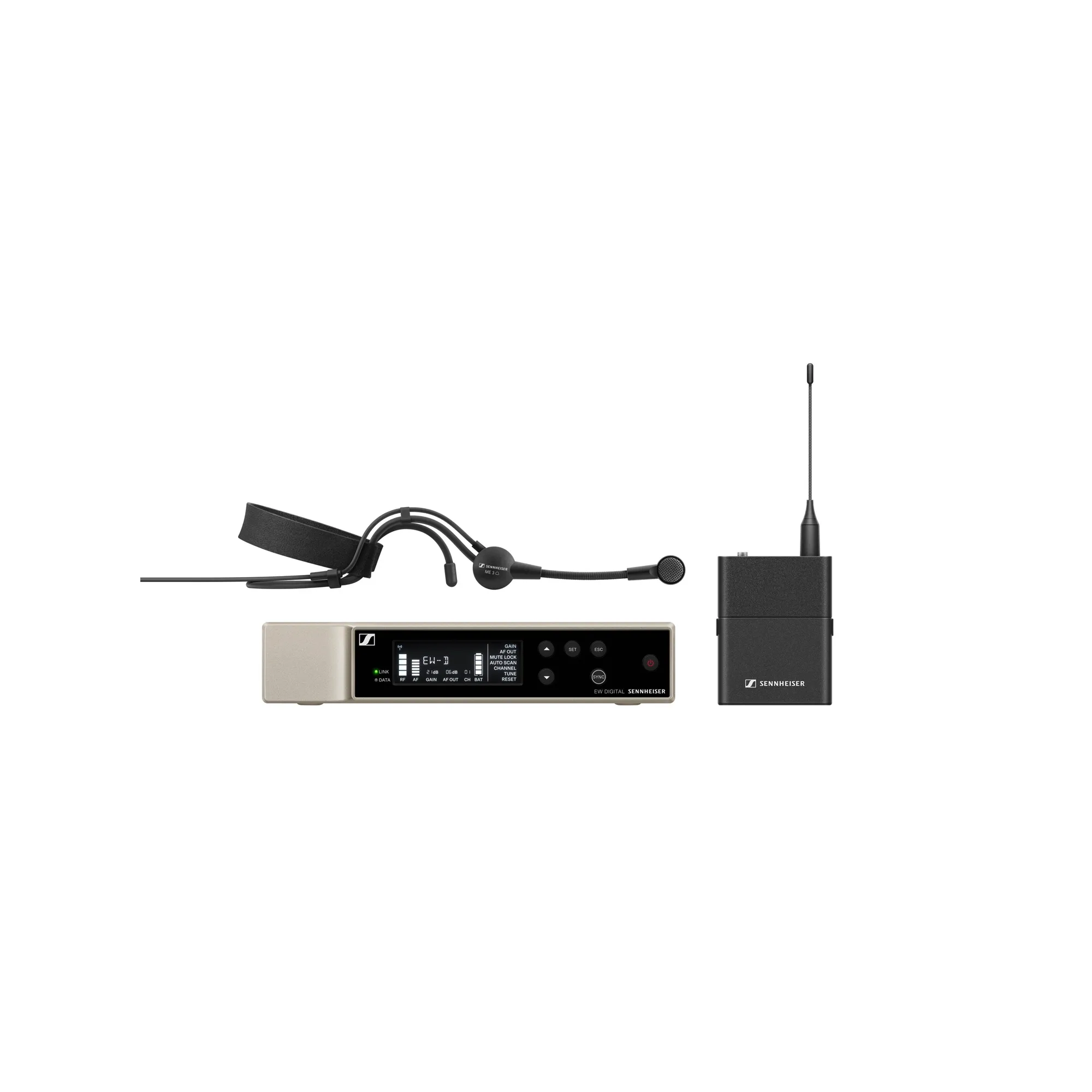

Wireless microphone system that includes:

EW-D EM - 1/2 19 Fixed Receiver
Fixed 19 rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters. Rack installation with full reliability and stability control.

EW-D SK - Bodypack Wireless Transmitter
Lightweight and flexible portable transmitter for wireless signal transmission with excellent reliability and range.

ME 3 Headmic - Cardioid Condenser Headworn Microphone
Professional headworn microphone with cardioid pickup pattern, ideal for presentations, theater and live performances.

Features:

• Digital wireless technology that eliminates noise, interference and static bursts
• UHF transmission that improves range, reliability and scalability
• Mobile app that optimizes setup and operation without complex menus
• Automated frequency coordination for reliable connections with minimal effort
• Up to 2,240 selectable frequencies
• Lithium-ion battery provides up to 12 hours of operation (or 8 hours with AA batteries)
• 56 MHz bandwidth for up to 90 channels
• Transmitter dynamic range of 134 dB for detail even in dynamic performances

Technical Specifications:

System

• Audio link frequency range: R4-9 - 552 - 607.8 MHz
• Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Audio THD: -60 dB for input level 1 kHz @ -3 dBfs
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity: 5 - 95% (non-condensing)

EW-D EM (Rack Receiver)

• Input voltage: 11 - 13 V
• Input current: ? 300 mA
• BLE transmission power: max. 10 mW EIRP
• Audio output level: 18 dBu max.
• Dimensions: 212 x 44 x 189 mm
• Weight: approx. 1000 g (without antennas and power supply)

EW-D SK (Bodypack Transmitter)

• Input voltage: 2.0 - 4.35 V
• Input current: <300 mA
• Power supply: 2 AA batteries 1.5 V or BA 70 rechargeable
• Occupied bandwidth: 200 kHz
• Audio link transmission power: ERP 10 mW (Range Y1-3: 12 mW ERP), BLE: max. 10 mW EIRP
• Dimensions: 63 x 80 x 20 mm (without antenna)
• Weight: approx. 120 g (without batteries)

ME 3 Headmic

• Microphone: pre-polarized condenser
• Max. sound pressure level: 150 dB SPL
• Pick-up pattern: cardioid
• Sensitivity: 1.6 mV/Pa

Set Contents:

• (1) Fixed EW-D EM receiver
• (1) EW-D SK bodypack wireless transmitter
• (1) ME 3 headworn microphone
• (1) Power supply NT 12-5CW +
• (1) MZQ 1 microphone clip
• Rackmount kit, antennas & rubber feet for EW-D EM
