Ledful VO4.8/5000 Outdoor Ledwall - 1 sqm
910427
Ledful VO 4.8, LED video panel for indoor use with (WxH) 500 x 500, SMD1921 Configuration, a pixel pitch of 4.81mm, 3840 refresh rate and brightness that measures up to 5000 Nits with viewing angle is 160° horizontal and 160° vertical.
Ledful VO 4.8, LED video panel for indoor use with (WxH) 500 x 500, SMD1921 Configuration, a pixel pitch of 4.81mm, 3840 refresh rate and brightness that measures up to 5000 Nits with viewing angle is 160° horizontal and 160° vertical.

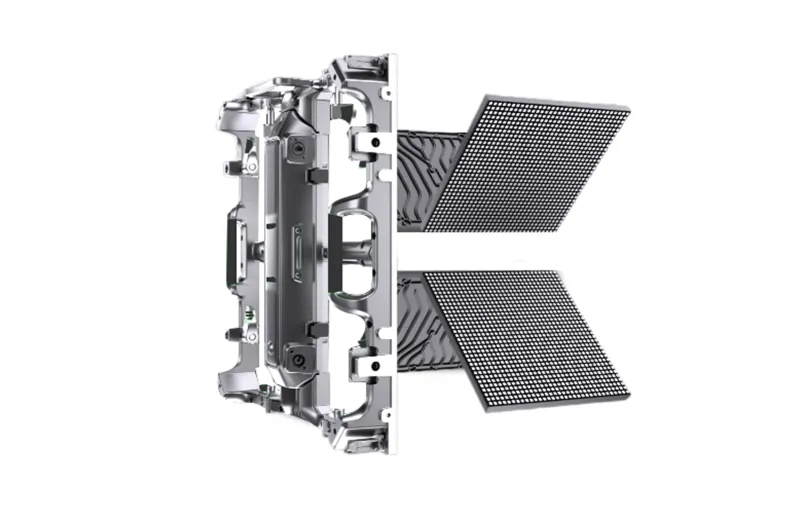

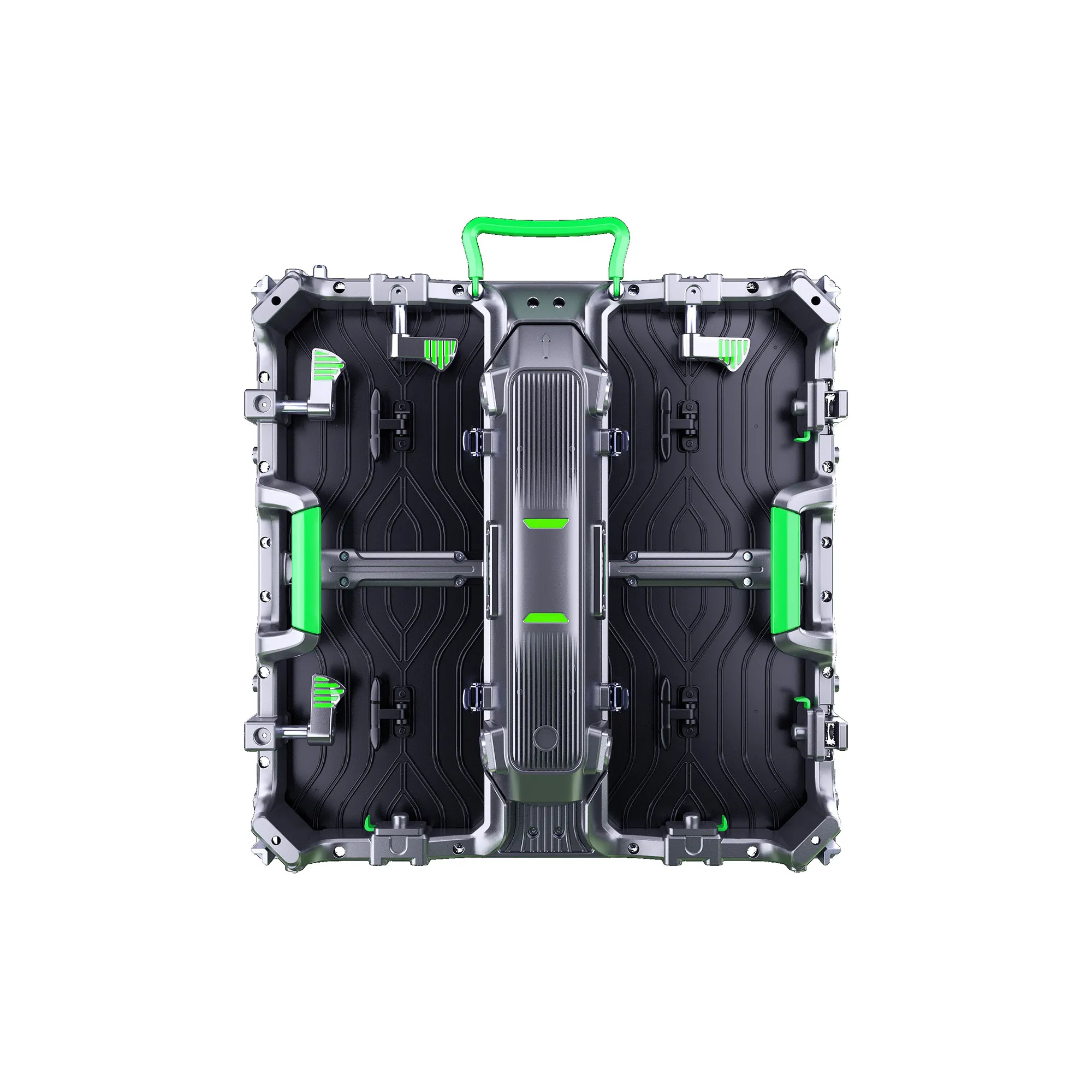

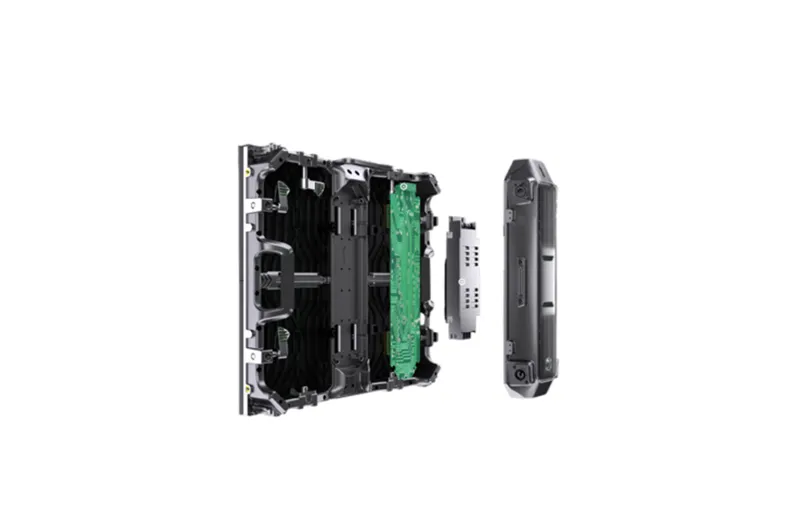

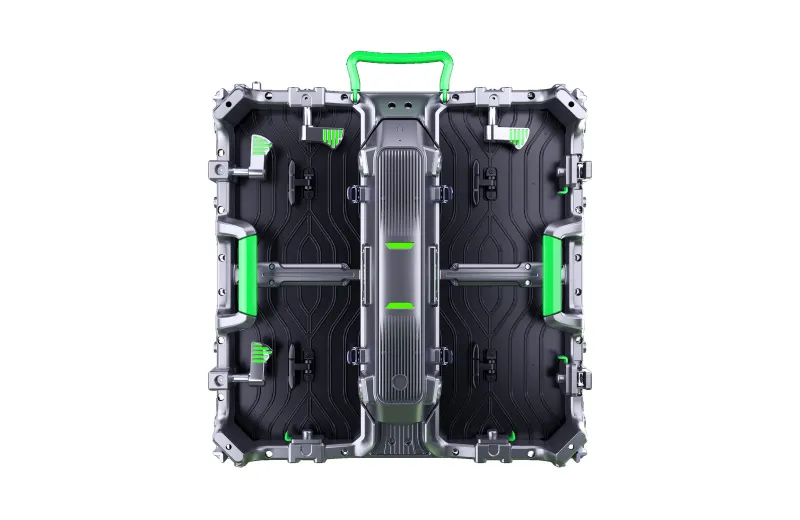

The cabinet is light and thin, made from die cast aluminium and it is both front and rear maintenance led display.At the back there are convenient handles and at the center is the Quick Exchangeable Control Box that contains the receiver card, the hub board and the power supply. There are also corner protectors for the LEDs.

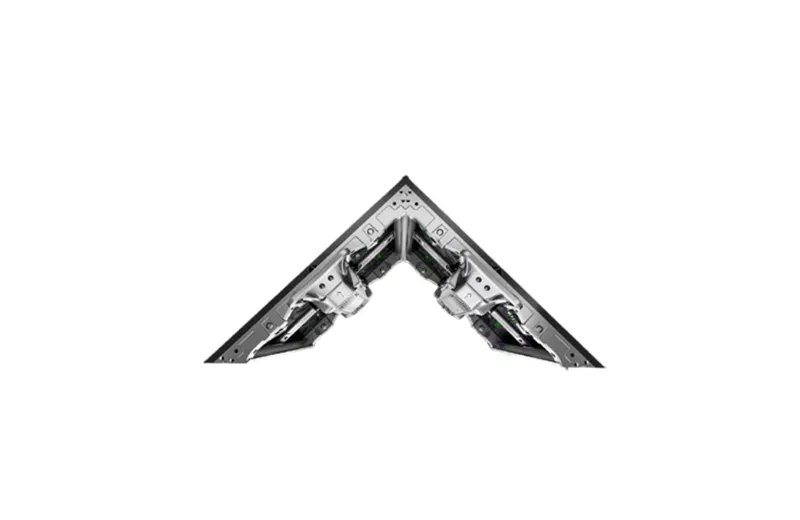

VO series can also have a curved installation, convex and concave, creating unique shapes and also circular creating impressive projections. The installation is easy and fast and the panels can be stacked or hanged.
Specifications
Specifications
Pixels
- Pixel Pitch: 4.81mm
- LED Configuration: SMD1921
- Pixel Density (per/Sq m): 43.264
Panel Details
- Brightness: 5000 Nits
- View angle: Horizontal 160°/ Vertical 160°
- Gray Scale: 16 bit
- Scan Mode: 1/13
- Refresh rate: 3840
Power
- Voltage: 110~240V
- Maximum power consumption: 800W (per/Sq m)
- Average power consumption: 200W-300W (per/Sq m)
Construction
- Material: Die cast aluminium
- Module Dimensions: 250 x 250mm
- Cabinet Dimension (WxH): 500 x 500
- Βάρος: 8kg
- IP Rate: IP65
- Pixel Matrix Per Sq.m
- 43264
- Pixel Pitch (mm)
- 4.81
- Brightness
- 4000
- Suitable for
- Outdoor
- Pixel Configuration
- SMD2727/1921
- Scan
- 43113
- Module Dimension (mm)
- 250 x 250
- Cabinet Dimension
- 500 x 500 x 85
- Cabinet Resolution
- 104 x 104
- Service Access
- Front and rear
- Refresh Rate (HZ)
- 3840
- Grey Scale (bit)
- 14
- Viewing Angle (H/V)
- 140°/140°
- Category
- Led wall outdoor
- Enclosure material
- Die Casting Aluminum
- Warranty
- 2 years
- Protection class
- IP65
New
- MPN
- VO4.8/5000
