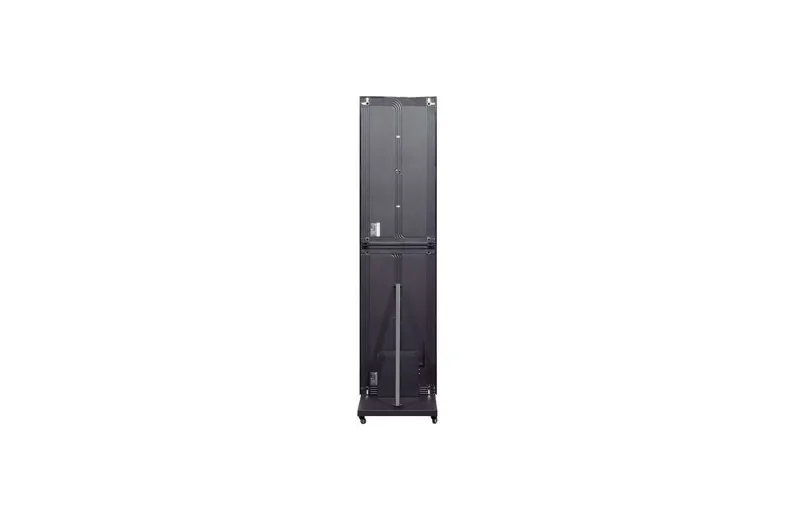

ADJ WMS2 MEDIA SYS LED DISPLAY

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
ADJ WMS2 MEDIA SYS LED DISPLAY
Code :
4701224
€4,688.00
Tax included
On request - Usually in 3-4 weeks
Κάντο τώρα δικό σου από €390.67 / μήνα μέσω πιστωτικής κάρτας.

MANUAL

Description

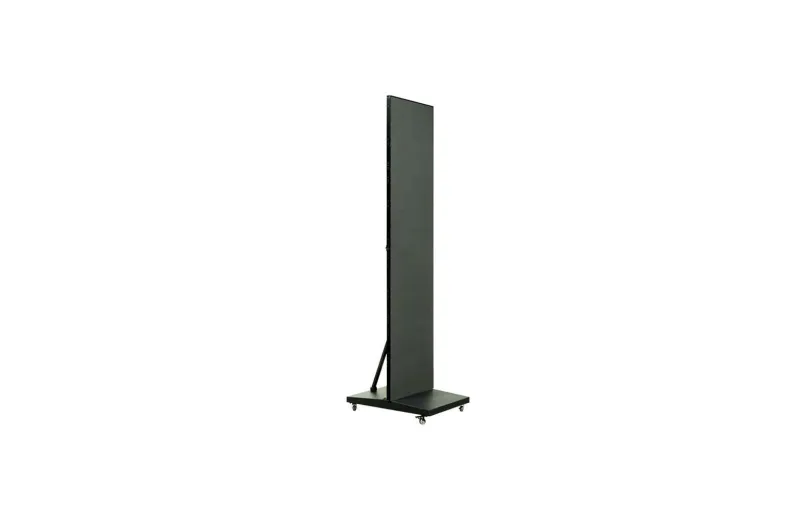

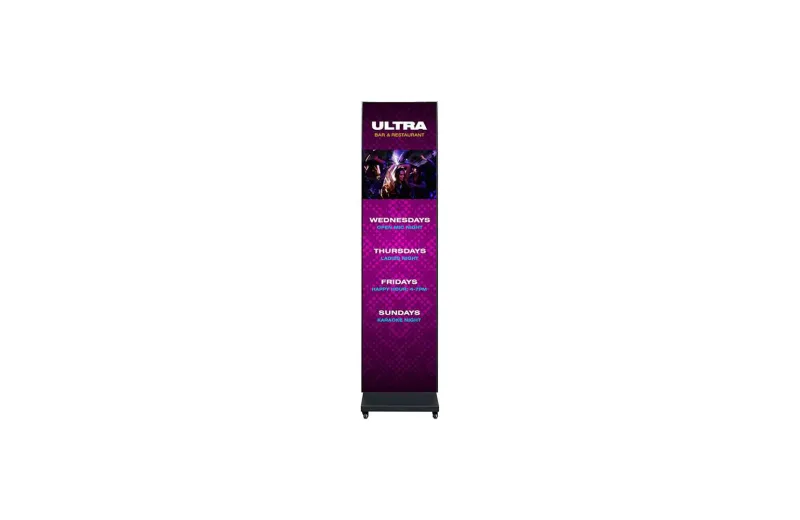

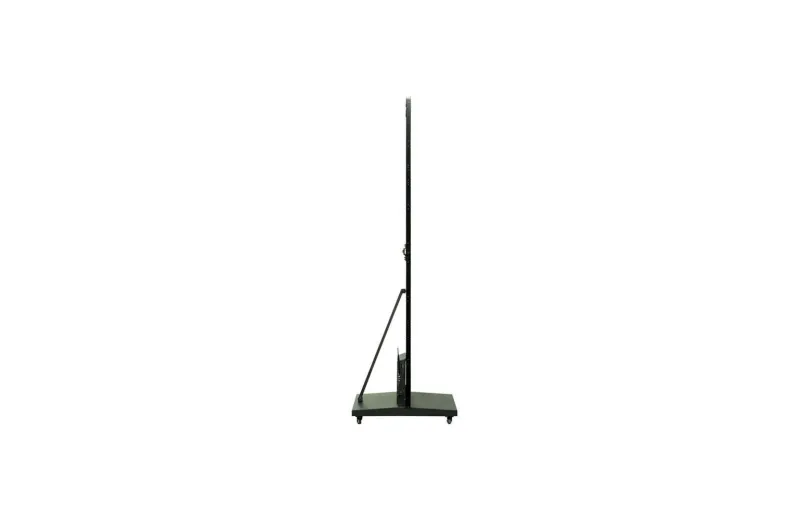

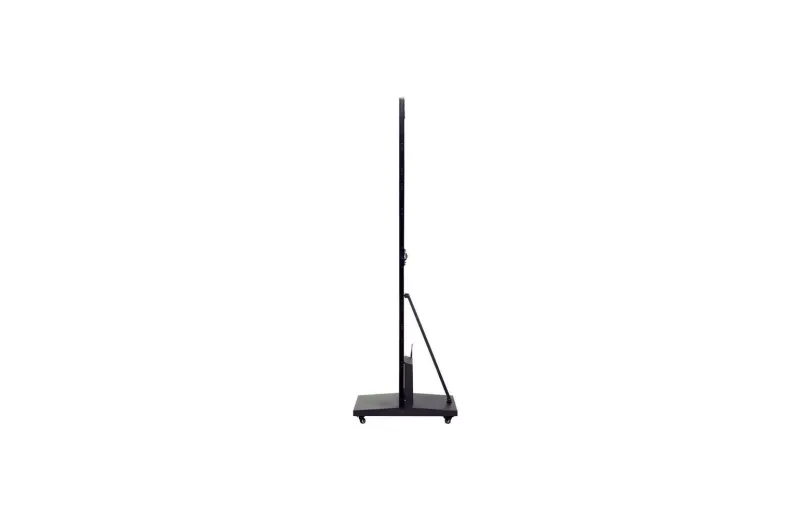

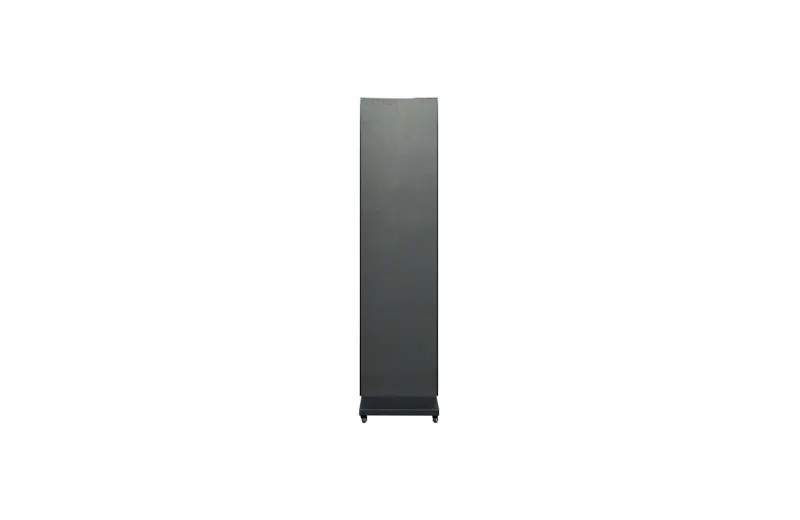

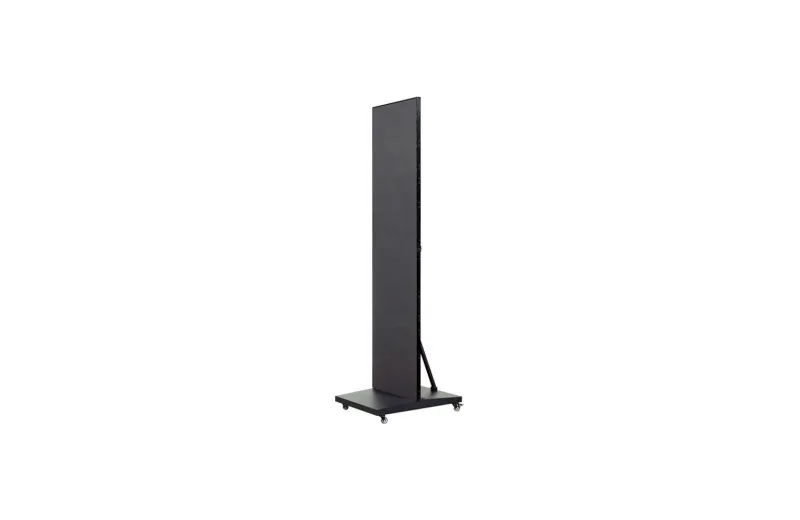

ADJ WMS2 MEDIA SYS, state-of-the-art LED video display with, 679.6 x 499.8 x 2141mm dimensions, pixel pitch of 2.6mm, a pixel density of 147,456/m2. Its exceptional optical ratings include a brightness of 700-800 NITS and a wide viewing angle of 160° horizontal and 140° vertical and a rapid refresh rate of 3840Hz.

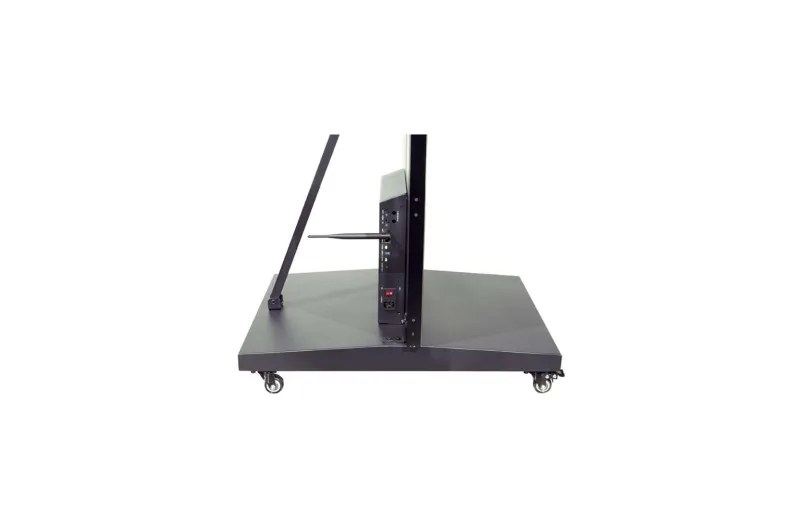

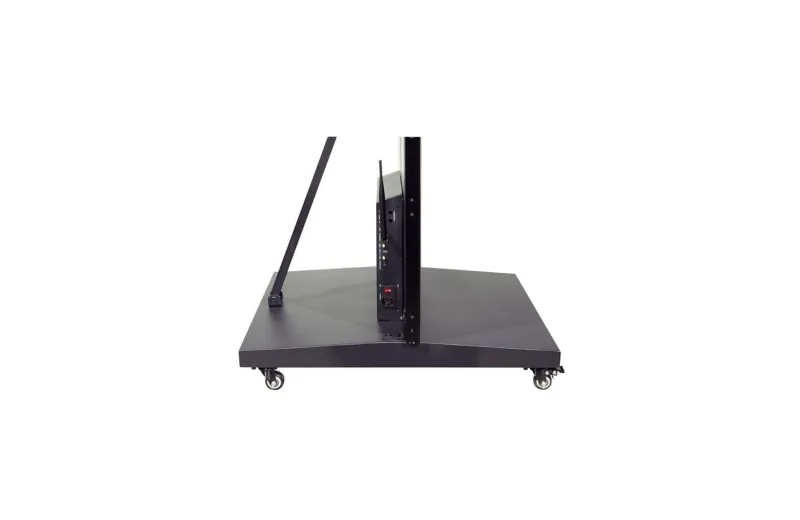

This all-in-one system includes two WMS2 LED video panels, a display stand with an integrated Novastar video processor, and a durable flight case for effortless transport. Τhe system supports a /"Roll and Set/" installation method with front-access maintenance

Specifications

Configuration

Pixel Pitch (mm): 2.6
Pixel Density (dot/m²): 147,456
LED sealing Type: SMD1515
Module Size (mm x mm): 250 x 250mm
Module Resolution (PX x PX): 96 x 96 Dots
Panel Resolution (PX x PX): 384 x 192
Average Life (Hours): 50,000

Optical Ratings

Brightness (cd/m²): 700-800 NITS
Horizontal Viewing Angle (Deg): 160
Vertical Viewing Angle (Deg): 140
Grey Scale (Bit): ?14
Refresh Rate (Hz): 3840

Control System

Receiving Card in WMS2 Panels: Novastar A8s-N
Processor: Novastar TB50

Power Supply

Input Voltage (V): 100-240VAC
Max Power Dissipation (W/m²): 520
Average Power Consumption (W/m²): 180

Weight / Dimensions

Flight Case Dimensions (LxWxH): 1155 x 714 x 689.52mm
System Dimensions (LxWxH): 679.6 x 499.8 x 2141mm
LED Panel Thickness: 33.4mm
System Weight (In Flight Case): 80 kg

Specifications

Pixel Pitch (mm)
2.60
Brightness
700-800
Pixel Configuration
SMD1515
Module Dimension (mm)
250 x 250
Refresh Rate (HZ)
3840
Viewing Angle (H/V)
Horizontal 160°/ Vertical 140° at 3m
Category
Led wall indoor
Width (mm)
679
Height (mm)
2141
Depth (mm)
499
Weight (kg)
80
Warranty
2 years
Colour
Black
Pixel Matrix Per Sq.m
147.456
MPN
WMS2 MEDIA SYS
