Ledful VI3.9/1000 Indoor Ledwall - 1 sqm

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Code :
910423
€1,647.00
Tax included
On request - Usually in 3-4 weeks
Κάντο τώρα δικό σου από €137.25 / μήνα μέσω πιστωτικής κάρτας.

Description

Ledful VI 3.9, LED video panel for indoor use with (WxH) 500 x 500, SMD2121 Configuration, a pixel pitch of 3.9mm, 3840 refresh rate and brightness that measures up to 1000 Nits with viewing angle is 160° horizontal and 160° vertical.

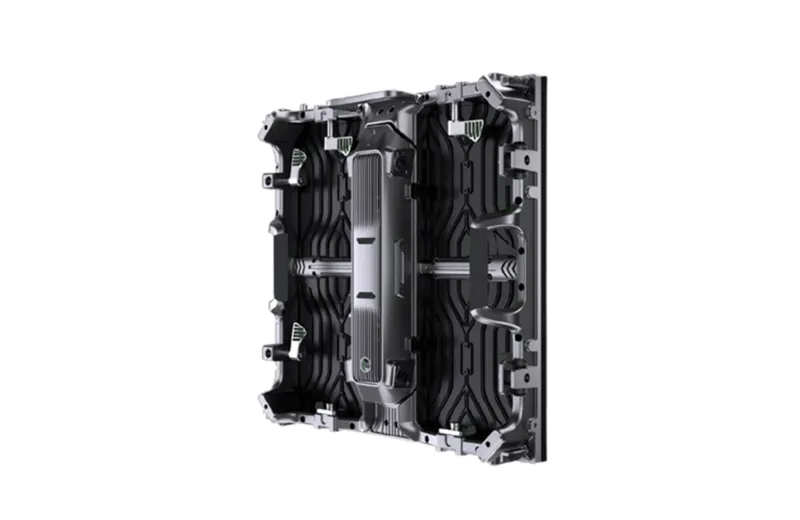

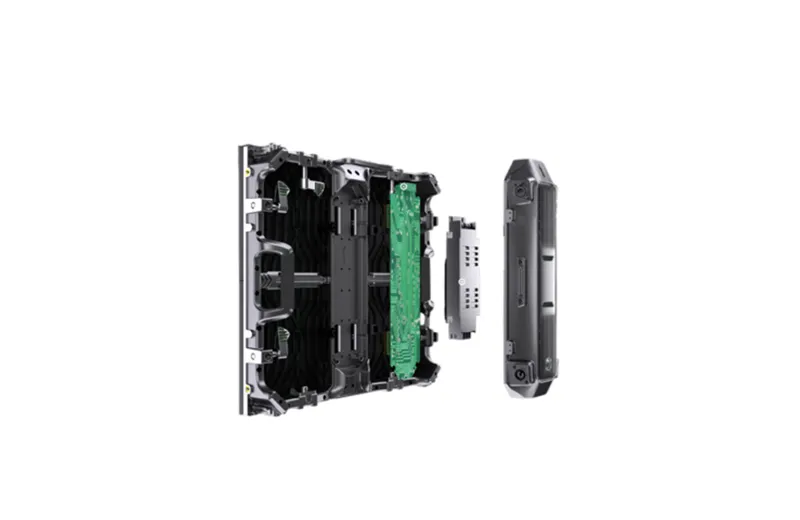

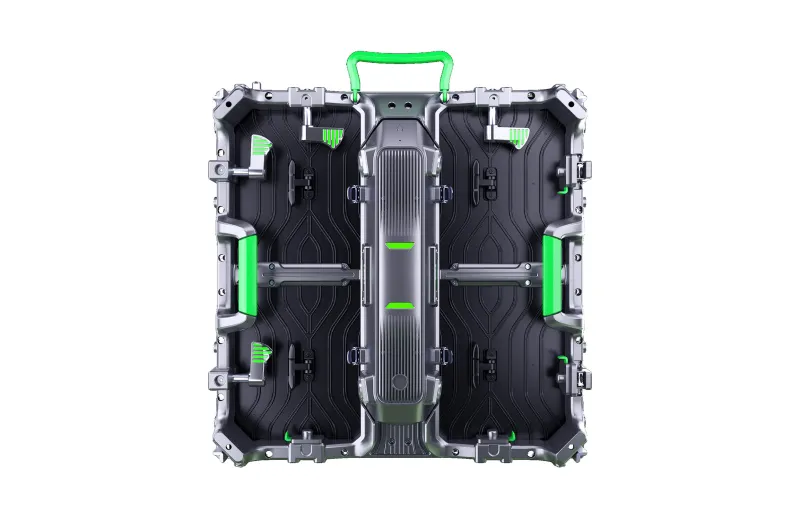

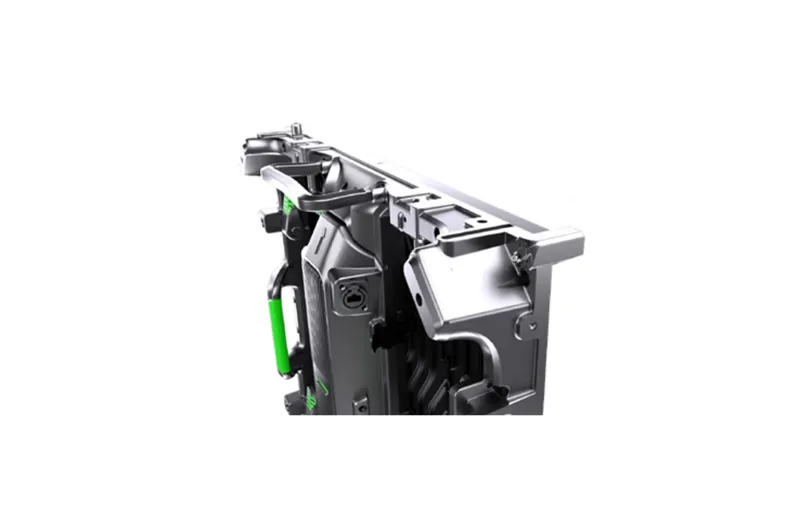

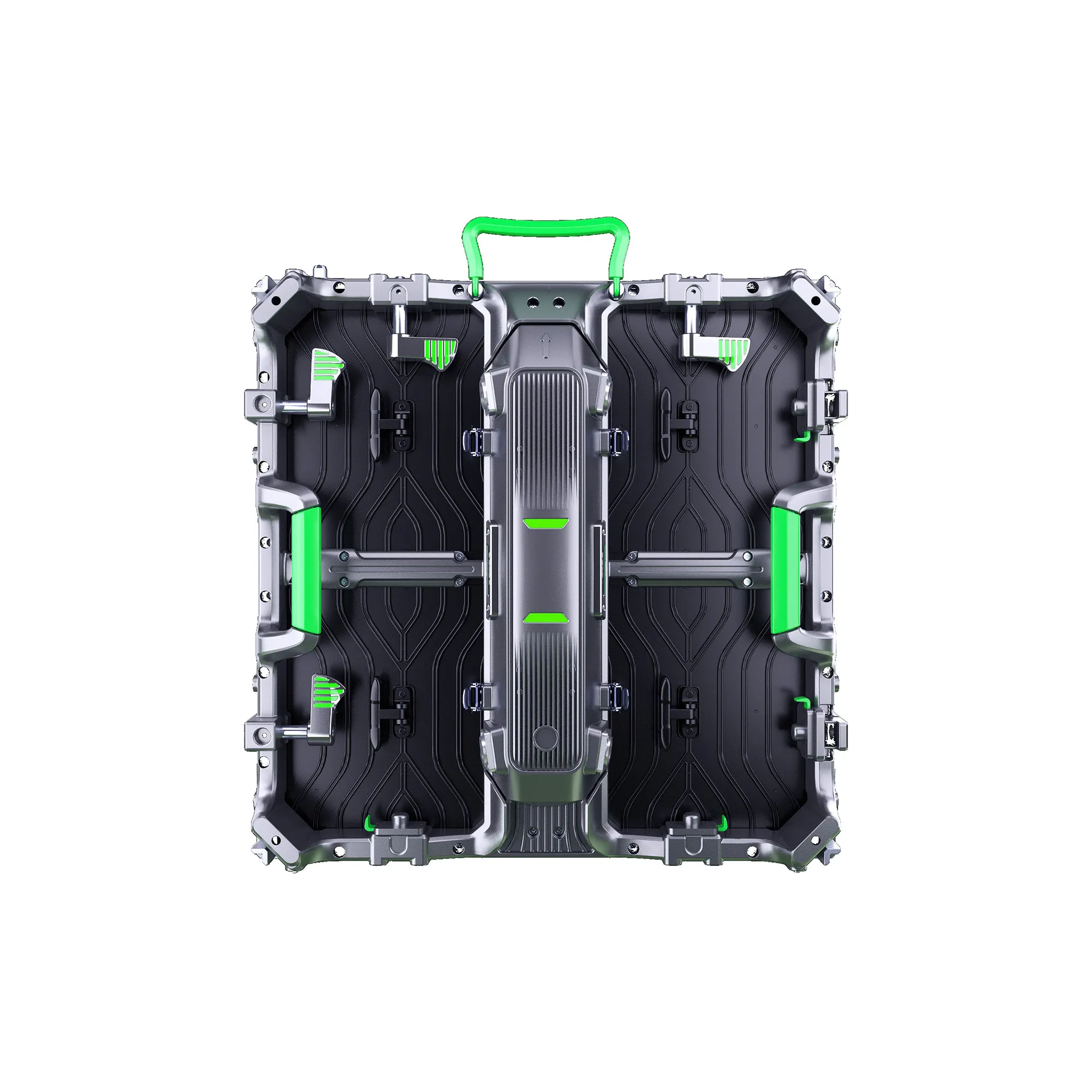

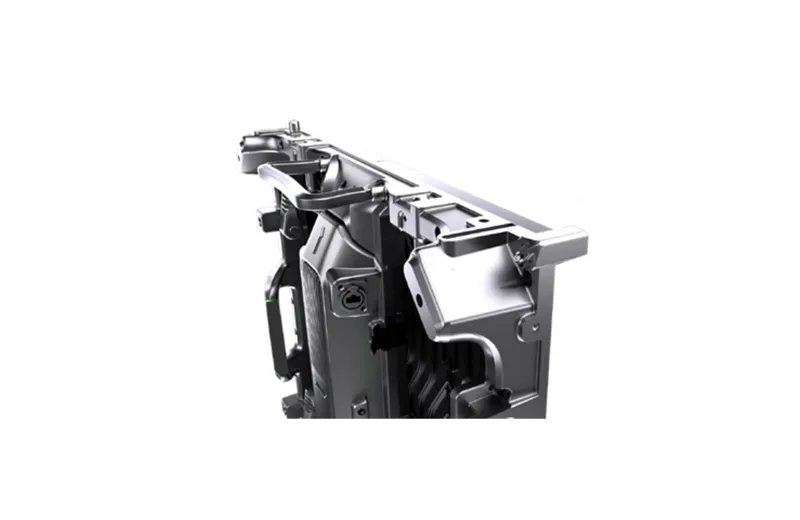

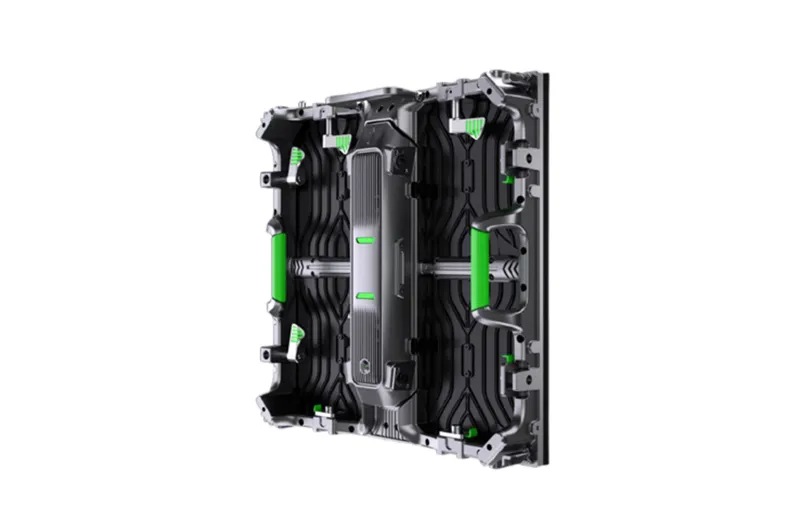

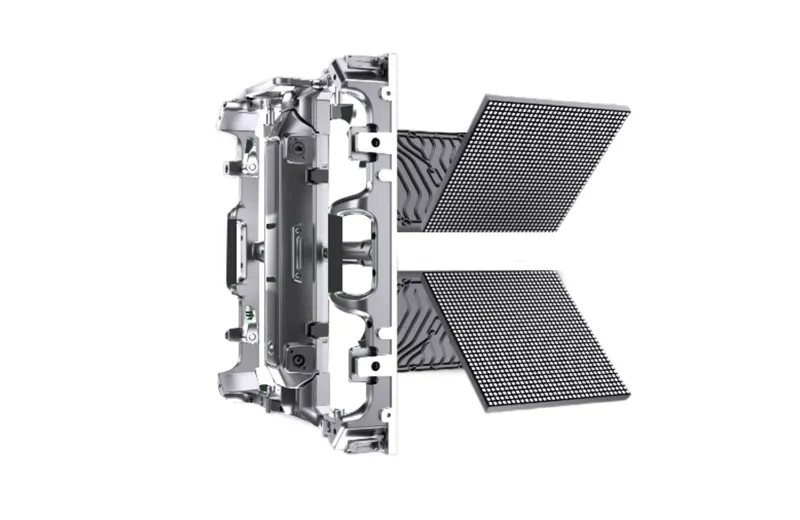

The cabinet is light and thin, made from die cast aluminium and it is both front and rear maintenance led display.At the back there are convenient handles and at the center is the Quick Exchangeable Control Box that contains the receiver card, the hub board and the power supply. There are also corner protectors for the LEDs.

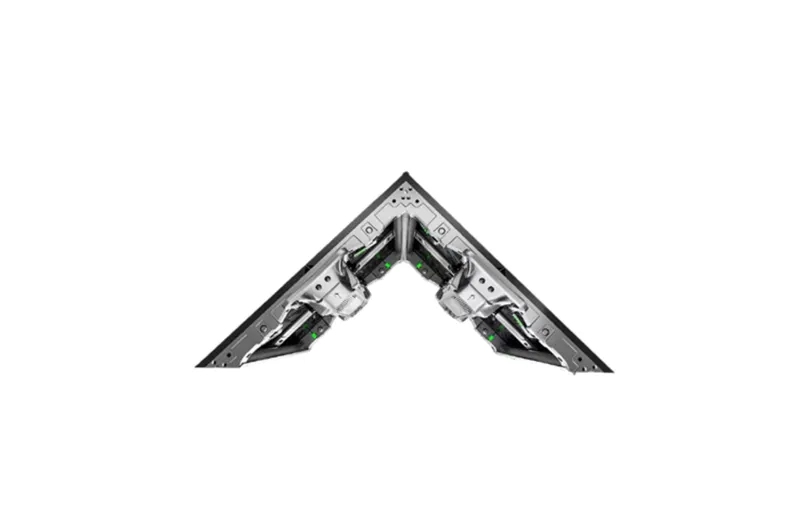

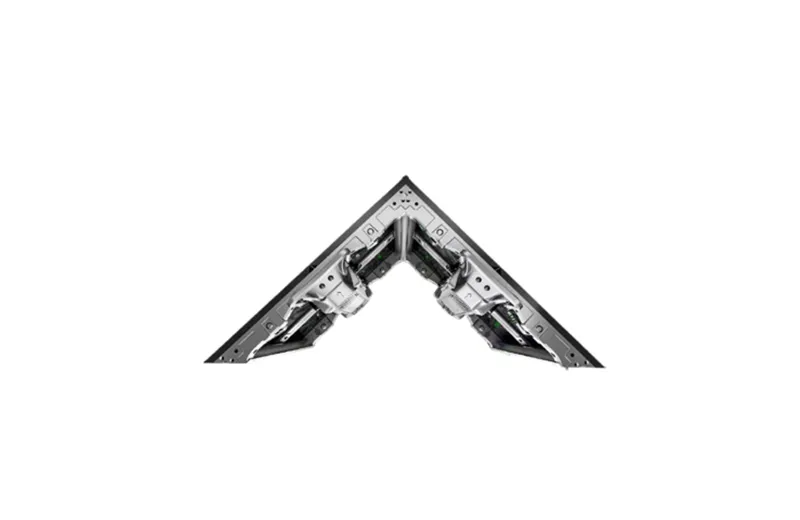

VI series can also have a curved installation, convex and concave, creating unique shapes and also circular creating impressive projections. The installation is easy and fast and the panels can be stacked or hanged.

Specifications:

Pixels

  • Pixel Pitch: 3.97mm
  • LED Configuration: SMD2121
  • Pixel Density (per/Sq m): 65.536

Panel Details

  • Brightness: 1000 Nits
  • View angle: Horizontal 160°/ Vertical 160°
  • Gray Scale: 16 bit
  • Scan Mode:  1/16
  • Refresh rate: 3840

Power

  • Voltage: 110~240V
  • Average power consumption: 800W (per/Sq m)

Construction

  • Material: Die cast aluminium
  • Module Dimensions: 250 x 250mm
  • Cabinet Dimension (WxH): 500 x 500
  • Βάρος: 8kg
  • IP Rate: IP43

Specifications

Suitable for
Indoor
Pixel Pitch (mm)
3.91
Brightness
1200
Pixel Configuration
SMD2121
Scan
43116
Module Dimension (mm)
250 x 250
Cabinet Dimension
500 x 500 x 85
Cabinet Resolution
128 x 128
Service Access
Front view
Refresh Rate (HZ)
3840
Grey Scale (bit)
16
Viewing Angle (H/V)
140°/140°
Category
Led wall indoor
Weight (kg)
8
Warranty
2 years
Protection class
IP43
Pixel Matrix Per Sq.m
65.536
MPN
VI3.9/1000
