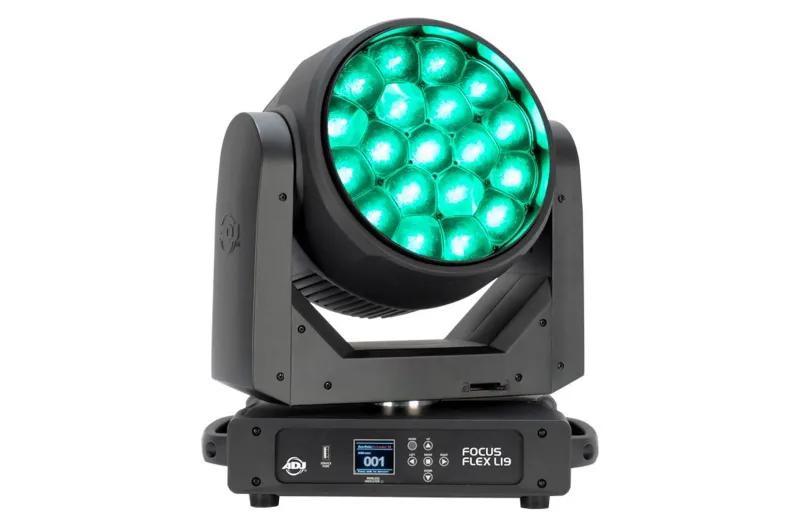

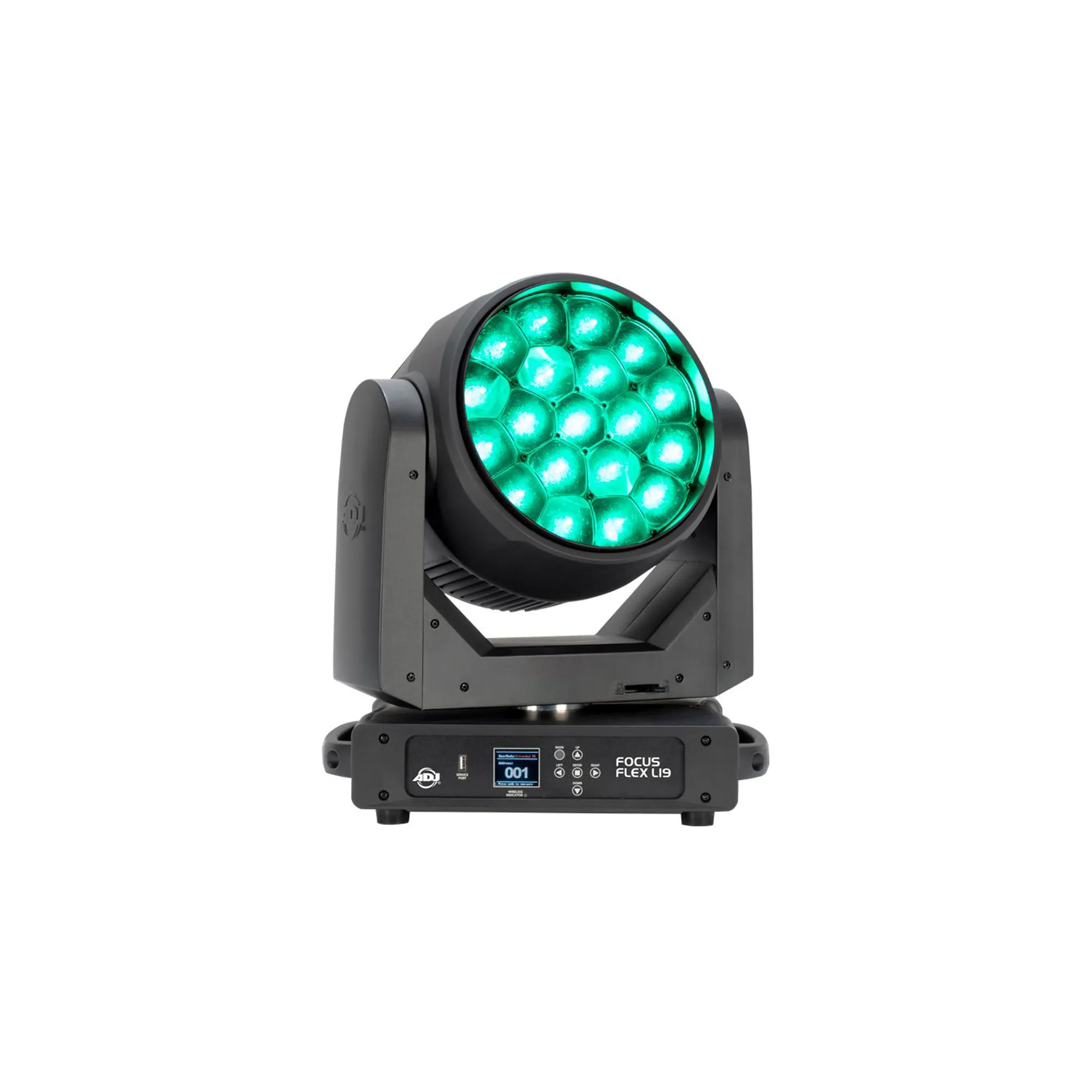

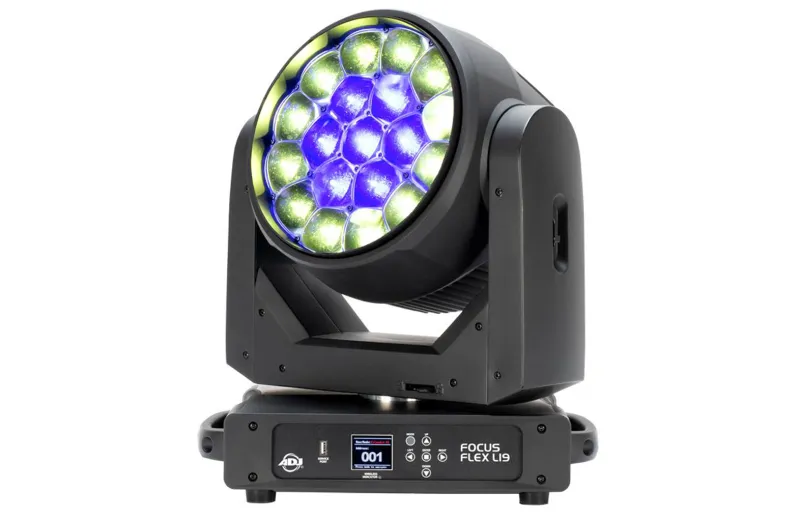

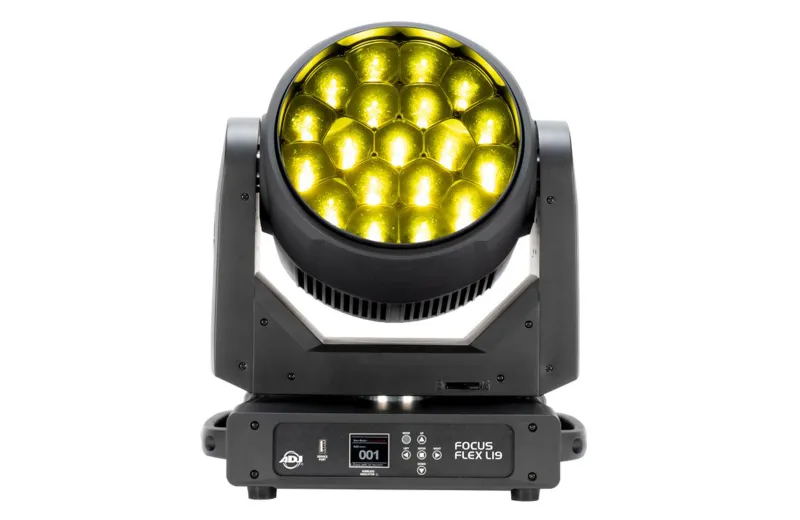

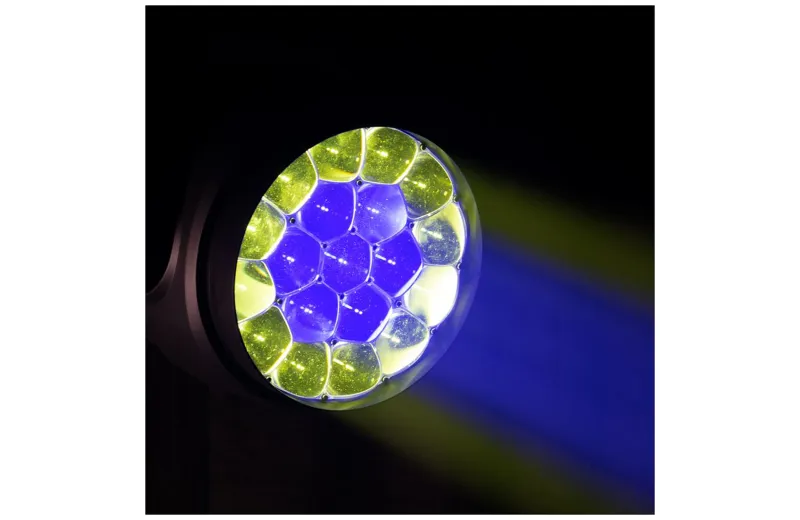

ADJ Focus Flex L19 is a versatile moving head luminaire capable of creating wash, beam and pixel effects and is powered by an array of 19 potent 40-Watt 4-in-1 RGBL color mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallete tools. Through controlling the nineteen LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. Motorized zoom allows the field angle of the Focus Flex L19 to be altered remotely between a wide 50° and narrow 5°, which allows it to be used for creating both broad washes and concise beams. Its quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine pan & tilt motor control ensures precise positioning. A flexible fixture, the Focus Flex L19 offers a range of 5 DMX mode options, appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a color LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases
Specifications
Light Source:
- 19 x 40-Watt RGBL LEDs (50,000 hr.)
- CRI: 83.4
- CT: 2,700K ~ 10,000K
- 39,975 lux / 4.3° beam @ 16’ (5m)
- 1,422 lux / 28.3° beam @ 16’ (5m)
- Lumens: 7,814 (Zoomed Out, Full On)
Features:
- Moving Light Pixel Wash
- Individual Pixel Control
- Built-In Pixel Effect Programs
- Electronic Strobe / Dimmer
- Pan/Tilt: 540/630 x 260
- Beam Angle: 4.3° ~ 29°
- Field Angle: 5° ~ 50°
- Color Calibrated Pixels so units match from batch to batch
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Color Wheel Control
- Selectable LED Refresh Rates (900 Hz~25K Hz)
- Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre,
- Stage 2 and user settable Dim Speed (0.1S~10S)
- 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
- 0-100% smooth dimming
- Fan Cooled
- Antenna for WiFLY EXR Wireless DMX
Colors:
- 19x RGBL LED’s (Red, Green, Blue and Lime)
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Color Wheel Control
- Built-In Color Macros
- 2,700K ~ 10,000K Linear White Color Temperature Control
- Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Control:
- 5 DMX Modes - 16/25/98/25 CMY/28 CMY Channel Modes
- Color LCD display with 6-button function menu
- Control: DMX512, ArtNet, sACN and KlingNet Compatible and WiFLY EXR wireless DMX
- Built-In Effect Pixel Programs with Speed and Fade Control
- RDM (Remote Device Management) compliant
- With Wired Digital Communication Network
Pan/Tilt:
- Pan: 540/630 degrees
- Tilt: 250 degrees
- 16-Bit Fine Pan & Tilt
- Pan & Tilt Locks
Connections:
- DMX Connections: 5-pin XLR In/Out
- RJ45 In/Out
- Power Connections: Indoor Locking Power In/Out
Electrical:
- Multi-voltage operation: 90-240V, 50/60Hz
- Max power consumption: 918W @120V
Dimensions & Weight:
- Dimensions (LxWxH): (400x259x405.5mm)
- Weight: 19kg
What’s Included:
- 180mm Omega Brackets (2x)
- 1.83M locking power cable
- Safety Cable
Approvals:
- ETL Pending / CE Certified
- IP20
- Category
- Moving Head
- Colour
- Black
- Width (mm)
- 382
- Length (mm)
- 258
- Height (mm)
- 470
- Weight (kg)
- 19
- Protection class
- IP20
- Light source
- 19 x 40-Watt RGBL LEDs
- Light Color
- Red, Green, Blue, Lime
- Number of LEDs
- 19
- Colour temperature
- 2700K - 10,000K
- DMX
- Yes
- Wireless DMX
- Yes
- Photometric data
- CRI: 83.4
- Connections
- 5-pin XLR In/Out
RJ45 In/Out - Control Modes
- DMX512, ArtNet, sACN and KlingNet Compatible and wireless DMX
- Fan
- Yes
- Zoom
- Yes
New
- EAN13
- 810087371500
- MPN
- Focus Flex L19
