ADJ VIZI WASH Z19
090219

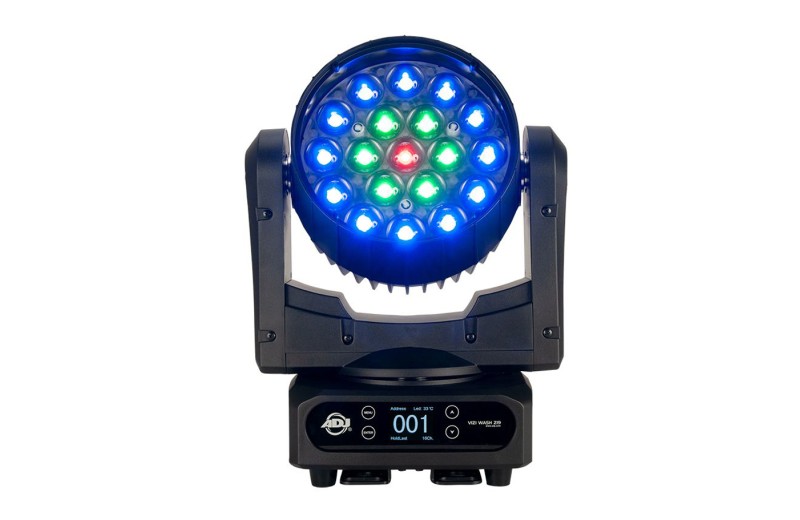

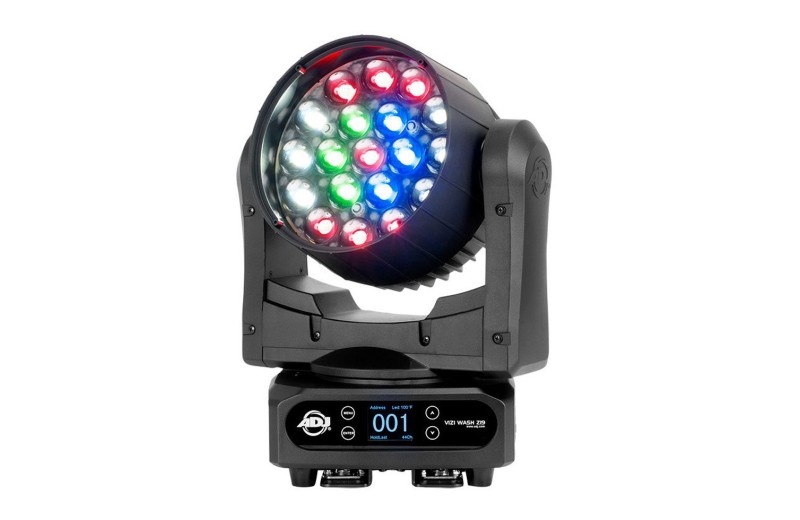

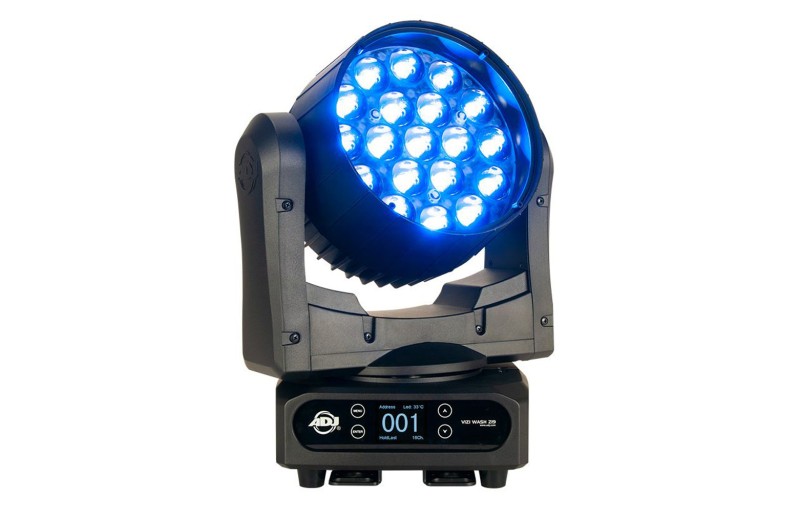

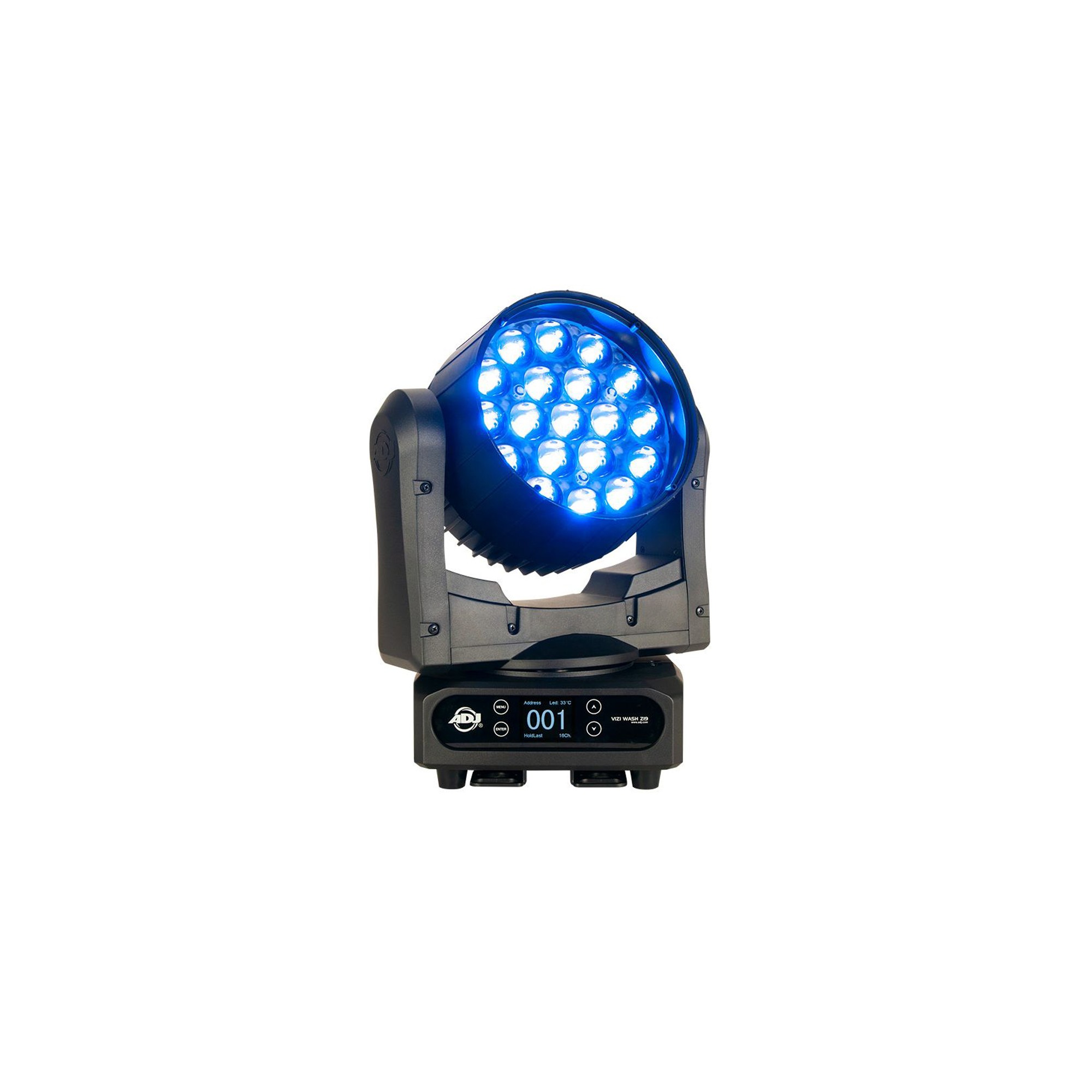

ADJ Vizi Wash Z19 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs.
ADJ Vizi Wash Z19 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth 16bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.
Specifications:
Source
- 19 OSRAM RGBW QUAD-LEDs
- 5436 Lumens (Zoom out, full on)
- 9960 Lux @5m at 10°
- 694 Lux @5m at 60°
- 5436 Lumens (Zoom out, full on)
- 9960 Lux @5m at 10°
- 694 Lux @5m at 60°
Optics
- Motorized Zoom: 10°-60° (field angle)
Control
- 2 Operational Modes: Program Mode & DMX Control
- 8 DMX Channel Mode: 13, 14, 17, 18, 29, 30, 45 or 46 Channels
- RDM compatible (Remote Device management)
- 16bit Electronic Dimming 0-100%
- 6 Dim Modes (Standard, Stage, TV, Architectural, Thetare, Stage 2)
- Adjustable Dimmer Delay Time: 0.1secs - 10 secs
- 4 Dim Curves (Square, Linear, Inverted Square, S-Curve)
- Display: Color display with 4-button function menu
- 7-Zone & 3 Ring-Control
- 16bit Pan 540°
- 16bit Tilt 270°
- Pan/Tilt Target Mode
- 3 Fan Modes : Auto/High/Silent
- 8 DMX Channel Mode: 13, 14, 17, 18, 29, 30, 45 or 46 Channels
- RDM compatible (Remote Device management)
- 16bit Electronic Dimming 0-100%
- 6 Dim Modes (Standard, Stage, TV, Architectural, Thetare, Stage 2)
- Adjustable Dimmer Delay Time: 0.1secs - 10 secs
- 4 Dim Curves (Square, Linear, Inverted Square, S-Curve)
- Display: Color display with 4-button function menu
- 7-Zone & 3 Ring-Control
- 16bit Pan 540°
- 16bit Tilt 270°
- Pan/Tilt Target Mode
- 3 Fan Modes : Auto/High/Silent
Colors
- RGBW Color Mixing
- 64 Color Presets
- Built-In Zone Chase Patterns
- 44 Color Temperature Presets 2700K - 7000K
- 64 Color Presets
- Built-In Zone Chase Patterns
- 44 Color Temperature Presets 2700K - 7000K
Construction
- PVC molding

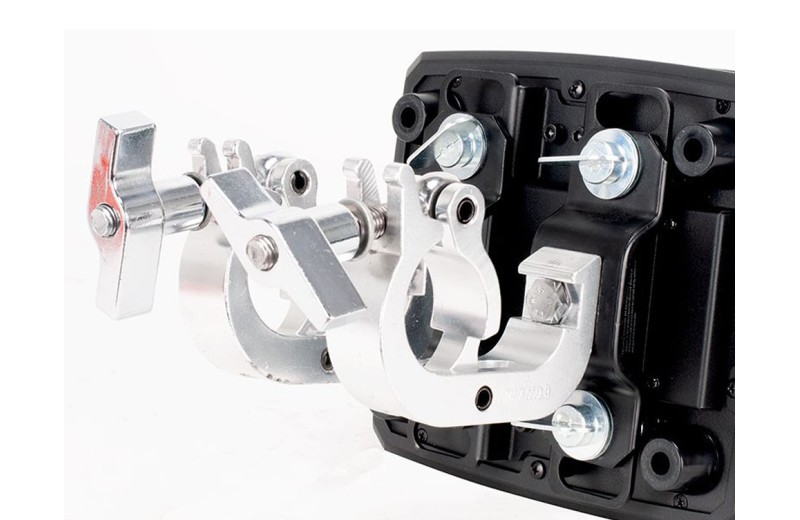

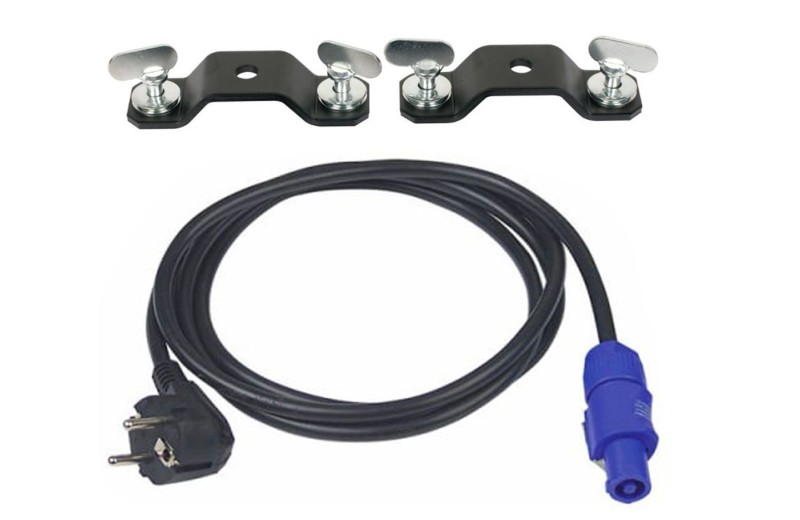

- Includes Quicklock Omega Brackets
- Includes Quicklock Omega Brackets
Electrical
- Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- Power consumption: 285W
- Power consumption: 285W

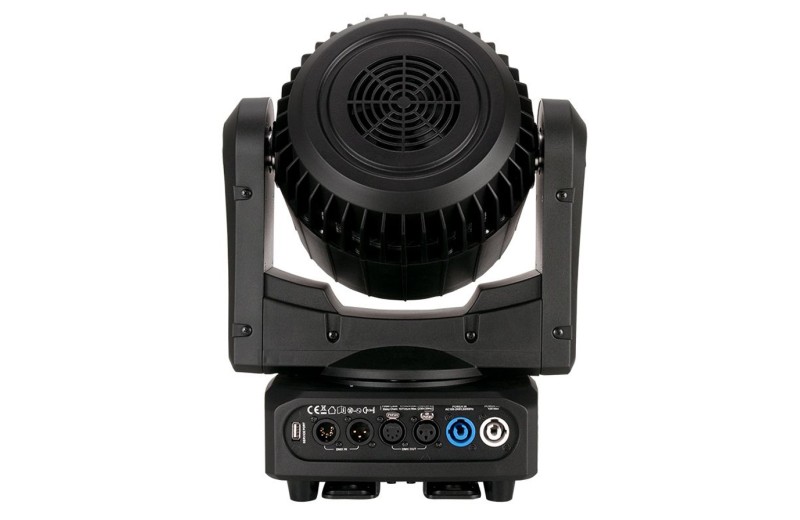

Connections
- 3-& 5pin Locking DMX In/Out connections
- Locking Power In/Out connection
- USB-Service Port for Firmware updates
- Locking Power In/Out connection
- USB-Service Port for Firmware updates
Dimensions & Weight
- Dimension: 306.6 ? 195 ? 393.3mm
- Weight: 9,4 kg.
- Weight: 9,4 kg.
New
- MPN
- Vizi Wash Z19
