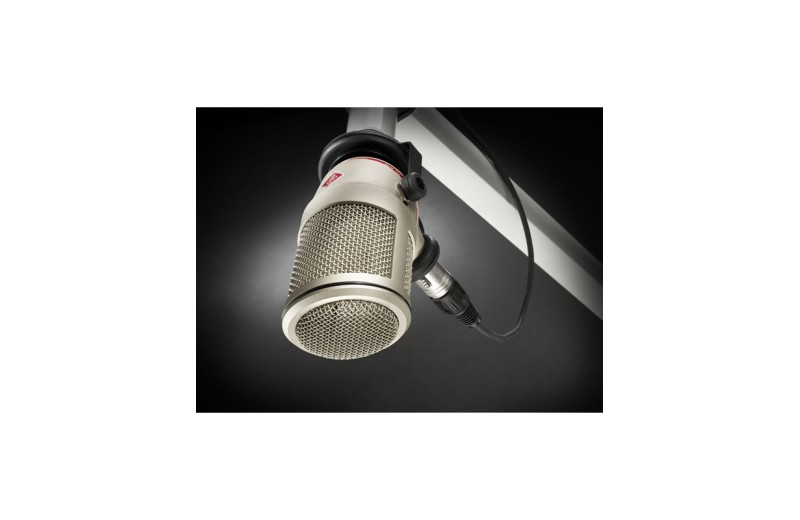

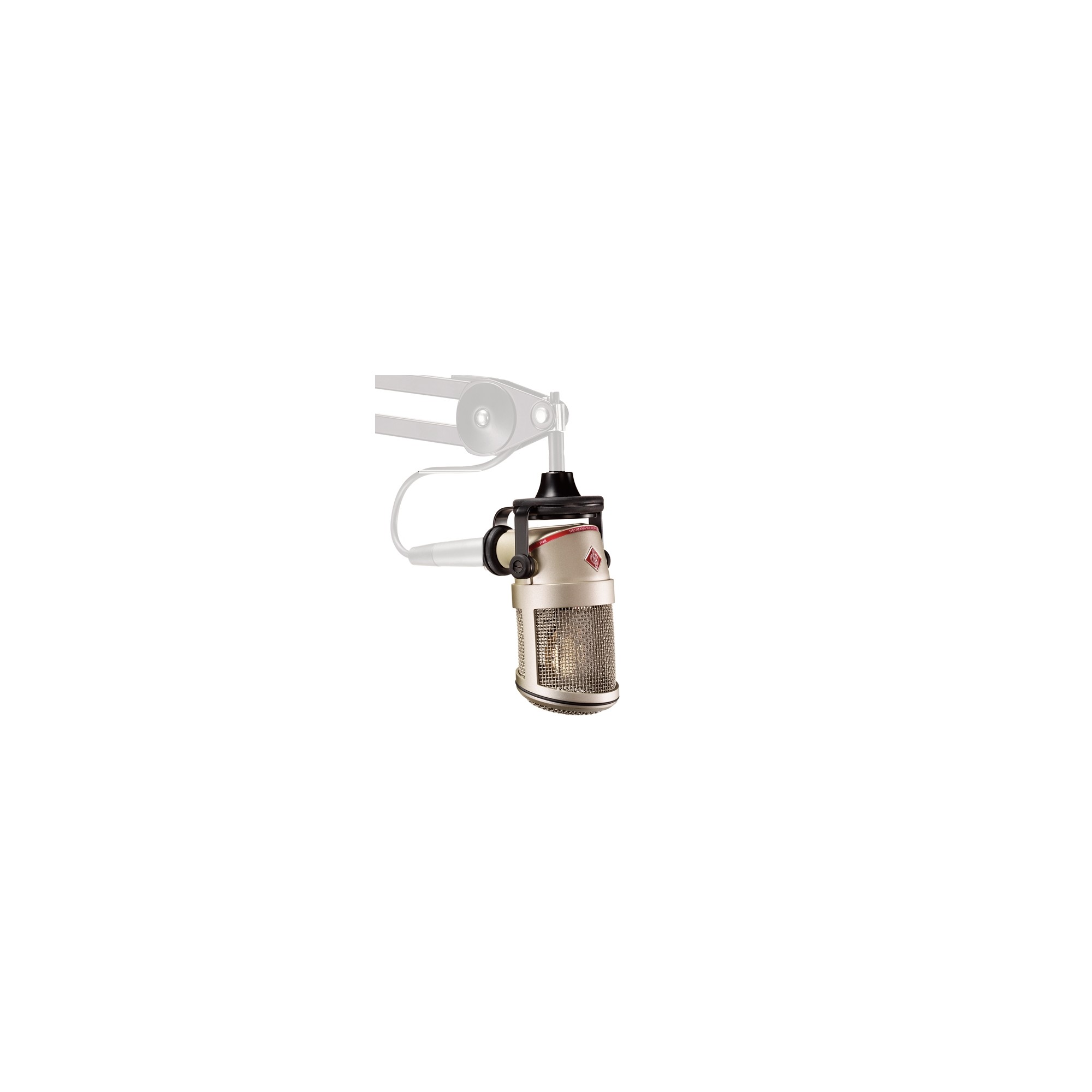

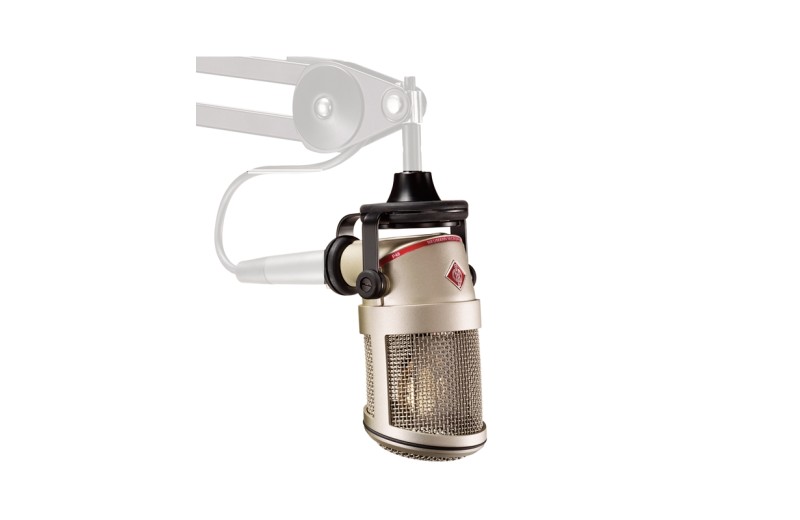

NEUMANN BCM-104 Condenser Microphone

Professional broadcast condenser microphone with large-diaphragm capsule and optimized cardioid directional pattern. The NEUMANN BCM-104 features integrated pop protection, effective suppression of structure-borne noise, and exceptional audio clarity for studio recording, live broadcasting, and professional audio production.

The BCM-104 delivers premium sound quality with a sensitivity of 22 mV/Pa and extended frequency response from 20 Hz to 20 kHz. With a maximum SPL of 152 dB (with pre-attenuation) and excellent signal-to-noise ratio, this professional microphone is ideal for demanding broadcast applications and studio environments.

Specifications:

• Acoustical operating principle: Pressure gradient transducer
• Directional pattern: Cardioid
• Frequency range: 20 Hz ... 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 22 mV/Pa
• -14 dB attenuation: 4.4 mV/Pa
• Rated impedance: 50 Ohms
• Rated load impedance: 1000 Ohms
• Equivalent SPL CCIR 468-3: 18 dB
• Equivalent SPL DIN/IEC 651: 7 dB-A
• Maximum SPL for THD 0.5%: 138 dB
• Maximum SPL with pre-attenuation: 152 dB
• S/N ratio CCIR 468-3: 76 dB
• S/N ratio DIN/IEC 651: 87 dB
• Maximum output voltage: 10 dBu
• Dynamic range: 131 dB
• Supply voltage: 48 V ± 4 V (Phantom Power)
• Current consumption: 3.2 mA
• Matching connector: XLR 3M
• Weight: 500 g
• Diameter: 64 mm
• Length: 85 mm
