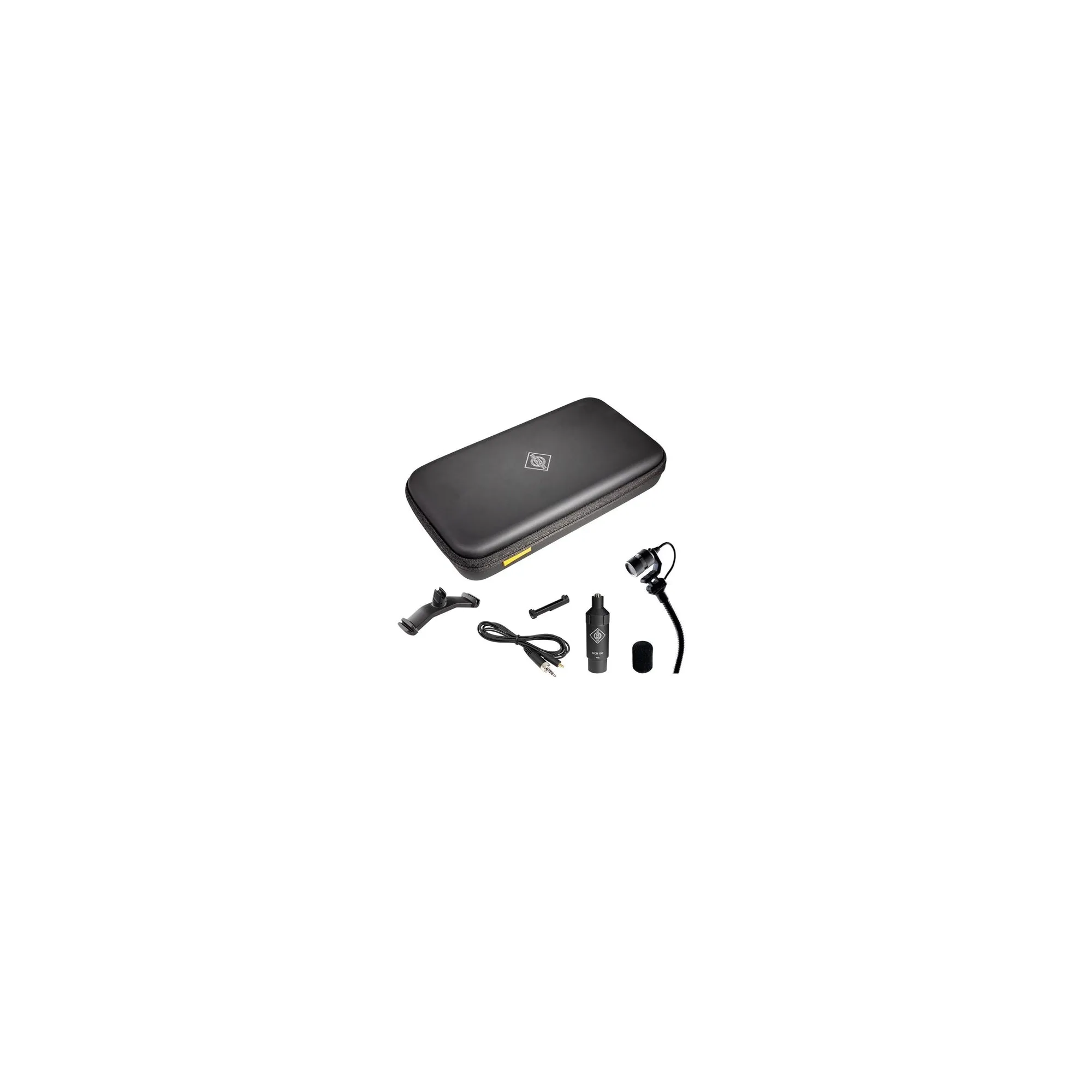

Complete set for using the Neumann Miniature Clip Mic MCM system on cello strings behind the bridge. Includes: KK 14 capsule, SH 150 gooseneck, AC 31 cable with KC 1 cable clip, MCM 100 output stage, WS 110 windshield, MC 2 clip. Supplied in convenient soft case.
Durable design and construction for extended lifespan
Upgrading the electret principle to a new level
The KK 14 captures the characteristic sound of acoustic instruments with precision and neutrality. It transcends the previous limitations of the electret principle to offer wider bass and midrange and assured clarity in the treble. Whether quiet nuances or top-level dynamics of a powerful fortissimo: With maximum SPL of 153 dB, the KK 14 is open to all details.
Eight parts of perfection
To achieve this, Neumann engineers reconsidered the manufacturing process for electret-based microphones. Neumann chose a multi-layered structure where each unit of the KK 14 is built and designed to deliver the perfect result. Subsequently, components are assembled by hand in Germany. This eliminates typical compromises, offering unparalleled acoustic properties. While the titanium housing is a component of its hard design, it is also an expression of internal elegance in design and engineering.
Tonal consistency and design - Durability in all conditions
The multi-layered design also provides an unprecedented level of tonal consistency - each capsule sounds exactly the same. It saves engineers the time needed for basic EQ-ing and provides stable sound from the first soundcheck.
The system is designed for years, not just one season. Its modular design also allows easy replacement of spare parts. Nine mounting clips allow reliable placement on any instrument while being safe for any surface. The system connects with all major wireless systems and includes cable options for 3.5 mm, Lemo, mini-XLR 4-pin, MicroDot connectors or wired connection.
Technical specifications - KK 14 capsule
Acoustic principle: Pressure gradient transducer
Polar pattern: Cardioid
Frequency response: 20 Hz - 20 kHz
Sensitivity: 3.6 mV/Pa ? -49 dBV
Nominal impedance: 10 ohms
Signal-to-noise ratio CCIR: 63 dB
Signal-to-noise ratio A-weighted: 71 dB
Equivalent noise level CCIR: 31 dB
Equivalent noise level A-weighted: 23 dB-A
Amplifier dynamic range A-weighted for THD < 0.5%: 130 dB
