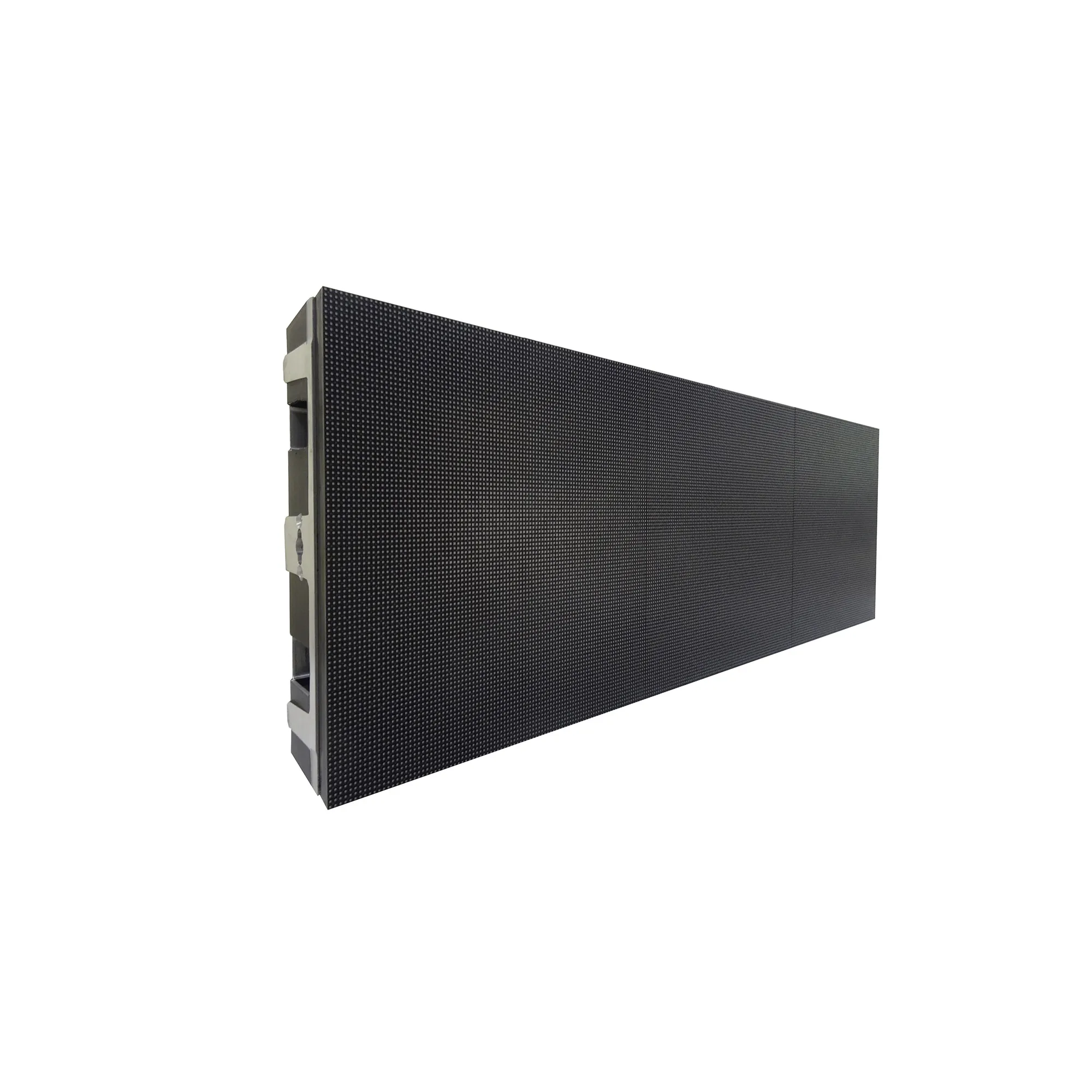

Ledful WALL2.9-PRO/3500-4000 Indoor Ledwall
910417

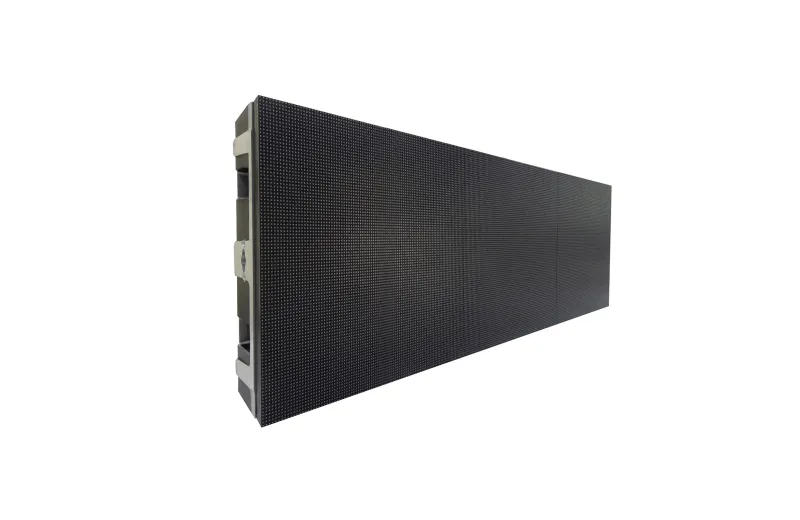

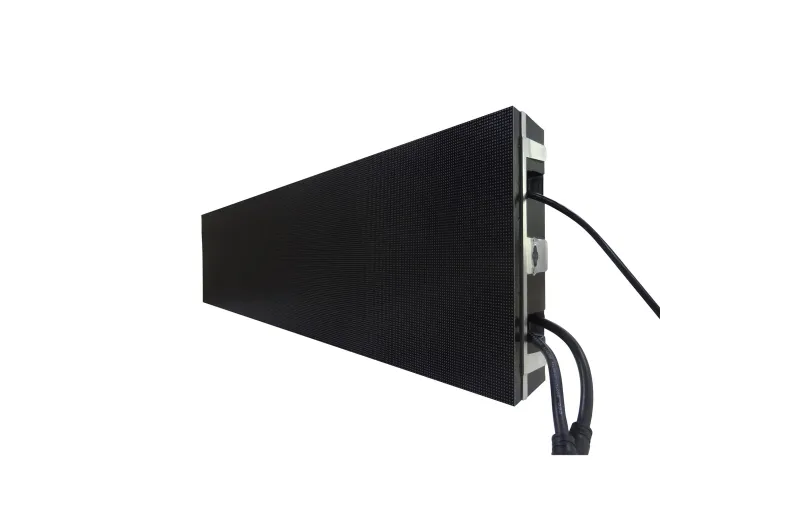

Ledful Wall Pro 2.9, LED video panel for indoor use with (WxH) 1000 x 250, SMD1515 Configuration, a pixel pitch of 2.976mm, 336 x 84 resolution, 3840 refresh rate and brightness that measures up to 3500-4000 Nits with viewing angle is 160° horizontal and 160° vertical.
Ledful Wall Pro 2.9, LED video panel for indoor use with (WxH) 1000 x 250, SMD1515 Configuration, a pixel pitch of 2.976mm, 336 x 84 resolution, 3840 refresh rate and brightness that measures up to 3500-4000 Nits with viewing angle is 160° horizontal and 160° vertical.

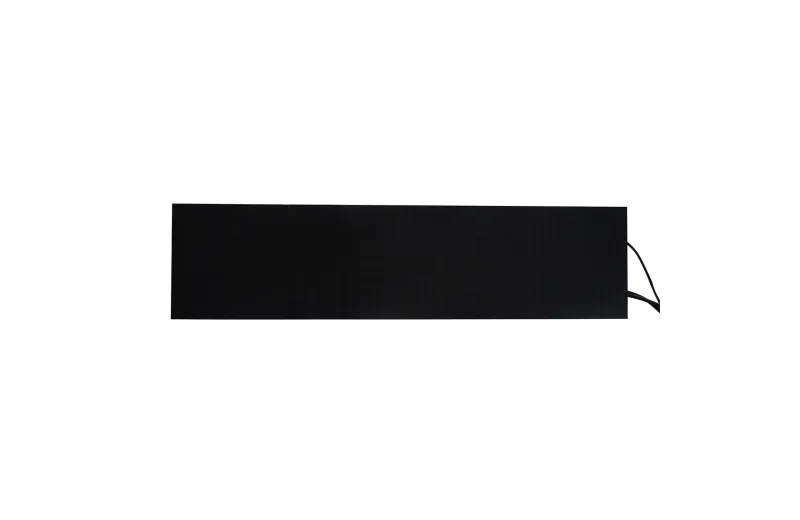

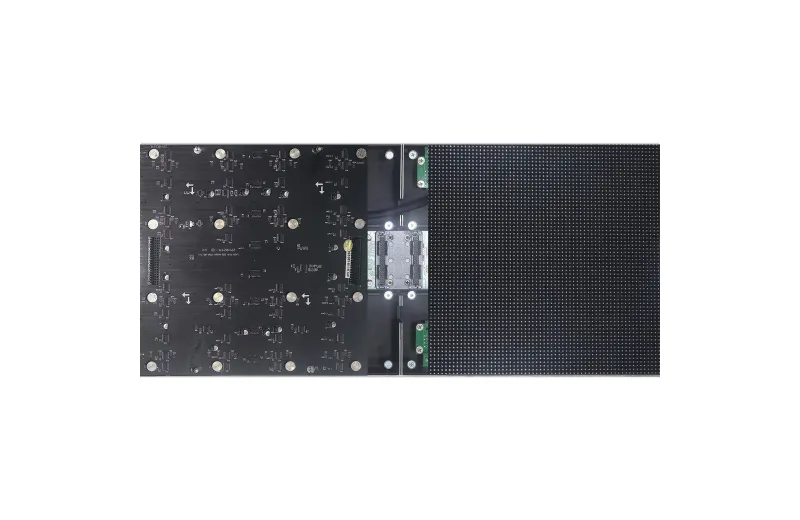

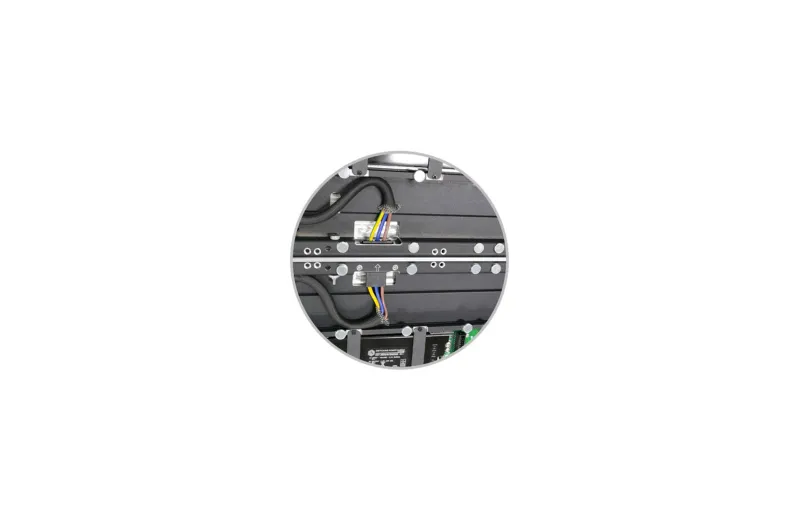

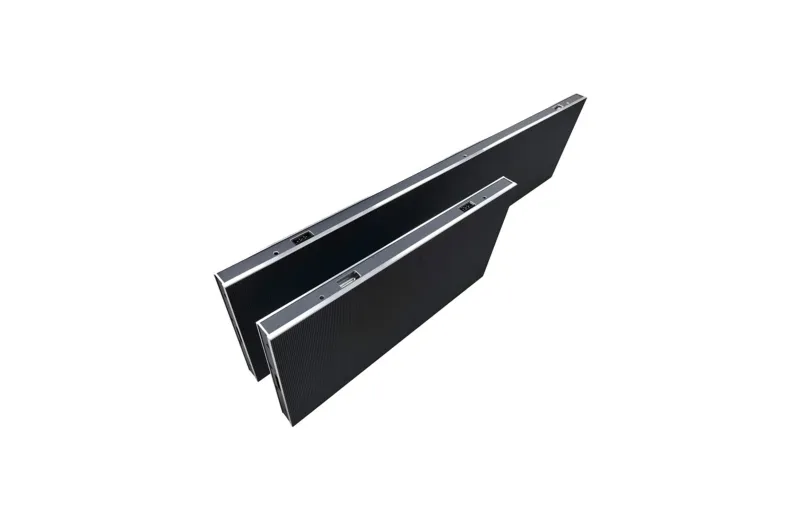

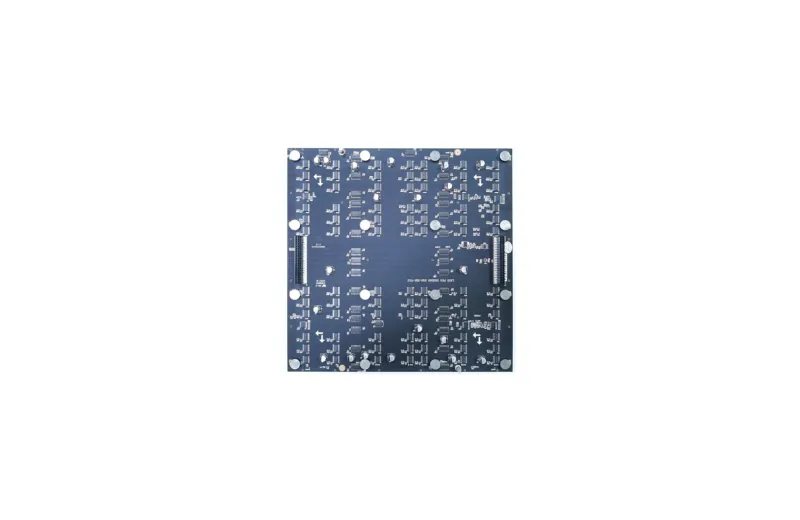

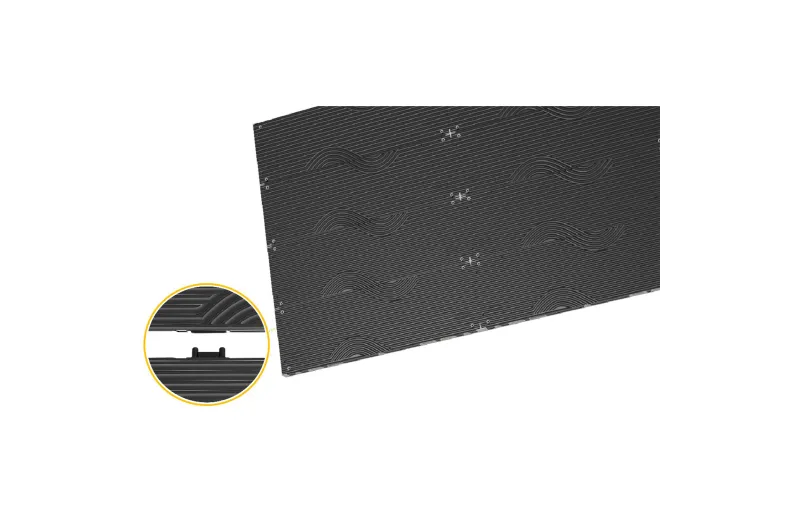

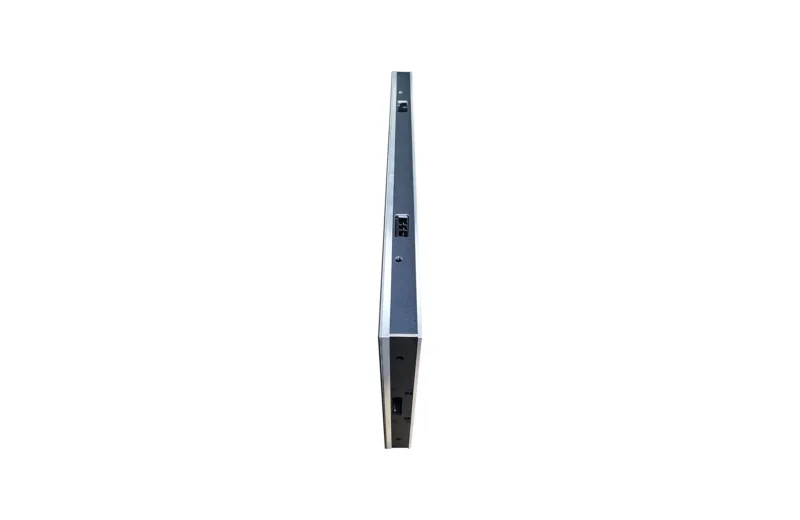

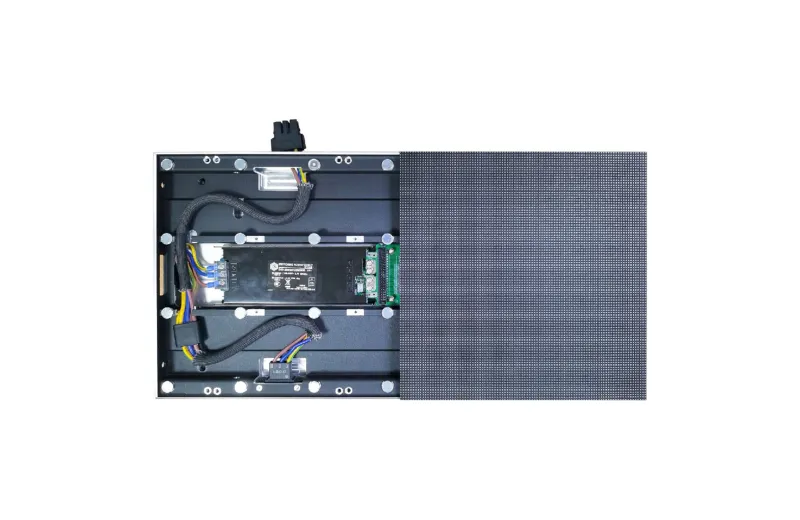

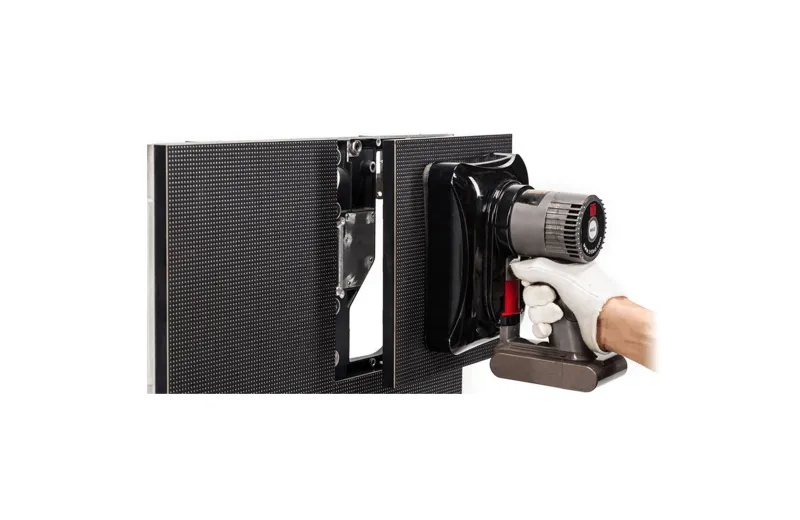

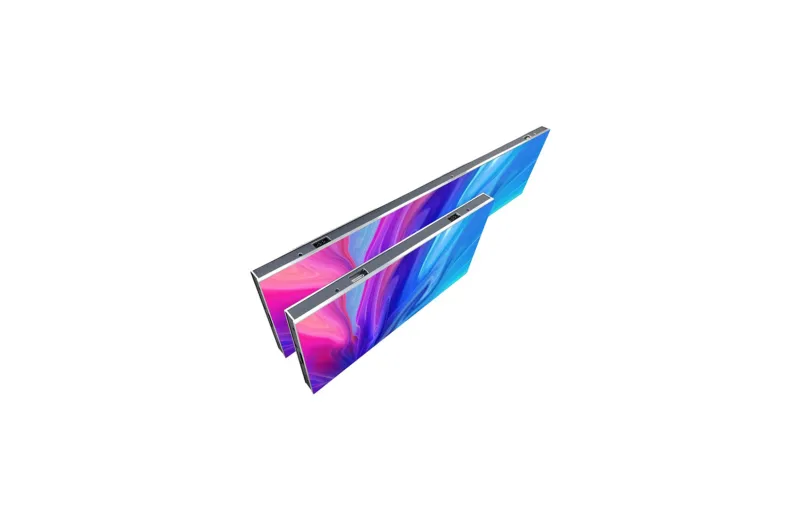

The Wall Pro series is made of cast aluminium and can be double-sided. On one side it is only 33mm thick and on the double side it is 53mm thick. It is an indoor full front service LED display and offers a a cable free connection thanks to the special PCB design that consists magnets. This allows a seamless connection without any gaps between the joints. The panels can also be joined at a 90 degree angle creating stunning designs for unique projections. The Wall Pro series offers multin installation methods like wall mounted, suspended or in a floor base.
Specifications
Specifications
Pixels
- Pixel Pitch: 2.976mm
- LED Configuration: SMD1515
- Pixel Density (per/Sq m): 112.896
Panel Details
- Brightness: 3500-4000 Nits
- View angle: Horizontal 160°/ Vertical 160°
- Gray Scale: 16 bit
- Scan Mode: 1/28
- Refresh rate: 3840
Power
- Voltage: 110~240V
- Maximum power consumption: 800W (per/Sq m)
- Average power consumption: 180W (per/Sq m)
Construction
- Material: Die cast aluminium
- Module Dimensions: 250 x 250mm
- Cabinet Dimension (WxH): 1000 x 250
- Βάρος: 8kg
- IP Rate: IP31
- Pixel Matrix Per Sq.m
- 112.896
- Pixel Pitch (mm)
- 2.97
- Brightness
- 3500-4000
- Pixel Configuration
- SMD1515
- Suitable for
- Indoor
- Scan
- 1/28
- Module Dimension (mm)
- 250 x 250
- Cabinet Dimension
- 1000/750/500 x 250
- Cabinet Resolution
- 336/252/168x84/800 x 400
- Service Access
- Front view
- Refresh Rate (HZ)
- 3840
- Grey Scale (bit)
- 16
- Viewing Angle (H/V)
- 160°/160°
- Category
- Led wall indoor
- Width (mm)
- 33
- Weight (kg)
- 8
- Enclosure material
- Die Casting Aluminum
- Warranty
- 2 years
- Protection class
- IP31
New
- MPN
- WALL2.9-PRO/3500-4000
