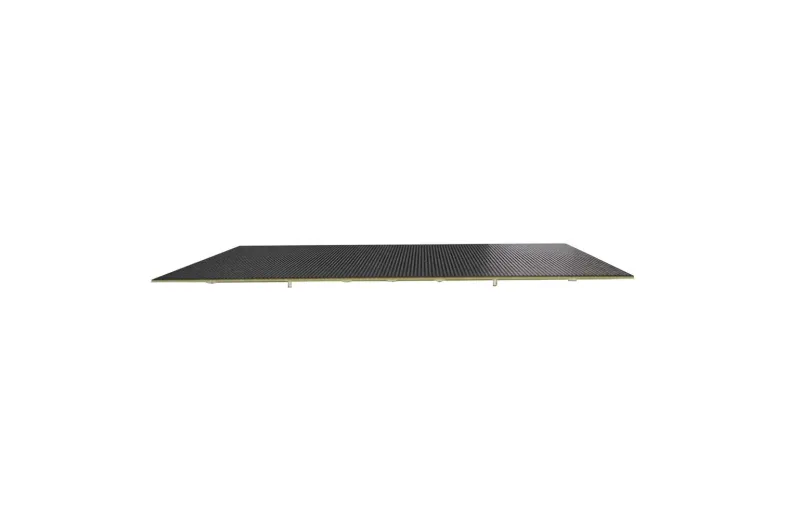

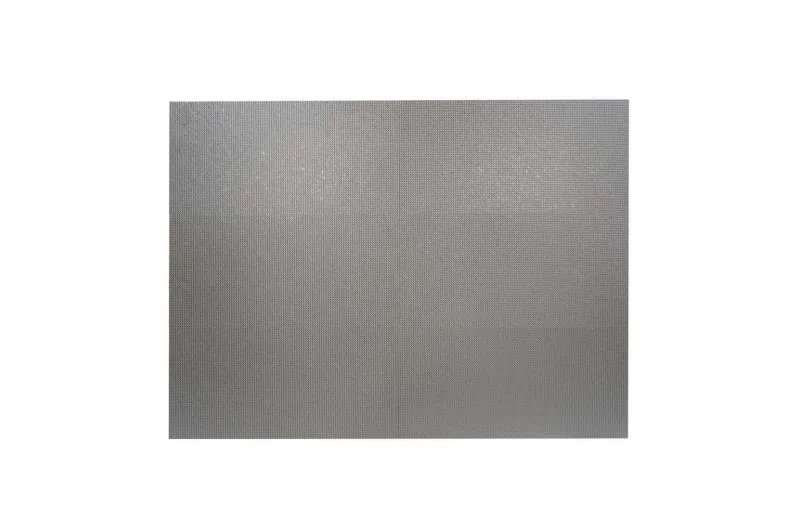

Ledful BM1.2-PRO/600 Indoor Ledwall
910403

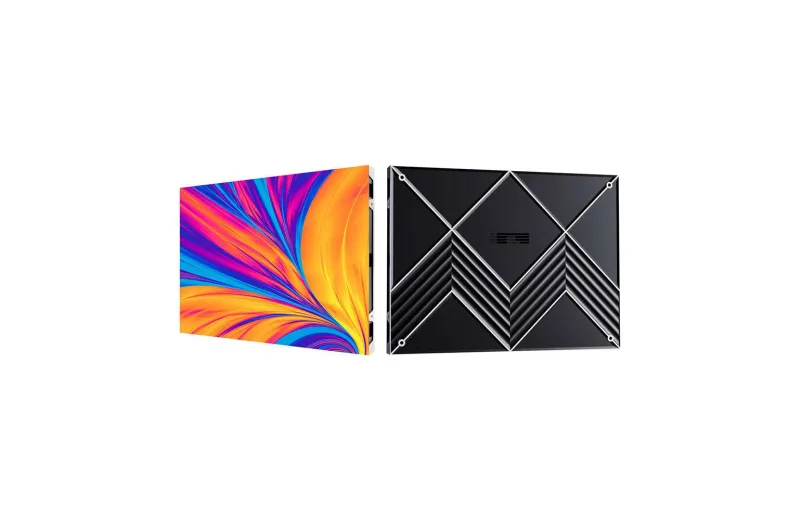

Ledful BM Pro 1.2, LED video panel for indoor use with (WxHxD) 640 x 480 x 46mm, SMD1010 Configuration, a pixel pitch of 1.25mm and 512 x 384 resolution. Brightness measures up to 600 Nits and the viewing angle is 160° horizontal and 160° vertical.
Ledful BM Pro 1.2, LED video panel for indoor use with (WxHxD) 640 x 480 x 46mm, SMD1010 Configuration, a pixel pitch of 1.25mm and 512 x 384 resolution. Brightness measures up to 600 Nits and the viewing angle is 160° horizontal and 160° vertical.

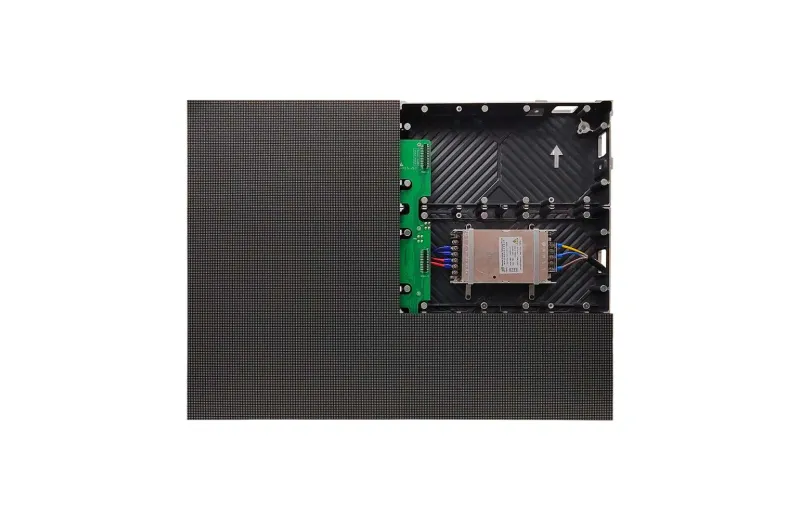

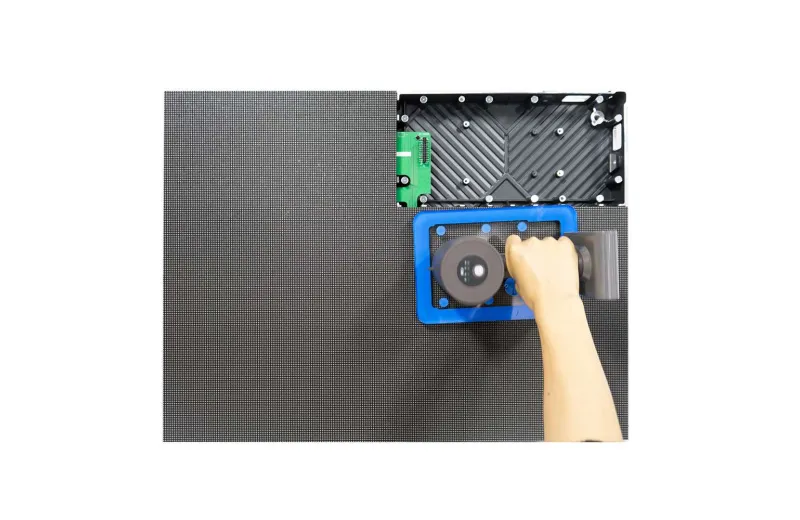

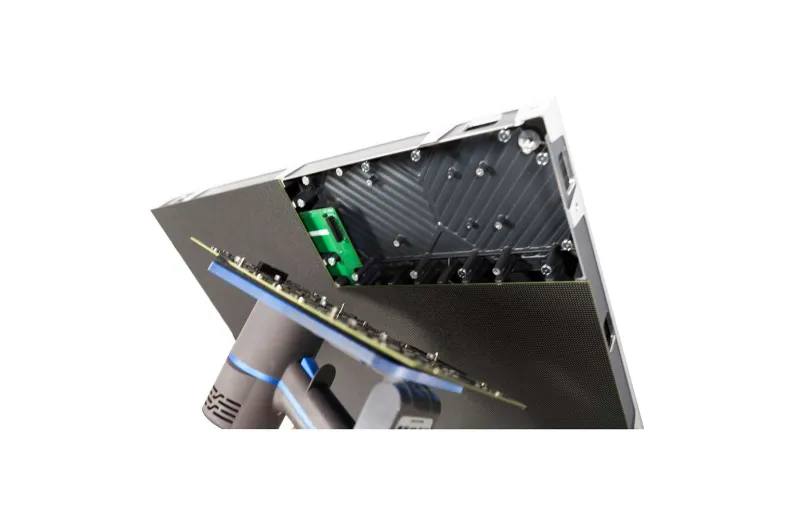

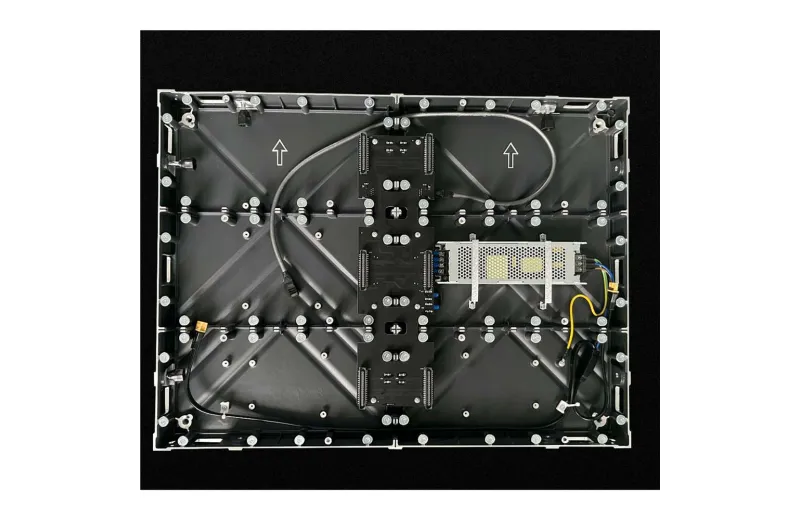

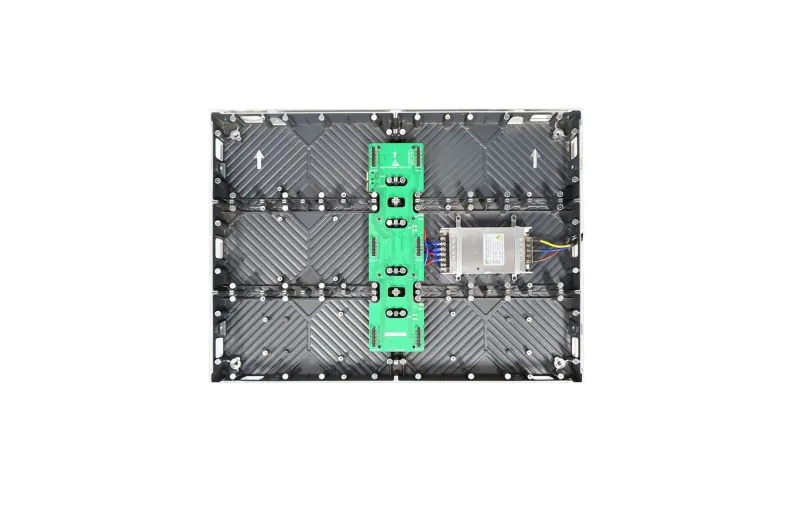

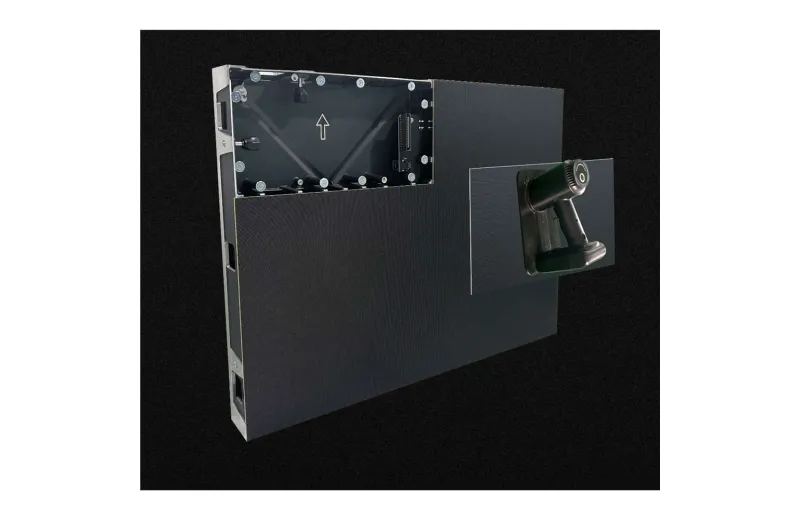

The installation is easy with the deidcated bracket, it has an extremely thin profile make it ideal for mounting in a wall. The cabinet is light and thin, made from die cast aluminium and weights only 6.8kg. It is a front maintenance led display which means that LED Modules, receivers cards and power supplies can be checked or replaced from the front.
It is ideal for places like churches, control rooms, conference rooms, retail stores, shopping malls, auditoriums, theaters and more.
Specifications
Pixels
- Pixel Pitch: 1.25mm
- LED Configuration: SMD1020
- Pixel Density: 640.000
Panel Details
- Brightness: 600 Nits
- View angle: Horizontal 160°/ Vertical 160°
- Gray Scale: 14 bit
- Scan Mode: 1/64
- Refresh rate: ?3840
Power
- Voltage: 110~2200V
- Maximum power consumption: 600W
- Minimum power consumption: 200W
Construction
- Material: Die cast aluminium

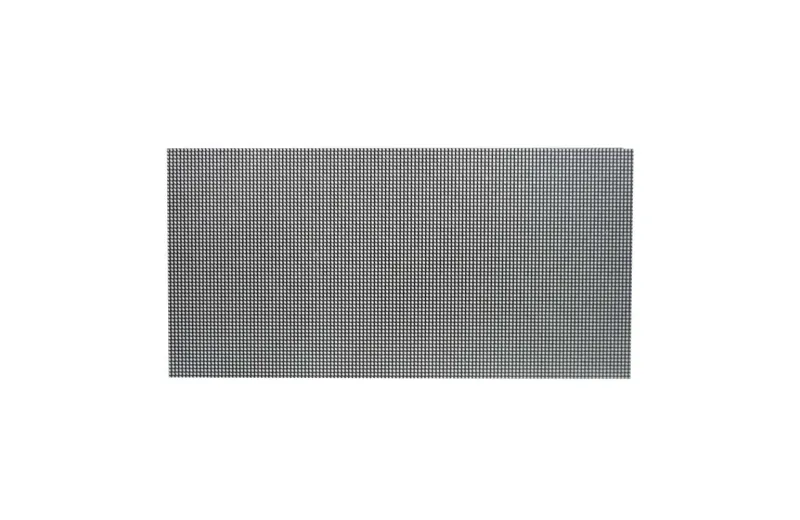

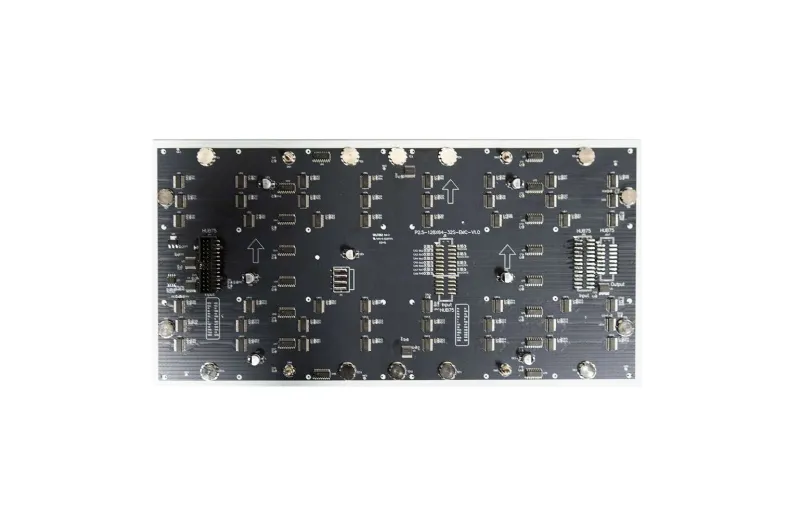

- Module Dimensions: 320 x 160mm
- Cabinet Dimension (ΜxΥ): 640 x 480mm
- Βάρος: 7kg
- IP Rate: IP45
- Pixel Matrix Per Sq.m
- 640000
- Brightness
- 500-900
- Suitable for
- Indoor
- Pixel Configuration
- SMD1010
- Scan
- 43S
- Module Dimension (mm)
- 320x160mm/ 1.05x0.53ft
- Cabinet Dimension
- 640x480mm/ 2.10x1.57ft
- Cabinet Resolution
- 512x384
- Service Access
- Front view
- Refresh Rate (HZ)
- 3840
- Grey Scale (bit)
- 14
- Viewing Angle (H/V)
- 160°/160°
- Category
- Led wall indoor
- Width (mm)
- 46
- Length (mm)
- 640
- Height (mm)
- 480
- Weight (kg)
- 6.8
- Enclosure material
- Die Casting Aluminum
- Warranty
- 2 years
- Protection class
- IP45
New
- MPN
- BM1.2-PRO/600
