Ledful BM2.5-PRO/800 Indoor Ledwall
910406

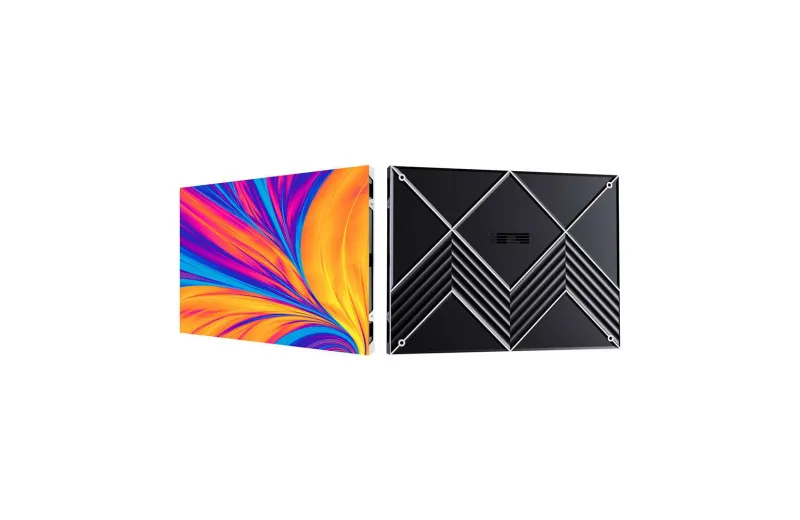

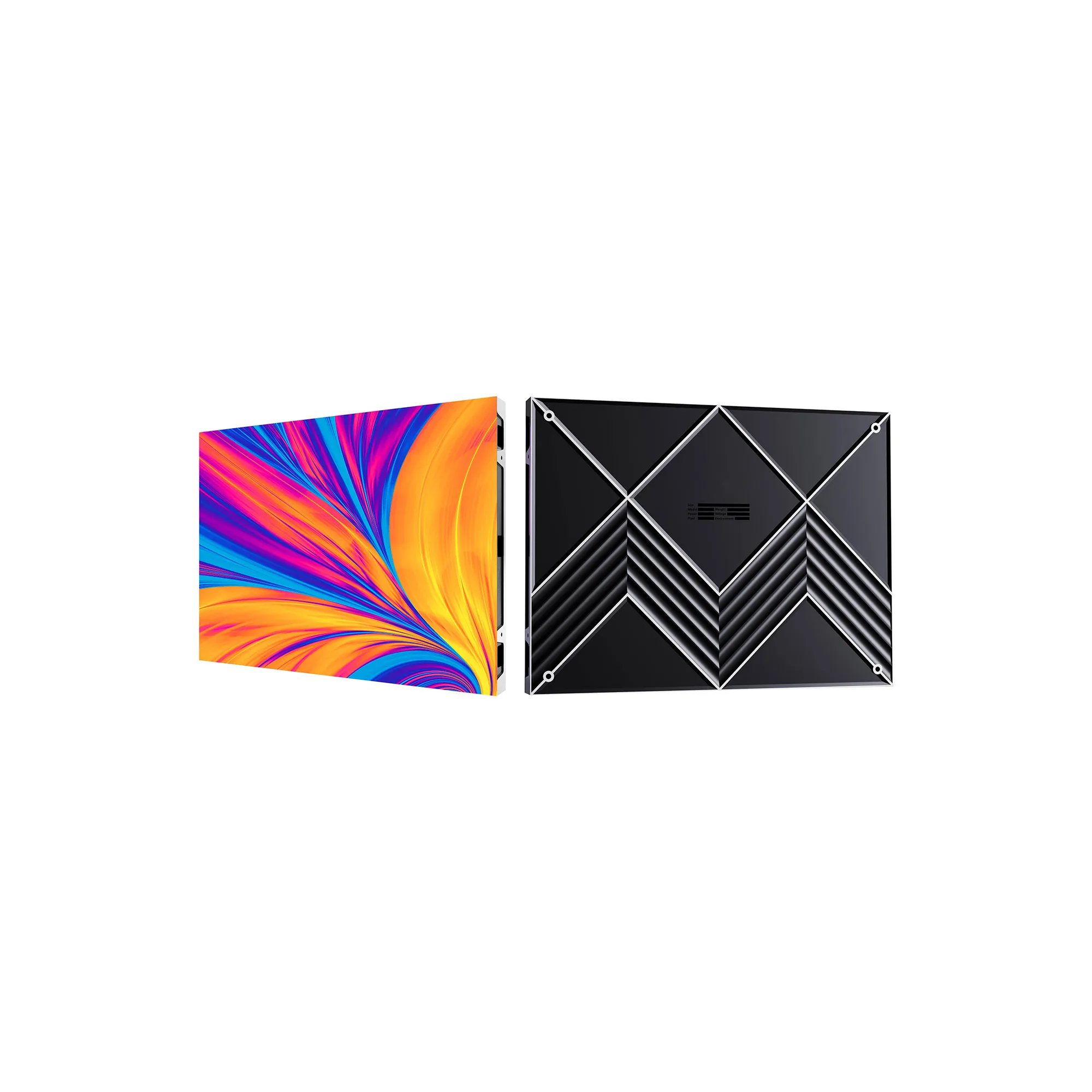

Ledful BM Pro 1.8, LED video panel for indoor use with (WxHxD) 640 x 480 x 46mm, SMD2121 Configuration, a pixel pitch of 2.5mm and 256 x 192 resolution. Brightness measures up to 800 Nits and the viewing angle is 160° horizontal and 160° vertical.
Ledful BM Pro 1.8, LED video panel for indoor use with (WxHxD) 640 x 480 x 46mm, SMD2121 Configuration, a pixel pitch of 2.5mm and 256 x 192 resolution. Brightness measures up to 800 Nits and the viewing angle is 160° horizontal and 160° vertical.

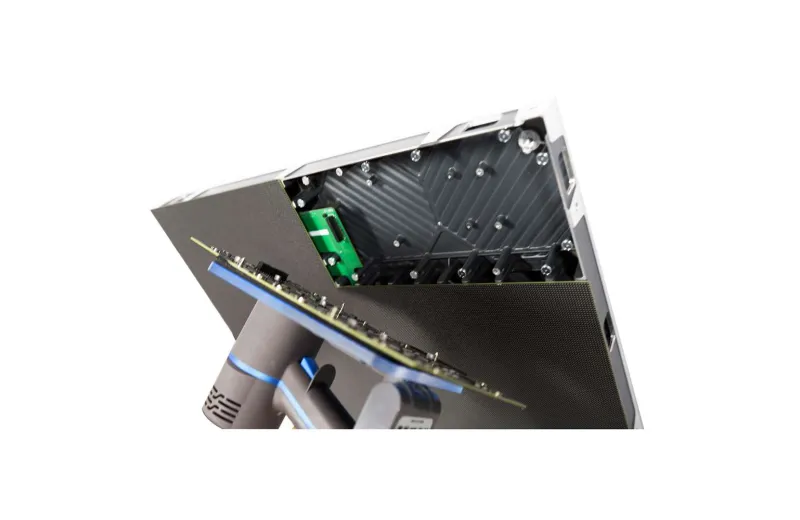

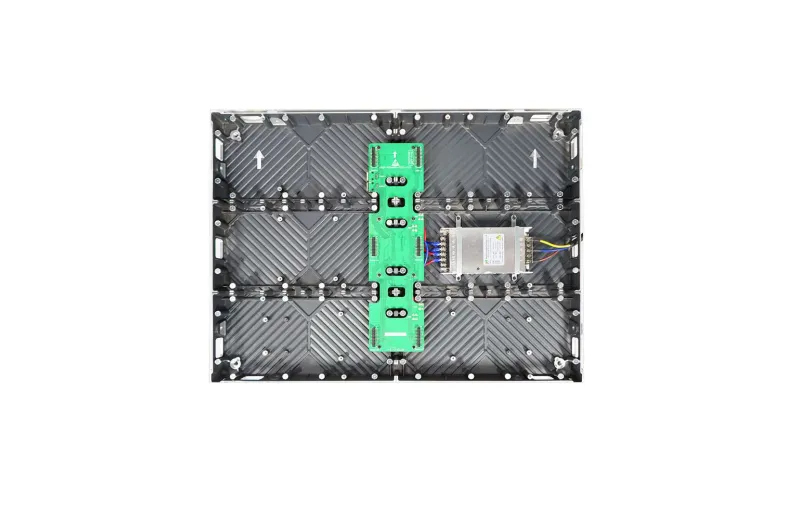

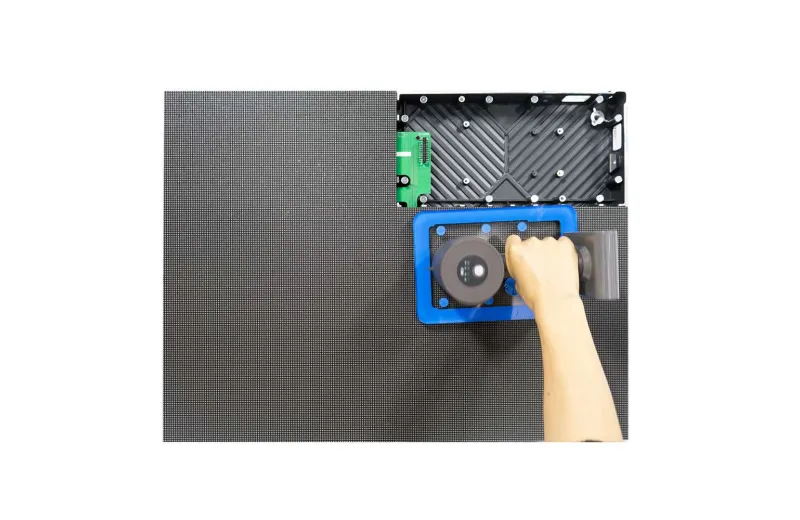

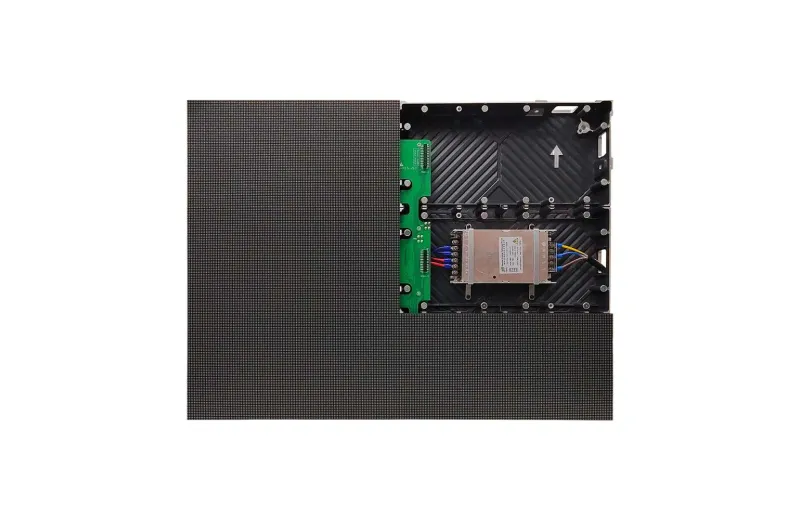

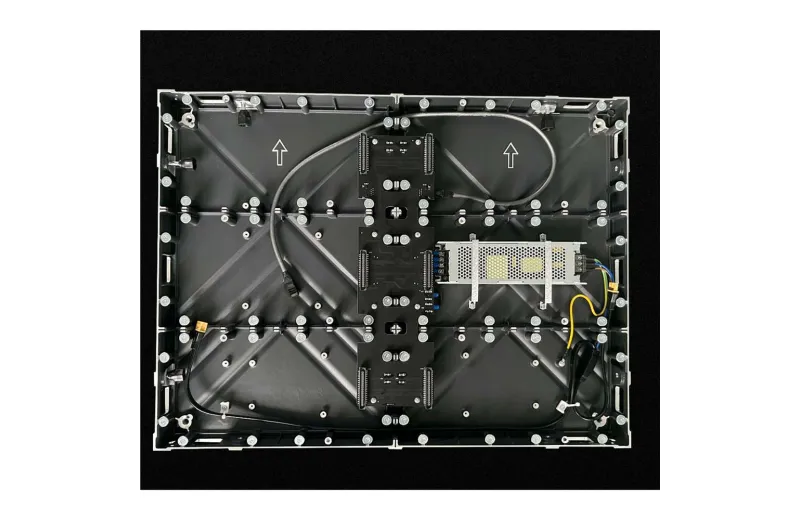

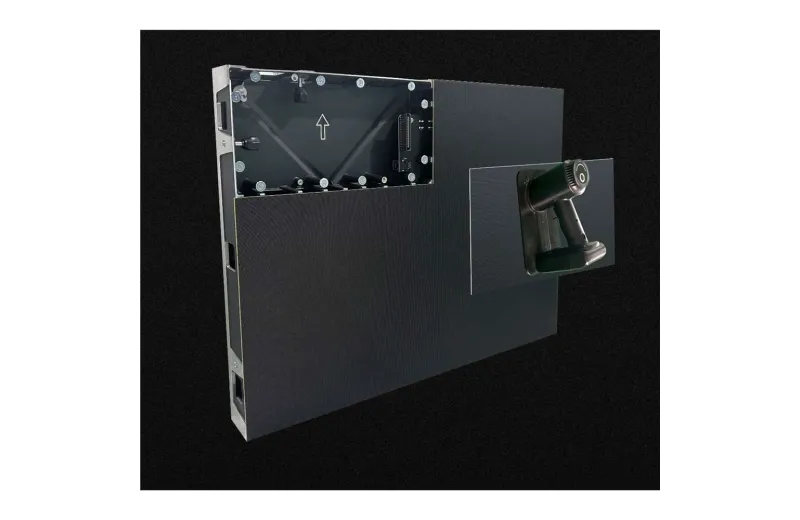

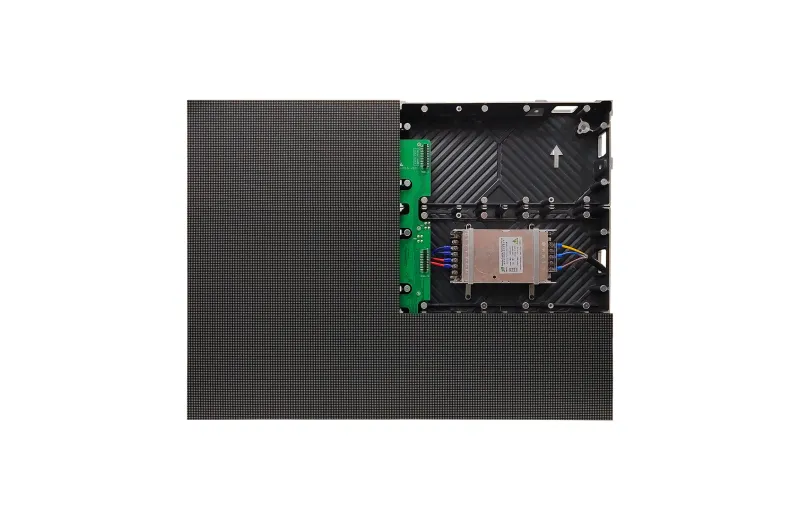

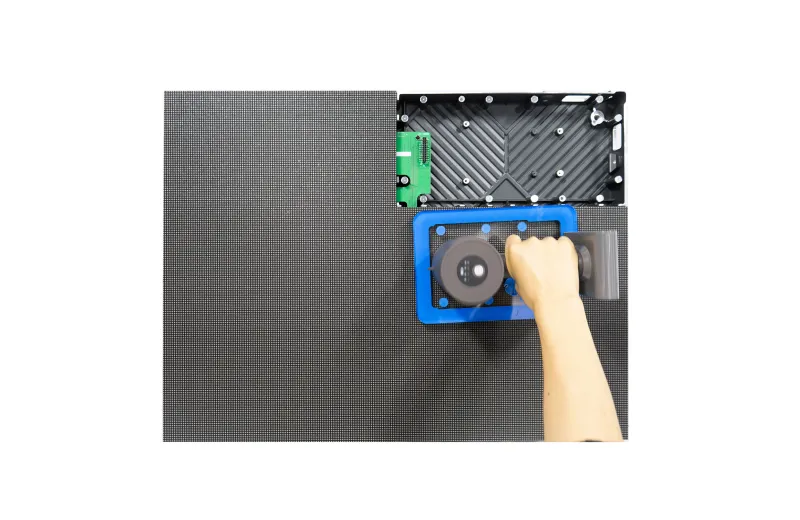

The installation is easy with the deidcated bracket, it has an extremely thin profile make it ideal for mounting in a wall. The cabinet is light and thin, made from die cast aluminium and weights only 6.8kg. It is a front maintenance led display which means that LED Modules, receivers cards and power supplies can be checked or replaced from the front.
It is ideal for places like churches, control rooms, conference rooms, retail stores, shopping malls, auditoriums, theaters and more.
Specifications
Pixels
- Pixel Pitch: 2.5mm
- LED Configuration: SMD2121
- Pixel Density: 160.000
Panel Details
- Brightness: 800 Nits
- View angle: Horizontal 160°/ Vertical 160°
- Gray Scale: 14 bit
- Scan Mode: 1/64
- Refresh rate: ?3840
Power
- Voltage: 110~2200V
- Maximum power consumption: 600W
- Minimum power consumption: 200W
Construction
- Material: Die cast aluminium

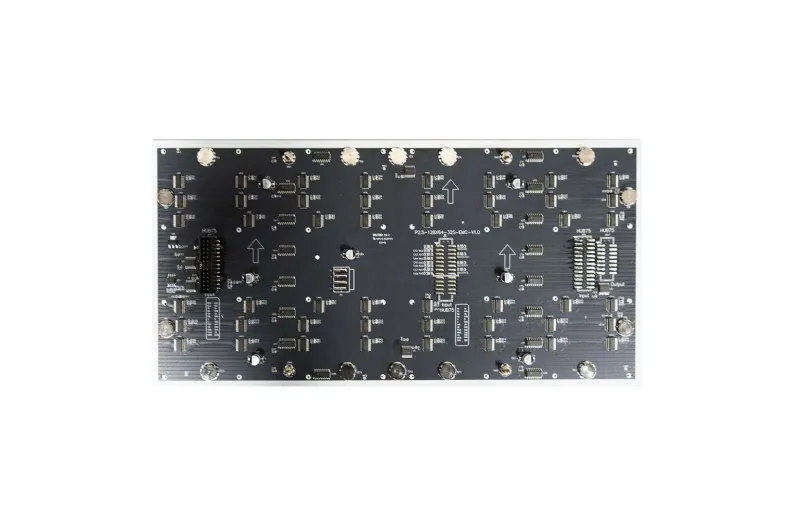

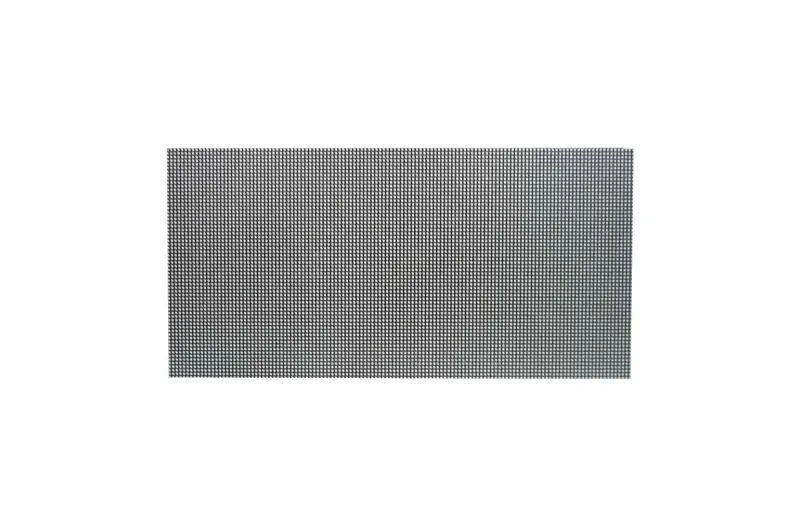

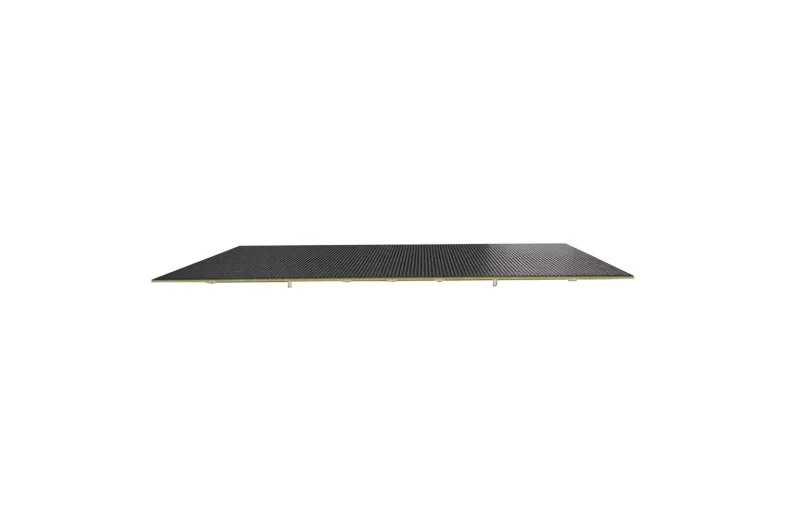

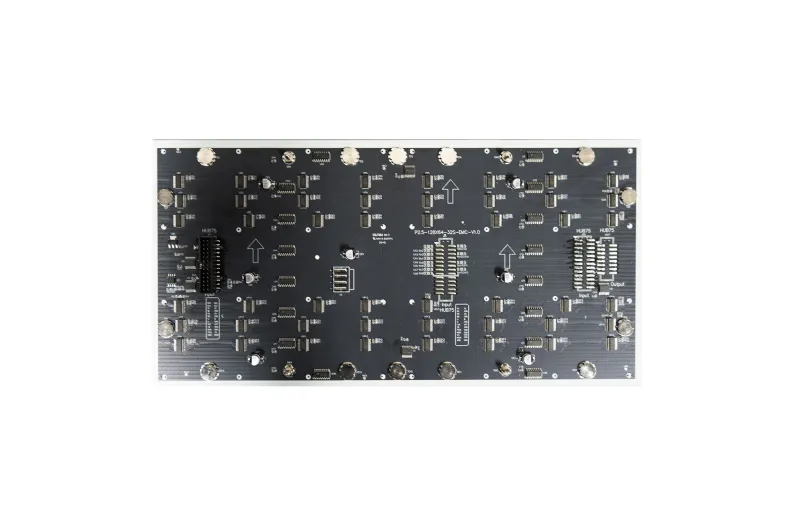

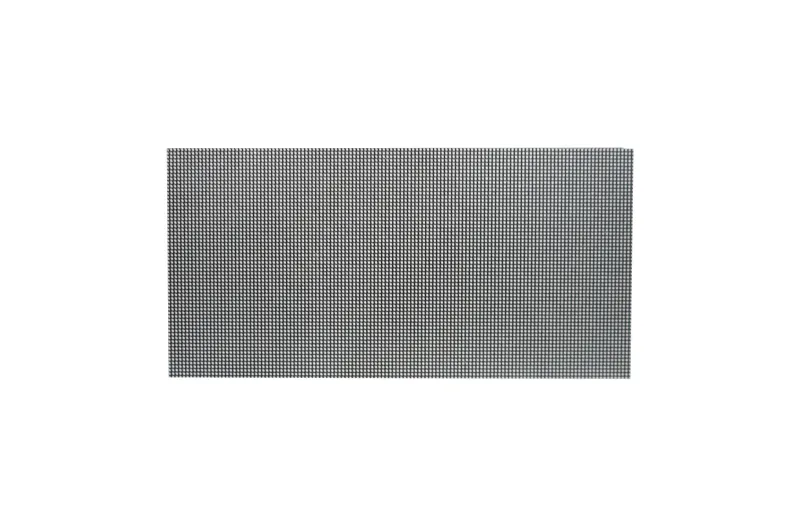

- Module Dimensions: 320 x 160mm
- Cabinet Dimension (ΜxΥ): 640 x 480mm
- Βάρος: 7kg
- IP Rate: IP45
- Pixel Matrix Per Sq.m
- 160000
- Pixel Pitch (mm)
- 2.50
- Brightness
- 500-900
- Suitable for
- Indoor
- Pixel Configuration
- SMD2121
- Scan
- 52S
- Module Dimension (mm)
- 320x160mm/ 1.05x0.53ft
- Cabinet Dimension
- 640x480mm/ 2.10x1.57ft
- Cabinet Resolution
- 256x192
- Service Access
- Front view
- Refresh Rate (HZ)
- 1920
- Viewing Angle (H/V)
- 160°/160°
- Grey Scale (bit)
- 14
- Category
- Led wall indoor
- Width (mm)
- 46
- Length (mm)
- 640
- Height (mm)
- 480
- Enclosure material
- Die Casting Aluminum
- Weight (kg)
- 6.8
- Warranty
- 2 years
- Protection class
- IP45
New
- MPN
- BM2.5-PRO/800
