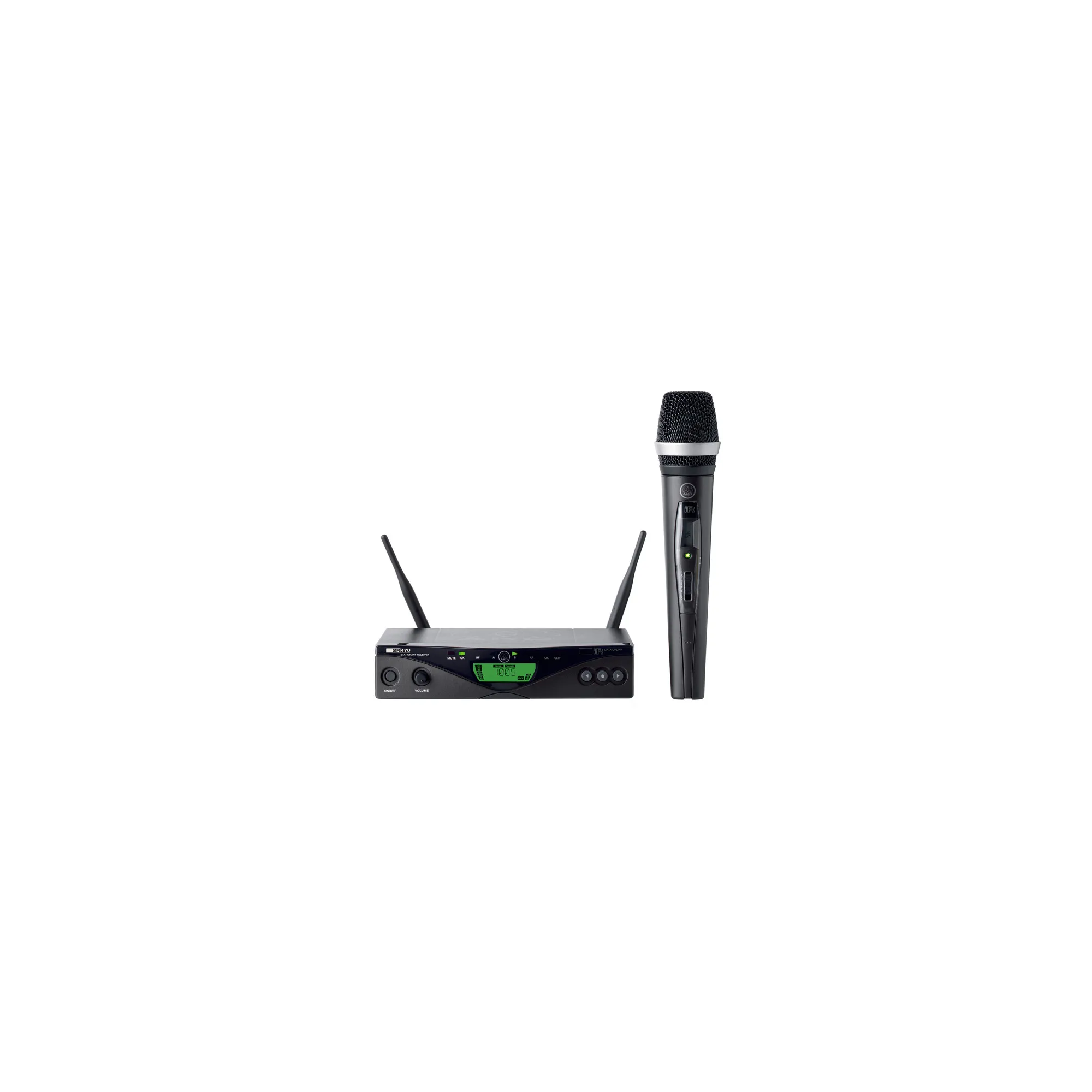

wms 470 d5 set
390581
AKG WMS 470 D5 Set, is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise with up to 14 hours operation with one single battery.
2-YEAR WARRANTY
AKG WMS 470 D5 Set, is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise with up to 14 hours operation with one single battery. The SR 470 receiver is using a two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low), has a transmitter battery status monitoring, Pilot Tone that prevents unexpected start-up noise, automatic setup function designed for less experienced operators and up to 16 pre-programmed frequencies per group. The HT470 features low battery data transmission to receiver, battery status information in hours, pilot tone, up to 50 mW RF-output power and premium audio quality.
Receiver Specifications
- Switching bandwidth: ?30.5 MHz (country dependent)
- Sensitivity: 6.3 dBμV / -100 dBm
- Diversity System: Microprocessor-controlled diversity
- Modulation Wideband: FM
- Audio bandwidth: 35 – 20 000 Hz (± 3 dB)
- T.H.D.: ? 0.3 %
- SNR (A-weighted): typ. 120 dB(A)
- Audio outputs: 1 x XLR sockets balanced, 1 x TS 1/4 (6.3mm) jack sockets unbalanced
- Dimensions: 19 inch 1U rack, 202 mm (7.8 in.) x 44mm (1.7 in.) x 190mm (7.4 in.)
- Net / Shipping Weight: 972 g (2.2 lbs.)
Handheld Transmitter Specifications
- Switching bandwidth: ?30.5 MHz (country dependent)
- RF output power: 10 or 50 mW (ERP, country dependent)
- Modulation / Bandwidth: Wideband FM
- Microphone capsules: D 5 – dynamic (super cardiod) / C 5 – condenser (cardioid)
- Max. SPL: ?144 dB SPL
- Audio bandwidth: 35 – 20 000 Hz (± 3 dB)
- T.H.D.: ?0.7 %
- SNR (A-weighted): > 120 dB(A)
- Battery life:
?7 hours with one 1.5 V LR6 AA alkaline battery
?8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
?14 hours with one 1.5 V FR6 AA lithium battery - Dimensions: 237mm (9.3 in.) length, 51mm (2in) diameter
- Net / Shipping Weight: 240 g (8.5 oz.) without batteries
New
- EAN13
- 885038029854
- MPN
- WMS 470 D5 SET
