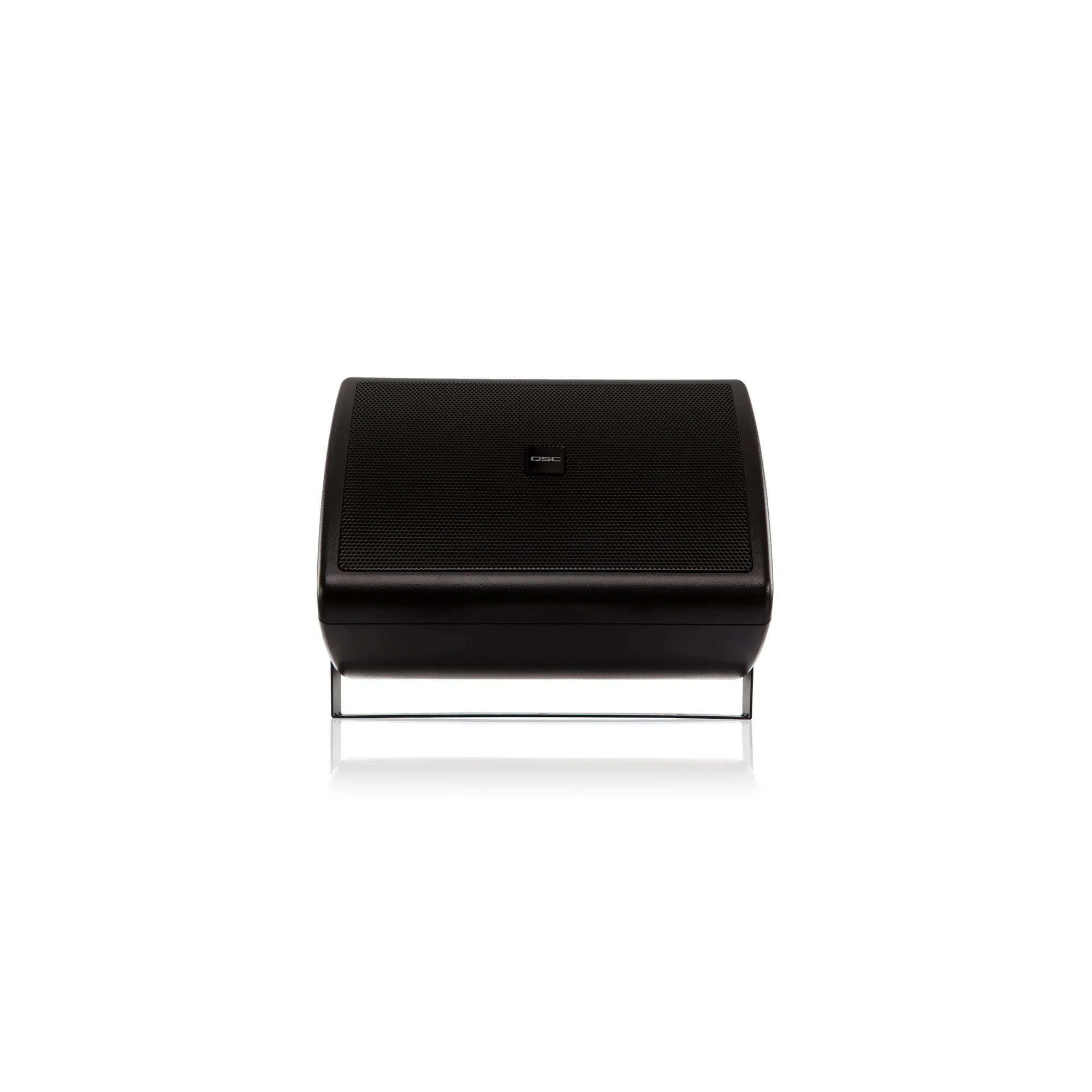

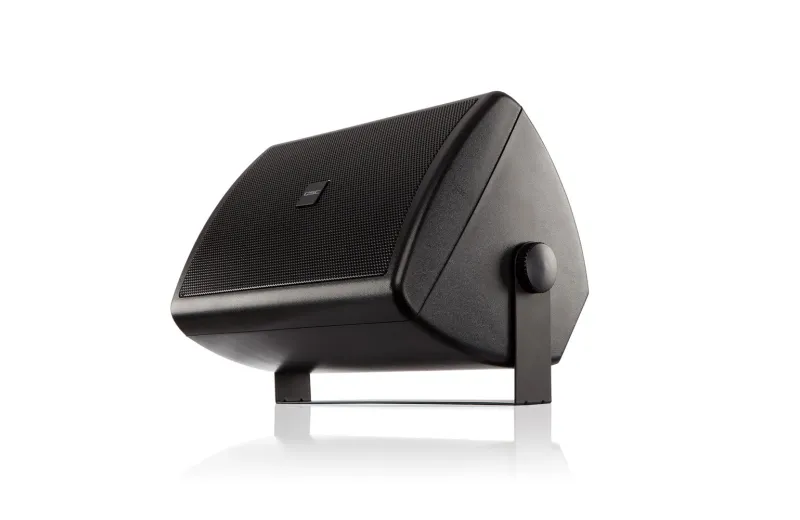

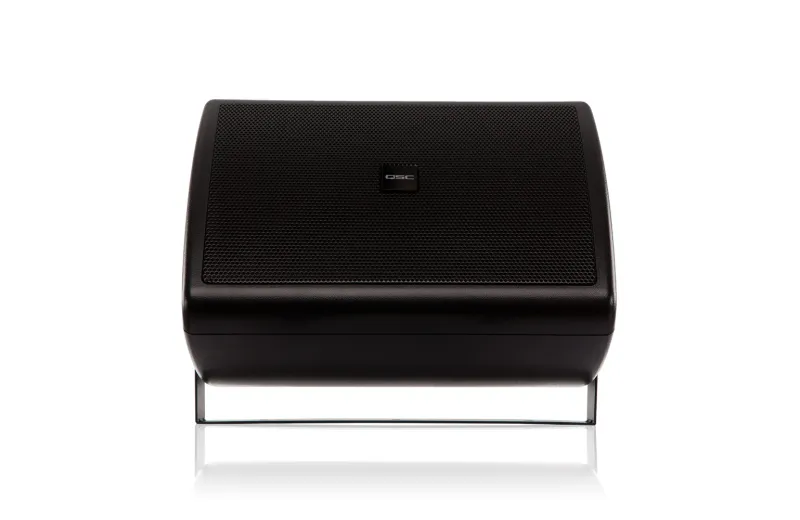

QSC AC-S6T Passive Loudspeaker - Black

Name: QSC AC-S6T Passive Loudspeaker - Black
Brand: QSYS
SKU: 010267
Price: 210.8 EUR
Availability: BackOrder

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ

3 YEAR WARRANTY

Code :

010267

210.80 €

On request

Add to wishlist

Compare

Έως 12 δόσεις των 17.57 € με 0% επιτόκιο με πιστωτική κάρτα

Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank

3 δόσεις των 70.27 € με 0% επιτόκιο με την Klarna

4 δόσεις των 53.70 € με 0% επιτόκιο με την tbi bank

MANUAL

Description

QSC AC-S6T, 6.5-inch 2-way, 130° conical passive speaker with recommended amplification up to 32W/8Ω, 100V with 30, 15, 7.5, 3.8W transformer taps, frequency range of 60Hz – 20kHz, sensitivity of 86dB, and maximum SPL of 101dB continuous / 107dB peak.

It belongs to the AcousticCoverage Series and meets the needs for background sound by offering a 130-degree coverage angle, thereby reducing the number of loudspeakers required per space. The AC-S6T can be tuned via QSC Intrinsic Correction™ when used with the Q-SYS™ platform and CXD series amplifiers, providing a complete and integrated solution.

Specifications

LF transducer: 165mm (6.5-inch) Polypropylene woofer with 25mm (1-inch) voice coil
HF transducer: 25mm (1-inch) Aluminium dome tweeter with 25mm (1-inch) voice coil
Effective frequency range: 60 Hz–20 kHz
Rated noise power / voltage: 30 watts / 15.5 volts rms
Broad-band sensitivity: 86 dB SPL
Coverage angle (-6 dB): 130° conical (500 Hz–5 kHz)
Directivity factor (Q): 6
Directivity Index: 8 dB
Maximum continuous SPL: 101 dB
Maximum peak SPL: 107 dB
Rated impedance: 8 ohms
Recommended amplifier power: 60 watts into 8 ohms
Transformer taps 100V: 30, 15, 7.5, 3.8 watts 8 ohm bypass
Input connector type: Euroblock connector with parallel output
Enclosure material: UV treated, high impact ABS polymer
Grille material: Powder coated steel
Yoke material: Powder coated steel with brass inserts
Product Dimensions (HxWxD) inches: 11.9 x 8.5 x 7.8
Product Dimensions (HxWxD) mm: 303 ? 215 ? 197
Net Weight: 8.3 lb / 3.8 kg

Specifications

Category: Passive loudspeaker
Tweeter Size (Inches): 1
Woofer Size (Inches): 6
Impedance (Ohm): 8
Way: 2
Frequency Response: 60Hz - 20kHz
Sensitivity (dB): 86
Maximum SPL (dB): 107
Transformer (100V): Yes
Enclosure material: ABS
IP Protection: IP44
Width (mm): 215
Height (mm): 303
Depth (mm): 197
Weight (kg): 3.8
Colour: Black
EAN13: 684284066824
MPN: AC-S6T-BK
