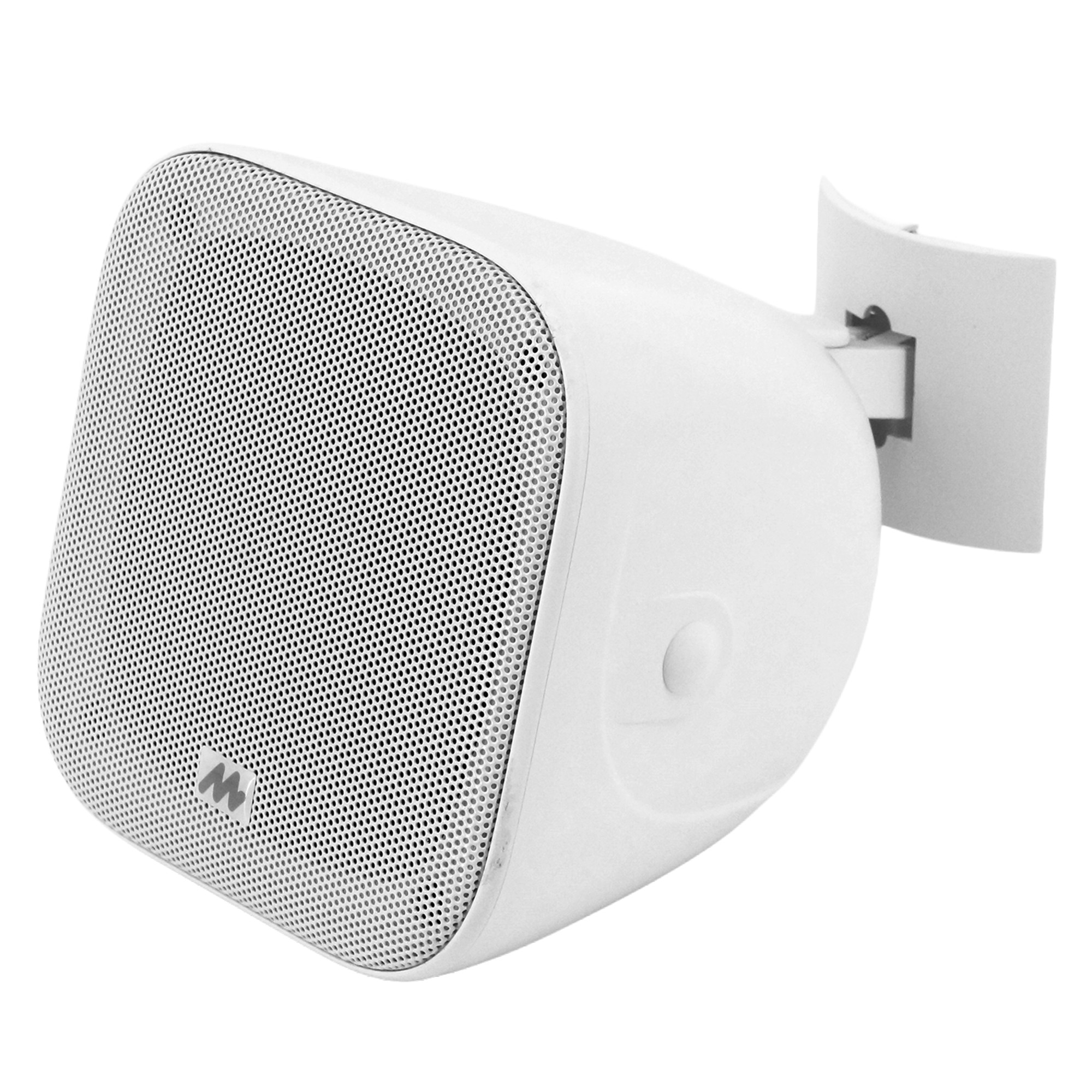

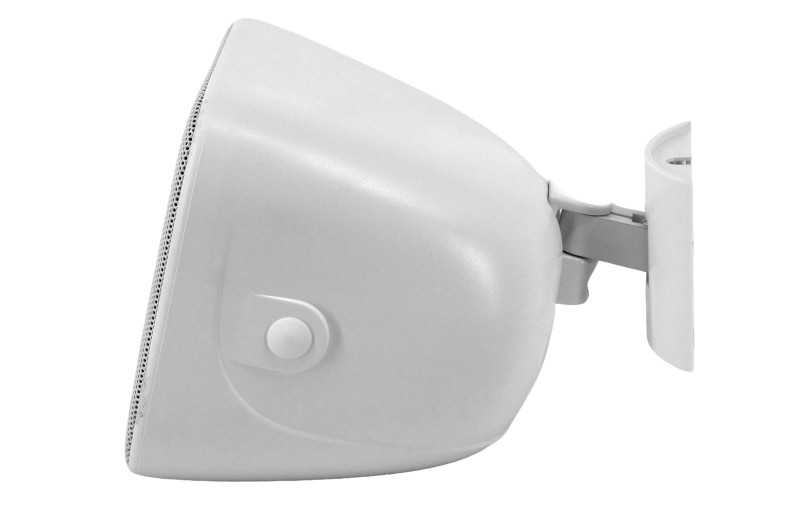

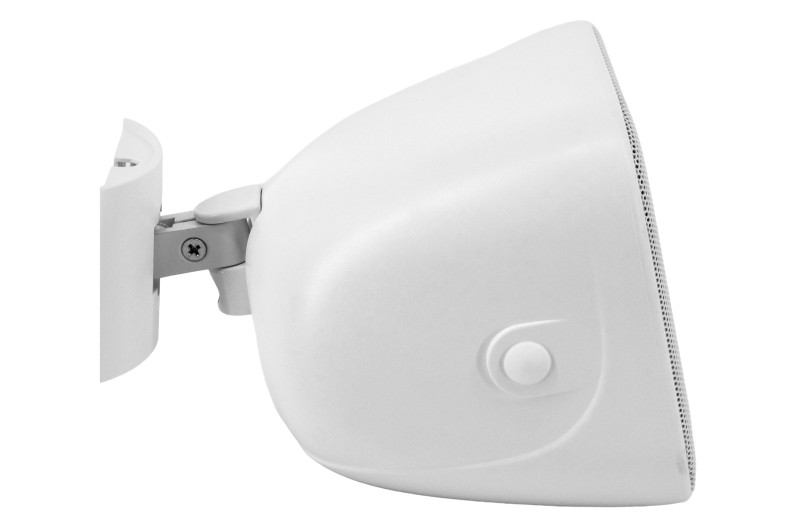

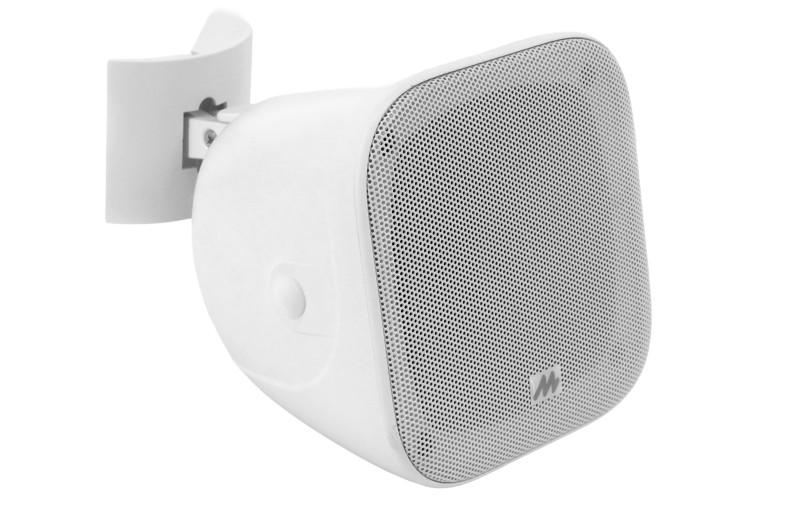

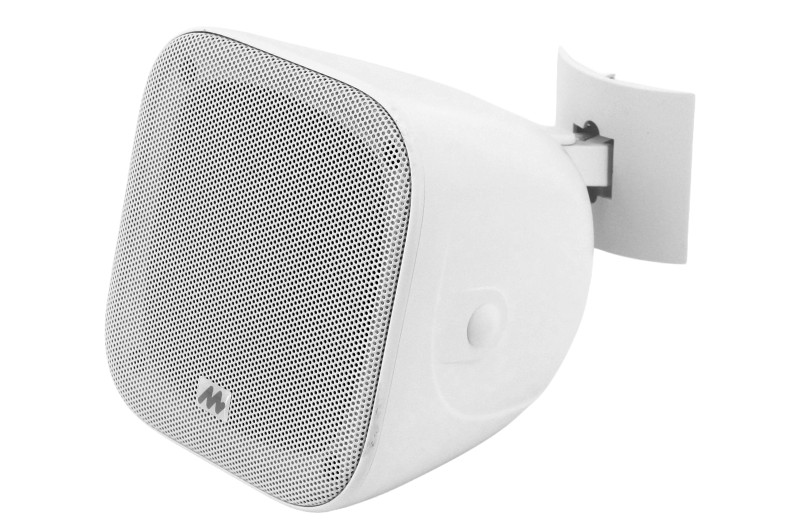

Modern Acoustics Q40W - White

Modern Acoustics Q40W, 2-way wall-mounted loudspeaker with a rated power of 20W, featuring 10W/20W power taps for 100V systems, 16Ω low-impedance operation, a 4-inch woofer, a 0.5-inch tweeter and a frequency response of 110Hz–20kHz.

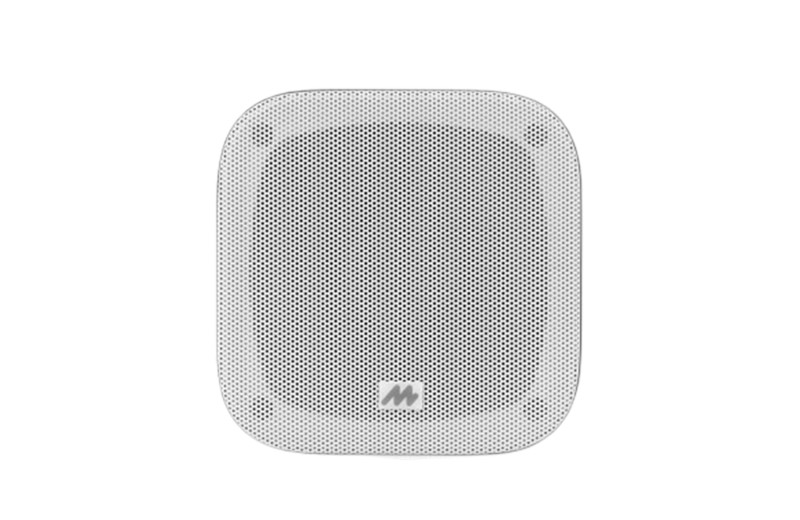

Its enclosure is made from durable ABS and fitted with a protective aluminium grille. It supports 100V distributed audio systems with selectable 10W or 20W power settings, as well as 16Ω low-impedance operation. Power selection is made using the switch located beneath the removable Phoenix-type connector (Euroblock) on the rear of the loudspeaker. The available power settings are indicated on the connector, for example 10 W or 20 W at 100 V, or 16 Ω.

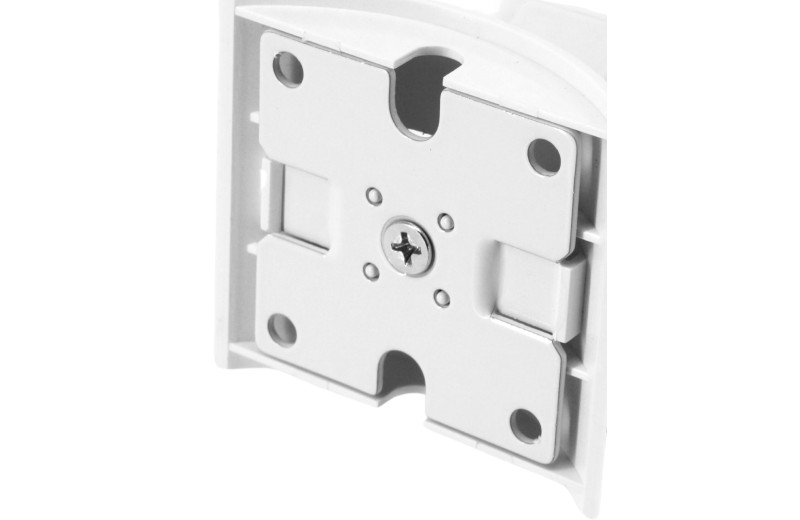

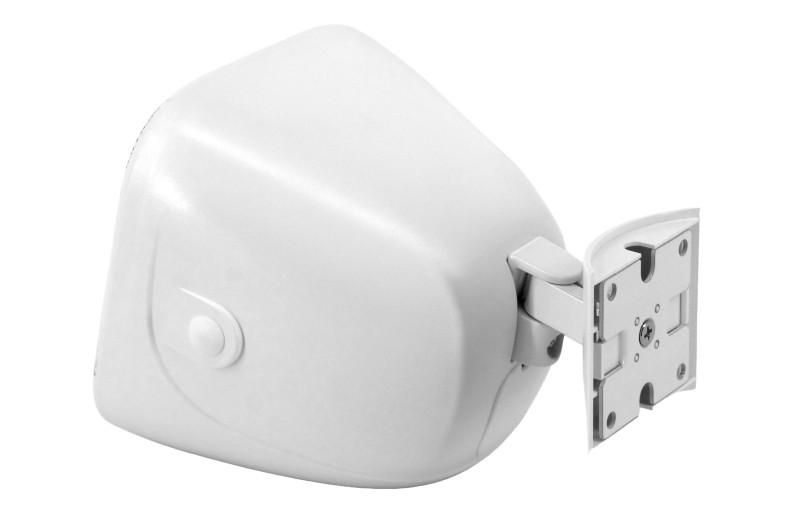

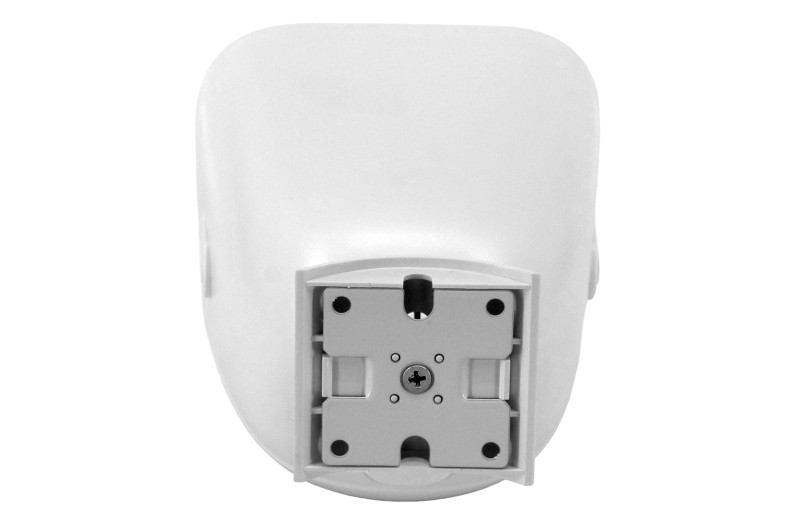

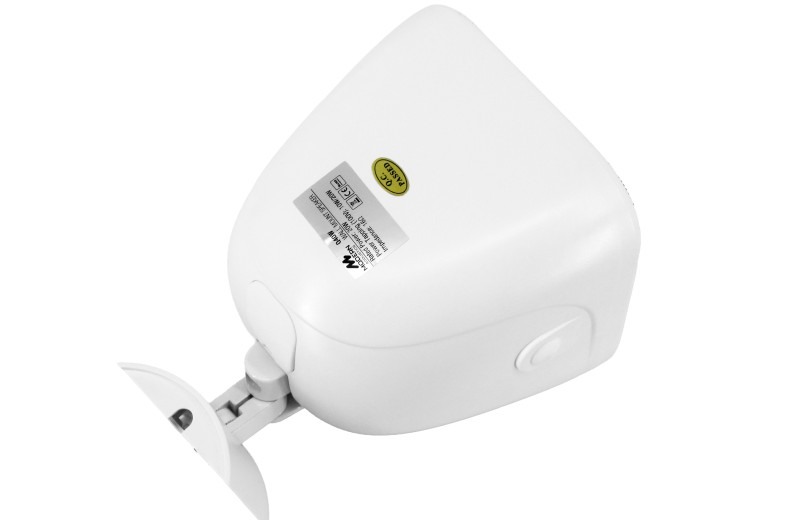

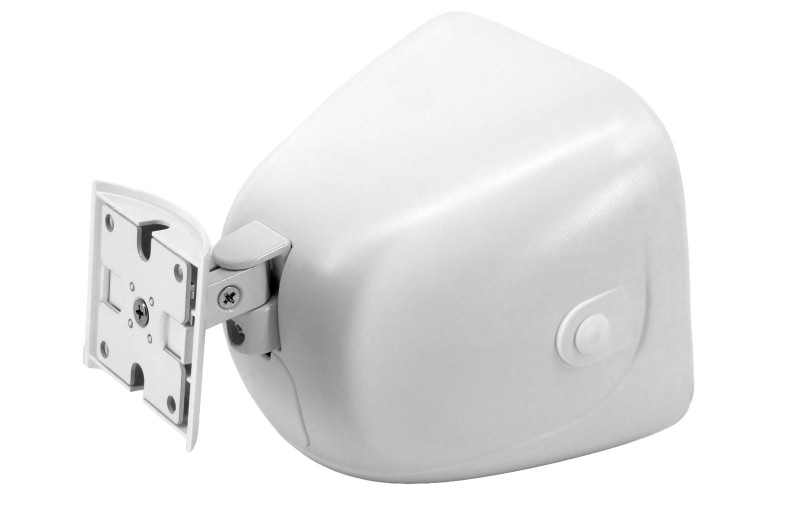

Select the desired power setting and connect the cables to the terminals. The wall-mount bracket can be adjusted on both the horizontal and vertical axes, allowing quick and easy installation.

Technical Specifications

Rated power: 20W
Power taps: 10W / 20W at 100V
Low-impedance operation: 16Ω
Frequency response: 110Hz–20kHz
Sensitivity: 83dB ±3dB (1W/1m)
Woofer: 1 x 4 inches
Tweeter: 1 x 0.5 inches
Speaker type: 2-way
Connection: 4-pin terminal block
Enclosure material: ABS
Grille material: Aluminium
Colour: White
Installation method: Wall-mounted
Mounting hole spacing: 42 x 42mm
Mounting screws: M4 self-tapping screws
Dimensions: 132 x 132 x 126mm
Net weight: 1.5kg
Operating temperature: -25°C to +55°C
Storage temperature: -40°C to +70°C
