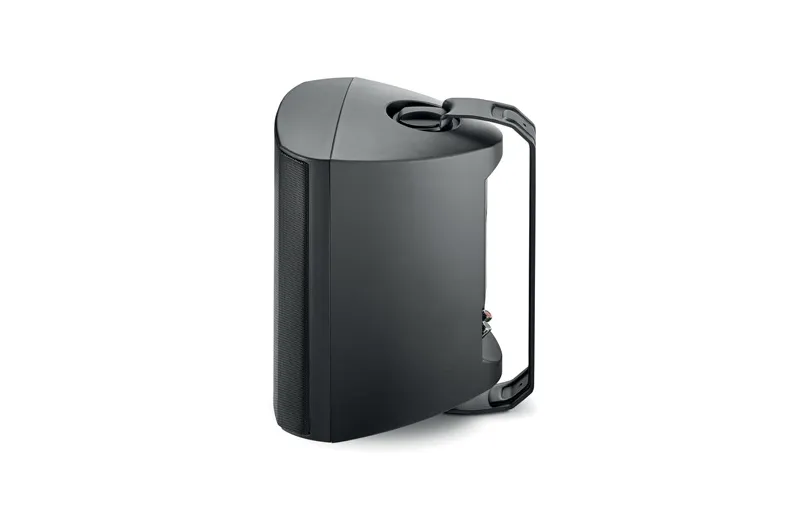

Focal 100 OD6-T

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Focal 100 OD6-T
Focal 100 OD6-T
Focal 100 OD6-T
Focal 100 OD6-T
Code :
118162
299.00 €
On request

Add to wishlist
Compare
Close
Έως 12 δόσεις των 24.92 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 99.67 € με 0% επιτόκιο με την Klarna
4 δόσεις των 75.75 € με 0% επιτόκιο με την tbi bank
DATA SHEET

MANUAL

Description

Focal 100 OD6-T, passive 6 inch outdoor speaker with up to a total of 60W at 8Ω, sensitivity 87dB, frequency response 65Hz-23kHz at +/-3dB and a built in 70/100V transformer. Features fixed aluminum grille,
with rotating logo for vertical or horizontal installation, high density polypropylene damping cabinet UV resistant and aluminum fixing bracket with reinforced profile, notched fastening with 180 degree articulation.

Specifications

  • Type: Outdoor loudspeaker
  • Drivers: 61/2 inches (165mm) waterproof woofer, Tweeter with Aluminium inverted dome
  • Sensitivity (2.83V/1m): 87B
  • Power: 60W @ 8Ω
  • Frequency response (+/-3dB): 65Hz - 23kHz
  • Filtering frequencies: 2,800Hz
  • Low frequency point (-6dB): 53Hz
  • Power in 70V: 7.5/15/30W
  • Power in 100V: 15/30/60W
  • Recommended amplifier power: 20 - 120W
  • Dimensions (LxPxH) with brackets: 224 x 256 x 319mm
  • Net weight with brackets: 9lbs (4.1kg)
  • Color: Black

Specifications

Category
Passive loudspeaker
Woofer Size (Inches)
6
Number of Woofers
1
Power W RMS / Continuous
60
Impedance (Ohm)
8
Frequency Response
65Hz - 23kHz
Sensitivity (dB)
87
Transformer (100V)
Yes
Power tappings @ 100V (W)
15 / 30 / 60
Enclosure material
ABS
IP Protection
IP66
Monitor position
No
Length (mm)
224
Height (mm)
319
Depth (mm)
256
Weight (kg)
4.1
Warranty
2 years
Pole Mount
No
Colour
Black
MPN
100 OD6-T Black
