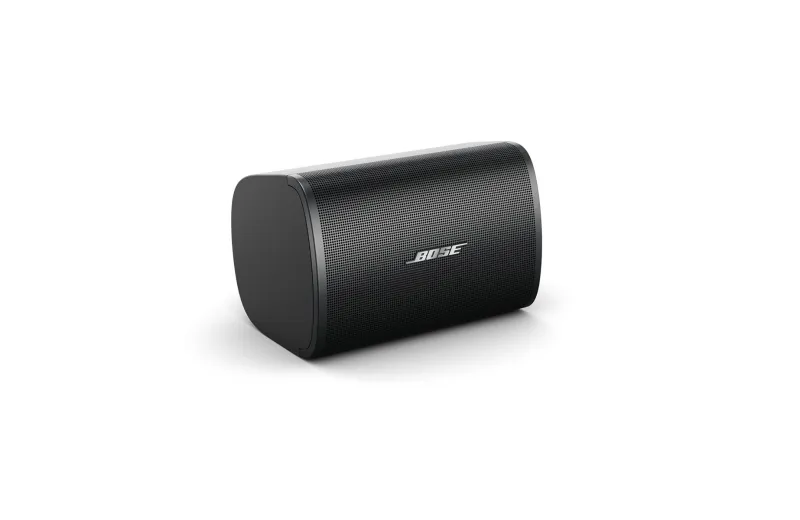

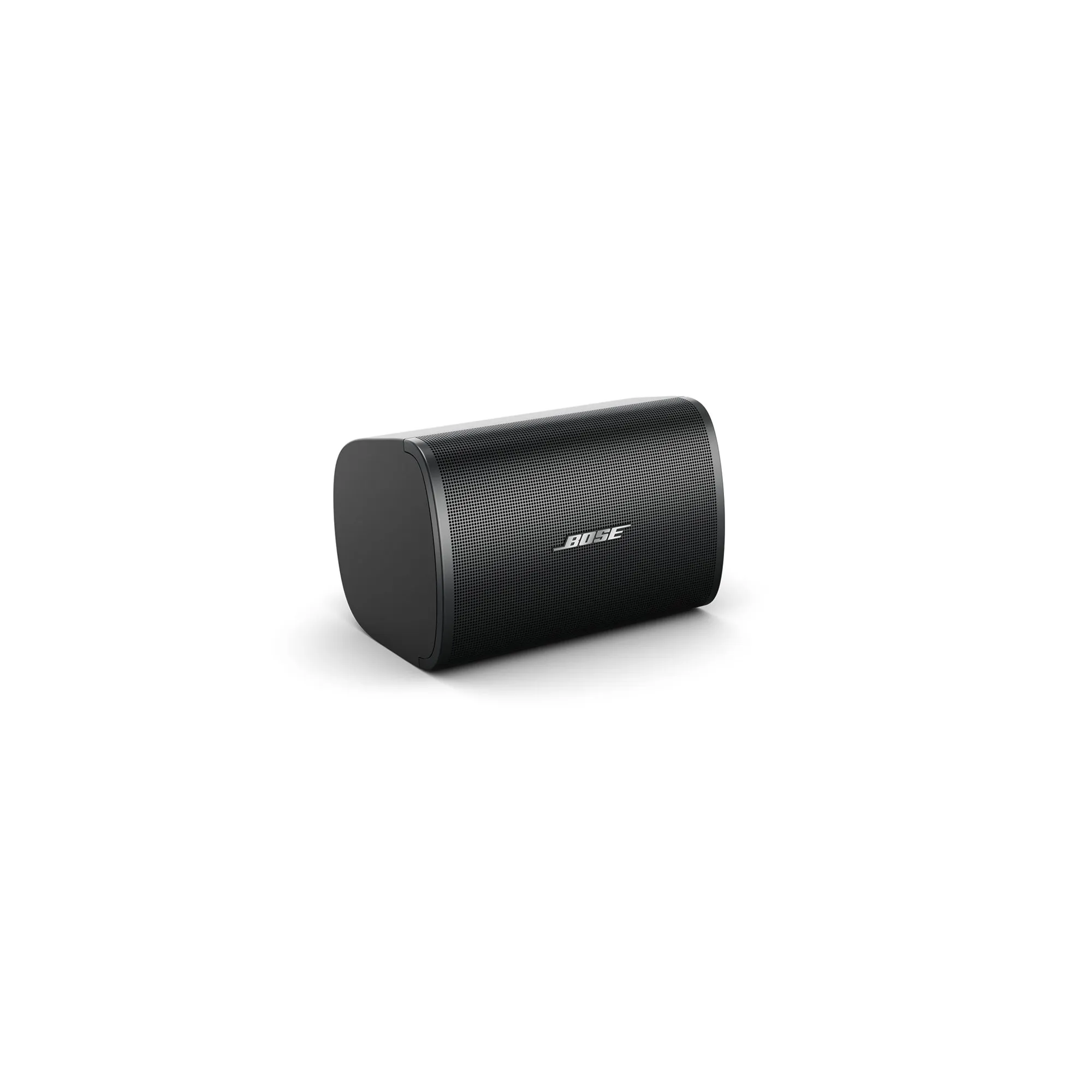

BOSE DesignMax DM5SE Black (Pair)
500766
the 60-watt DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation.
2-YEAR WARRANTY
The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
- Category
- Passive loudspeaker
- Loudspeaker usage
- Professional
- Way
- 2
- Tweeter Size (Inches)
- 1
- Woofer Size (Inches)
- 5.25
- Power W RMS
- 60
- Power W Peak
- 240
- Impedance (Ohm)
- 8
- Transformer (100V)
- Yes
- Power tappings @ 100V (W)
- 50 / 25 / 12 / 6 / bypass
- Sensitivity (dB)
- 87
- Maximum SPL (dB)
- 104 / 110 peak
- Frequency Response
- 73Hz - 17000Hz
- Enclosure material
- ABS
- Colour
- Black
- Width (mm)
- 192
- Height (mm)
- 286
- Depth (mm)
- 197
- IP Protection
- IP55
New
- MPN
- DesignMax DM5SE Black
