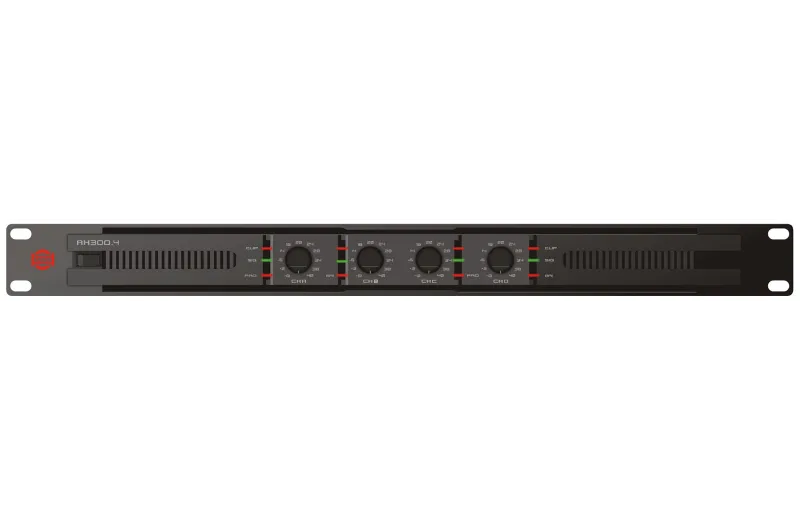

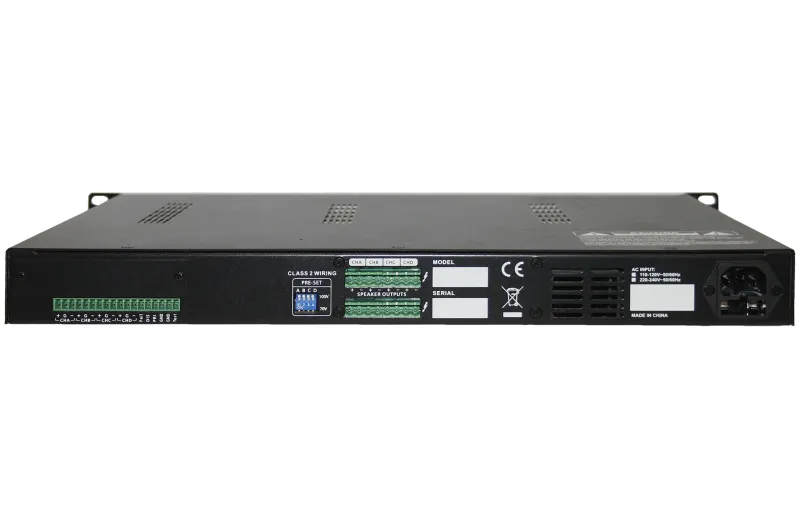

Show AH300.4 Power Amplifier

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Show AH300.4 Power Amplifier
Show AH300.4 Power Amplifier
Show AH300.4 Power Amplifier
Show AH300.4 Power Amplifier
Code :
4700108
850.00 €
Available for immediate dispatch
Available in store

Add to wishlist
Compare
Close
Έως 12 δόσεις των 70.83 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 283.33 € με 0% επιτόκιο με την Klarna
Manual

Description

Show AH300.4 Professional Class D, 4-channel amplifier with up to a total of 4 x 270W at 100V (RMS) and 100Hz - 15kHz (+0/-3dB) frequency response. This amplifier operates on both 70V RMS and 100V RMS, offering versatility in voltage options and making it suitable for various audio installations. The amplifier supports both balanced (20kohm) and unbalanced (10kohm) inputs, allowing seamless integration with a wide range of audio sources and also includes a slot in card for Dante (FSD-44D).The AH300.4 features efficient Switching Power Class D technology, ensuring minimal heat generation and higher energy efficiency.

Specifications

  • Power: CHA-D /CH1-8 70V(RMS) 300W x 2, (ONE Channel Drive) 100V(RMS) 300W x 2, CHA-D/CH1-8 70V (RMS) 270W x 4, (All Channels Drive) 100V(RMS) 270W x 4
  • Frequence response: 100Hz~15KHz(0+/-3dB)
  • S/N rate: >95dB
  • Input sensitivity: 0.9-1.1V (0+/-1 dBv)
  • Input Impedance: 20kΩ balanced ή 10kΩ balanced
  • Slot in Card for Dante (FSD-44D)
  • Inputs: Euroblock
  • Outputs: Euroblock
  • Power supply: 110 - 120V / 220-240V 50~60Hz
  • Rack: 1U
  • Dimensions (WxDxH): 483 x 360 x 44mm
  • Weight: 6.2kg

Specifications

Category
Power Amplifier 100V
Frequency Response
100 Hz - 15 kHz
Channels
4
Inputs
Euroblock
Outputs
Euroblock
Protective Cirquits
Short Circuit / Open Circuit / Thermal / Ultrasonic / RF
Main Voltage
110 - 240 V / 50 - 60 Hz
Width (mm)
483
Height (mm)
44
Depth (mm)
360
Weight (kg)
6.2
Rack Unit
1U
Warranty
2 years
Colour
Black
EAN13
4712646004682
MPN
AH300.4
