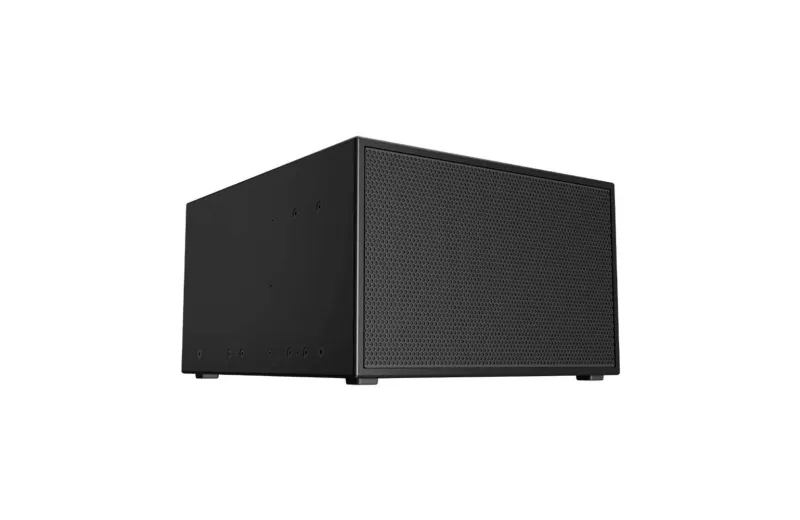

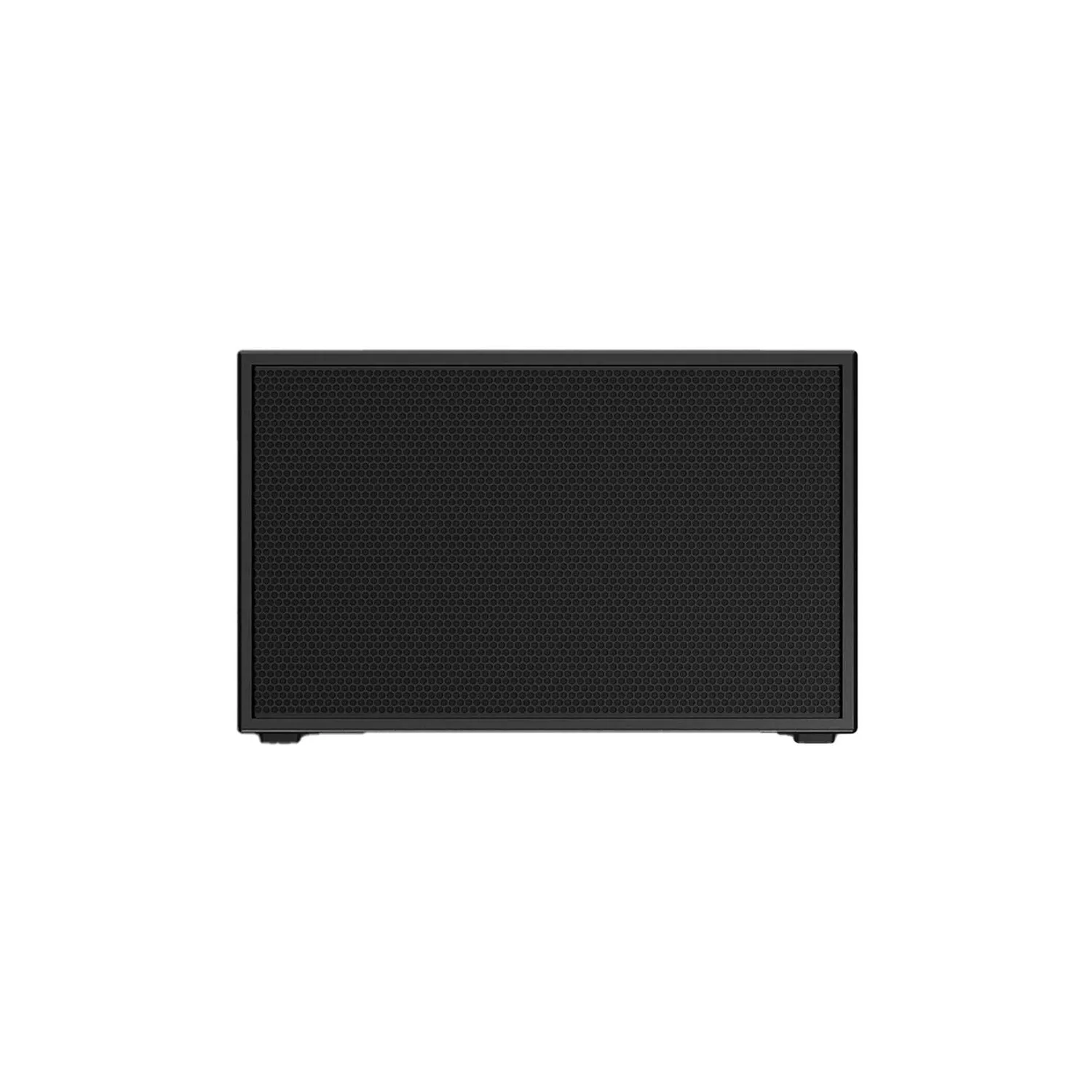

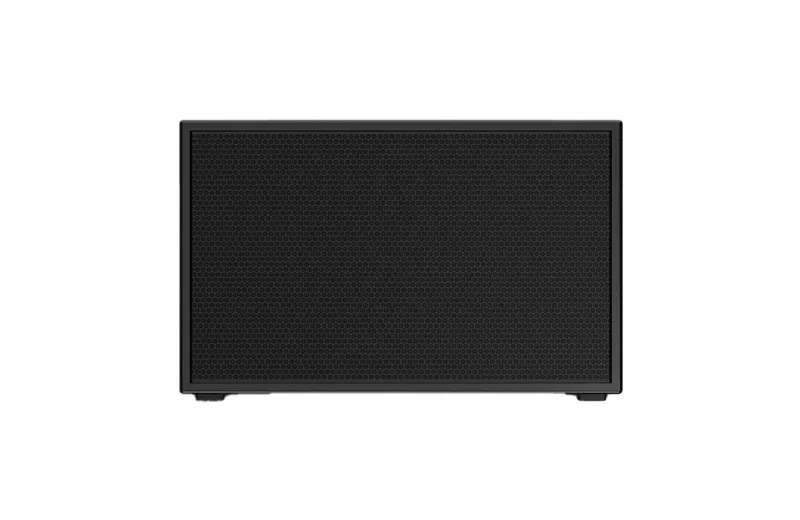

Q-SYS PL-SUB15 15" Passive Installation Subwoofer

DAS
12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
3 YEAR WARRANTY
Q-SYS PL-SUB15 15" Passive Installation Subwoofer
Q-SYS PL-SUB15 15" Passive Installation Subwoofer
Q-SYS PL-SUB15 15" Passive Installation Subwoofer
Q-SYS PL-SUB15 15" Passive Installation Subwoofer
Code :
010054
€2,263.00
Tax included
On request - Usually in 3-4 weeks
Κάντο τώρα δικό σου από €188.58 / μήνα μέσω πιστωτικής κάρτας.

DATASHEET

Description

Q-SYS PL-SUB15, passive installation subwoofer that features an 15-in transducer, οmnidirectional or cardioid radiation, selectable in Q-SYS (requires deployment of two or more subwoofers), with up to 750W @ 8Ω continous power and 1500W @ 8Ω rated power, 41Hz - 93Hz at -3dB system bandwidth and 96dB system sensitivity. Features a weatherized enclosure (IP54 rating), making them a perfect choice for indoor or protected outdoor applications.

Its compact form factor is suitable for a broad range of applications from entertainment and to corporate auditoriums or higher ed lecture halls. The M10 rigging points allow a flown deployment beside ground positioning.

Pairing them with the Q-SYS Platform, including Q-SYS processing and network amplifiers extends a number of unique benefits from custom loudspeaker voicings (Intrinsic Correction™) and protection safeguards to advanced telemetry, helping to speed up deployment and deliver a more holistic system operation experience.

Specifications

  • Type: Passive subwoofer with bass reflex enclosure
  • System power rating: 77 Vrms, continous power 750W @ 8Ω, rated power 1500W @ 8Ω
  • System Impedance: 8Ω
  • LF transducer: 12 in (300 mm), 3 in (76.2 mm) voice coil
  • Coverage: Omni-directional or cardioid radiation modes selectable in Q-SYS; cardioid setup requires minimum two (2) units
  • System Bandwidth (-3dB με EQ): 41Hz - 93Hz
  • System Bandwidth (-6dB με EQ): 38Hz - 104Hz
  • System Bandwidth (-10dB με EQ): 34Hz - 114Hz
  • System sensitivity: 96dB 1W/1m
  • Max SPL (continuous): 124dB
  • Maximum SPL (peak): 136dB
  • Maximum SPL (calculated): 131dB
  • Connectors: 1 x Euroblock locking 4 poles (parallel to Speakon): 8 AWG (10 mm²) / 2 x Speakon NL4 up to 10 AWG (6 mm²).
  • Enclosure material: Exterior plywood
  • Grille thickness: 16 Ga, 1.5mm
  • Weatherization: IP-54
  • Dimensions (HxWxD): 380 x 598 x 690mm
  • Weight: 36.3kg
  • Color: Black
  • Recommended amplifiers: CX-Q 8K4 (up to 2 loudspeakers per ch) / CX-Q 4K4 (up to 1 loudspeaker per ch)

Specifications

Category
Passive Subwoofer
Woofer Size (Inches)
15
Impedance (Ohm)
8
Maximum SPL (dB)
139
IP Protection
IP54
Width (mm)
598
Height (mm)
375
Depth (mm)
690
Weight (kg)
36.3
Enclosure material
Wood
Colour
Black
MPN
PL-SUB15
