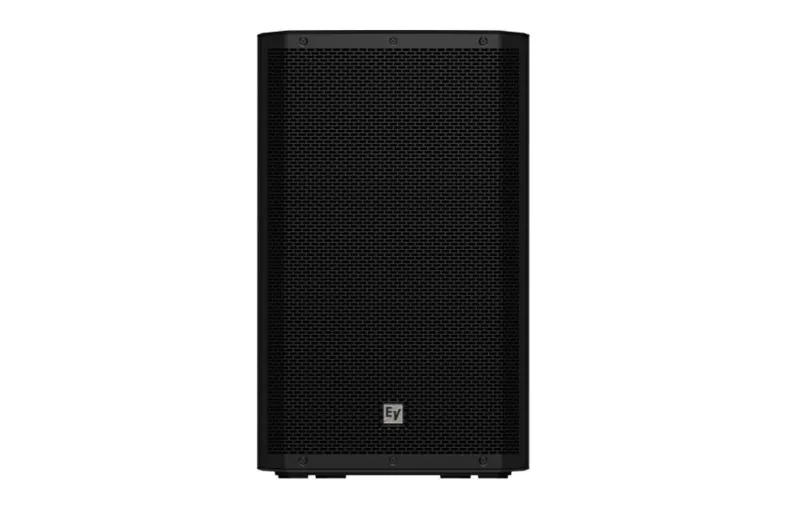

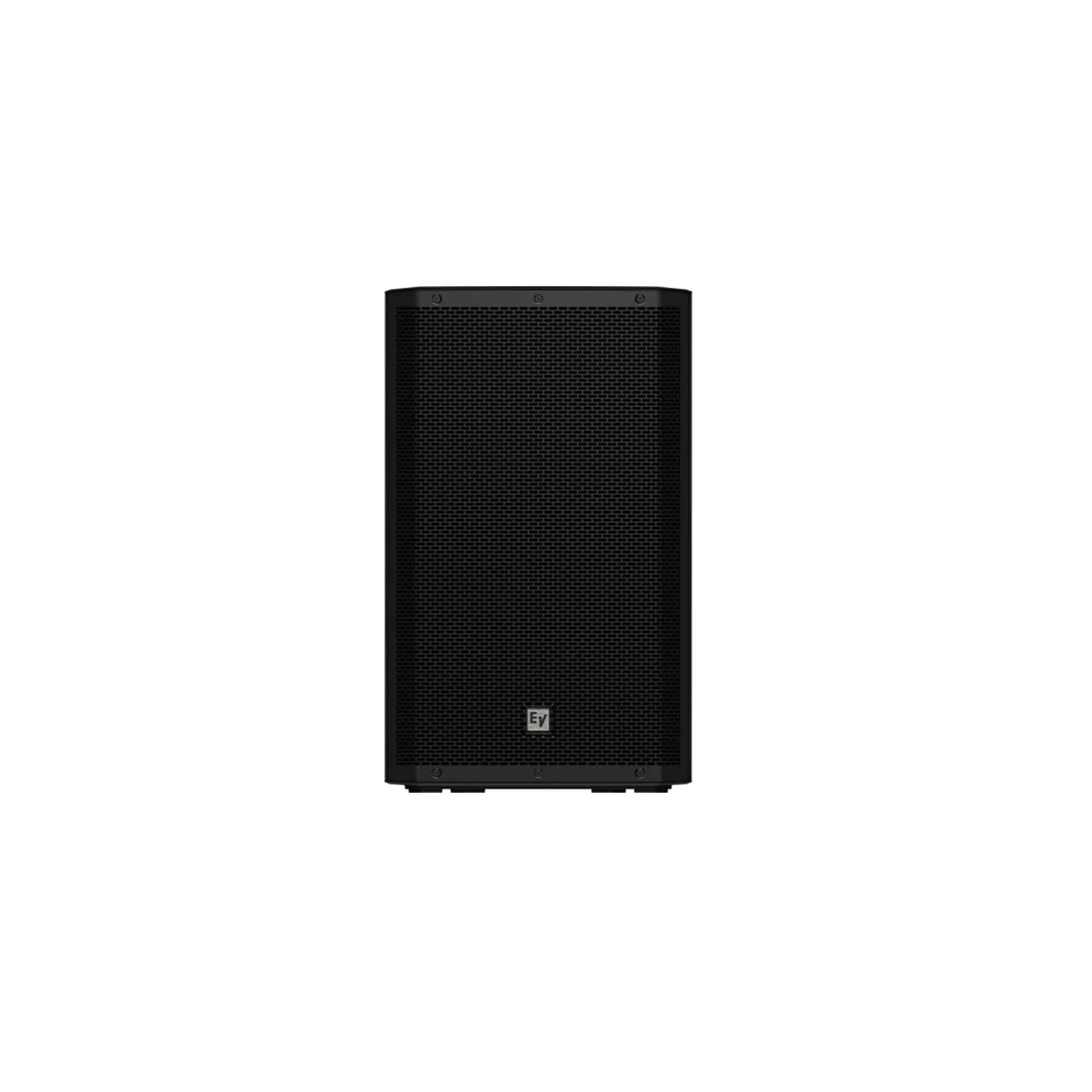

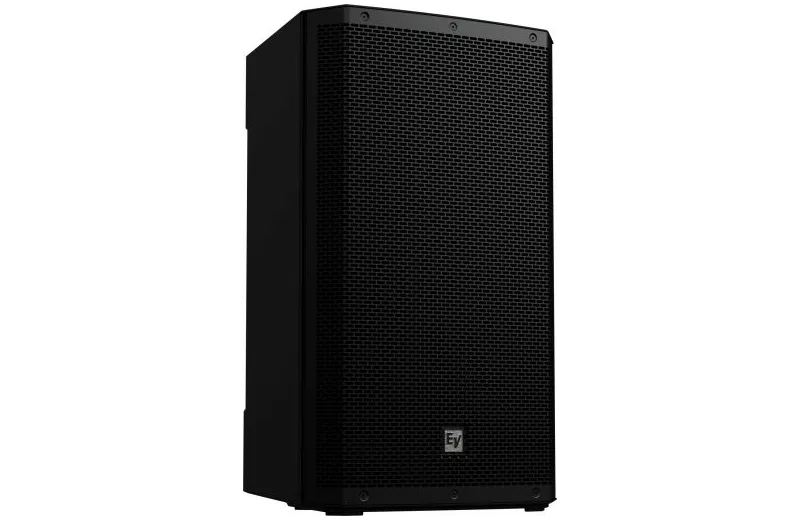

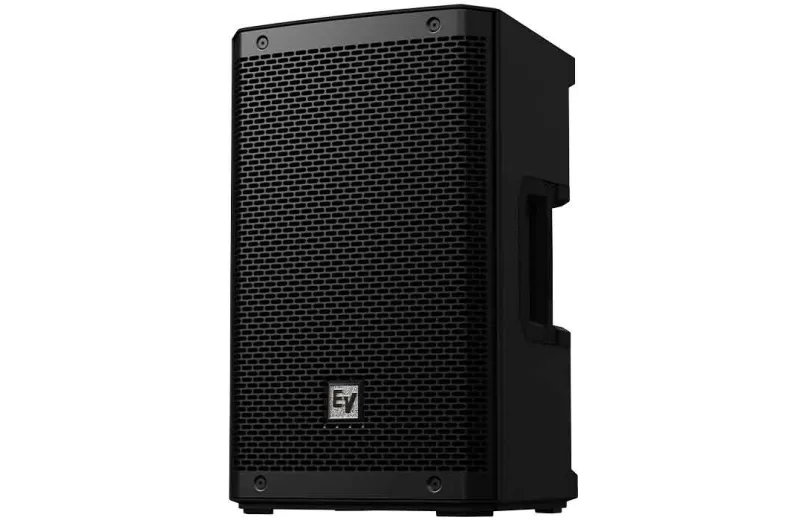

Electro-voice ZLX-8-G2 Passive Loudspeaker - Black
360224
Electro-Voice 8 ZLX G2, is a passive 8" inch portable speaker with up to 1000W at 8Ω, max SPL 124dB with 67Hz-20kHz (-3dB) frequency response and 55Hz-20kHz (-10dB) frequency range and 90dB sensitivity.
Electro-Voice 8 ZLX G2, is a passive 8/" inch portable speaker with up to 1000W at 8Ω, max SPL 124dB with 67Hz-20kHz (-3dB) frequency response and 55Hz-20kHz (-10dB) frequency range and 90dB sensitivity.
ZLX G2 offers stunning acoustic performance for everyday use for both live performance/playback and installed sound. The woofer and compression driver in each ZLX G2 model are coupled to a patented SST (Signal Synchronized Transducers) ported waveguide, enhancing low-frequency extension and delivering even vertical and horizontal coverage across all frequencies.
Passive ZLX G2 models use industry standard NL4 connections – the two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX G2 is recommended for use with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE Sound System Software.
Specification
- Type: Passive
- Amplifier Rating (Peak): 1000W
- Nominal Impedance: 8Ω
- Woofer: 8”
- Frequency response (-3 dB): 67Hz-20kHz
- Frequency range (-10 dB): 55Hz-20kHz
- Axial Sensitivity: 90dB
- Max SPL: 124dB
- Coverage angle (H x V): 90° x 60°
- Connectors: 2 x NL4
- Enclosure: Polypropylene
- Dimensions (WxHxD): 459.6 x 289.9 x 280.5mm
- Weight: 10.15Kg
- Color: Black
- Category
- Passive loudspeaker
- HF Driver Size (Inches)
- 1.4
- Impedance (Ohm)
- 8
- Sensitivity (dB)
- 90
- Maximum SPL (dB)
- 124
- Frequency Response
- 55Hz - 20kHz
- Enclosure material
- ABS
- Colour
- Black
- Width (mm)
- 289.9
- Height (mm)
- 459.6
- Depth (mm)
- 280.5
- Weight (kg)
- 10.15
New
- MPN
- ZLX-8-G2
