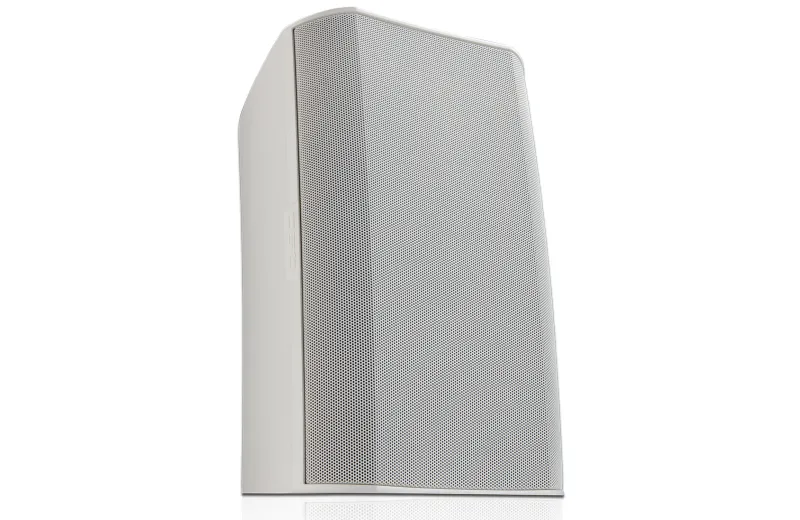

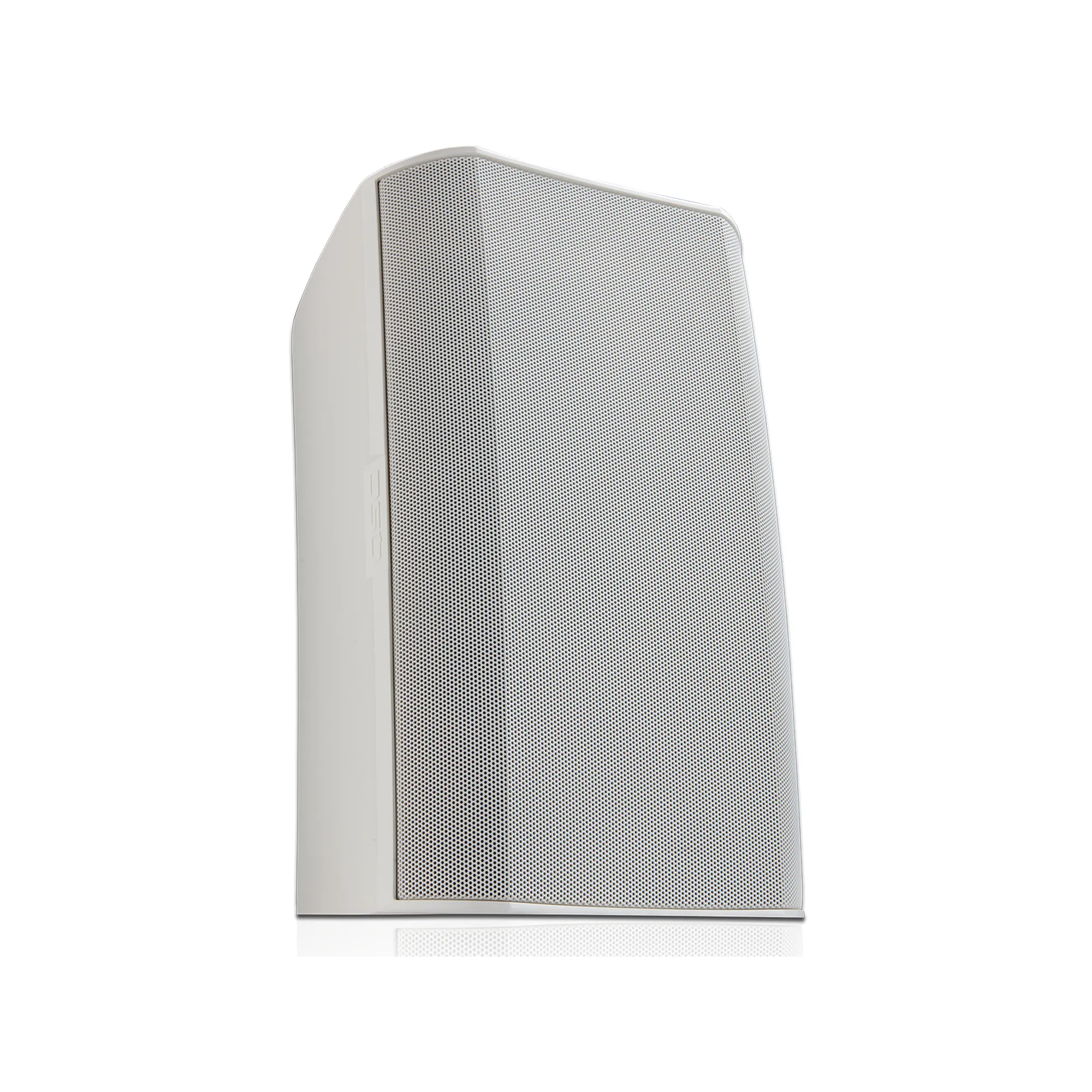

QSC AD-S10T Passive Loudspeaker - White
010134
QSC AD S10T two way speaker, power 250W RMS, 8Ω / 70V / 100V, with 10 "woofer weather resistant and horn 1" with 1.4 "voice-coil. Sensitivity 92dB SPL, frequency response 50Hz-19kHz. Scatter 90 ° (-6 dB) .Cabin made of high quality plastic in black color.X-Mount support base.Dimensions (HxWxD) 516 x 318 x 298mm - 15kg.
The QSC professional passive speaker AD-S10T 10/" is equipped with a 100V transformer.

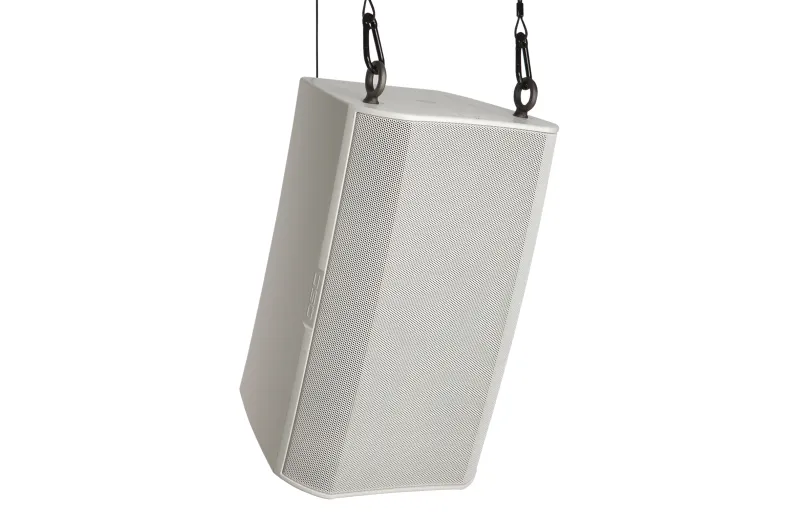

It is suitable for 70/100 V operation, whether installed in horizontal, vertical, wall, or ceiling deployments.
The AD-S10T offers conical coverage of up to 90 ° and improved off-axis response, while providing a frequency range from 50 Hz to 19 kHz (-10 dB).
The AD-S10T utilizes a 4-pole Euroblock connector under a sealed inlet cover for easy wiring and protection from moisture.
Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S10T boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.
- Category
- Passive loudspeaker
- Way
- 2
- HF Driver Size (Inches)
- 1
- Woofer Size (Inches)
- 10
- Number of Woofers
- 1
- Impedance (Ohm)
- 8
- Transformer (100V)
- Yes
- Power tappings @ 100V (W)
- 100 / 50 / 25 / 8Ω bypass
- Sensitivity (dB)
- 92
- Maximum SPL (dB)
- 126
- Frequency Response
- 50Hz - 19kHz
- Bluetooth
- No
- Enclosure material
- ABS
- Colour
- White
- Width (mm)
- 318
- Height (mm)
- 516
- Depth (mm)
- 298
- Weight (kg)
- 15
- IP Protection
- IP54
New
- EAN13
- 684284059505
- MPN
- AD S10T WH
