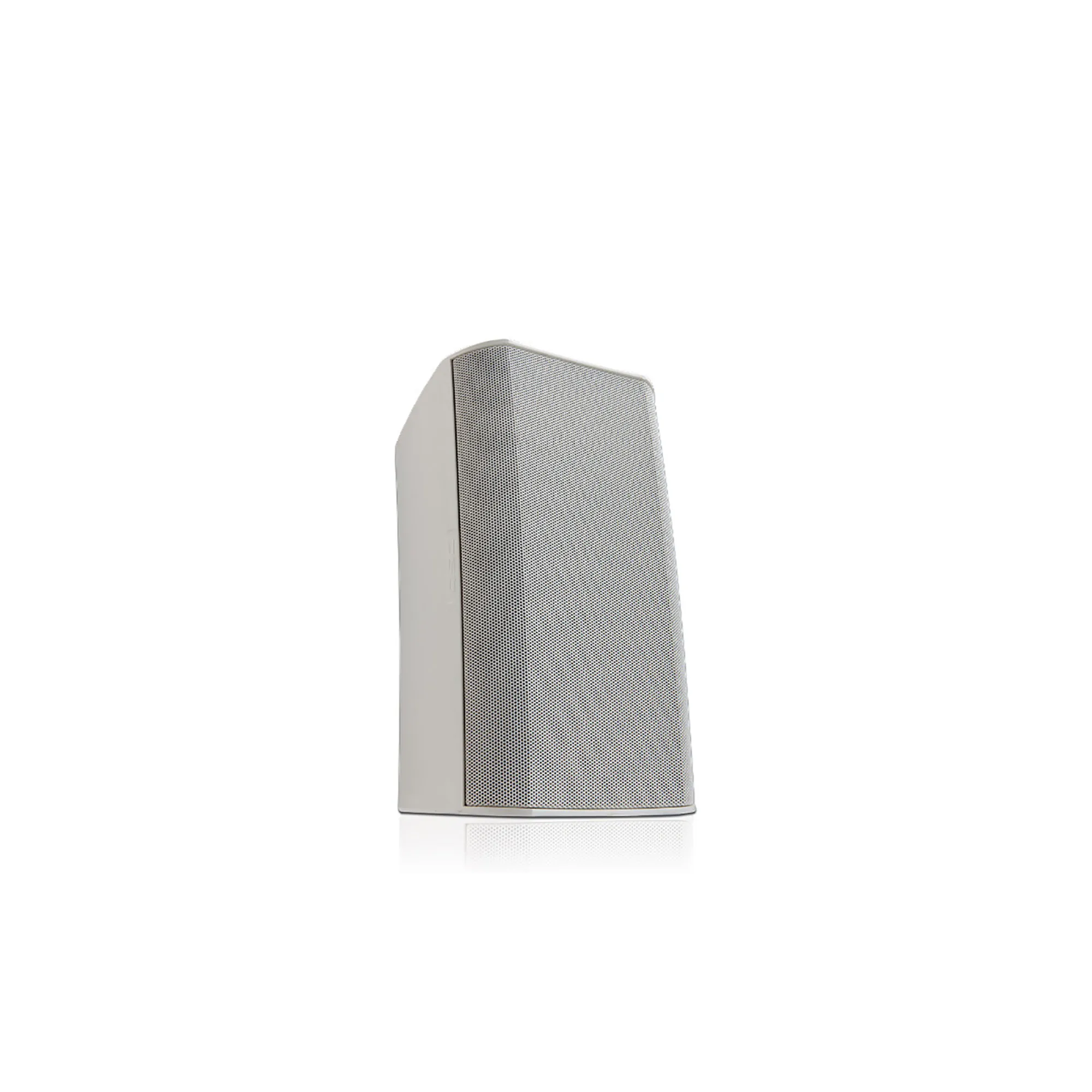

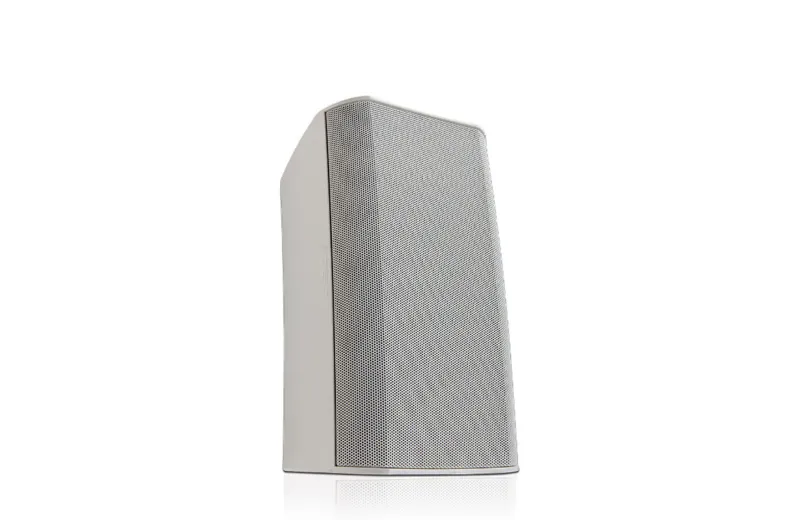

QSC AD-S12 Passive Loudspeaker - White
010136
QSC AD S12 two way speaker, power 300W RMS, with 12 "woofer weather resistant and 1" horn with 1.4 "voice-coil. Sensitivity 95 dB SPL, frequency response 52Hz-20kHz. Scattering 75 ° (-6 dB). high quality plastic in black color X-Mount support base Dimensions (HxWxD) 594 x 354 x 323mm - 16kg.
The QSC professional passive speaker AD-S12 10/" is equipped with a 100V transformer.
It is suitable for 70/100 V operation, whether installed in horizontal, vertical, wall, or ceiling deployments.
The AD-S12 offers conical coverage of up to 90 ° and improved off-axis response, while providing a frequency range from 50 Hz to 19 kHz (-10 dB).
The AD-S12 utilizes a 4-pole Euroblock connector under a sealed inlet cover for easy wiring and protection from moisture.
Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S12 boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.
- Category
- Passive loudspeaker
- Way
- 2
- HF Driver Size (Inches)
- 1
- Woofer Size (Inches)
- 12
- Number of Woofers
- 1
- Power W RMS
- 300
- Impedance (Ohm)
- 8
- Transformer (100V)
- Yes
- Power tappings @ 100V (W)
- 100 / 50 / 25 / 8Ω bypass
- Sensitivity (dB)
- 95
- Maximum SPL (dB)
- 126
- Frequency Response
- 52Hz - 20kHz
- Bluetooth
- No
- Monitor position
- Yes
- Colour
- White
- Width (mm)
- 354
- Height (mm)
- 594
- Depth (mm)
- 323
- Enclosure material
- ABS
- Weight (kg)
- 16
- IP Protection
- IP54
New
- EAN13
- 684284059529
- MPN
- AD S12 WH
