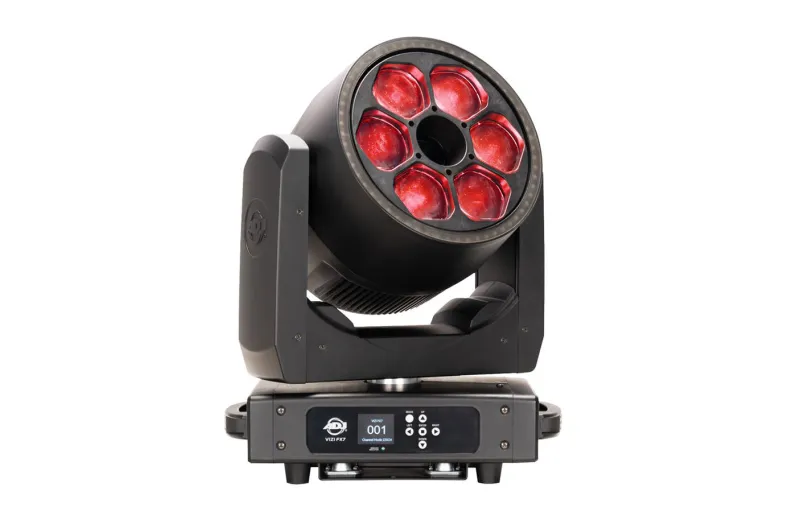

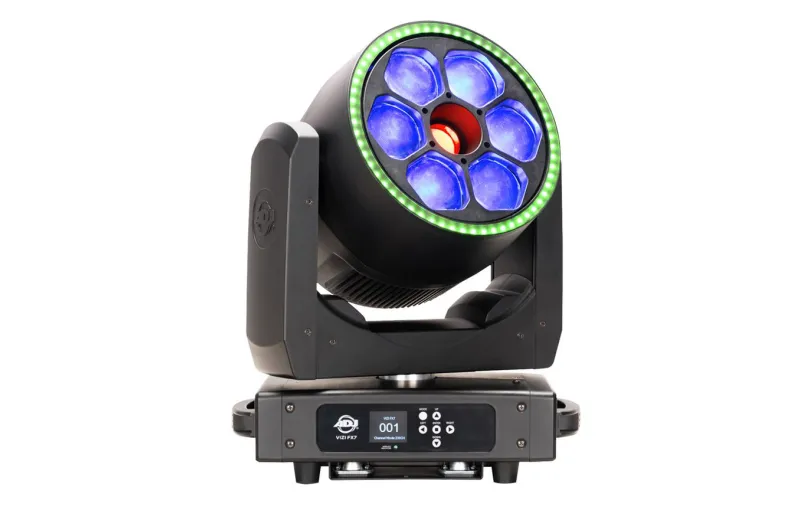

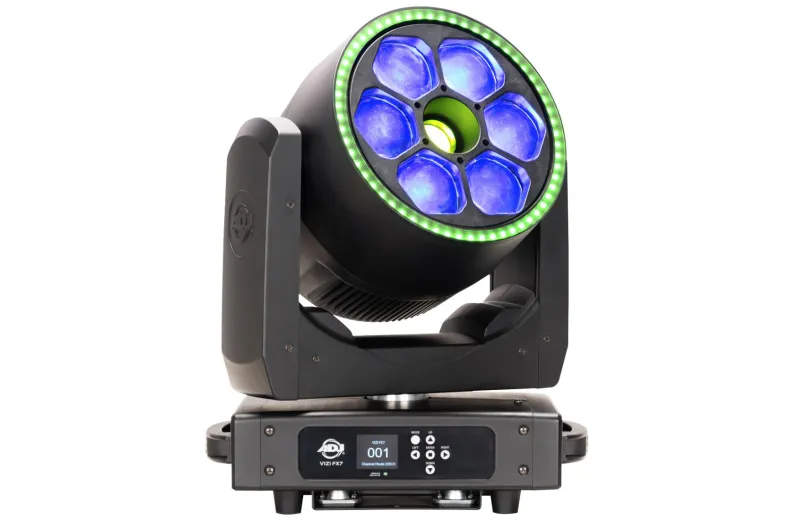

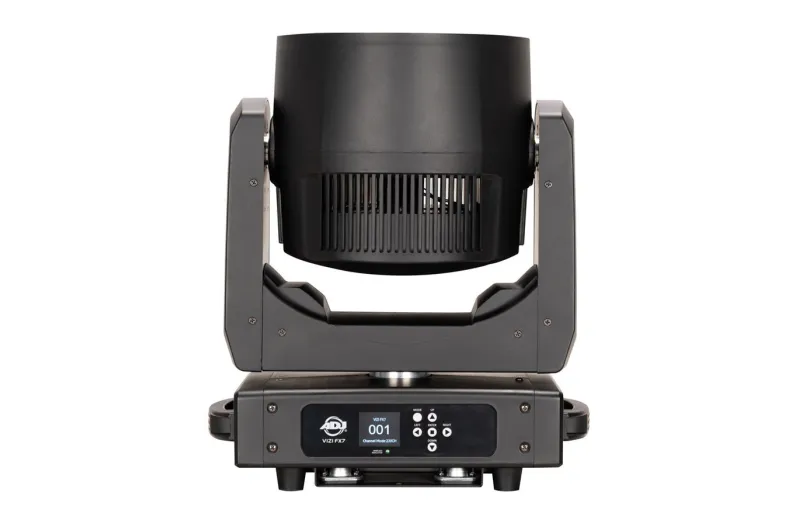

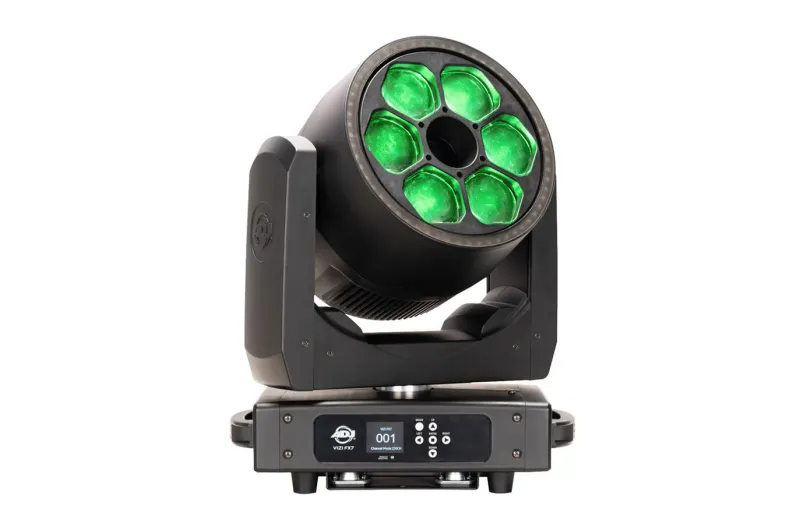

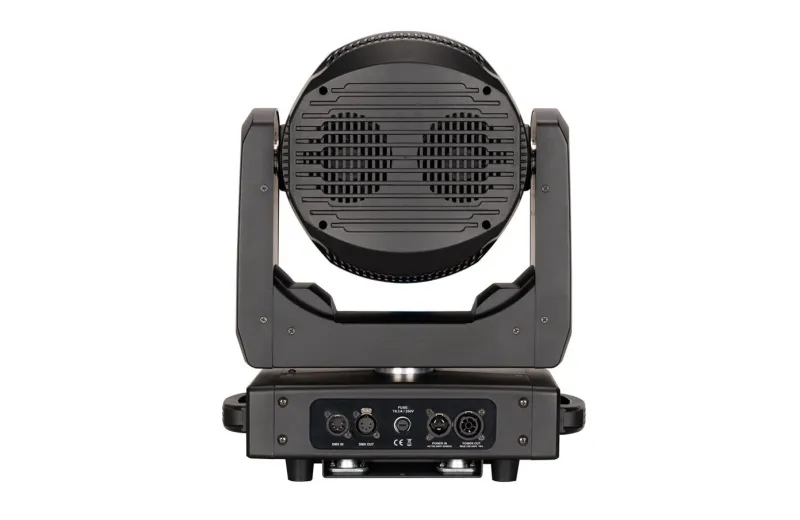

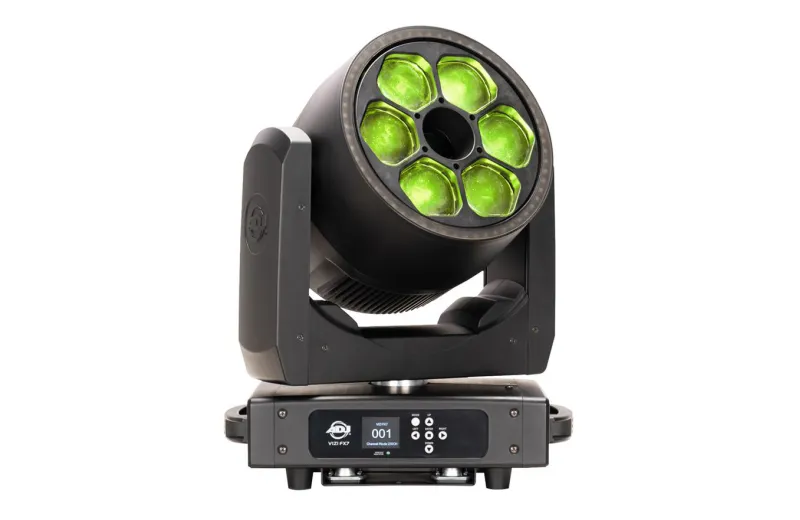

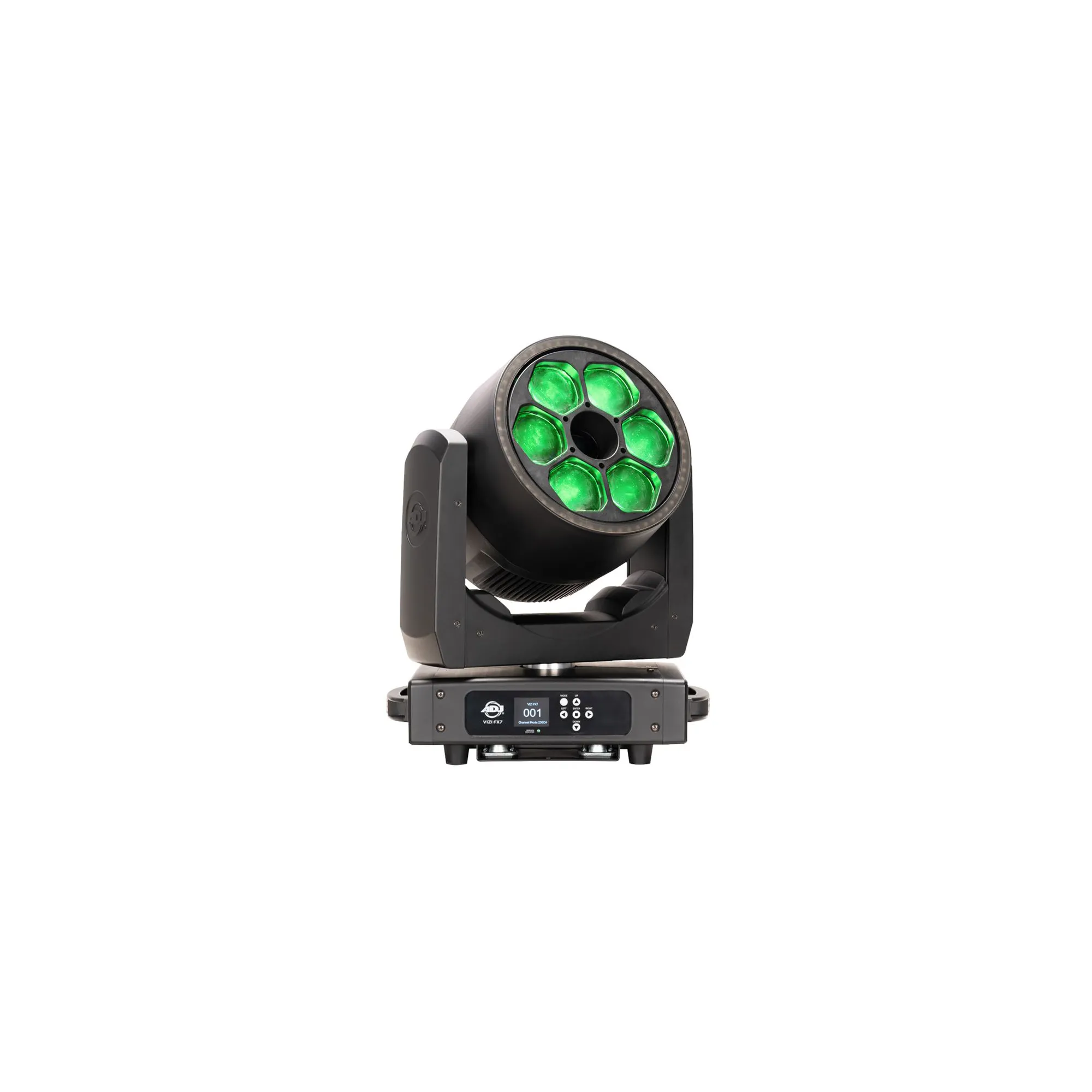

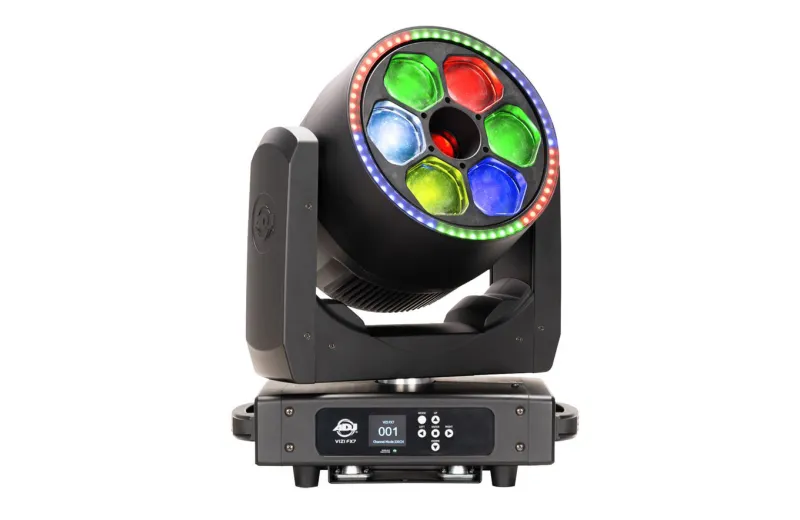

ADJ Vizi FX7

ADJ Vizi FX7 is a professional LED moving-head fixture with beam, wash and multi-effect capabilities. It features 6 ? 60W RGBL LEDs arranged in a circular formation for powerful wash and beam output, one central 60W RGBL LED for kaleidoscope-style effects, and a perimeter ring of 60 ? 0.5W RGBL LEDs that adds extra color-wash and edge-lighting accents.

The unit is equipped with a motorized multi-directional rotating lens system, delivering continuous movement and dynamic beam patterns. Each LED can be controlled independently (pixel control), offering complete freedom to create custom designs, color combinations, chases and complex visual effects.

It fully supports DMX & RDM, and with the built-in Aria X2 wireless module it can operate cable-free, making setup faster and cleaner.
Additional features include multiple dimming modes and a high LED refresh rate (up to 25 kHz) for flawless performance in video, streaming and broadcast environments.

Main + Kaleidoscope Center
7 x 60-Watt RGBL LEDs
Color Temperature: 2800K ~ 8,500K
50,000 Hour Average LED Life*

Ring
60 x 0.5-Watt RGB LEDs
50,000 Hour Average LED Life*

Bi-Directional Primary LED Beam Rotation
Individual Primary LED Pixel Control
Bi-Directional Multi-Color Rotating Kaleidoscope
Built-In FX Programs with Speed Control
Motorized Zoom: 8° to 38°
1Hz ~ 20Hz Strobe Rate (Electronic)

(4) DMX Channel Modes (23CH / 46CH / 48CH and 51CH) Plus 1 User Definable DMX Mode
DMX and RDM
Aria X2 Wireless Management System
Selectable LED Refresh Rates (900 Hz~25K Hz)
Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
0–100% Dimming
Fan Cooled
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Pan: 540°
Tilt: 190°
3 Phase Motors

Length: 365mm
Width: 220mm
Vertical Height: 434.4mm
Weight: 13.5 kg
IP20
